Isuzu WW
▶
TRUCKS
▶
FVR
▶
10893 - FVR(HONG KONG)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

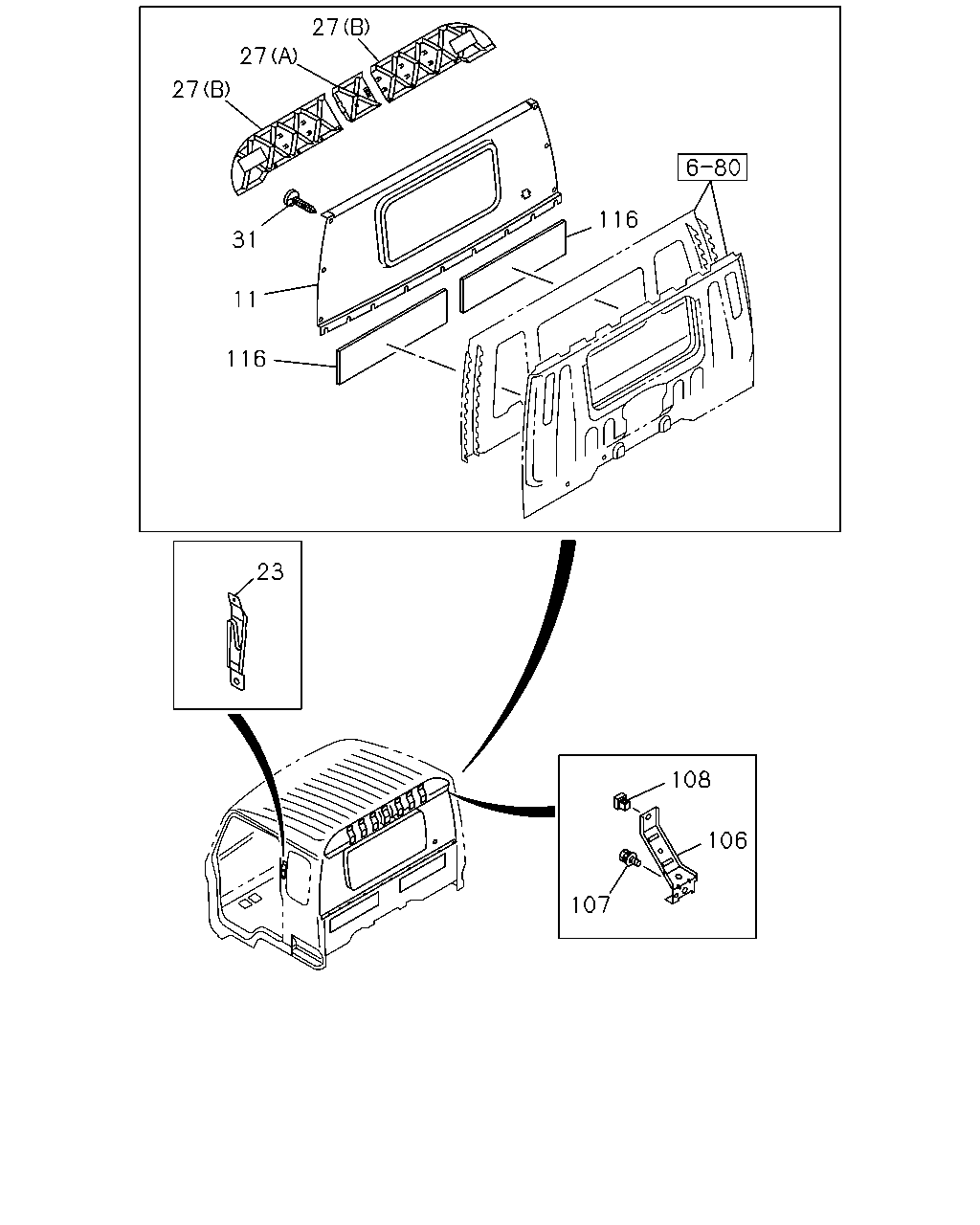

6-84 - BACK TRIM
▶
6-84 — BACK TRIM
(#25265) — 34 parça
Tümü
A - FVR5FF
B - FVR5MF
27
27
27
116
31
11
116
23
108
106
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY>
1-73346-031-1
01
1
0301-
●
11
TRIM; ROOM,BACK INNER
1-73348-903-1
01
1
9601-0004
●
11
TRIM; ROOM,BACK INNER
1-73348-925-2
01
1
0005-0212
●
11
TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY>
1-73348-925-4
01
1
0301-
●
11
TRIM; ROOM,BACK INNER
1-73348-874-3
01
1
9601-9803
●
23
FINISHER; BACK INNER PANEL
1-73347-789-1
01
1
9601-9803
●
●
23
FINISHER; BACK INNER PANEL
1-73347-789-1
01
1
9804-
●
23
FINISHER; BACK INNER PANEL
1-73347-788-1
01
1
9601-9803
●
●
23
FINISHER; BACK INNER PANEL
1-73347-788-1
01
1
9804-
●
27
COVER; TRIM,BACK
(A)
1-73348-477-2
01
1
9601-9803
●
27
COVER; TRIM,BACK
(B)
1-73348-888-0
01
1
9601-9705
●
●
27
COVER; TRIM,BACK
(B)
1-73348-888-0
01
1
9706-9803
●
27
COVER; TRIM,BACK
HIGH ROOF<S2F> (B)
1-73348-888-0
01
1
9706-9803
●
27
COVER; TRIM,BACK
(B)
1-73348-887-1
01
1
9601-9705
●
●
27
COVER; TRIM,BACK
(B)
1-73348-887-1
01
1
9706-9803
●
27
COVER; TRIM,BACK
HIGH ROOF<S2F> (B)
1-73348-887-1
01
1
9706-9803
●
31
CLIP; TRIM PAD
D6X23 BEIGE
1-09987-225-0
04
1
9601-9803
●
●
31
CLIP; TRIM PAD
D6X23 BEIGE
1-09987-225-0
04
1
9804-0004
●
31
CLIP; TRIM PAD
D6X23 LIGHT GRAY
1-73318-629-0
27
1
0005-
●
31
CLIP; TRIM PAD
D6X23 DARK GRAY
1-09987-238-0
23
1
9601-9803
●
●
31
CLIP; TRIM PAD
D6X23 DARK GRAY
1-09987-238-0
23
1
9804-0004
●
106
BRACKET; BACK TRIM
1-73348-411-4
08
1
9601-9803
●
106
BRACKET; BACK TRIM
1-73348-411-4
07
1
9601-9705
●
106
BRACKET; BACK TRIM
HIGH ROOF<S2F>
1-73348-411-4
07
1
9706-9803
●
107
SCREW; BRKT
M5X20
5-09981-059-0
16
1
9601-9803
●
107
SCREW; BRKT
M5X20
5-09981-059-0
14
1
9601-9705
●
107
SCREW; BRKT
HIGH ROOF<S2F> M5X20
5-09981-059-0
14
1
9706-9803
●
108
GROMMET; SCREW
D=8X8 L=7.5 M5 YELLOW
8-94279-740-0
16
1
9601-9708
●
108
GROMMET; SCREW
D=8.6X7.7 L=7.5
8-94279-078-0
16
1
9709-9803
●
108
GROMMET; SCREW
D=8X8 L=7.5 M5 YELLOW
8-94279-740-0
14
1
9601-9705
●
108
GROMMET; SCREW
HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW
8-94279-740-0
14
1
9706-9708
●
108
GROMMET; SCREW
HIGH ROOF<S2F> D=8.6X7.7 L=7.5
8-94279-078-0
14
1
9709-9803
●
116
INSULATOR; BACK PANEL
1-73368-002-0
02
1
9601-9803
●
●
116
INSULATOR; BACK PANEL
1-73368-002-2
02
1
9804-
●
