◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#25263) — 18 parça

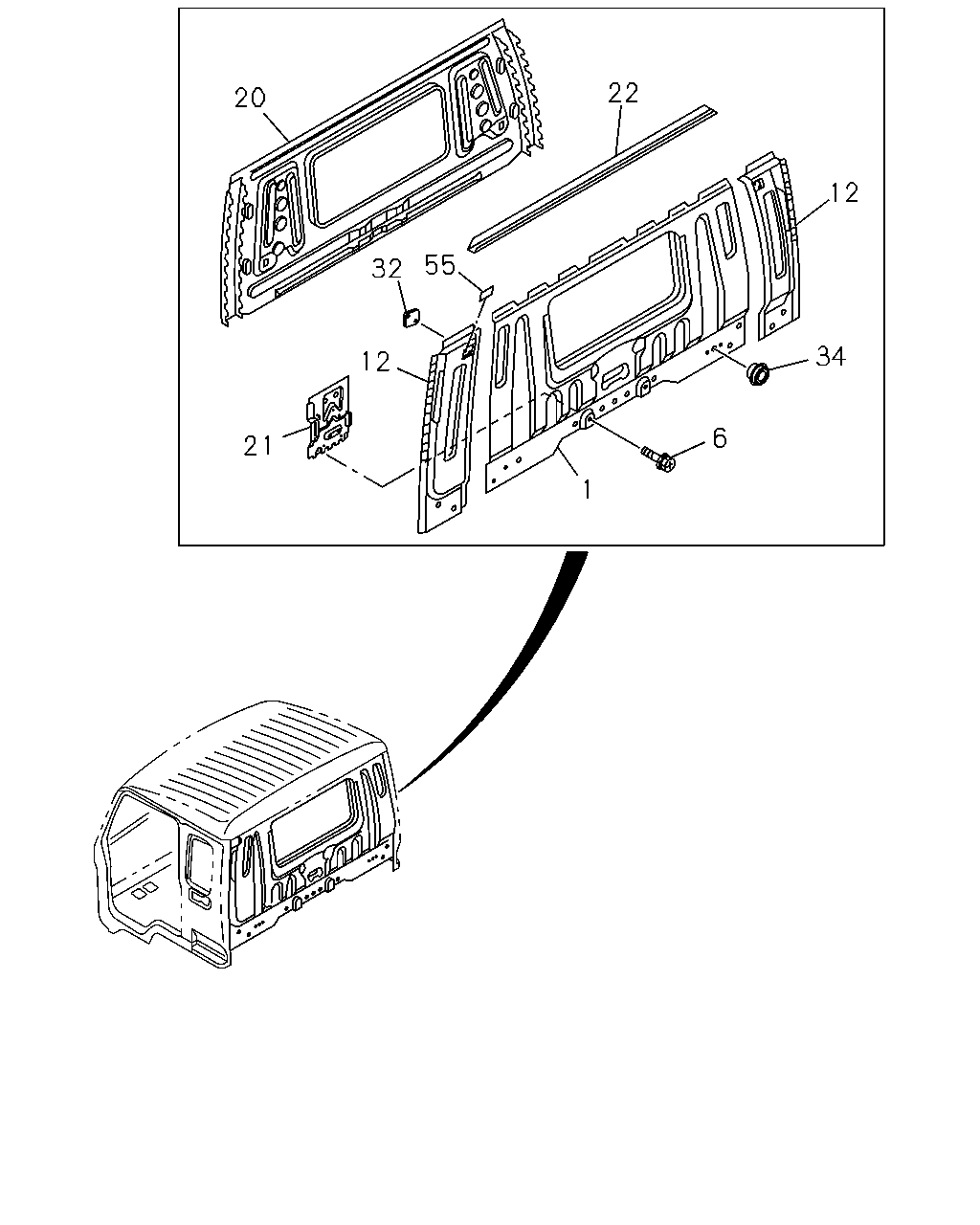

çizim 86039
22 20 12 55 32 34 12 6 21 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
PRIMER 		1-61580-924-9 01 1 9601- ●
1 PANEL; BACK OUTER 1-61580-912-9 01 1 9601-9604 ●
1 PANEL; BACK OUTER
PRIMER 		1-61580-964-0 01 1 9605-9803 ●
6 BOLT; BACK PANEL
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 9601-9803 ● ●
6 BOLT; BACK PANEL
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 9804- ●
12 PANEL; EXT,BACK OUTER
PRIMER 		1-61580-926-6 01 1 9601- ●
12 PANEL; EXT,BACK OUTER
PRIMER 		1-61580-925-6 01 1 9601- ●
20 PANEL; BACK INNER,CENTER 1-61580-948-1 01 1 9601- ●
20 PANEL; BACK INNER,CENTER 1-61580-947-0 01 1 9601-9803 ●
21 REINFORCEMENT; CAB LK 1-61580-956-0 01 1 9601-9803 ● ●
21 REINFORCEMENT; CAB LK 1-61580-956-0 01 1 9804- ●
22 MOLDING; DRIP,BACK PANEL 1-61580-917-1 01 1 9601- ●
22 MOLDING; DRIP,BACK PANEL 1-61580-916-1 01 1 9601-9803 ●
32 PATCH; AIR INT DUCT 1-61580-928-1 01 1 9601-9803 ● ●
32 PATCH; AIR INT DUCT 1-61580-928-1 01 1 9804- ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 9601-9803 ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 9804- ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 9902-0511 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
