◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#25262) — 49 parça

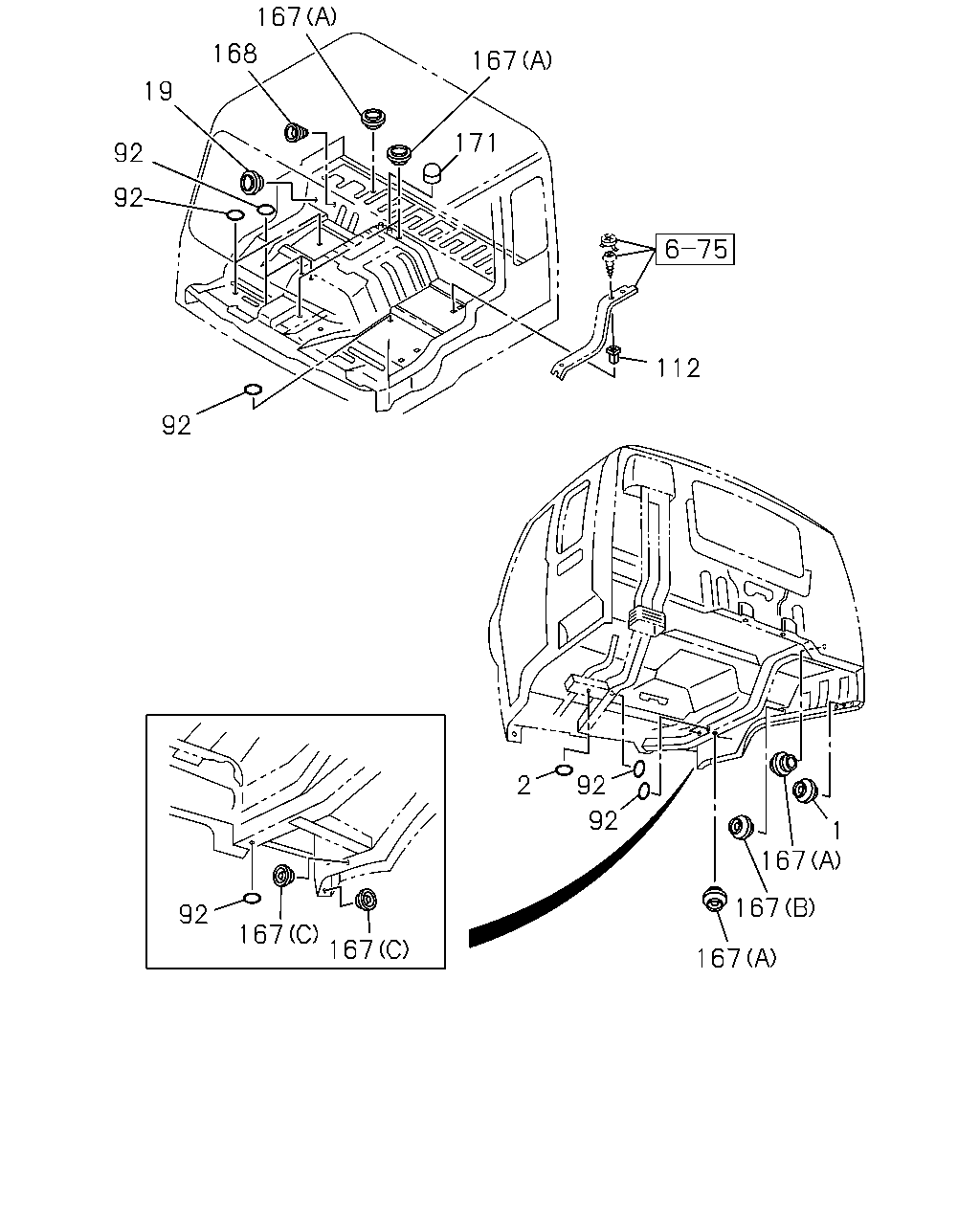

çizim 86040
167 168 167 19 171 92 92 112 92 2 92 92 1 167 167 92 167 167 167
BalonParca AdiParca NoAdetTipApplied Date A B
1 GROMMET
OD=40 		1-09600-083-0 02 1 9601-9803 ● ●
1 GROMMET
OD=40 		1-09600-083-0 02 1 9804- ●
2 GROMMET
OD=25 BLACK 		1-76798-019-0 02 1 9601-9803 ● ●
2 GROMMET
OD=25 BLACK 		1-76798-019-0 02 1 9804- ●
19 GROMMET; FLOOR FRT
OD=28 		8-94279-720-0 02 1 9601-9803 ● ●
19 GROMMET; FLOOR FRT
OD=28 		8-94279-720-0 02 1 9804- ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9601-9710 ● ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9711-9803 ● ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9711-9803 ● ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9804-9806 ●
92 SEAL; LOCATION HOLE
OD=36 BLACK 		1-76798-018-0 02 1 9804-9806 ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0004 ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9807-0004 ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0005-0203 ●
92 SEAL; LOCATION HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0204- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 9601-9803 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 21 1 9804-0004 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 23 1 0005-0106 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 25 1 0107- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9601-9705 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9601-9705 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9706-9803 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9706-9803 ● ●
92 SEAL; LOCATION HOLE
CENTER SEAT DELETE<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 9706-9803 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9804-0004 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0005-0106 ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0005-0106 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 12 1 9601-9710 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 9711-9803 ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9601-9803 ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9804- ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 02 1 9601-9709 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 02 1 9601-9709 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 9710-9803 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 9710-9803 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 9804-0106 ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 9804-0106 ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 08 1 0107- ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 04 1 9601-9709 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 9710-9803 ● ●
167 GROMMET; LOCATION HOLE
(C) OD=35 		8-94122-971-0 04 1 9601-9803 ● ●
167 GROMMET; LOCATION HOLE
(C) OD=35 		8-94122-971-0 04 1 9804- ●
167 GROMMET; LOCATION HOLE
(B) OD=15.0 		8-94279-040-0 02 1 9601-9803 ● ●
167 GROMMET; LOCATION HOLE
(B) OD=15.0 		8-94279-040-0 02 1 9804- ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9601-9803 ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9804- ●
171 CAP; STUD
CENTER SEAT DELETE<SP9> EXC. HIGH ROOF<S2F> 		1-71736-200-0 02 1 9706-9803 ●
