◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#25260) — 40 parça

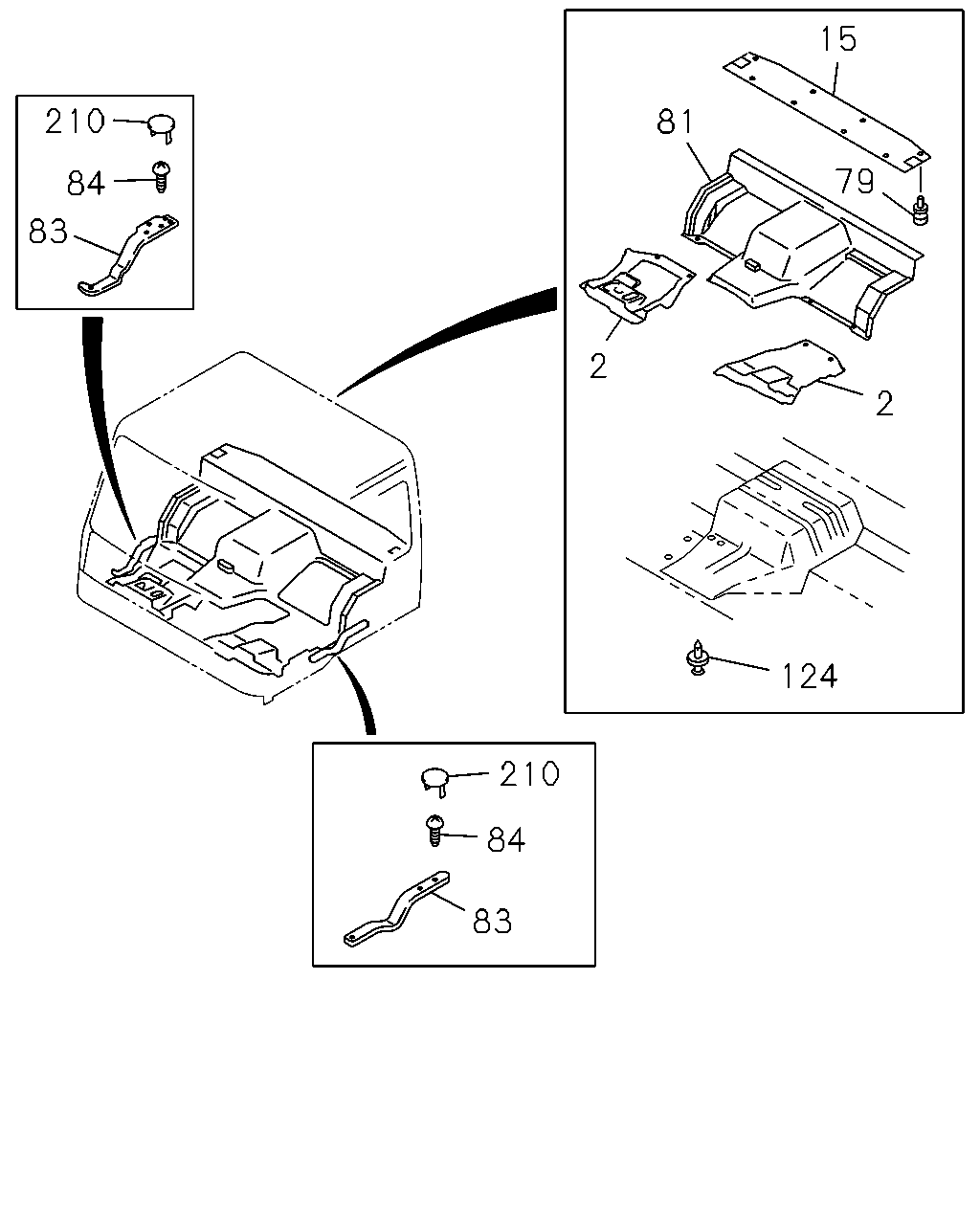

çizim 86071
15 210 81 79 84 83 2 2 124 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR 1-73236-045-0 01 1 9601-0004 ●
2 MAT; FLOOR 1-73236-181-0 01 1 0005-0202 ●
2 MAT; FLOOR 1-73236-472-1 01 1 0203- ●
2 MAT; FLOOR 1-73236-044-0 01 1 9601-0004 ●
2 MAT; FLOOR 1-73236-179-0 01 1 0005-0006 ●
2 MAT; FLOOR 1-73236-358-0 01 1 0007-0202 ●
2 MAT; FLOOR 1-73236-471-1 01 1 0203- ●
2 MAT; FLOOR 1-73236-016-0 01 1 9601-9705 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-016-0 01 1 9706-9803 ●
2 MAT; FLOOR 1-73236-015-0 01 1 9601-9705 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-015-0 01 1 9706-9803 ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-017-0 01 1 9706-9803 ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-043-0 01 1 9706-9803 ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> 		1-73236-060-1 01 1 9601-0004 ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> 		1-73236-308-0 01 1 0005-0106 ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> 		1-73238-945-2 01 1 9601-9705 ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73238-945-2 01 1 9706-9802 ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> 		1-73238-945-2 01 1 9803-9803 ●
15 MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40> LOW ROOF<6XQ> 		1-73238-945-2 01 1 9803-9803 ●
79 HOOK; MALE
BLACK 		8-94279-089-0 08 1 9601-9803 ● ●
79 HOOK; MALE
BLACK 		8-94279-089-0 08 1 9804- ●
81 MAT; FLOOR,CENTER 1-73236-048-3 01 1 9601-0004 ●
81 MAT; FLOOR,CENTER 1-73236-306-5 01 1 0005-0202 ●
81 MAT; FLOOR,CENTER 1-73236-497-3 01 1 0203- ●
81 MAT; FLOOR,CENTER 1-73238-999-5 01 1 9601-9705 ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73238-999-5 01 1 9706-9803 ●
81 MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30> 		1-73236-050-3 01 1 9706-9803 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9601-9803 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9804-0004 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0005- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9601-9803 ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9804-0004 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0005- ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9601-9803 ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9804- ●
124 FASTENER 1-09470-007-0 04 1 9601-9803 ● ●
124 FASTENER 1-09470-007-0 04 1 9804- ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9601-9803 ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9804-0004 ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
