◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#25259) — 45 parça

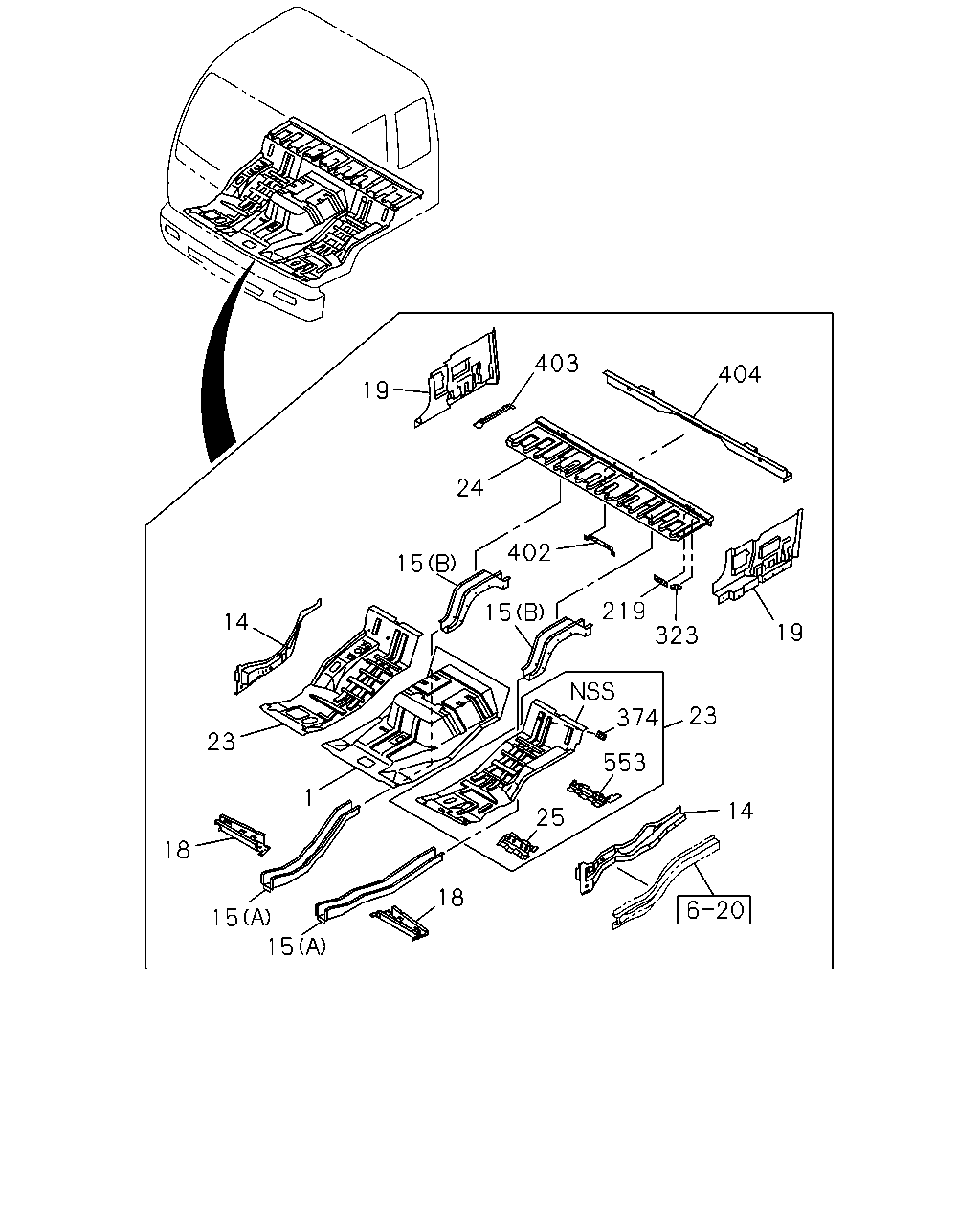

çizim 85979
404 403 19 24 15 402 15 219 323 19 23 14 374 553 25 18 15 15 18 1 23 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 1-62183-253-8 01 1 0107- ●
1 PANEL; FLOOR 1-62183-253-8 01 1 9601-0106 ●
1 PANEL; FLOOR 1-62183-138-9 01 1 9601-9706 ●
1 PANEL; FLOOR 1-62183-405-0 01 1 9707-9803 ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9601-9803 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9804- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9601-9803 ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9804- ●
15 FRAME; UNDER
(A) 		1-62482-931-8 01 1 9601-9803 ● ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 9804-0401 ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ●
15 FRAME; UNDER
(B) 		1-62483-154-2 01 1 9601-9803 ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 9804- ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9601-9803 ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9804-0103 ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ●
15 FRAME; UNDER
(B) 		1-62483-153-2 01 1 9601-9803 ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 9804- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-977-9 01 1 9601- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-976-9 01 1 9601- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-4 01 1 9601-9803 ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-4 01 1 9601-9803 ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9601-9803 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9804- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9601-9803 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9804- ●
23 PANEL; FLOOR,SIDE 1-62183-255-5 01 1 9601- ●
23 PANEL; FLOOR,SIDE 1-62183-252-5 01 1 9601- ●
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9601-9803 ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 9601-9803 ●
24 PANEL; BED PAN 1-62182-958-9 01 1 9601- ●
24 PANEL; BED PAN 1-62182-940-9 01 1 9601-9803 ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 9601- ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9601-9803 ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9804- ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9601-9803 ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9804- ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 9601- ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9601-9803 ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9804- ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 9601- ●
404 RAIL ASM; MTG,RR 1-62483-127-0 02 1 9601-9703 ●
404 RAIL ASM; MTG,RR 1-62483-127-1 01 1 9704- ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 9601-9803 ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 9601- ●
