◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#25258) — 117 parça

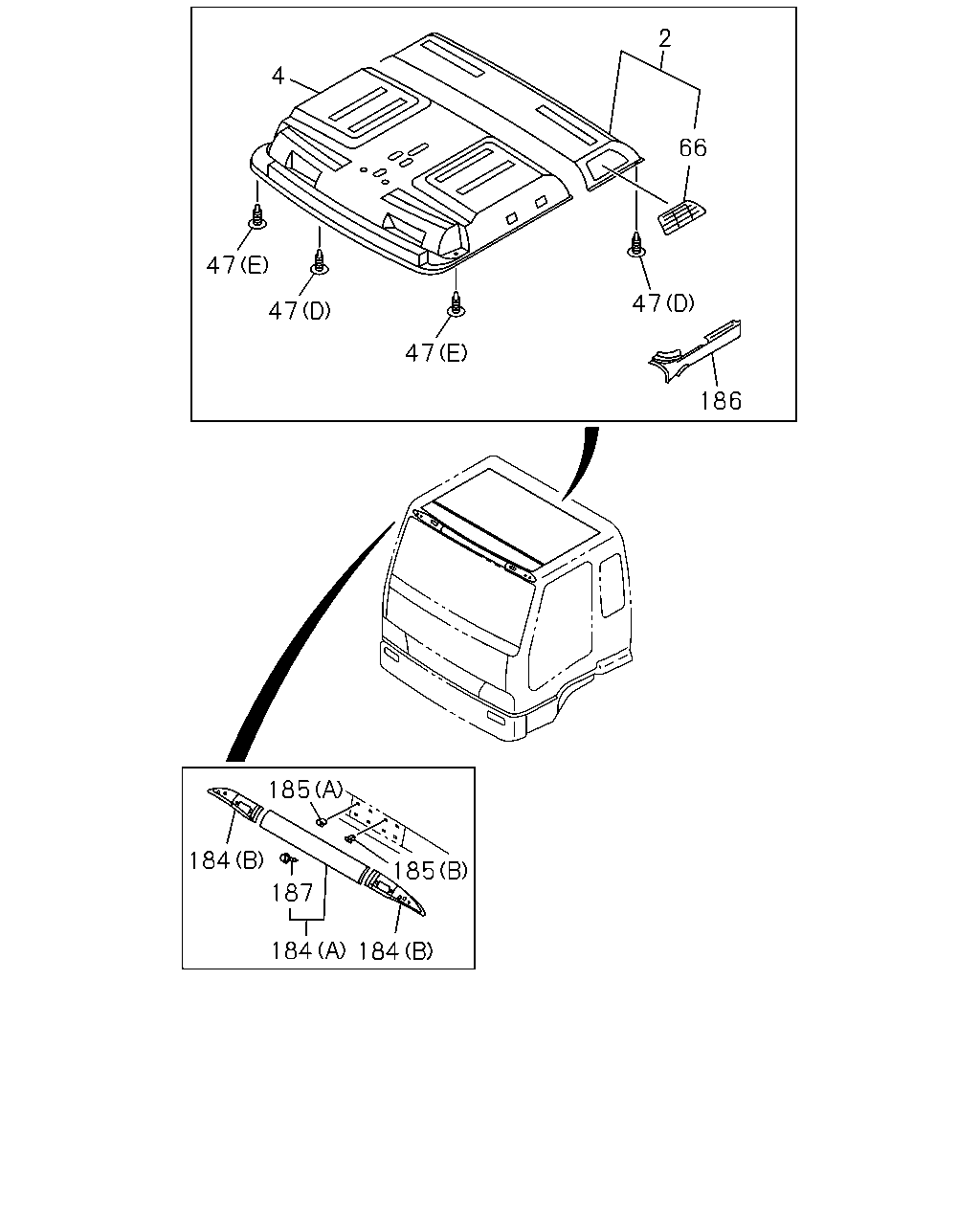

çizim 85690
2 4 66 47 47 47 47 186 185 184 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-710-2 01 1 0301- ●
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73318-573-2 01 1 9706-9803 ●
2 LINING; HD,ROOF RR 1-73318-601-3 01 1 9804-0212 ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-601-5 01 1 0301- ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> 		1-73318-701-2 01 1 0301- ●
4 LINING; ROOF,FRT
LOW ROOF<6XQ> 		1-73318-572-2 01 1 9706-9803 ●
4 LINING; ROOF,FRT 1-73318-603-3 01 1 9804-0212 ●
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-603-5 01 1 0301- ●
47 CLIP; HEADLINING
(A) D4.7X15 GRAY 		8-94279-801-0 08 1 9601-9803 ●
47 CLIP; HEADLINING
(D) D6X23 LIGHT GRAY 		1-73318-629-0 13 1 9804- ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (E) D7.7X25 LIGHT GRAY 		1-73317-371-0 08 1 9804-0106 ●
47 CLIP; HEADLINING
(A) D4.7X15 GRAY 		8-94279-801-0 07 1 9601-9705 ●
47 CLIP; HEADLINING
HIGH ROOF<S2F> (A) D4.7X15 GRAY 		8-94279-801-0 07 1 9706-9803 ●
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) D6X23 DARK GRAY 		1-09987-238-0 08 1 9706-9803 ●
47 CLIP; HEADLINING
LOW ROOF<6XQ> (C) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9706-9803 ●
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 9804-0212 ●
66 GRILLE; AIR OUTLET
EXC. PROVISIONAL PACKAGE<NLY> 		1-73317-367-1 01 1 0301-0306 ●
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 0307- ●
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 9804-0212 ●
66 GRILLE; AIR OUTLET
EXC. PROVISIONAL PACKAGE<NLY> 		1-73317-366-1 01 1 0301-0306 ●
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 0307- ●
184 ORNAMENT; ROOF
(A) 		1-73318-626-0 01 1 9706- ●
184 ORNAMENT; ROOF
(B) 		1-73318-486-2 01 1 9601-9602 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 9603-9705 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 9706-9803 ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-581-0 01 1 9706-9803 ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 9804- ●
184 ORNAMENT; ROOF
(B) 		1-73318-485-2 01 1 9601-9602 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 9603-9705 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 9706-9803 ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-580-0 01 1 9706-9803 ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 9804- ●
184 ORNAMENT; ROOF
(A) 		1-73318-481-2 01 1 9601-9602 ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 9603-9705 ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (A) 		1-73318-587-0 01 1 9706-9803 ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 9601-9705 ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 9706-9803 ●
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (A) 		1-79198-012-0 06 1 9706-9803 ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 9804- ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 9601-9705 ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 9706-9803 ●
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (B) 		1-79198-013-0 02 1 9706-9803 ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 9804- ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0301- ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0301- ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9601-9803 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9804-0004 ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0005-0212 ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-2 01 1 0301- ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9601-9803 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9804-0004 ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0005-0212 ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-2 01 1 0301- ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9601-9705 ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9706-9803 ●
187 PIN; ORNAMENT
HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 9706-9803 ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9804- ●

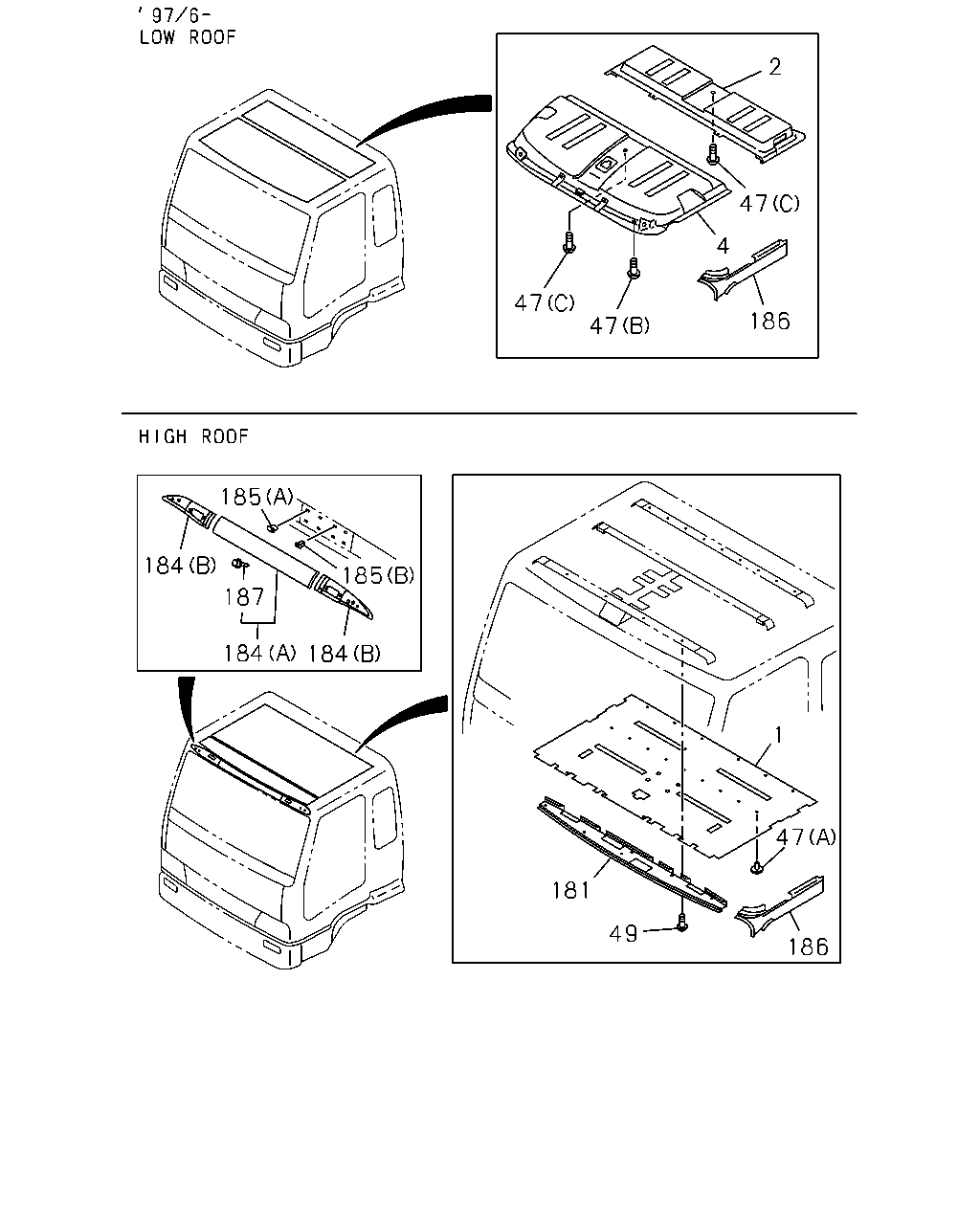

çizim 85714
2 47 4 47 186 47 185 184 185 187 184 184 1 47 181 49 186
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD 1-73318-605-1 01 1 9601-9803 ●
1 LINING; HD 1-73318-571-1 01 1 9601-9705 ●
1 LINING; HD
HIGH ROOF<S2F> 		1-73318-571-1 01 1 9706-9803 ●
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-710-2 01 1 0301- ●
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73318-573-2 01 1 9706-9803 ●
2 LINING; HD,ROOF RR 1-73318-601-3 01 1 9804-0212 ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-601-5 01 1 0301- ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> 		1-73318-701-2 01 1 0301- ●
4 LINING; ROOF,FRT
LOW ROOF<6XQ> 		1-73318-572-2 01 1 9706-9803 ●
4 LINING; ROOF,FRT 1-73318-603-3 01 1 9804-0212 ●
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-603-5 01 1 0301- ●
47 CLIP; HEADLINING
(A) D4.7X15 GRAY 		8-94279-801-0 08 1 9601-9803 ●
47 CLIP; HEADLINING
(D) D6X23 LIGHT GRAY 		1-73318-629-0 13 1 9804- ●
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (E) D7.7X25 LIGHT GRAY 		1-73317-371-0 08 1 9804-0106 ●
47 CLIP; HEADLINING
(A) D4.7X15 GRAY 		8-94279-801-0 07 1 9601-9705 ●
47 CLIP; HEADLINING
HIGH ROOF<S2F> (A) D4.7X15 GRAY 		8-94279-801-0 07 1 9706-9803 ●
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) D6X23 DARK GRAY 		1-09987-238-0 08 1 9706-9803 ●
47 CLIP; HEADLINING
LOW ROOF<6XQ> (C) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 9706-9803 ●
49 CLIP; TRIM COVER
D6X23 DARK GRAY 		1-09987-238-0 01 1 9601-9705 ● ●
49 CLIP; TRIM COVER
D6X23 DARK GRAY 		1-09987-238-0 01 1 9706-9803 ●
49 CLIP; TRIM COVER
HIGH ROOF<S2F> D6X23 DARK GRAY 		1-09987-238-0 01 1 9706-9803 ●
181 TRIM; ROOM,HEADER 1-73996-308-1 01 1 9601-9803 ●
181 TRIM; ROOM,HEADER 1-73908-107-1 01 1 9601-9705 ●
181 TRIM; ROOM,HEADER
HIGH ROOF<S2F> 		1-73908-107-1 01 1 9706-9803 ●
184 ORNAMENT; ROOF
(A) 		1-73318-626-0 01 1 9706- ●
184 ORNAMENT; ROOF
(B) 		1-73318-486-2 01 1 9601-9602 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 9603-9705 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 9706-9803 ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-581-0 01 1 9706-9803 ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 9804- ●
184 ORNAMENT; ROOF
(B) 		1-73318-485-2 01 1 9601-9602 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 9603-9705 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 9706-9803 ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-580-0 01 1 9706-9803 ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 9804- ●
184 ORNAMENT; ROOF
(A) 		1-73318-481-2 01 1 9601-9602 ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 9603-9705 ●
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (A) 		1-73318-587-0 01 1 9706-9803 ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 9601-9705 ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 9706-9803 ●
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (A) 		1-79198-012-0 06 1 9706-9803 ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 9804- ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 9601-9705 ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 9706-9803 ●
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (B) 		1-79198-013-0 02 1 9706-9803 ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 9804- ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0301- ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0301- ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9601-9803 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9804-0004 ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0005-0212 ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-2 01 1 0301- ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9601-9803 ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9804-0004 ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0005-0212 ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-2 01 1 0301- ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9601-9705 ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9706-9803 ●
187 PIN; ORNAMENT
HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 9706-9803 ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
