◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#25257) — 98 parça

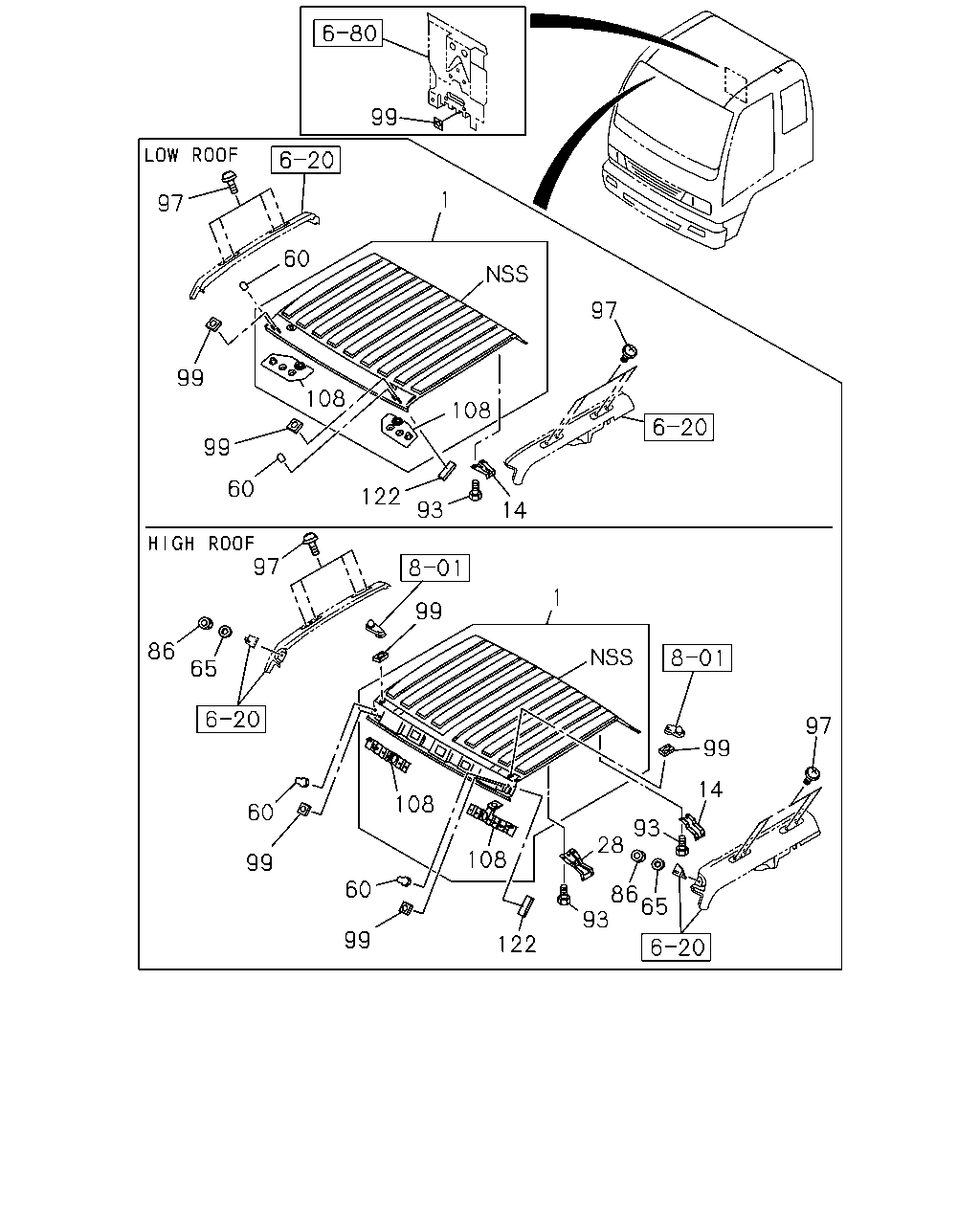

çizim 87567
99 1 97 60 97 99 108 108 99 60 122 93 14 97 1 99 86 65 97 99 14 108 60 93 28 108 99 60 86 65 93 99 122
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF 1-61181-095-0 01 1 9601-9803 ●
1 PANEL; ROOF 1-61181-174-0 01 1 9804- ●
1 PANEL; ROOF 1-61181-070-1 01 1 9601-9705 ●
1 PANEL; ROOF
HIGH ROOF<S2F> 		1-61181-070-1 01 1 9706-9803 ●
1 PANEL; ROOF
LOW ROOF<6XQ> 		1-61181-072-0 01 1 9706-9803 ●
14 SUPPORT; ROOF 1-73318-493-3 02 1 9601-9705 ● ●
14 SUPPORT; ROOF 1-73318-493-3 02 1 9706-9803 ●
14 SUPPORT; ROOF
HIGH ROOF<S2F> 		1-73318-493-3 02 1 9706-9803 ●
14 SUPPORT; ROOF
LOW ROOF<6XQ> 		1-73318-510-1 02 1 9706-9803 ●
14 SUPPORT; ROOF 1-73318-595-3 02 1 9804- ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9601- ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9601- ●
60 COVER; ROOF 1-79998-922-3 02 1 9802-9803 ●
60 COVER; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-79998-922-3 02 1 9802-9803 ●
60 COVER; ROOF 1-79998-922-3 02 1 9804-0004 ●
60 COVER; ROOF 1-79998-922-3 02 1 0005- ●
60 COVER; ROOF 1-79998-922-3 02 1 9601-9705 ● ●
60 COVER; ROOF 1-79998-922-3 02 1 9706-9801 ●
60 COVER; ROOF
HIGH ROOF<S2F> 		1-79998-922-3 02 1 9706-9801 ●
60 COVER; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> 		1-79998-922-3 03 1 9802-9803 ●
60 COVER; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> 		1-79998-922-3 03 1 9706-9801 ●
60 COVER; ROOF
LOW ROOF<6XQ> 		1-71736-200-0 02 1 9706-9801 ●
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-71736-200-0 02 1 9802-9803 ●
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> 		1-71736-200-0 03 1 9802-9803 ●
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW WIDE<WU4> 		1-71736-200-0 03 1 9706-9801 ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 9802-9803 ●
65 WASHER; PL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2> ID=8 T=2.3 		8-94368-403-1 01 1 9802-9803 ●
65 WASHER; PL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> ID=8 T=2.3 		8-94368-403-1 01 1 9802-9803 ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 9804-0701 ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 01 1 0702- ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 9601-9705 ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 9706-9801 ●
65 WASHER; PL
HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9706-9801 ●
65 WASHER; PL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> ID=8 T=2.3 		8-94368-403-1 01 1 9706-9801 ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-408-0 01 1 9802-9803 ●
86 NUT; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2> M8 LOCK NUT 		9-09131-408-0 01 1 9802-9803 ●
86 NUT; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> M8 LOCK NUT 		9-09131-408-0 01 1 9802-9803 ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-408-0 01 1 9804-0103 ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-508-0 01 1 0104-0603 ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 01 1 0604- ●
86 NUT; ROOF
M8 FLANGE 		9-09130-408-0 01 1 9601-9705 ● ●
86 NUT; ROOF
M8 FLANGE 		9-09130-408-0 01 1 9706-9801 ●
86 NUT; ROOF
HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 9706-9801 ●
86 NUT; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> M8 FLANGE 		9-09130-408-0 01 1 9706-9801 ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9601- ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9601-9803 ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9601-9612 ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9601-9612 ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9701-9803 ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9804- ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 25 1 9601-9810 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 03 1 9601-9803 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 03 1 9804-9806 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 11 1 9807-9810 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 08 1 9807-0106 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 25 1 0107- ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9807-9810 ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9807-9810 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9811-9901 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9811-9901 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9902-0106 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-0106 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 14 1 0107-0403 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-1 10 1 0404- ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0106 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9601-9705 ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9706-9803 ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9706-9803 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9804-9810 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9601-9803 ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9804-9810 ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9601-9705 ● ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9706-9803 ● ●
99 SEAL; BODY,METAL
LOW ROOF<6XQ> 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9706-9803 ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 03 1 9804-9810 ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-1 02 1 9811- ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 03 1 9601-9705 ● ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 03 1 9706-9803 ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> 30X30 ID=9 T=0.7 		1-61281-444-0 03 1 9706-9803 ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9804-9806 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 13 1 9807-0001 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 17 1 0002-0004 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 17 1 0005-0106 ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9601-9705 ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9706-9803 ●
108 PATCH; MIRROR 1-61180-979-3 01 1 9601-9705 ● ●
108 PATCH; MIRROR 1-61180-979-3 01 1 9706-9803 ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61180-979-3 01 1 9706-9803 ●
108 PATCH; MIRROR 1-61180-979-4 01 1 9804- ●
108 PATCH; MIRROR 1-61180-956-3 01 1 9601-9705 ● ●
108 PATCH; MIRROR 1-61180-956-3 01 1 9706-9803 ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61180-956-3 01 1 9706-9803 ●
108 PATCH; MIRROR 1-61180-956-4 01 1 9804- ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61281-241-5 01 1 9706-9803 ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61181-029-4 01 1 9706-9803 ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 9705-9803 ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 9804-0809 ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810- ●
