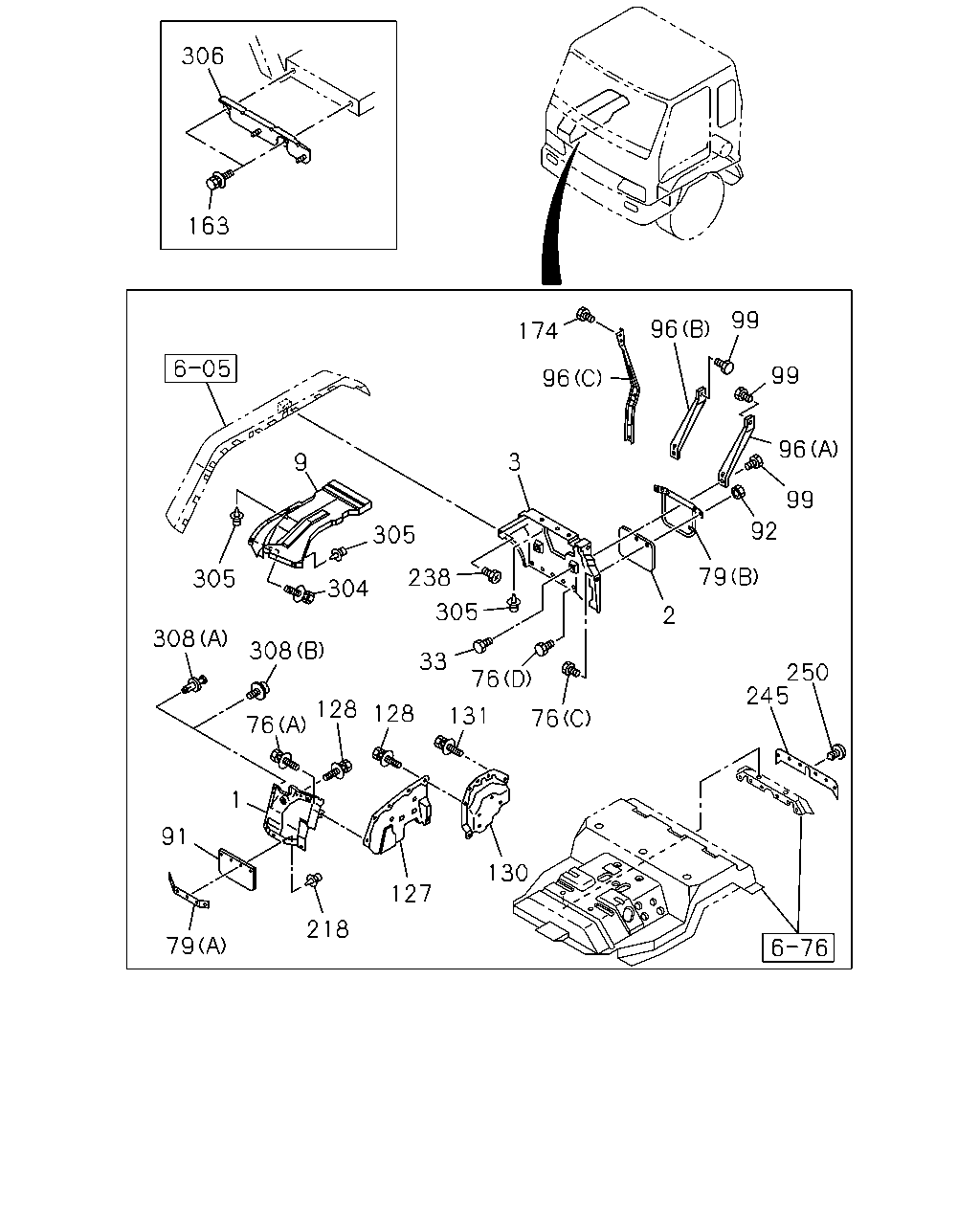

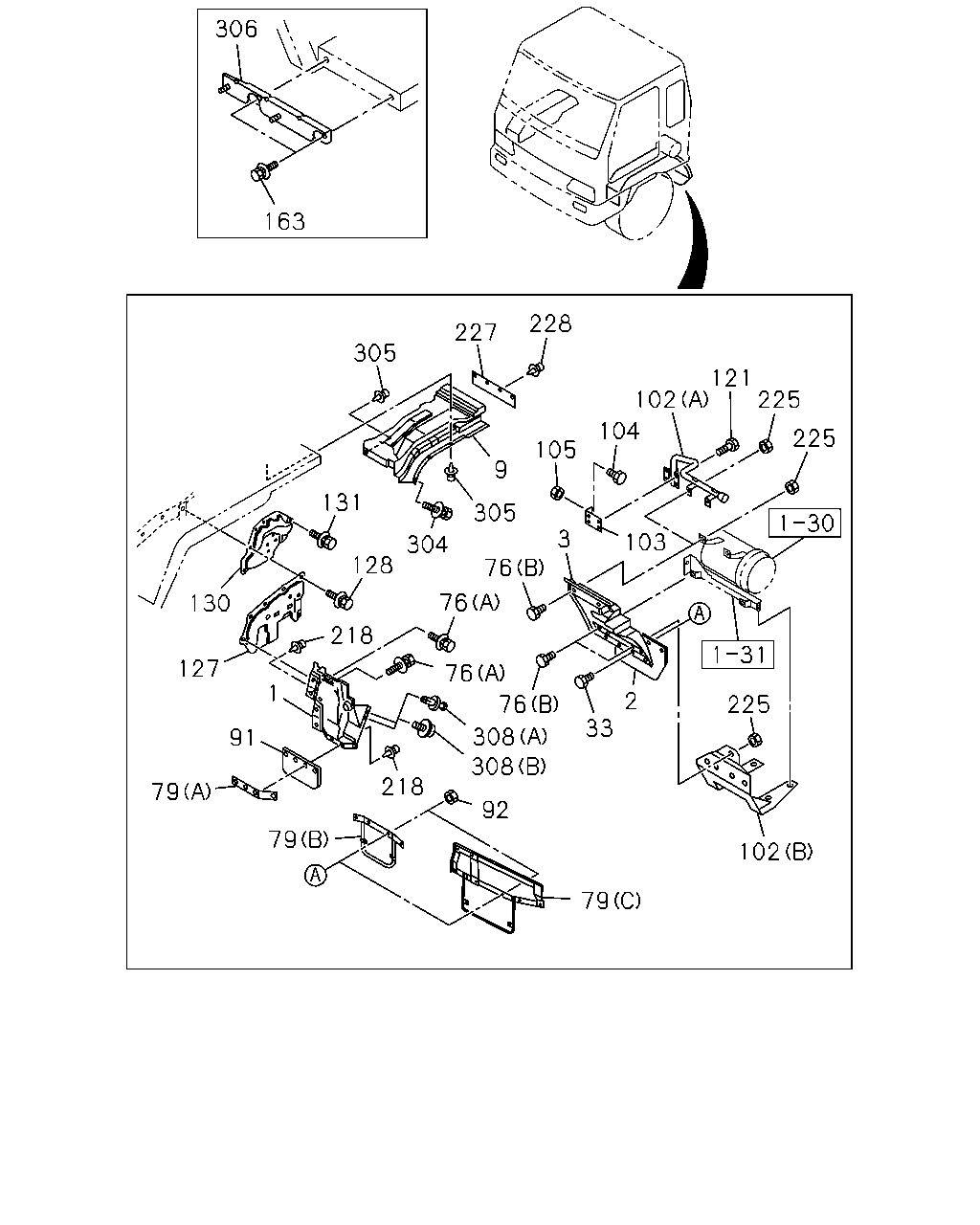

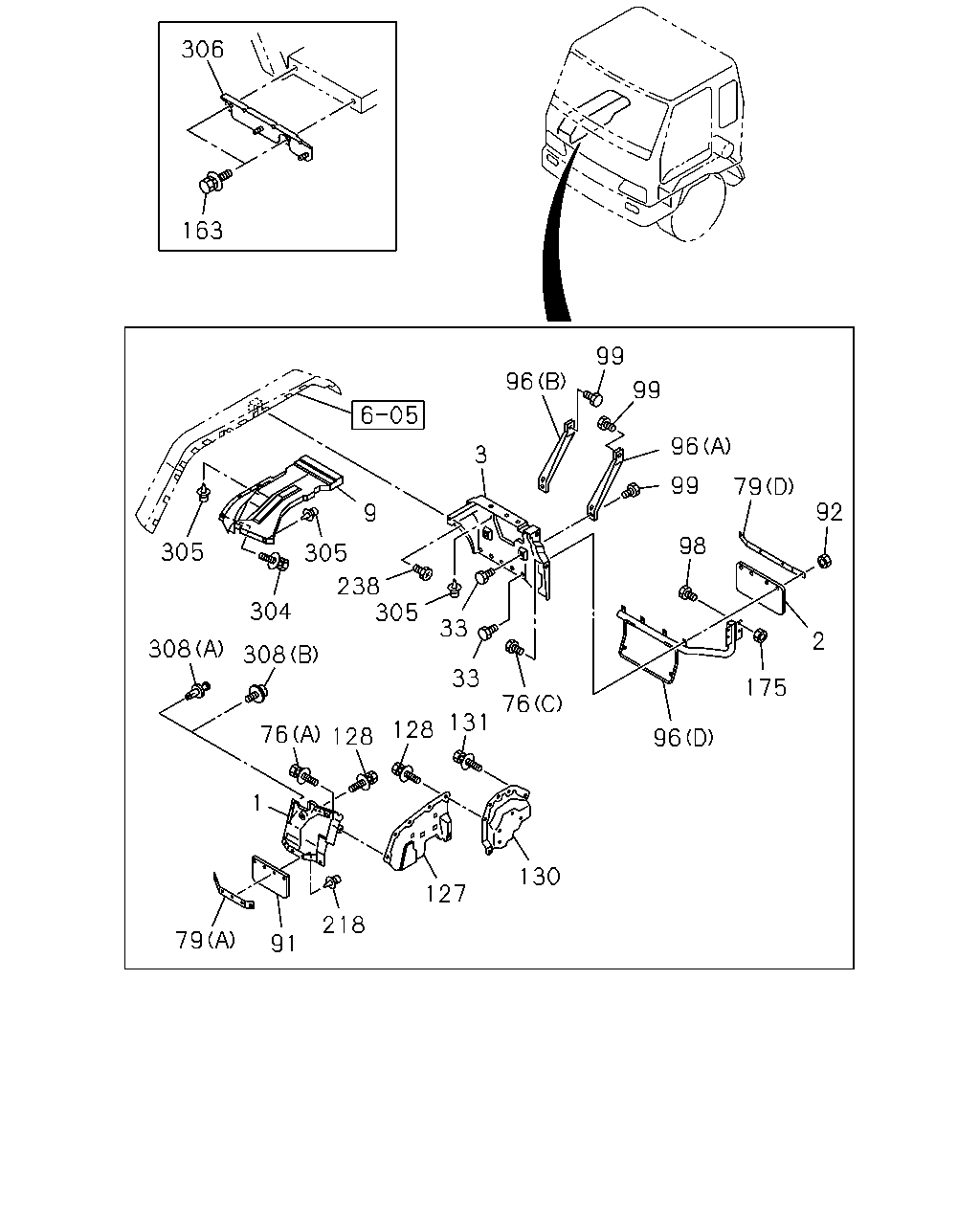

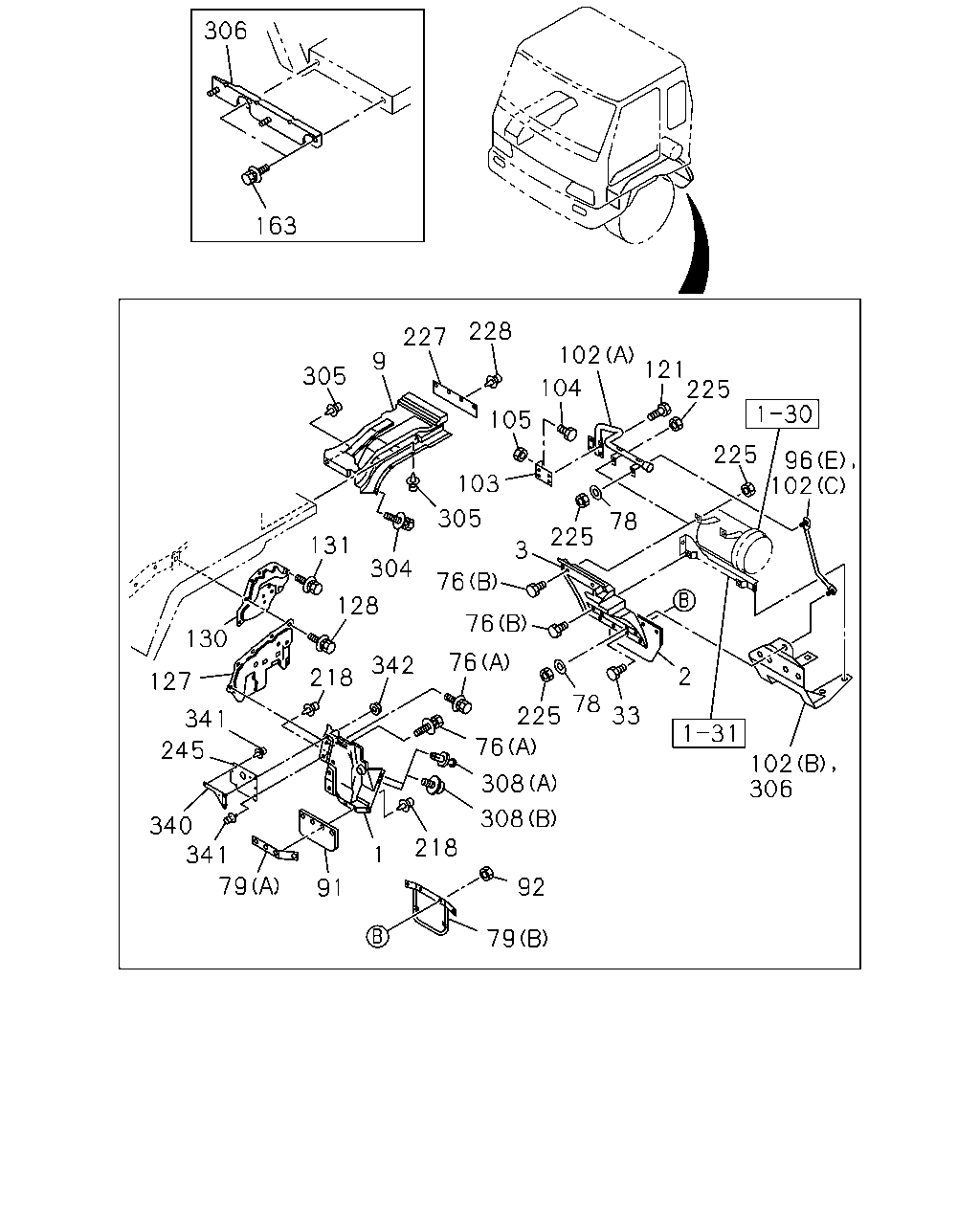

6-47 — MUD GUARD AND INSULATOR (#25256) — 722 parça

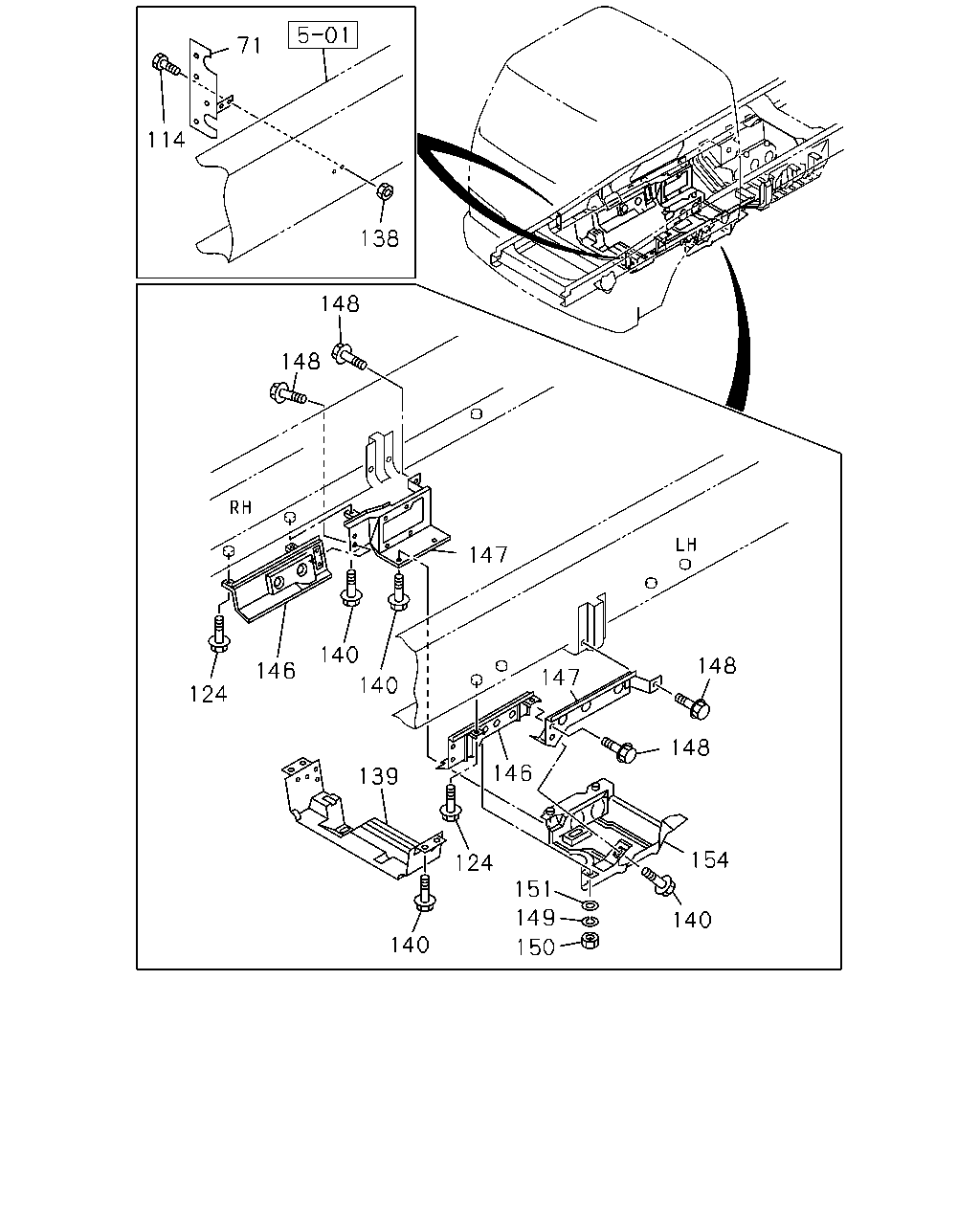

71 114 138 148 148 147 140 148 146 147 140 124 148 146 139 154 124 151 149 140 140 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	RUBBER; SEAL 6SD1 TCN ENG(31L) MAL6S M/T(Y1V)	1-21593-085-2	01	1	0107-	●
71	RUBBER; SEAL 6SD1 TCN ENG(31L) MAL6S M/T(Y1V)	1-21593-106-1	01	1	0107-	●
71	RUBBER; SEAL 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L)	1-21593-105-1	01	1	0107-	●
71	RUBBER; SEAL 6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L)	1-21593-086-2	01	1	0107-	●
114	BOLT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0107-0512	●
114	BOLT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
124	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9601-9606		●
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9705		●
124	BOLT; BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	04	1	9706-9803		●
138	NUT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
138	NUT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-	●
139	PANEL; SIDE	1-53192-593-0	01	1	9601-9705		●
139	PANEL; SIDE 6HH1 STD ENG(65L)	1-53192-593-0	01	1	9706-9803		●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28080-825-0	01	1	9601-9606		●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	01	1	9607-9705		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	01	1	9706-9803		●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28080-825-0	04	1	9601-9606		●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	04	1	9607-9705		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	04	1	9706-9803		●
140	BOLT; SIDE PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9601-9705		●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9706-9803		●
146	PANEL; SIDE,UNDER,FRT	1-53193-047-0	01	1	9601-9705		●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53193-047-0	01	1	9706-9803		●
146	PANEL; SIDE,UNDER,FRT	1-53193-045-1	01	1	9601-9705		●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53193-045-1	01	1	9706-9803		●
147	PANEL; SIDE,UNDER,RR	1-53193-051-1	01	1	9601-9705		●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L)	1-53193-051-1	01	1	9706-9803		●
147	PANEL; SIDE,UNDER,RR	1-53193-050-2	01	1	9601-9705		●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L)	1-53193-050-2	01	1	9706-9803		●
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9601-9705		●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9706-9803		●
149	WASHER; LK,SIDE PANEL ID=8.2	9-09150-508-0	01	1	9601-9705		●
149	WASHER; LK,SIDE PANEL 6HH1 STD ENG(65L) ID=8.2	9-09150-508-0	01	1	9706-9803		●
150	NUT; SIDE PANEL M8	9-09110-408-0	01	1	9601-9705		●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) M8	9-09110-408-0	01	1	9706-9803		●
151	WASHER; PL,SIDE PANEL ID=8.4 OD=22	9-09160-708-0	01	1	9601-9705		●
151	WASHER; PL,SIDE PANEL 6HH1 STD ENG(65L) ID=8.4 OD=22	9-09160-708-0	01	1	9706-9803		●
154	PANEL; SIDE,UNDER ENG CTR	1-53193-140-0	01	1	9601-9705		●
154	PANEL; SIDE,UNDER ENG CTR 6HH1 STD ENG(65L)	1-53193-140-0	01	1	9706-9803		●

306 163 228 227 102 9 121 225 305 104 105 225 96 102 103 78 305 225 131 3 304 76 128 76 130 76 342 2 218 127 78 33 225 341 76 245 102 306 308 308 340 341 218 1 79 92 91 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-813-8	01	1	9601-0106	●
1	GUARD; MUD,FRT	1-79936-013-0	01	1	0107-	●
1	GUARD; MUD,FRT	1-79938-811-8	01	1	9601-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9601-9803		●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9601-9803		●
2	COVER; MUD,TIRE RR	1-79931-228-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-255-0	01	1	9602-9606	●	●
2	COVER; MUD,TIRE RR	1-79938-972-1	01	1	9607-9803	●	●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	9804-	●
2	COVER; MUD,TIRE RR	1-79931-223-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9602-9803	●	●
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	9804-0004	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-938-3	01	1	9601-9607	●
3	GUARD; MUD,RR	1-79938-974-0	01	1	9608-0106	●
3	GUARD; MUD,RR	1-79936-029-0	01	1	0107-	●
3	GUARD; MUD,RR 6HK1 TCS ENG(80L)	1-79936-030-0	01	1	0107-	●
3	GUARD; MUD,RR	1-79938-934-2	01	1	9601-9605	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9606-9711	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9712-9803	●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-962-2	01	1	9712-9803		●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9804-0106	●
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79938-974-0	01	1	0107-	●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9601-9607		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-9803		●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-999-0	01	1	9712-9803		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-835-9	01	1	9601-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-040-2	01	1	0305-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-834-9	01	1	9601-9802	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-008-3	01	1	9803-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9601-9802		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-0	01	1	9803-9803		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9601-9601		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-1	01	1	9602-9803		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9804-0004	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9601-9609	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9701-9701	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9701		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-9803	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9804-0004	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	04	1	9601-	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9601-9605	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-9803	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9804-0805	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-9803	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9601-9803		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-9803		●
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	9-09164-808-0	02	1	9804-0605	●
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●
79	RETAINER; MUD COVER (A)	1-79931-047-0	02	1	9601-	●
79	RETAINER; MUD COVER (B)	1-79938-957-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9602-9611	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9612-9703	●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9704-9705	●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9706-9803	●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (B)	1-79931-288-0	01	1	9706-9803		●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9804-	●
79	RETAINER; MUD COVER (B)	1-79938-956-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9602-9803	●	●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	9804-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9601-9803		●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9705		●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-278-1	01	1	9706-9711		●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	9712-9803		●
91	COVER; MUD,FRT	1-79931-215-1	02	1	9601-	●
91	COVER; MUD,FRT	1-79931-214-0	02	1	9601-9803		●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9703	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9704-9705	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9706-9803	●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	07	1	9706-9803		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	9804-0106	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9704-9705		●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	09	1	9706-9803		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	9804-9806	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	9807-0106	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0107-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-	●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0304-	●
96	STAY; MUD GUARD (A)	1-79938-975-1	01	1	9608-9803	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9804-	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9804-	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9803		●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9803	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9804-0004	●
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0005-	●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9803		●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9601-9705	●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9706-9803	●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L) (A)	1-53497-535-0	01	1	9706-9803		●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9804-	●
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	9704-9705	●
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	9706-9803	●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L) (B)	1-53497-593-2	01	1	9706-9803		●
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	9804-0302	●
102	STAY; LWR,MUD GUARD (B)	1-53497-618-0	01	1	0303-0303	●
102	STAY; LWR,MUD GUARD (C)	1-53497-592-1	01	1	9804-0303	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-1	01	1	9601-9705	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-1	01	1	9706-9803	●
103	BRACKET ASM; RR MUD FLAP 6HE1 TC ENG(57L)	1-53497-486-1	01	1	9706-9803		●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	9804-	●
104	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
104	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9705	●
104	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9706-9711	●
104	BOLT; BRKT 6HE1 TC ENG(57L) M8X30 FLANGE	0-28680-830-0	02	1	9706-9711		●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9712-9803	●
104	BOLT; BRKT 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	02	1	9712-9803		●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9804-0106	●
104	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●
104	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
105	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9705	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9706-9803	●
105	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9706-9803		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9804-0602	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
121	BOLT M10X25 FLANGE	0-28081-025-0	04	1	9601-9606	●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9607-9705	●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9706-9803	●
121	BOLT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	04	1	9706-9803		●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9804-0512	●
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
127	APRON; FRT	1-53192-957-1	01	1	9601-9803	●	●
127	APRON; FRT	1-53192-957-2	01	1	9804-0106	●
127	APRON; FRT	1-53192-957-2	01	1	0107-	●
127	APRON; FRT	1-53192-956-0	01	1	9601-9803	●	●
127	APRON; FRT	1-53192-956-1	01	1	9804-0106	●
127	APRON; FRT	1-53192-956-1	01	1	0107-	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9601-9803	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9804-	●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53193-704-1	01	1	0107-	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53194-098-0	01	1	0107-	●
130	PANEL; SHUTTER NOISE	1-53192-955-1	01	1	9601-9803	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	9804-0106	●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53192-955-2	01	1	0107-	●
130	PANEL; SHUTTER NOISE	1-53192-954-1	01	1	9601-9803	●	●
130	PANEL; SHUTTER NOISE	1-53192-954-2	01	1	9804-0106	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53192-954-2	01	1	0107-	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9601-9803	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9804-	●
163	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-0504	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0505-0512	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9601-	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9601-9803		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	04	1	9601-0106	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	07	1	0107-0602	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	07	1	0603-	●
225	NUT; MUD GUARD M8	9-09110-408-0	03	1	9601-9612	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9701-9705	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9706-9803	●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9706-9803		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9804-0106	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9601-9612		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9701-9705		●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9706-9803		●
227	SEAL; MUD GUARD	1-79938-829-1	01	1	9601-9601	●
227	SEAL; MUD GUARD	1-79938-954-1	01	1	9602-	●
227	SEAL; MUD GUARD	1-79938-820-1	01	1	9601-9601		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9602-9803		●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	05	1	9601-	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9601-9803		●
245	RUBBER; SHUTTER,RAD	1-79936-027-0	01	1	0107-	●
245	RUBBER; SHUTTER,RAD	1-79938-927-0	01	1	9601-9803		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-9803	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	12	1	9601-9803	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9804-0004	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-0106	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	15	1	0107-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9601-9803	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	12	1	9804-0004	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	0005-0106	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9601-9710		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-9803		●
306	BRACKET; MUD GUARD	1-53497-618-0	01	1	0304-	●
306	BRACKET; MUD GUARD	1-79938-890-4	01	1	9601-	●
306	BRACKET; MUD GUARD	1-79938-889-4	01	1	9601-	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9601-9602	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-9803	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9804-0601	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0602-	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-9803	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9804-0601	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	9601-9602		●
340	BRACKET; RUBBER,SHUTTER	1-79936-024-1	01	1	0107-	●
341	CLIP; RUBBER ID=6X6 OD=8	1-09987-194-0	03	1	0107-	●
342	NUT; BRKT,RUBBER M8 FLANGE	8-97046-127-0	02	1	0107-0805	●
342	NUT; BRKT,RUBBER M8 W/DISHED WASHER	8-97329-625-0	02	1	0806-	●

306 163 99 96 99 96 3 99 79 92 9 98 305 305 238 305 304 33 2 308 308 33 175 76 131 128 76 128 96 1 130 127 218 79 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-813-8	01	1	9601-0106	●
1	GUARD; MUD,FRT	1-79936-013-0	01	1	0107-	●
1	GUARD; MUD,FRT	1-79938-811-8	01	1	9601-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9601-9803		●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9601-9803		●
2	COVER; MUD,TIRE RR	1-79931-228-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-255-0	01	1	9602-9606	●	●
2	COVER; MUD,TIRE RR	1-79938-972-1	01	1	9607-9803	●	●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	9804-	●
2	COVER; MUD,TIRE RR	1-79931-223-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9602-9803	●	●
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	9804-0004	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-938-3	01	1	9601-9607	●
3	GUARD; MUD,RR	1-79938-974-0	01	1	9608-0106	●
3	GUARD; MUD,RR	1-79936-029-0	01	1	0107-	●
3	GUARD; MUD,RR 6HK1 TCS ENG(80L)	1-79936-030-0	01	1	0107-	●
3	GUARD; MUD,RR	1-79938-934-2	01	1	9601-9605	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9606-9711	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9712-9803	●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-962-2	01	1	9712-9803		●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9804-0106	●
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79938-974-0	01	1	0107-	●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9601-9607		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-9803		●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-999-0	01	1	9712-9803		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-835-9	01	1	9601-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-040-2	01	1	0305-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-834-9	01	1	9601-9802	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-008-3	01	1	9803-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9601-9802		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-0	01	1	9803-9803		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9601-9601		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-1	01	1	9602-9803		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9804-0004	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9601-9609	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9701-9701	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9701		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-9803	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9804-0004	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	04	1	9601-	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9601-9605	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-9803	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9804-0805	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-9803	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9601-9803		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-9803		●
79	RETAINER; MUD COVER (A)	1-79931-047-0	02	1	9601-	●
79	RETAINER; MUD COVER (B)	1-79938-957-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9602-9611	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9612-9703	●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9704-9705	●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9706-9803	●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (B)	1-79931-288-0	01	1	9706-9803		●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9804-	●
79	RETAINER; MUD COVER (B)	1-79938-956-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9602-9803	●	●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	9804-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9601-9803		●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9705		●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-278-1	01	1	9706-9711		●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	9712-9803		●
91	COVER; MUD,FRT	1-79931-215-1	02	1	9601-	●
91	COVER; MUD,FRT	1-79931-214-0	02	1	9601-9803		●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9703	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9704-9705	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9706-9803	●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	07	1	9706-9803		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	9804-0106	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9704-9705		●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	09	1	9706-9803		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	9804-9806	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	9807-0106	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0107-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-	●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0304-	●
96	STAY; MUD GUARD (A)	1-79938-975-1	01	1	9608-9803	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9804-	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9804-	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9803		●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9803	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9804-0004	●
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0005-	●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9803		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	9804-0512	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9601-9607	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	05	1	9608-	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-9803		●
127	APRON; FRT	1-53192-957-1	01	1	9601-9803	●	●
127	APRON; FRT	1-53192-957-2	01	1	9804-0106	●
127	APRON; FRT	1-53192-957-2	01	1	0107-	●
127	APRON; FRT	1-53192-956-0	01	1	9601-9803	●	●
127	APRON; FRT	1-53192-956-1	01	1	9804-0106	●
127	APRON; FRT	1-53192-956-1	01	1	0107-	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9601-9803	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9804-	●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53193-704-1	01	1	0107-	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53194-098-0	01	1	0107-	●
130	PANEL; SHUTTER NOISE	1-53192-955-1	01	1	9601-9803	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	9804-0106	●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53192-955-2	01	1	0107-	●
130	PANEL; SHUTTER NOISE	1-53192-954-1	01	1	9601-9803	●	●
130	PANEL; SHUTTER NOISE	1-53192-954-2	01	1	9804-0106	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53192-954-2	01	1	0107-	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9601-9803	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9804-	●
163	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-0504	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0505-0512	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	04	1	9804-9901	●
175	NUT; STAY FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9902-0602	●
175	NUT; STAY FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
175	NUT; STAY FIX 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	04	1	9902-0106	●
175	NUT; STAY FIX 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
175	NUT; STAY FIX 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	04	1	0603-	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9601-	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9601-9803		●
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9601-9705		●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-9803		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-9803	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	12	1	9601-9803	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9804-0004	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-0106	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	15	1	0107-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9601-9803	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	12	1	9804-0004	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	0005-0106	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9601-9710		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-9803		●
306	BRACKET; MUD GUARD	1-53497-618-0	01	1	0304-	●
306	BRACKET; MUD GUARD	1-79938-890-4	01	1	9601-	●
306	BRACKET; MUD GUARD	1-79938-889-4	01	1	9601-	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9601-9602	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-9803	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9804-0601	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0602-	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-9803	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9804-0601	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	9601-9602		●

306 163 228 227 305 121 225 102 104 225 105 9 131 305 103 3 304 128 76 76 130 218 1 127 76 2 76 225 33 308 91 308 218 79 92 79 102 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-813-8	01	1	9601-0106	●
1	GUARD; MUD,FRT	1-79936-013-0	01	1	0107-	●
1	GUARD; MUD,FRT	1-79938-811-8	01	1	9601-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9601-9803		●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9601-9803		●
2	COVER; MUD,TIRE RR	1-79931-228-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-255-0	01	1	9602-9606	●	●
2	COVER; MUD,TIRE RR	1-79938-972-1	01	1	9607-9803	●	●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	9804-	●
2	COVER; MUD,TIRE RR	1-79931-223-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9602-9803	●	●
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	9804-0004	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-938-3	01	1	9601-9607	●
3	GUARD; MUD,RR	1-79938-974-0	01	1	9608-0106	●
3	GUARD; MUD,RR	1-79936-029-0	01	1	0107-	●
3	GUARD; MUD,RR 6HK1 TCS ENG(80L)	1-79936-030-0	01	1	0107-	●
3	GUARD; MUD,RR	1-79938-934-2	01	1	9601-9605	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9606-9711	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9712-9803	●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-962-2	01	1	9712-9803		●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9804-0106	●
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79938-974-0	01	1	0107-	●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9601-9607		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-9803		●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-999-0	01	1	9712-9803		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-835-9	01	1	9601-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-040-2	01	1	0305-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-834-9	01	1	9601-9802	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-008-3	01	1	9803-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9601-9802		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-0	01	1	9803-9803		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9601-9601		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-1	01	1	9602-9803		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9804-0004	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9601-9609	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9701-9701	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9701		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-9803	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9804-0004	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	04	1	9601-	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9601-9605	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-9803	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9804-0805	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-9803	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9601-9803		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-9803		●
79	RETAINER; MUD COVER (A)	1-79931-047-0	02	1	9601-	●
79	RETAINER; MUD COVER (B)	1-79938-957-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9602-9611	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9612-9703	●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9704-9705	●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9706-9803	●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (B)	1-79931-288-0	01	1	9706-9803		●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9804-	●
79	RETAINER; MUD COVER (B)	1-79938-956-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9602-9803	●	●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	9804-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9601-9803		●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9705		●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-278-1	01	1	9706-9711		●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	9712-9803		●
91	COVER; MUD,FRT	1-79931-215-1	02	1	9601-	●
91	COVER; MUD,FRT	1-79931-214-0	02	1	9601-9803		●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9703	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9704-9705	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9706-9803	●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	07	1	9706-9803		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	9804-0106	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9704-9705		●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	09	1	9706-9803		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	9804-9806	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	9807-0106	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0107-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-	●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9601-9705	●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9706-9803	●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L) (A)	1-53497-535-0	01	1	9706-9803		●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	9804-	●
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	9704-9705	●
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	9706-9803	●
102	STAY; LWR,MUD GUARD 6HE1 TC ENG(57L) (B)	1-53497-593-2	01	1	9706-9803		●
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	9804-0302	●
102	STAY; LWR,MUD GUARD (B)	1-53497-618-0	01	1	0303-0303	●
102	STAY; LWR,MUD GUARD (C)	1-53497-592-1	01	1	9804-0303	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-1	01	1	9601-9705	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-1	01	1	9706-9803	●
103	BRACKET ASM; RR MUD FLAP 6HE1 TC ENG(57L)	1-53497-486-1	01	1	9706-9803		●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	9804-	●
104	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
104	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9705	●
104	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9706-9711	●
104	BOLT; BRKT 6HE1 TC ENG(57L) M8X30 FLANGE	0-28680-830-0	02	1	9706-9711		●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9712-9803	●
104	BOLT; BRKT 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	02	1	9712-9803		●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9804-0106	●
104	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●
104	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
105	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9705	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9706-9803	●
105	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9706-9803		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9804-0602	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
121	BOLT M10X25 FLANGE	0-28081-025-0	04	1	9601-9606	●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9607-9705	●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9706-9803	●
121	BOLT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	04	1	9706-9803		●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	9804-0512	●
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
127	APRON; FRT	1-53192-957-1	01	1	9601-9803	●	●
127	APRON; FRT	1-53192-957-2	01	1	9804-0106	●
127	APRON; FRT	1-53192-957-2	01	1	0107-	●
127	APRON; FRT	1-53192-956-0	01	1	9601-9803	●	●
127	APRON; FRT	1-53192-956-1	01	1	9804-0106	●
127	APRON; FRT	1-53192-956-1	01	1	0107-	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9601-9803	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9804-	●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53193-704-1	01	1	0107-	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53194-098-0	01	1	0107-	●
130	PANEL; SHUTTER NOISE	1-53192-955-1	01	1	9601-9803	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	9804-0106	●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53192-955-2	01	1	0107-	●
130	PANEL; SHUTTER NOISE	1-53192-954-1	01	1	9601-9803	●	●
130	PANEL; SHUTTER NOISE	1-53192-954-2	01	1	9804-0106	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53192-954-2	01	1	0107-	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9601-9803	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9804-	●
163	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-0504	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0505-0512	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9601-	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9601-9803		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	04	1	9601-0106	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	07	1	0107-0602	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	07	1	0603-	●
225	NUT; MUD GUARD M8	9-09110-408-0	03	1	9601-9612	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9701-9705	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9706-9803	●
225	NUT; MUD GUARD 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9706-9803		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	9804-0106	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9601-9612		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9701-9705		●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9706-9803		●
227	SEAL; MUD GUARD	1-79938-829-1	01	1	9601-9601	●
227	SEAL; MUD GUARD	1-79938-954-1	01	1	9602-	●
227	SEAL; MUD GUARD	1-79938-820-1	01	1	9601-9601		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9602-9803		●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	05	1	9601-	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9601-9803		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-9803	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	12	1	9601-9803	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9804-0004	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-0106	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	15	1	0107-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9601-9803	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	12	1	9804-0004	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	0005-0106	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9601-9710		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-9803		●
306	BRACKET; MUD GUARD	1-53497-618-0	01	1	0304-	●
306	BRACKET; MUD GUARD	1-79938-890-4	01	1	9601-	●
306	BRACKET; MUD GUARD	1-79938-889-4	01	1	9601-	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9601-9602	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-9803	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9804-0601	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0602-	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-9803	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9804-0601	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	9601-9602		●

306 163 99 96 174 99 96 96 3 9 99 92 305 79 238 305 304 305 2 308 308 33 250 245 76 128 128 131 76 76 1 91 130 127 218 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-813-8	01	1	9601-0106	●
1	GUARD; MUD,FRT	1-79936-013-0	01	1	0107-	●
1	GUARD; MUD,FRT	1-79938-811-8	01	1	9601-	●
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9601-9803		●
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9601-9803		●
2	COVER; MUD,TIRE RR	1-79931-228-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-255-0	01	1	9602-9606	●	●
2	COVER; MUD,TIRE RR	1-79938-972-1	01	1	9607-9803	●	●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	9804-	●
2	COVER; MUD,TIRE RR	1-79931-223-0	01	1	9601-9601	●	●
2	COVER; MUD,TIRE RR	1-79931-254-1	01	1	9602-9803	●	●
2	COVER; MUD,TIRE RR	1-79931-270-0	01	1	9804-0004	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-	●
3	GUARD; MUD,RR	1-79938-938-3	01	1	9601-9607	●
3	GUARD; MUD,RR	1-79938-974-0	01	1	9608-0106	●
3	GUARD; MUD,RR	1-79936-029-0	01	1	0107-	●
3	GUARD; MUD,RR 6HK1 TCS ENG(80L)	1-79936-030-0	01	1	0107-	●
3	GUARD; MUD,RR	1-79938-934-2	01	1	9601-9605	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9606-9711	●	●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9712-9803	●
3	GUARD; MUD,RR 6HE1 TC ENG(57L)	1-79938-962-2	01	1	9712-9803		●
3	GUARD; MUD,RR	1-79938-962-2	01	1	9804-0106	●
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79938-974-0	01	1	0107-	●
3	GUARD; MUD,RR	1-79938-827-9	01	1	9601-9607		●
3	GUARD; MUD,RR	1-79938-971-1	01	1	9608-9803		●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-999-0	01	1	9712-9803		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-835-9	01	1	9601-0304	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-040-2	01	1	0305-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-834-9	01	1	9601-9802	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-008-3	01	1	9803-	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9601-9802		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-0	01	1	9803-9803		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-830-9	01	1	9601-9601		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-1	01	1	9602-9803		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9804-0004	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0005-	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	13	1	9601-9609	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9610-9612	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9701-9701	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9610-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9701		●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	9701-9702	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9703-9803	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9804-0004	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	04	1	9601-	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9601-9605	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9606-9803	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	9804-0805	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-9803	●	●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9601-9803		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-9803		●
79	RETAINER; MUD COVER (A)	1-79931-047-0	02	1	9601-	●
79	RETAINER; MUD COVER (B)	1-79938-957-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9602-9611	●	●
79	RETAINER; MUD COVER (B)	1-79931-253-0	01	1	9612-9703	●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9704-9705	●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9706-9803	●
79	RETAINER; MUD COVER 6HE1 TC ENG(57L) (B)	1-79931-288-0	01	1	9706-9803		●
79	RETAINER; MUD COVER (B)	1-79931-288-0	01	1	9804-	●
79	RETAINER; MUD COVER (B)	1-79938-956-0	01	1	9601-9601	●	●
79	RETAINER; MUD COVER (B)	1-79931-252-0	01	1	9602-9803	●	●
79	RETAINER; MUD COVER (D)	1-79931-269-0	01	1	9804-	●
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9601-9803		●
79	RETAINER; MUD COVER (C)	1-79931-278-1	01	1	9612-9705		●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-278-1	01	1	9706-9711		●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (C)	1-79931-304-0	01	1	9712-9803		●
91	COVER; MUD,FRT	1-79931-215-1	02	1	9601-	●
91	COVER; MUD,FRT	1-79931-214-0	02	1	9601-9803		●
92	NUT; MUD COVER M6	9-09110-406-0	07	1	9608-9609	●	●
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9610-9612	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9701-9703	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9704-9705	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	9706-9803	●
92	NUT; MUD COVER 6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	07	1	9706-9803		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	9804-0106	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9704-9705		●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	09	1	9706-9803		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	08	1	9804-9806	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	9807-0106	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0107-0602	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-	●
96	STAY; MUD GUARD (E)	1-53497-592-1	01	1	0304-	●
96	STAY; MUD GUARD (A)	1-79938-975-1	01	1	9608-9803	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9804-	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	9804-	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (A)	1-79938-968-2	01	1	9608-9803		●
96	STAY; MUD GUARD (B)	1-79938-738-0	01	1	9601-9607	●	●
96	STAY; MUD GUARD (B)	1-79938-969-1	01	1	9608-9803	●	●
96	STAY; MUD GUARD (D)	1-53497-577-2	01	1	9804-0004	●
96	STAY; MUD GUARD (D)	1-53497-661-0	01	1	0005-	●
96	STAY; MUD GUARD (C)	1-79938-996-0	01	1	9712-9803		●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9601-9607	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	05	1	9608-	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-9803		●
127	APRON; FRT	1-53192-957-1	01	1	9601-9803	●	●
127	APRON; FRT	1-53192-957-2	01	1	9804-0106	●
127	APRON; FRT	1-53192-957-2	01	1	0107-	●
127	APRON; FRT	1-53192-956-0	01	1	9601-9803	●	●
127	APRON; FRT	1-53192-956-1	01	1	9804-0106	●
127	APRON; FRT	1-53192-956-1	01	1	0107-	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9601-9803	●	●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9804-	●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53193-704-1	01	1	0107-	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53194-098-0	01	1	0107-	●
130	PANEL; SHUTTER NOISE	1-53192-955-1	01	1	9601-9803	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	9804-0106	●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53192-955-2	01	1	0107-	●
130	PANEL; SHUTTER NOISE	1-53192-954-1	01	1	9601-9803	●	●
130	PANEL; SHUTTER NOISE	1-53192-954-2	01	1	9804-0106	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53192-954-2	01	1	0107-	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9601-9803	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9804-	●
163	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-0504	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0505-0512	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
174	BOLT; STAY FIX M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9712-9803		●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9601-	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9601-9803		●
238	SCREW; MUD GUARD M6X30	1-65481-387-0	01	1	9601-9705		●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-9803		●
245	RUBBER; SHUTTER,RAD	1-79936-027-0	01	1	0107-	●
245	RUBBER; SHUTTER,RAD	1-79938-927-0	01	1	9601-9803		●
250	FASTENER; SHUTTER	1-09987-189-0	06	1	9601-9803		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9601-9803	●	●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9804-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	12	1	9601-9803	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9804-0004	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-0106	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	15	1	0107-	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9601-9803	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	12	1	9804-0004	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	10	1	0005-0106	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9601-9710		●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-9803		●
306	BRACKET; MUD GUARD	1-53497-618-0	01	1	0304-	●
306	BRACKET; MUD GUARD	1-79938-890-4	01	1	9601-	●
306	BRACKET; MUD GUARD	1-79938-889-4	01	1	9601-	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9601-9602	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	9603-9605	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9606-9803	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	9804-0601	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	04	1	0602-	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9606-9803	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	9804-0601	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	9601-9602		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
