6-43 — SIDE TRIM (#25255) — 43 parça

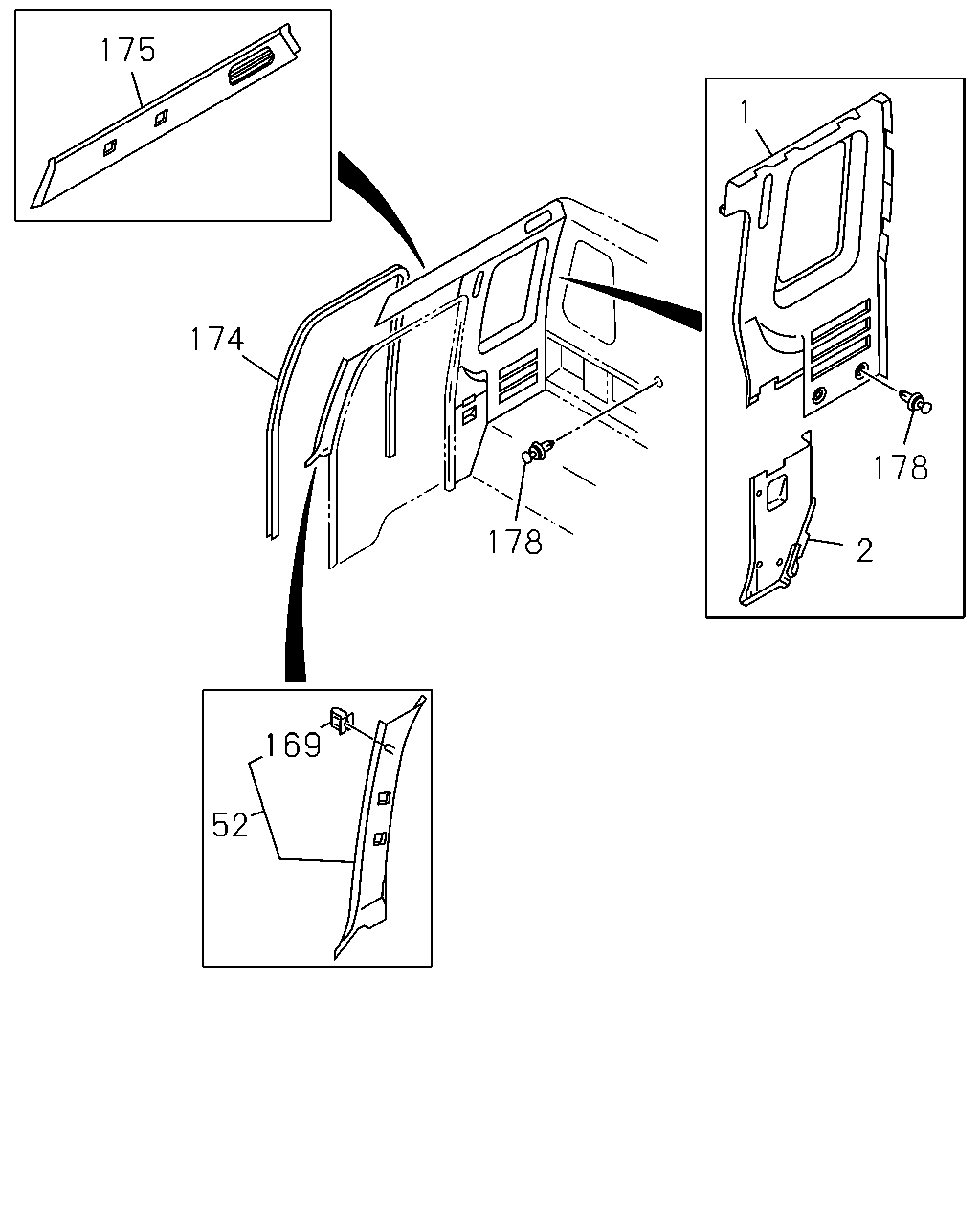

çizim 85980
175 1 174 178 178 2 169 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-995-3 01 1 0301- ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-996-3 01 1 0301- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-861-5 01 1 9601-9803 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-861-5 01 1 9804-0004 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-4 01 1 0005-0212 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-941-7 01 1 0301- ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-902-2 01 1 9601-9803 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-902-2 01 1 9804-0004 ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-4 01 1 0005-0212 ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-934-7 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-7 01 1 9601-9803 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9804-0004 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-2 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-927-3 01 1 0301- ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-7 01 1 9601-9803 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-7 01 1 9804-9810 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-8 01 1 9811-0004 ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-926-2 01 1 0005-0212 ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-926-3 01 1 0301- ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9601-9803 ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9804-0004 ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005- ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9601-9803 ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9804-0004 ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005- ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9601-9803 ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9804- ●
174 FINISHER; BODY SIDE 1-76718-175-3 02 1 9601-9803 ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 9804- ●
175 COVER; TRIM,SIDE 1-73348-901-0 01 1 9601-9705 ● ●
175 COVER; TRIM,SIDE 1-73348-901-0 01 1 9706-9803 ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-901-0 01 1 9706-9803 ●
175 COVER; TRIM,SIDE 1-73348-781-0 01 1 9601-9705 ● ●
175 COVER; TRIM,SIDE 1-73348-781-0 01 1 9706-9803 ●
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> 		1-73348-781-0 01 1 9706-9803 ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9601-9705 ● ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9706-9706 ●
178 CLIP; TRIM COVER
HIGH ROOF<S2F> OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9706-9706 ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9706-9803 ● ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9804-0004 ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005- ●
