◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#25253) — 129 parça

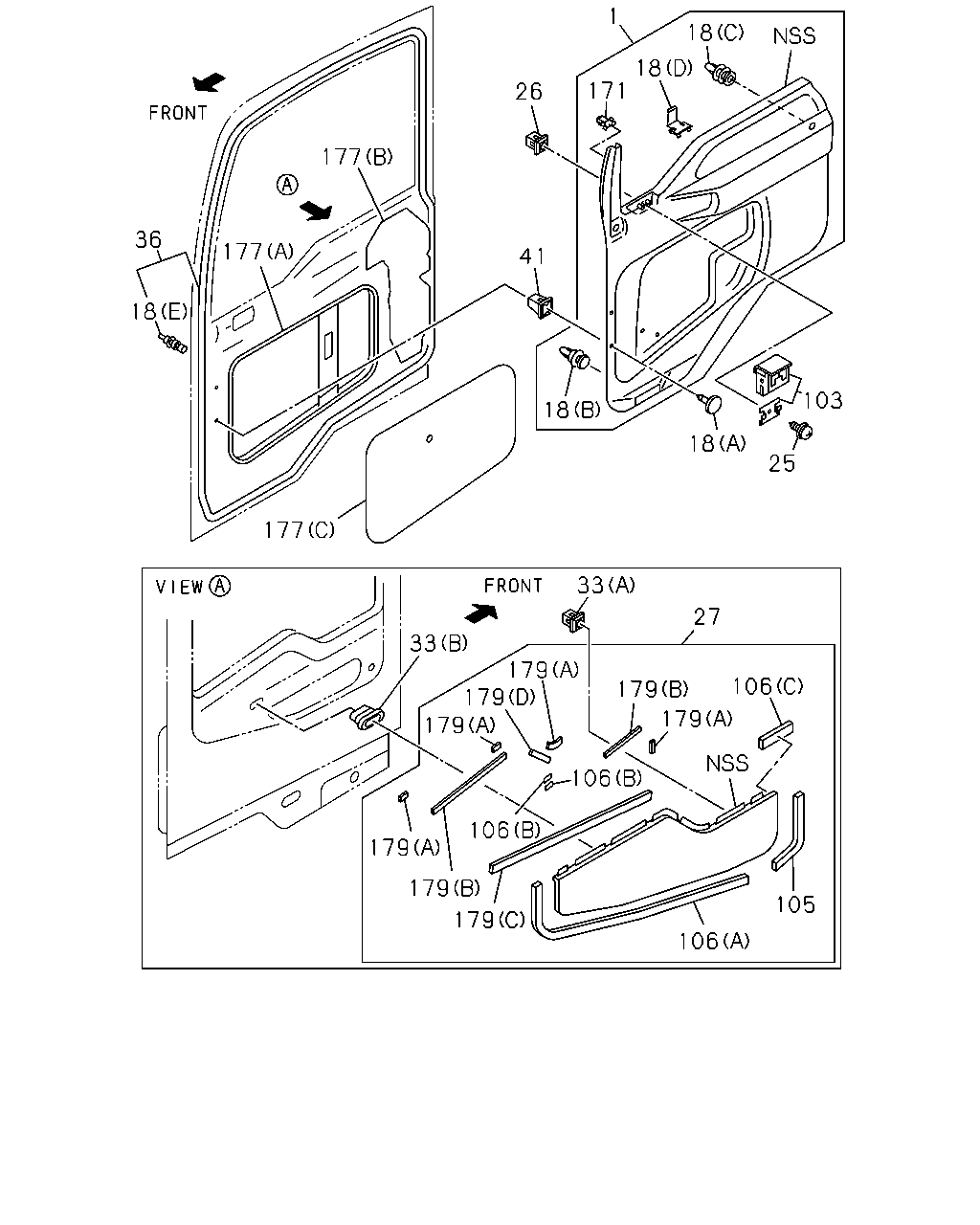

çizim 85688
18 18 1 171 26 41 177 177 36 18 177 18 18 25 103 27 33 33 179 179 179 179 179 179 106 106 179 106 179 105 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR 1-73338-466-4 01 1 9601-9705 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-466-4 01 1 9706-9803 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9706-9803 ●
1 PAD; TRIM,FRT DOOR 1-73338-466-4 01 1 9804-0004 ●
1 PAD; TRIM,FRT DOOR 1-73338-509-0 01 1 0005-0012 ●
1 PAD; TRIM,FRT DOOR 1-73338-539-0 01 1 0101-0702 ●
1 PAD; TRIM,FRT DOOR 1-73337-516-0 01 1 0703- ●
1 PAD; TRIM,FRT DOOR 1-73338-465-4 01 1 9601-9705 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-465-4 01 1 9706-9803 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9706-9803 ●
1 PAD; TRIM,FRT DOOR 1-73338-465-4 01 1 9804-0004 ●
1 PAD; TRIM,FRT DOOR 1-73337-484-0 01 1 0005-0012 ●
1 PAD; TRIM,FRT DOOR 1-73337-509-0 01 1 0101-0702 ●
1 PAD; TRIM,FRT DOOR 1-73337-513-0 01 1 0703- ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9706-9803 ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9706-9803 ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9804-0004 ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 0005-0005 ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0010 ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0011-0106 ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0011-0106 ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0107- ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9804-0004 ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9804-0004 ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005- ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9804-0004 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9804-0004 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 0005-0010 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-0106 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-0106 ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0107- ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9804-0004 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9804-0004 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0005-0010 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011-0106 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011-0106 ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0107- ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9804- ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9601-9803 ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9804- ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9601-9803 ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9804- ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9601-9803 ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9804- ●
27 PANEL; ORNAMENT,DOOR 1-76218-099-4 01 1 9802-9803 ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-4 01 1 9802-9803 ●
27 PANEL; ORNAMENT,DOOR 1-76218-099-7 01 1 9804- ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-4 01 1 9802-9803 ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-095-4 01 1 9802-9803 ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 9804-1210 ●
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211- ●
27 PANEL; ORNAMENT,DOOR 1-76218-099-4 01 1 9601-9705 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-099-4 01 1 9706-9801 ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-4 01 1 9706-9801 ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-4 01 1 9601-9801 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-125-4 01 1 9802-9803 ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> 		1-76218-096-4 01 1 9802-9803 ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-096-4 01 1 9706-9801 ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9601-9803 ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9804-0802 ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9601-9803 ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9804- ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-7 01 1 9601-9803 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9804-1010 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-7 01 1 9601-9803 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9804-1010 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9601-9803 ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9804- ●
103 TRAY ASM; ASH,DOOR 1-76458-070-6 01 1 9601-9612 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-0 01 1 9701-9803 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9804-0004 ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111 ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112- ●
103 TRAY ASM; ASH,DOOR 1-76458-069-6 01 1 9601-9612 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-0 01 1 9701-9803 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9804-0004 ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111 ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112- ●
105 SEAL; DOOR ORNAMENT,FRT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-76218-082-1 02 1 9601-9803 ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9804- ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9601-9705 ● ●
106 SEAL; DOOR ORNAMENT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) 		1-76218-104-0 02 1 9706-9801 ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9802-9803 ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-76218-104-0 02 1 9802-9803 ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWWIDE<WU4> (B) 		1-76218-104-0 02 1 9802-9803 ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9804- ●
106 SEAL; DOOR ORNAMENT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) 		1-76218-083-2 02 1 9601-9803 ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9804- ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9601-9803 ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9601-9803 ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9804-0004 ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9804-0004 ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0005-0010 ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 0011-0106 ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 0011-0106 ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0107- ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-1 02 1 9601-9803 ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9804- ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-0 01 1 9601-9705 ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-0 01 1 9706-9803 ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-0 01 1 9706-9803 ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 9804- ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-4 01 1 9601-9705 ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-4 01 1 9706-9803 ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-4 01 1 9706-9803 ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 9804- ●
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9706-9803 ●
179 TAPE; ORNAMENT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=45 		1-76218-063-1 08 1 9601-9803 ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 9804- ●
179 TAPE; ORNAMENT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) L=770 		1-76218-091-1 02 1 9601-9803 ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 9804- ●
179 TAPE; ORNAMENT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) L=160 		1-76218-094-0 02 1 9601-9803 ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 9804- ●
179 TAPE; ORNAMENT
6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=235 		1-76218-127-0 04 1 9601-9803 ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 9804- ●
