◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#25251) — 155 parça

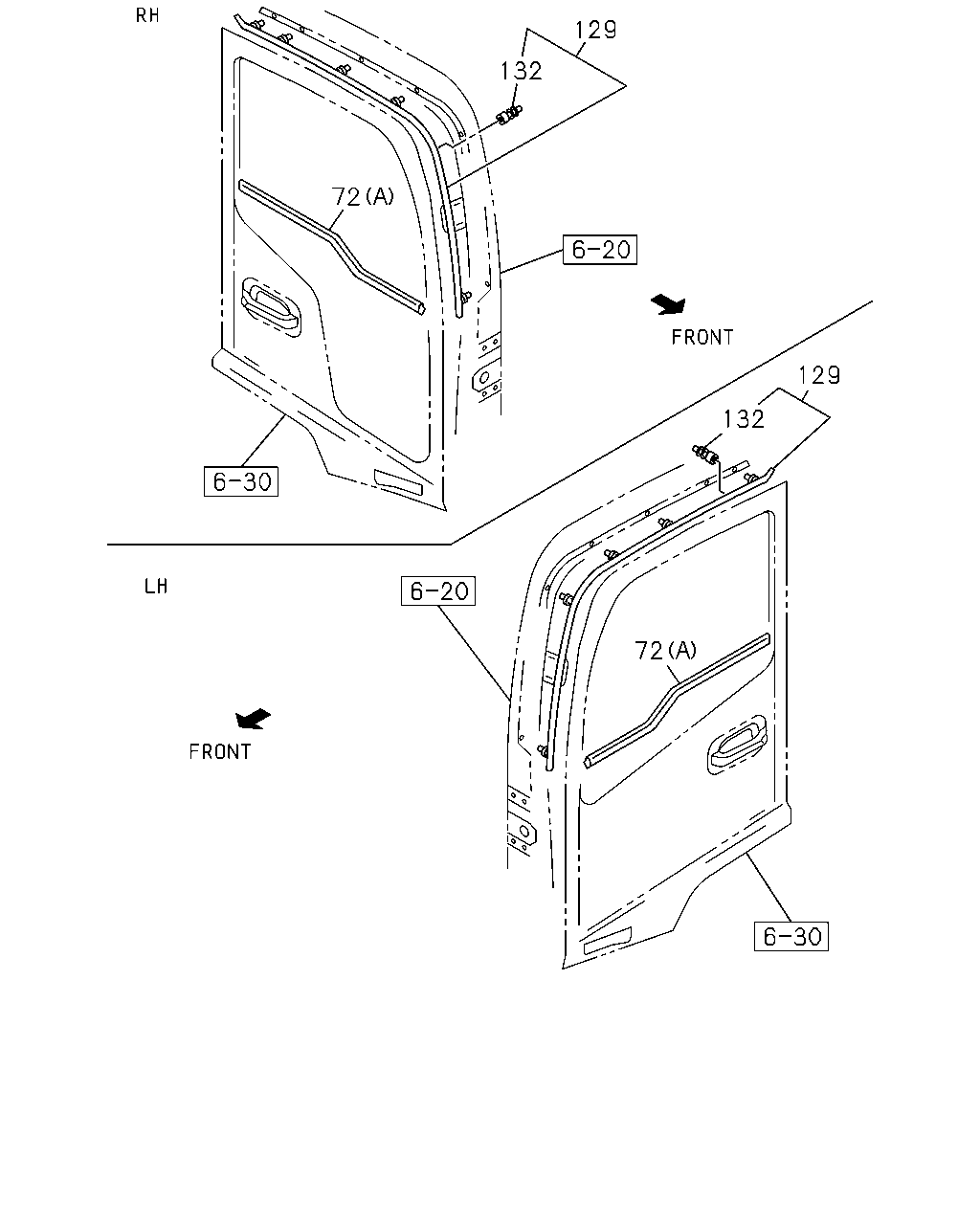

çizim 85686
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9601-9803 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9804-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9601-9803 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9804- ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9601-9803 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9804-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9601-9803 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9804- ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9601-9803 ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9804- ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9601-9803 ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9804- ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911- ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911- ●

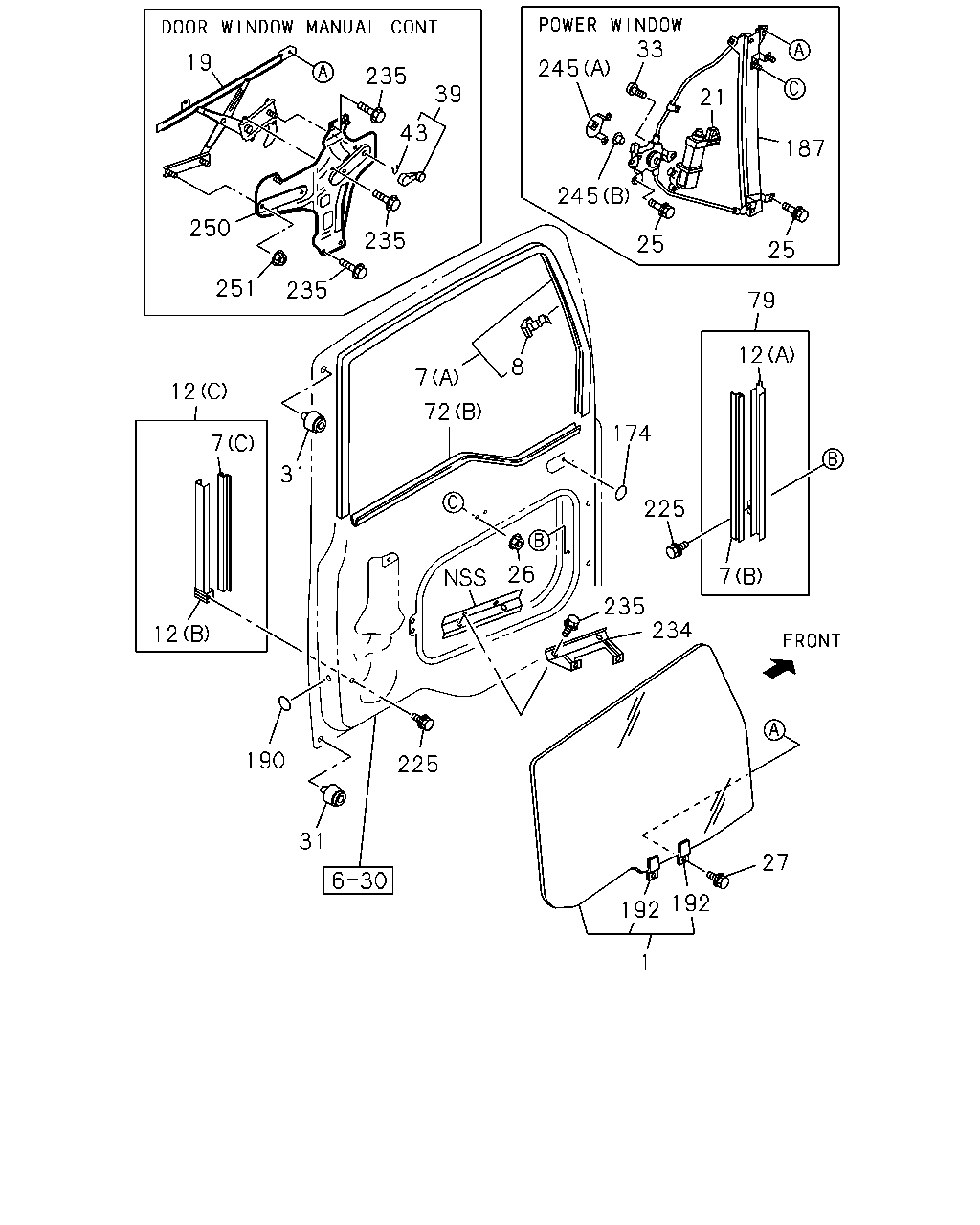

çizim 104534
33 19 245 235 39 21 43 187 245 250 235 25 25 251 235 79 12 8 7 12 72 174 7 31 225 26 7 235 234 12 190 225 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR 1-76148-071-0 01 1 9601-9611 ● ●
1 GLASS; FRT DOOR 1-76148-083-0 01 1 9612-9705 ● ●
1 GLASS; FRT DOOR 1-76148-083-0 01 1 9706-9712 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-083-0 01 1 9706-9712 ●
1 GLASS; FRT DOOR 1-76148-095-0 01 1 9801-9803 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-0 01 1 9801-9803 ●
1 GLASS; FRT DOOR 1-76148-095-2 01 1 9804- ●
1 GLASS; FRT DOOR 1-76148-060-1 01 1 9601-9611 ● ●
1 GLASS; FRT DOOR 1-76167-153-0 01 1 9612-9705 ● ●
1 GLASS; FRT DOOR 1-76167-153-0 01 1 9706-9712 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9706-9712 ●
1 GLASS; FRT DOOR 1-76167-172-0 01 1 9801-9803 ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9801-9803 ●
1 GLASS; FRT DOOR 1-76167-172-0 01 1 9804-9905 ●
1 GLASS; FRT DOOR 1-76167-177-2 01 1 9906- ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-079-0 01 1 9706-9712 ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76148-094-0 01 1 9801-9803 ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76167-159-0 01 1 9706-9712 ●
1 GLASS; FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-76167-174-0 01 1 9801-9803 ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9601-9803 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 9804- ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9803 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9804-9901 ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-043-0 01 1 9601-9705 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9601-9803 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 9804- ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9706-9803 ● ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9804-9901 ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9803 ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9804-9901 ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9601-9803 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9804- ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9601-9803 ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9804-9901 ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9601-9803 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9804-9901 ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 9902- ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9601-9803 ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9804-9901 ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 9902- ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9601-9803 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9804-9901 ●
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-134-4 01 1 9706-9803 ●
19 REGULATOR; WINDOW,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-144-4 01 1 9706-9803 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0107- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-139-2 01 1 9601-9608 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-164-0 01 1 9609-9705 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-164-0 01 1 9706-9803 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-164-0 01 1 9706-9803 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-164-0 01 1 9804-0003 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 0004- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-153-1 01 1 9601-9608 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-161-0 01 1 9609-9705 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-161-0 01 1 9706-9803 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9706-9803 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-161-0 01 1 9804-0003 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0004-0106 ●
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9601-9705 ● ●
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9706-9803 ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9706-9803 ●
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9804-0405 ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512 ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710 ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 0711- ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 9601-9705 ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 9706-9803 ●
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 9706-9803 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 9804- ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9601-9803 ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9804- ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9601-9803 ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9804- ●
33 SCREW; REG MOTOR 8-98099-646-0 06 1 9706-9803 ●
33 SCREW; REG MOTOR
POWER WINDOW<A30> 		8-98099-646-0 06 1 9706-9803 ●
33 SCREW; REG MOTOR 8-98099-646-0 06 1 9804- ●
39 HANDLE; WINDOW REG,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> BLACK 		8-94371-427-0 02 1 9706-9803 ●
43 CLIP; REG HANDLE,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		8-94220-591-0 02 1 9706-9803 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-7 01 1 9601-9803 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9804-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-5 01 1 9601-9803 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9804- ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-7 01 1 9601-9803 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9804-1207 ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-5 01 1 9601-9803 ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9804- ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 9902- ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9902- ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 9601-9705 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 9706-9803 ●
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 14 1 9706-9803 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 9804-0212 ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0301- ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 20 1 9706-9803 ●
174 SEAL; LOCATION HOLE
DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK 		1-76798-041-0 06 1 9706-9803 ●
187 REGULATOR ASM; DOOR 1-74418-138-2 01 1 9601-9608 ● ●
187 REGULATOR ASM; DOOR 1-74418-167-0 01 1 9609-9705 ● ●
187 REGULATOR ASM; DOOR 1-74418-167-0 01 1 9706-9803 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-167-0 01 1 9706-9803 ●
187 REGULATOR ASM; DOOR 1-74418-167-1 01 1 9804-0003 ●
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 0004- ●
187 REGULATOR ASM; DOOR 1-74418-152-0 01 1 9601-9608 ● ●
187 REGULATOR ASM; DOOR 1-74418-165-0 01 1 9609-9705 ● ●
187 REGULATOR ASM; DOOR 1-74418-165-0 01 1 9706-9803 ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-0 01 1 9706-9803 ●
187 REGULATOR ASM; DOOR 1-74418-165-1 01 1 9804-0003 ●
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0004- ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9601-9803 ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9804- ●
192 HOLDER; DOOR GLASS 1-74428-013-0 04 1 9601-9712 ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9801-9803 ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 9804-0010 ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0011-0106 ●
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 0011-0106 ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0107- ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-9803 ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9804-0003 ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0512 ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ●
234 BRACKET; OK WINDOW 1-74998-057-2 01 1 9601-9803 ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9804- ●
234 BRACKET; OK WINDOW 1-74998-062-2 01 1 9601-9803 ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9804- ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-9705 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9706-9803 ● ●
235 BOLT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9706-9803 ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9804- ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 02 1 0107- ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-181-0 01 1 0004- ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-146-0 02 1 9601-9705 ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-146-0 02 1 9706-9803 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-146-0 02 1 9706-9803 ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-146-0 02 1 9804-0003 ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 0004- ●
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-149-0 01 1 9706-9803 ●
250 BRACKET; REGULATOR
DOOR WINDOW MANUAL CONT<SKF> 		1-74418-148-0 01 1 9706-9803 ●
251 NUT; BRKT
DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE 		1-09984-141-0 04 1 9706-9803 ●
