◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#25246) — 234 parça

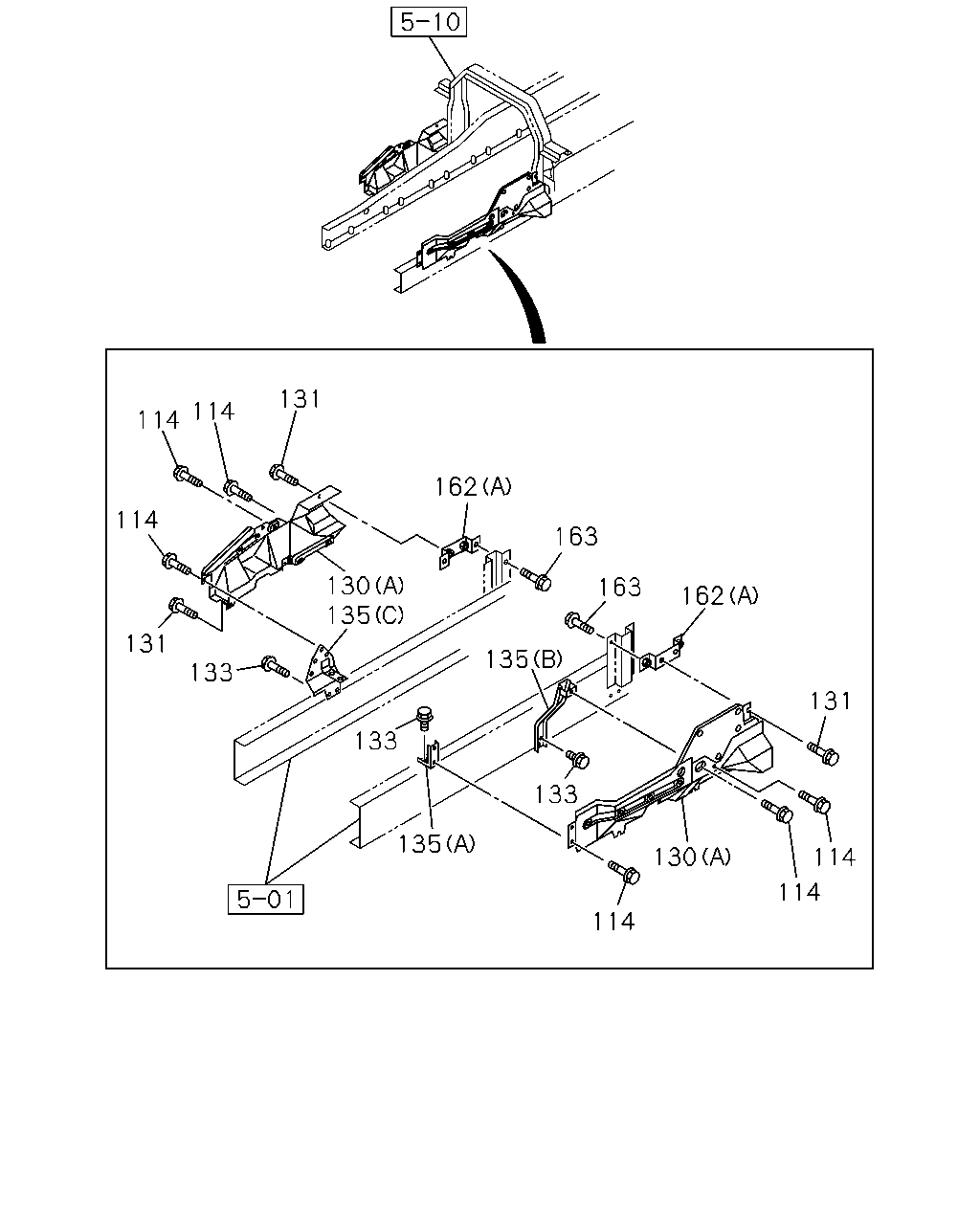

çizim 142637
131 114 114 162 114 163 130 135 163 162 131 135 133 131 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0806-0808
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 0809-
130 PANEL; SHUTTER NOISE
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53193-329-1 01 1 1009-
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-S(97L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (E) 		1-79937-919-3 01 1 1010-1010
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (E) 		1-79937-919-3 01 1 1011-
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1011-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0806-1008
130 PANEL; SHUTTER NOISE
AUSTRALIA EQUIPMENT(RR3) (A) 		1-53194-376-0 01 1 1009-
130 PANEL; SHUTTER NOISE
(E) 		1-79937-919-3 01 1 0806-0907
130 PANEL; SHUTTER NOISE
(F) 		8-98125-819-0 01 1 0908-1008
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) 		8-98125-819-0 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-C(72L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (F) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> AUSTRALIA EQUIPMENT(RR3) (F) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> AUSTRALIA EQUIPMENT(RR3) (F) 		8-98125-819-0 01 1 1011-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0806-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0806-
130 PANEL; SHUTTER NOISE
(B) 		1-79947-078-1 01 1 0806-
130 PANEL; SHUTTER NOISE
(A) 		8-98116-731-0 01 1 0806-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0806-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0806-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0806-
135 BRACKET; SIDE PANEL
(C) 		8-98039-211-2 01 1 0806-
162 BRACKET
(A) 		1-53441-520-0 02 1 0806-
162 BRACKET
(C) 		1-71907-815-0 01 1 0806-
162 BRACKET
(B) 		8-98097-794-0 01 1 0806-0808
162 BRACKET
(D) 		8-98113-210-2 01 1 0809-1008
162 BRACKET
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) (D) 		8-98113-210-2 01 1 1009-
162 BRACKET
AUSTRALIA EQUIPMENT(RR3) (D) 		8-98113-210-2 01 1 1009-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
çizim 142640
130 251 73 73 74 74 74 130 73 251 251
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
73 BOLT; MUD COVER BRKT
(C) M8X10 FLANGE 		0-28050-810-0 02 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0806-
74 NUT
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0806-0907
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0908-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 0806-0907
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0908-1008
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0908-1008
74 NUT
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91180-108-0 01 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1009-
130 PANEL; SHUTTER NOISE
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53193-329-1 01 1 1009-
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-S(97L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (E) 		1-79937-919-3 01 1 1010-1010
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (E) 		1-79937-919-3 01 1 1011-
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1011-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0806-1008
130 PANEL; SHUTTER NOISE
AUSTRALIA EQUIPMENT(RR3) (A) 		1-53194-376-0 01 1 1009-
130 PANEL; SHUTTER NOISE
(E) 		1-79937-919-3 01 1 0806-0907
130 PANEL; SHUTTER NOISE
(F) 		8-98125-819-0 01 1 0908-1008
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) 		8-98125-819-0 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-C(72L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (F) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> AUSTRALIA EQUIPMENT(RR3) (F) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> AUSTRALIA EQUIPMENT(RR3) (F) 		8-98125-819-0 01 1 1011-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0806-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0806-
130 PANEL; SHUTTER NOISE
(B) 		1-79947-078-1 01 1 0806-
130 PANEL; SHUTTER NOISE
(A) 		8-98116-731-0 01 1 0806-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 03 1 0806-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 0806-1008
251 CLIP; NOISE INSULATOR
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94165-394-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0806-1008
251 CLIP; NOISE INSULATOR
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94279-048-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0806-

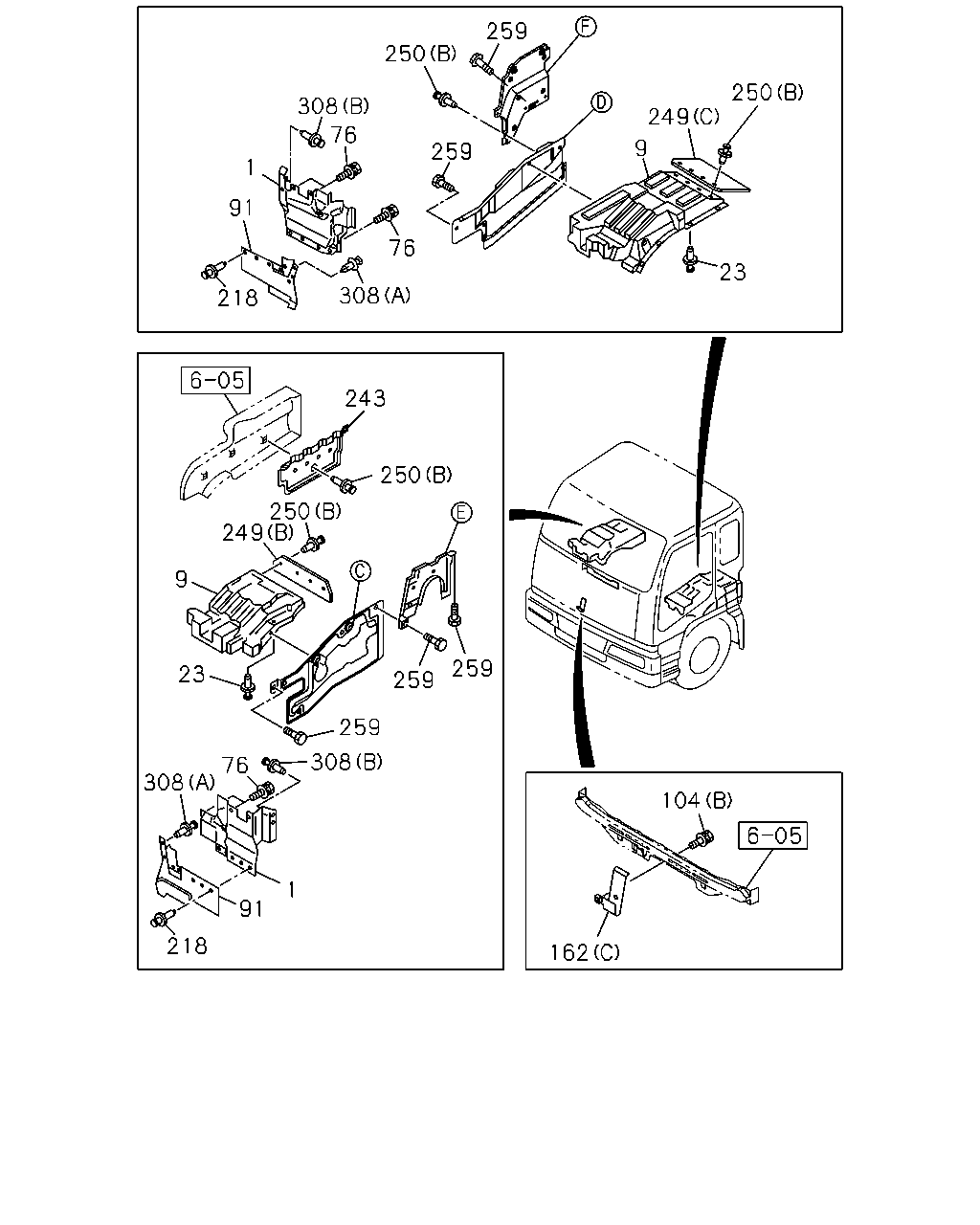

çizim 142642
259 250 250 308 249 76 9 259 1 91 76 23 308 218 243 250 250 249 9 259 23 259 259 308 76 308 104 1 91 218 162
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0806-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0806-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0806-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0806-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0806-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0806-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0806-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0806-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0806-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0806-
104 BOLT; BRKT
(C) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 0806-1008
104 BOLT; BRKT
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) (C) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 1009-
104 BOLT; BRKT
AUSTRALIA EQUIPMENT(RR3) (C) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 1009-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0806-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
162 BRACKET
(A) 		1-53441-520-0 02 1 0806-
162 BRACKET
(C) 		1-71907-815-0 01 1 0806-
162 BRACKET
(B) 		8-98097-794-0 01 1 0806-0808
162 BRACKET
(D) 		8-98113-210-2 01 1 0809-1008
162 BRACKET
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) (D) 		8-98113-210-2 01 1 1009-
162 BRACKET
AUSTRALIA EQUIPMENT(RR3) (D) 		8-98113-210-2 01 1 1009-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0806-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0806-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0806-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0806-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0806-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0806-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0806-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0806-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0809-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0806-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0806-0808
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0806-0808
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 0809-1008
250 FASTENER; SHUTTER
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1009-
250 FASTENER; SHUTTER
AUSTRALIA EQUIPMENT(RR3) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1009-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0806-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0806-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0806-
çizim 142646
130 130 281 185 281 185 249 249 130 130 185 185 130 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-53193-329-1 01 1 1009-
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-S(97L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (E) 		1-79937-919-3 01 1 1010-1010
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (E) 		1-79937-919-3 01 1 1011-
130 PANEL; SHUTTER NOISE
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		1-79937-919-3 01 1 1011-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0806-1008
130 PANEL; SHUTTER NOISE
AUSTRALIA EQUIPMENT(RR3) (A) 		1-53194-376-0 01 1 1009-
130 PANEL; SHUTTER NOISE
(E) 		1-79937-919-3 01 1 0806-0907
130 PANEL; SHUTTER NOISE
(F) 		8-98125-819-0 01 1 0908-1008
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) 		8-98125-819-0 01 1 1009-1009
130 PANEL; SHUTTER NOISE
6WG1 TC-C(72L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) (F) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> AUSTRALIA EQUIPMENT(RR3) (F) 		8-98125-819-0 01 1 1010-1010
130 PANEL; SHUTTER NOISE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> AUSTRALIA EQUIPMENT(RR3) (F) 		8-98125-819-0 01 1 1011-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0806-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0806-
130 PANEL; SHUTTER NOISE
(B) 		1-79947-078-1 01 1 0806-
130 PANEL; SHUTTER NOISE
(A) 		8-98116-731-0 01 1 0806-
185 CLIP; HEAT INSULATOR
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4 		8-97808-623-0 06 1 1009-1009
185 CLIP; HEAT INSULATOR
6WG1 TC-S(97L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) ID=6.2 L=11.4 		8-97808-623-0 06 1 1010-1010
185 CLIP; HEAT INSULATOR
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4 		8-97808-623-0 06 1 1010-1010
185 CLIP; HEAT INSULATOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) ID=6.2 L=11.4 		8-97808-623-0 06 1 1011-
185 CLIP; HEAT INSULATOR
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4 		8-97808-623-0 06 1 1011-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 0806-0907
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0908-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0806-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0806-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0806-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0806-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0806-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0806-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0806-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0806-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0806-
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0806-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-

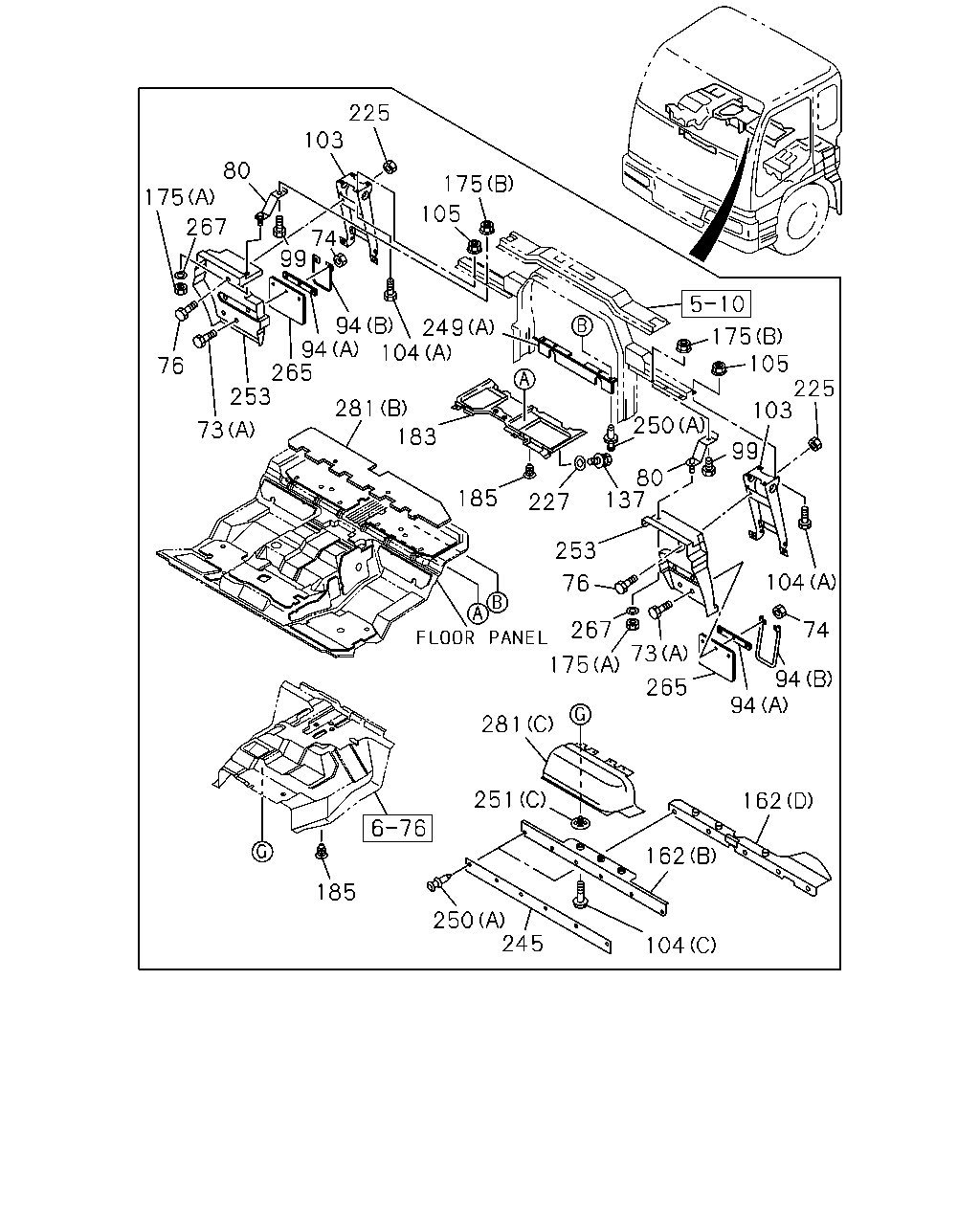

çizim 142659
225 103 80 175 175 105 267 74 99 94 249 94 104 265 253 175 105 225 103 76 281 183 250 73 99 80 137 185 227 253 104 76 267 74 73 175 94 94 265 281 251 162 162 185 250 245 104
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
73 BOLT; MUD COVER BRKT
(C) M8X10 FLANGE 		0-28050-810-0 02 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0806-
74 NUT
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0806-0907
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0908-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 0806-0907
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0908-1008
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0908-1008
74 NUT
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91180-108-0 01 1 1009-
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1009-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0806-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0806-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0806-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0806-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 0806-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0806-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 0806-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 0806-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-893-0 01 1 1503-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0806-
104 BOLT; BRKT
(C) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 0806-1008
104 BOLT; BRKT
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) (C) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 1009-
104 BOLT; BRKT
AUSTRALIA EQUIPMENT(RR3) (C) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 1009-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0806-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0806-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0806-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(A) 		1-53441-520-0 02 1 0806-
162 BRACKET
(C) 		1-71907-815-0 01 1 0806-
162 BRACKET
(B) 		8-98097-794-0 01 1 0806-0808
162 BRACKET
(D) 		8-98113-210-2 01 1 0809-1008
162 BRACKET
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) (D) 		8-98113-210-2 01 1 1009-
162 BRACKET
AUSTRALIA EQUIPMENT(RR3) (D) 		8-98113-210-2 01 1 1009-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0806-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0806-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0806-
185 CLIP; HEAT INSULATOR
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4 		8-97808-623-0 06 1 1009-1009
185 CLIP; HEAT INSULATOR
6WG1 TC-S(97L) JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) ID=6.2 L=11.4 		8-97808-623-0 06 1 1010-1010
185 CLIP; HEAT INSULATOR
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4 		8-97808-623-0 06 1 1010-1010
185 CLIP; HEAT INSULATOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> NEW ZEALAND EQUIPMENT(PK5) ID=6.2 L=11.4 		8-97808-623-0 06 1 1011-
185 CLIP; HEAT INSULATOR
EXC. JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=6.2 L=11.4 		8-97808-623-0 06 1 1011-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 0806-0907
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0908-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0806-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0806-
245 RUBBER; SHUTTER,RAD 8-98097-795-0 01 1 0806-0808
245 RUBBER; SHUTTER,RAD 8-98113-211-0 01 1 0809-1008
245 RUBBER; SHUTTER,RAD
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) 		8-98113-211-0 01 1 1009-
245 RUBBER; SHUTTER,RAD
AUSTRALIA EQUIPMENT(RR3) 		8-98113-211-0 01 1 1009-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0806-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0806-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0806-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0806-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0806-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0806-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0809-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0806-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0806-0808
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0806-0808
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 0809-1008
250 FASTENER; SHUTTER
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1009-
250 FASTENER; SHUTTER
AUSTRALIA EQUIPMENT(RR3) (A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 03 1 0806-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 0806-1008
251 CLIP; NOISE INSULATOR
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94165-394-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0806-1008
251 CLIP; NOISE INSULATOR
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94279-048-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0806-
253 GUARD; MUD 1-79931-065-7 01 1 0806-0901
253 GUARD; MUD 8-98134-760-0 01 1 0902-
253 GUARD; MUD 8-98035-096-0 01 1 0806-0901
253 GUARD; MUD 8-98134-765-0 01 1 0902-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0806-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0806-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0806-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0806-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0806-
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0806-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
