6-35 — FRONT DOOR TRIM (#2524) — 123 parça

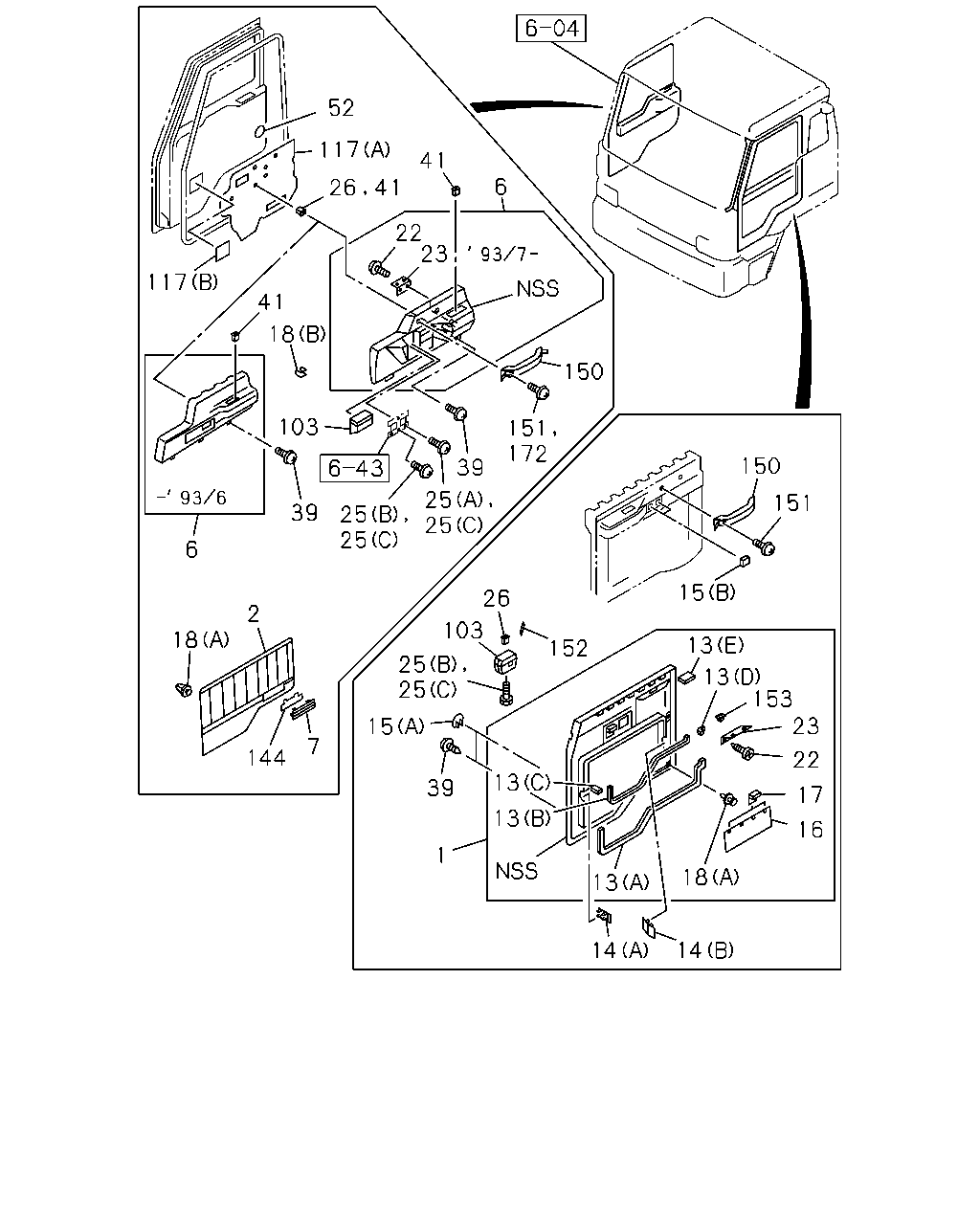

52 117 41 6 22 23 117 41 18 150 103 151 172 150 39 25 25 151 39 25 25 6 15 26 2 103 18 13 152 25 25 13 153 23 15 7 144 22 13 39 17 13 16 1 18 13 14 14 26 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-352-3	01	1	9002-9306
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-435-2	01	1	9307-
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-429-0	01	1	9205-9306
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-445-0	01	1	9307-
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-466-0	01	1	9205-9306
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-446-0	01	1	9307-
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>	1-73337-347-0	01	1	9002-9306
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>	1-73337-468-0	01	1	9307-
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-310-0	01	1	9002-9306
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-344-0	01	1	9307-
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-464-3	01	1	9205-9306
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-462-1	01	1	9307-
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-373-5	01	1	9205-9306
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-423-3	01	1	9307-
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73338-314-0	01	1	9002-9306
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73337-432-1	01	1	9307-
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-309-0	01	1	9002-9306
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-467-2	01	1	9307-
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-310-0	01	1	9002-9306
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	01	1	9307-
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-310-0	02	1	9002-9306
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	02	1	9307-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=935	1-73337-353-4	01	1	9002-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=90	1-73337-354-3	01	1	9002-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=180	1-73337-355-3	01	1	9002-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (E) L=85	1-73337-356-4	01	1	9002-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=1125	1-73337-358-3	01	1	9002-
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-308-0	01	1	9002-
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-309-0	01	1	9002-
15	COVER; HOLE,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-307-0	02	1	9002-
15	COVER; HOLE,DOOR TRIM POWER WINDOW<A30> (B)	1-73337-471-2	01	1	9304-
15	COVER; HOLE,DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-471-2	02	1	9307-
16	RUBBER; SHUTTER,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-254-2	01	1	9002-
17	HOLDER; SHUTTER RUBBER,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-281-0	02	1	9002-
18	CLIP; DOOR PAD (A)	1-09987-119-1	11	1	9002-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	11	1	9002-
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	05	1	9002-
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	01	1	9307-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9307-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B)	1-73337-276-0	02	1	9002-9306
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9002-9306
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	04	1	9002-9306
22	SCREW; DOOR TRIM BRKT M4X12 TAPPING	9-07076-412-0	04	1	9205-
22	SCREW; DOOR TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	9002-9306
23	BRACKET; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-237-1	01	1	9002-
23	BRACKET; DOOR TRIM POWER WINDOW<A30>	1-73337-311-1	02	1	9205-
23	BRACKET; DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-311-1	01	1	9307-
23	BRACKET; DOOR TRIM EXC. POWER WINDOW<A30>	1-73337-311-1	01	1	9307-
25	SCREW; ASH TRAY,DOOR (C) M6X16 TAPPING	0-71180-616-0	04	1	9002-9205
25	SCREW; ASH TRAY,DOOR POWER WINDOW<A30> (A) M6X16 TAPPING	0-71180-616-0	03	1	9206-9306
25	SCREW; ASH TRAY,DOOR (B) M6X16 TAPPING	0-71180-616-0	03	1	9307-
25	SCREW; ASH TRAY,DOOR (A) M6X30	0-74110-630-0	01	1	9307-
25	SCREW; ASH TRAY,DOOR POWER WINDOW<A30> (A) M6X30	0-74110-630-0	01	1	9206-9306
25	SCREW; ASH TRAY,DOOR EXC. POWER WINDOW<A30> (C) M6X16 TAPPING	0-71180-616-0	04	1	9206-9306
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	04	1	9002-9205
26	GROMMET; SCREW,ASH TRAY DOOR POWER WINDOW<A30>	1-09983-061-0	03	1	9206-9306
26	GROMMET; SCREW,ASH TRAY DOOR EXC. POWER WINDOW<A30>	1-09983-061-0	04	1	9206-9306
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	03	1	9307-
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	9002-
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	0-74110-616-0	04	1	9002-
39	SCREW; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9002-
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	06	1	9002-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	08	1	9002-
52	SEAL; WATER,DOOR LWR OD=25 BLACK	1-76798-019-0	03	1	9002-9205
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	03	1	9206-9306
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	02	1	9307-
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	05	1	9206-9306
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	04	1	9307-
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	02	1	9002-9205
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30> BLACK	1-76457-036-2	01	1	9206-9306
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	01	1	9307-
103	TRAY ASM; ASH,DOOR	1-76457-046-1	01	1	9307-
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30>	1-76457-047-1	01	1	9206-9306
103	TRAY ASM; ASH,DOOR EXC. POWER WINDOW<A30> BLACK	1-76457-036-2	02	1	9206-9306
117	SEAL ASM; WATER DOOR (B)	1-76797-023-0	01	1	9204-
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76797-023-0	01	1	9204-
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-1	01	1	9002-9202
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-1	01	1	9203-9210
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-087-1	01	1	9211-
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-110-0	01	1	9205-
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-106-0	01	1	9205-
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-090-0	01	1	9002-9210
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-086-1	01	1	9211-
144	SHUTTER; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	01	1	9002-
144	SHUTTER; DOOR TRIM EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	02	1	9002-
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-057-0	01	1	9002-9306
150	GRIP; ASSIST,DOOR TRIM POWER WINDOW<A30>	1-73618-167-0	01	1	9205-9306
150	GRIP; ASSIST,DOOR TRIM	1-73618-161-0	01	1	9307-
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73618-161-0	01	1	9307-
151	SCREW; ASSIST GRIP,DOOR TRIM M6X20	1-09980-550-0	02	1	9307-
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X20	1-09981-374-0	02	1	9002-9306
151	SCREW; ASSIST GRIP,DOOR TRIM POWER WINDOW<A30> M6X30 W/PL WASHER	1-09981-495-0	02	1	9205-9208
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X30 W/PL WASHER	1-09981-495-0	02	1	9307-
152	PLUG; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-038-0	02	1	9002-9306
153	GROMMET; SCREW,TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	9002-
172	BOLT; ASSIST GRIP POWER WINDOW<A30> M6X20	1-09980-550-0	02	1	9209-9306
172	BOLT; ASSIST GRIP M6X20	1-09980-550-0	02	1	9307-

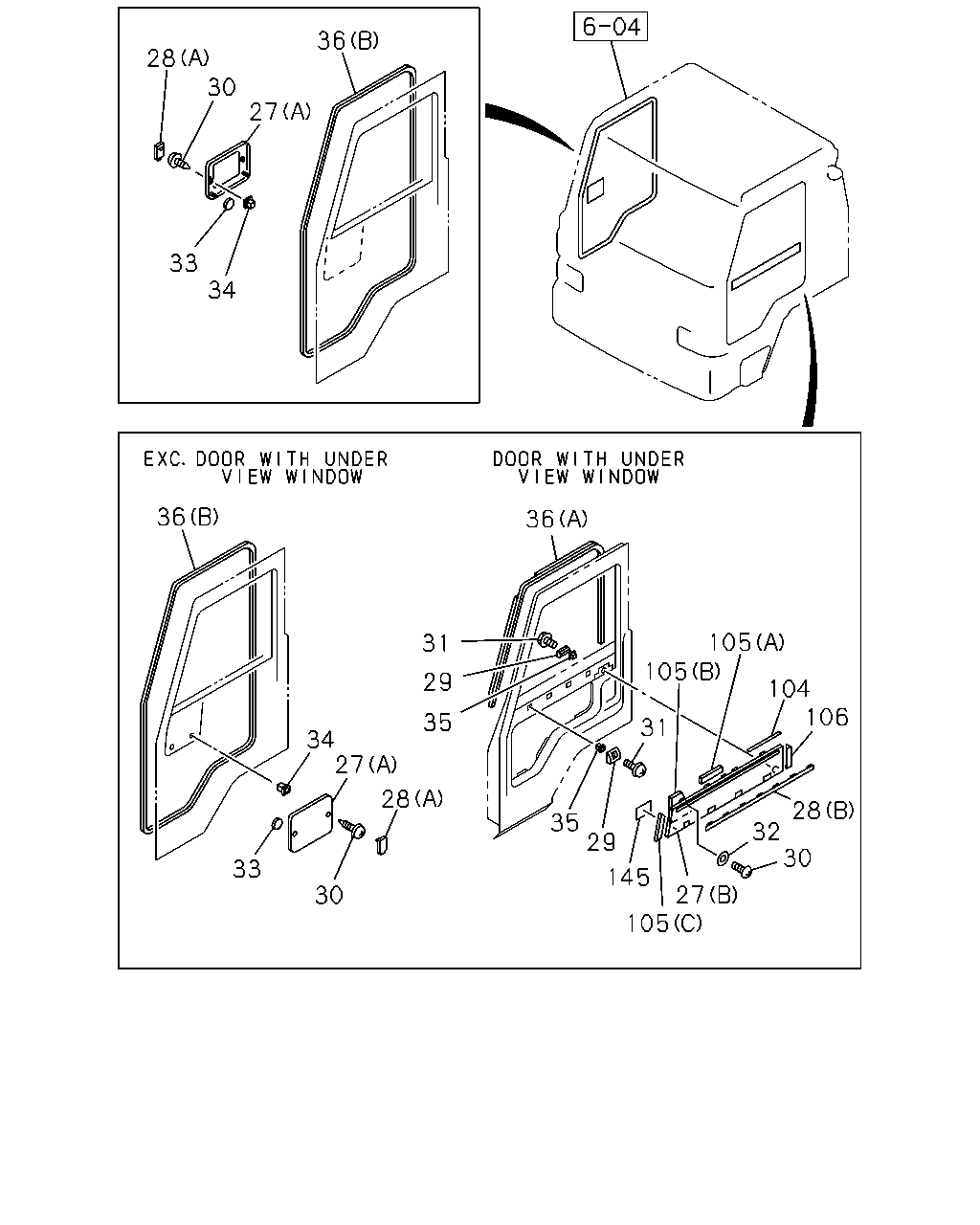

36 28 30 27 33 34 36 36 105 105 31 29 104 106 35 31 34 27 28 28 35 29 32 30 33 145 27 105 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PANEL; ORNAMENT,DOOR (A)	1-71997-510-0	01	1	9006-
27	PANEL; ORNAMENT,DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-512-2	01	1	9002-
27	PANEL; ORNAMENT,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-511-0	01	1	9006-
28	MOLDING; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-530-1	01	1	9002-
28	MOLDING; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-524-1	02	1	9002-
28	MOLDING; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-524-1	04	1	9002-
29	HOLDER; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-71997-523-0	04	1	9002-
30	SCREW; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M6X16	1-09981-453-0	04	1	9002-
30	SCREW; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	9002-
30	SCREW; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9002-
31	SCREW; HOLDER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M5X20	1-09981-454-0	04	1	9002-
32	WASHER; RUBBER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.5	1-71997-525-1	04	1	9002-
32	WASHER; RUBBER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> ID=7X14	1-71997-541-0	04	1	9002-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-090-0	02	1	9002-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-090-0	04	1	9002-
34	GROMMET; SCREW,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	9002-
34	GROMMET; SCREW,DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	04	1	9002-
35	GROMMET; SCREW,DOOR ORNAMENT HOLDER DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-081-0	04	1	9002-
36	SEAL; DOOR,MAIN,CAB SIDE (B) L=3060	1-76717-063-4	02	1	9002-
36	SEAL; DOOR,MAIN,CAB SIDE DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=1830	1-76737-112-6	01	1	9002-
104	SEAL; DOOR ORNAMENT,UPR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76777-059-4	01	1	9002-
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (C)	1-71997-602-1	01	1	9002-
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=121	1-71997-972-0	01	1	9002-
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-973-0	01	1	9002-
106	SEAL; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-71997-603-0	01	1	9002-
145	CUSHION; BASE TO ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-74617-030-0	01	1	9002-
