◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#25237) — 279 parça

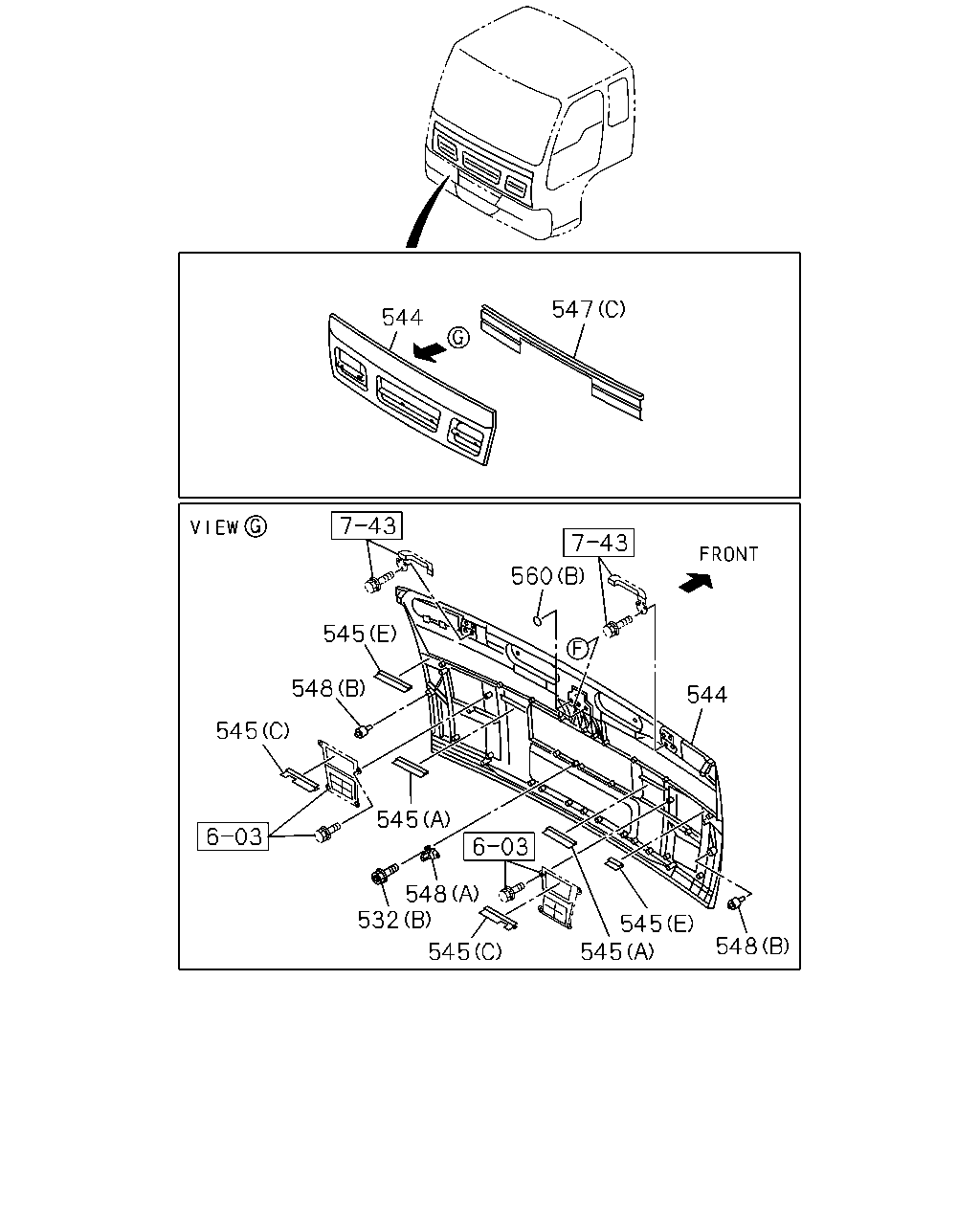

çizim 142609
547 544 560 545 548 544 545 545 548 532 545 545 548 545
BalonParca AdiParca NoAdetTipApplied Date
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0806-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0806-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0806-
544 LID; FRT
BODY COLOR TOLL GREEN(543) WHITE 		1-71101-023-1 01 1 1203-
544 LID; FRT
WHITE 		1-71101-023-1 01 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0806-
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0806-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0806-
547 RUBBER; CUSHION
(C) 		1-71907-804-2 01 1 0806-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0806-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0806-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0806-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0806-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0806-1105
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0806-1105

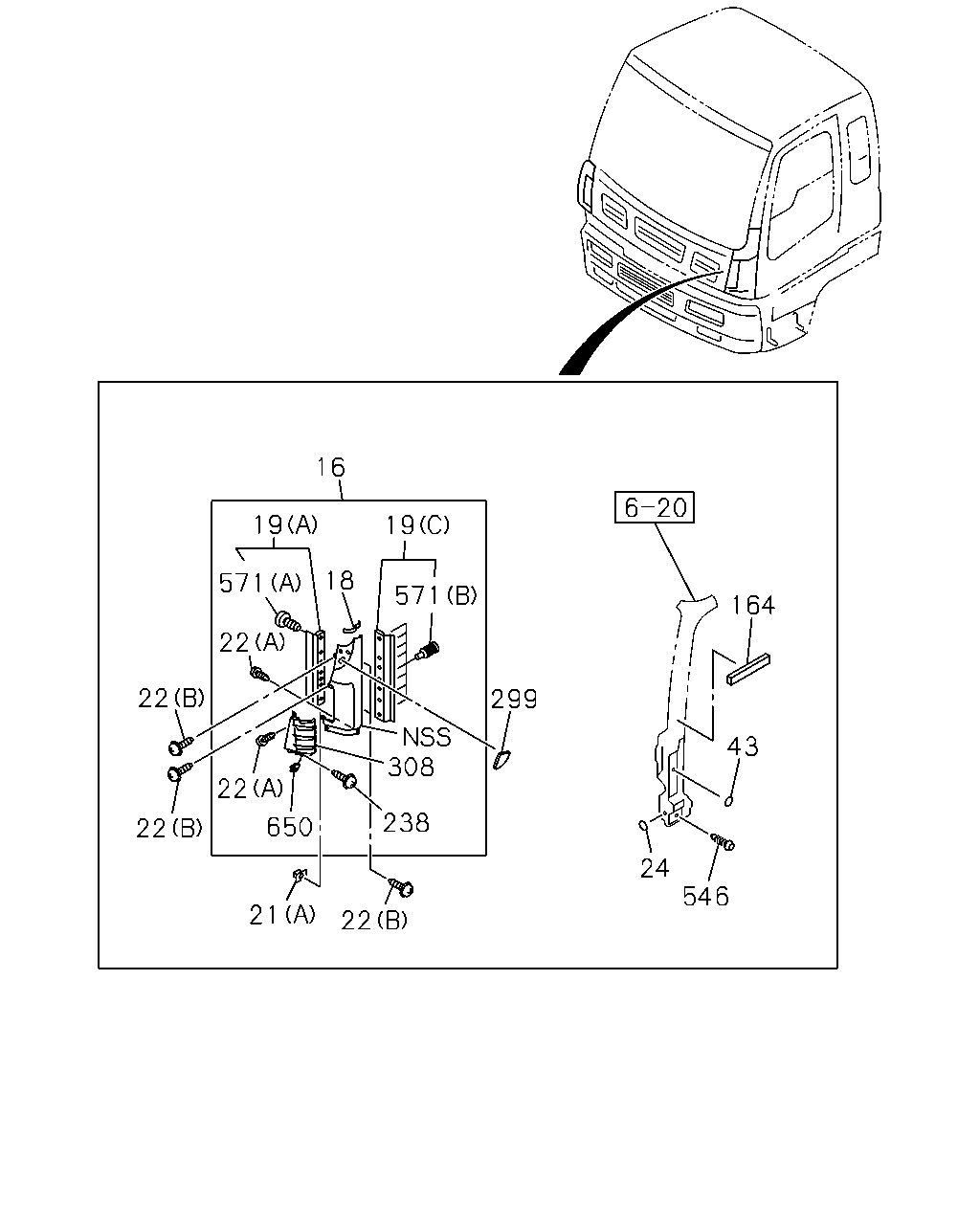

çizim 142611
16 19 19 18 571 571 164 22 22 299 308 43 22 238 650 22 24 546 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65473-182-4 01 1 0806-
16 PANEL; FRONT,SIDE
WHITE 		1-65473-185-4 01 1 0806-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0806-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0806-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0806-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0806-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0806-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0806-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0806-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0806-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0806-1008
21 GROMMET; SCREW,FRT SIDE PANEL
AUSTRALIA EQUIPMENT(RR3) (B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1009-1202
21 GROMMET; SCREW,FRT SIDE PANEL
AUSTRALIA EQUIPMENT(RR3) (B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1203-
22 SCREW; FRT PANEL SIDE
(A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 0806-
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0806-0810
22 SCREW; FRT PANEL SIDE
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 0811-1010
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 0806-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0806-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0806-
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0806-
299 COVER; FRT PANEL SIDE
BODY COLOR TOLL GREEN(543) 		1-71998-995-1 01 1 1203-
299 COVER; FRT PANEL SIDE
BODY COLOR TOLL GREEN(543) 		1-71998-996-1 01 1 1203-
299 COVER; FRT PANEL SIDE 1-71996-349-0 01 1 0806-1202
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) 		1-71996-349-0 01 1 1203-
299 COVER; FRT PANEL SIDE 1-71996-350-0 01 1 0806-1202
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729) 		1-71996-350-0 01 1 1203-
308 PLATE; FRT PANEL
BODY COLOR TOLL GREEN(543) 		8-98213-770-0 01 1 1203-
308 PLATE; FRT PANEL
BODY COLOR TOLL GREEN(543) 		8-98213-771-0 01 1 1203-
308 PLATE; FRT PANEL 1-65473-181-3 01 1 0806-1202
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) 		1-65473-181-3 01 1 1203-
308 PLATE; FRT PANEL 1-65473-184-3 01 1 0806-1202
308 PLATE; FRT PANEL
BODY COLOR ARC WHITE(729) 		1-65473-184-3 01 1 1203-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 01 1 0806-
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0806-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0806-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0806-
650 NUT; SPIRE
M5 		1-09984-162-0 04 1 0806-

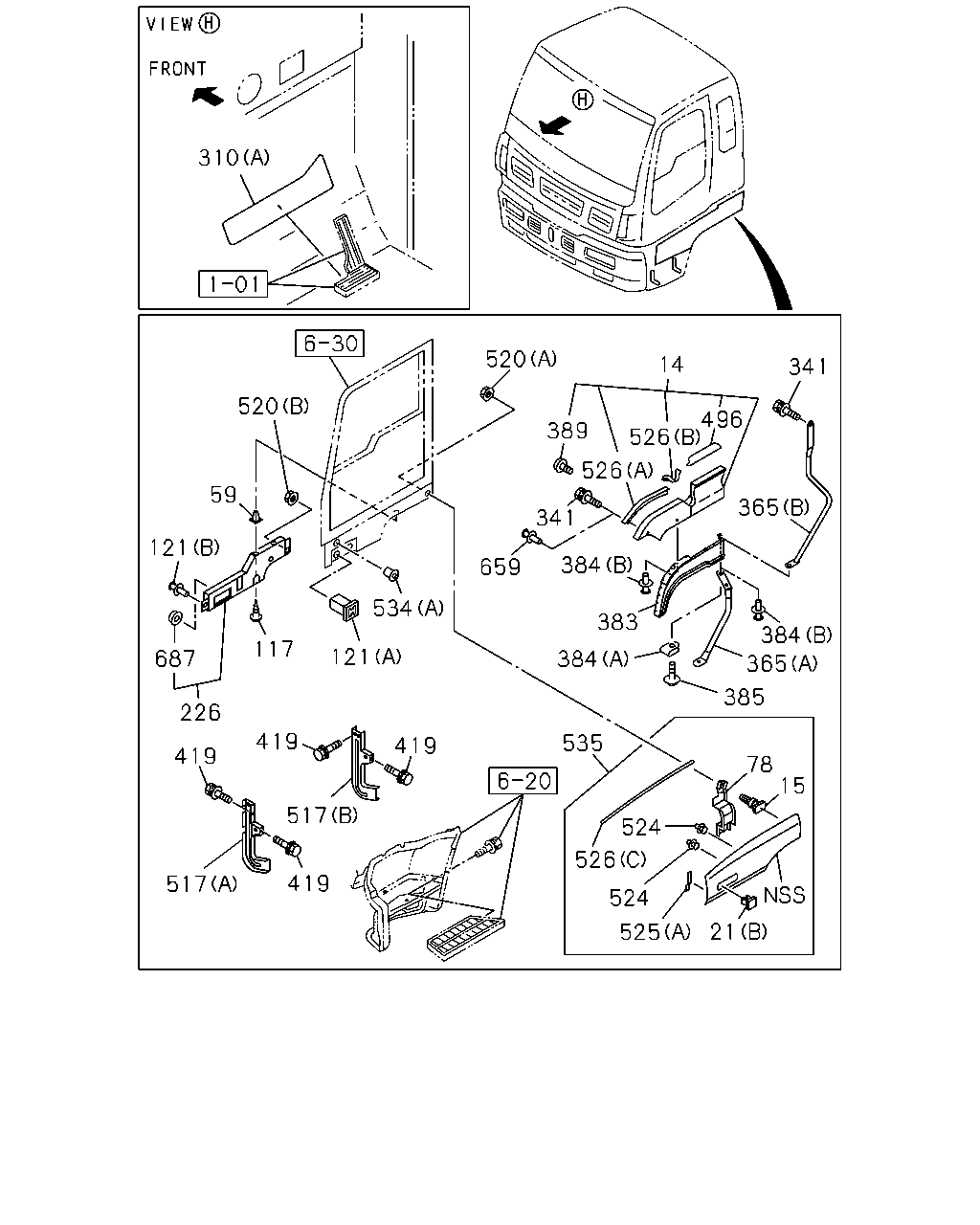

çizim 142621
520 59 121 687 226 419 517 419 517 419 117 121 419 534 535 524 526 524 525 15 21 78 385 365 384 383 659 384 384 365 341 496 526 526 389 341 520 14 310
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT 1-65472-874-9 01 1 0806-0901
14 FENDER; FRT 8-98137-383-0 01 1 0902-0910
14 FENDER; FRT 8-98154-744-1 01 1 0911-1008
14 FENDER; FRT 1-65472-875-9 01 1 0806-0901
14 FENDER; FRT 8-98137-384-0 01 1 0902-0910
14 FENDER; FRT 8-98154-744-1 01 1 0911-
14 FENDER; FRT 8-98154-745-1 01 1 0911-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0806-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0806-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0806-1008
21 GROMMET; SCREW,FRT SIDE PANEL
AUSTRALIA EQUIPMENT(RR3) (B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1009-1202
21 GROMMET; SCREW,FRT SIDE PANEL
AUSTRALIA EQUIPMENT(RR3) (B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1203-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0806-
78 BRACKET; FENDER 1-71267-214-0 01 1 0806-
78 BRACKET; FENDER 1-71267-215-0 01 1 0806-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0806-
121 GROMMET; FENDER
NEW ZEALAND EQUIPMENT(PK5) (C) 		8-98111-356-0 02 1 1009-1306
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0806-
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0806-
226 PROTECTOR; FRT
AUSTRALIA EQUIPMENT(RR3) 		1-71267-268-1 01 1 1009-
226 PROTECTOR; FRT
AUSTRALIA EQUIPMENT(RR3) 		1-71267-269-1 01 1 1009-
226 PROTECTOR; FRT 1-71267-268-1 01 1 0806-1008
226 PROTECTOR; FRT
NEW ZEALAND EQUIPMENT(PK5) 		8-98109-132-1 01 1 1009-1306
226 PROTECTOR; FRT
NEW ZEALAND EQUIPMENT(PK5) 		8-98234-709-0 01 1 1307-
226 PROTECTOR; FRT 1-71267-269-1 01 1 0806-1008
226 PROTECTOR; FRT
NEW ZEALAND EQUIPMENT(PK5) 		8-98109-134-1 01 1 1009-1306
226 PROTECTOR; FRT
NEW ZEALAND EQUIPMENT(PK5) 		8-98234-710-0 01 1 1307-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0806-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0806-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0806-0810
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0910
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911-
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 0806-0810
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811-
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 0806-0810
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811-
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0806-
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0806-
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 09 1 0806-0810
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 13 1 0811-
384 CLIP; FENDER LWR
(A) ID=6 		1-09987-266-0 04 1 0806-0810
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 0806-0810
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0806-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0806-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
496 RUBBER; STEP 1-71998-861-2 01 1 0806-
496 RUBBER; STEP 1-71998-862-2 01 1 0806-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0806-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0806-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0806-
517 SUPPORT; STEP PANEL
(A) 		1-65671-774-0 01 1 0806-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0806-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0806-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0806-
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 0806-1008
525 SEAL; FENDER
NEW ZEALAND EQUIPMENT(PK5) (B) 10X30 		8-97631-981-0 02 1 1009-
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1009-
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0806-
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0806-
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0806-
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0806-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0806-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0806-
535 FENDER; BLISTER 1-71267-293-1 01 1 0806-1008
535 FENDER; BLISTER
NEW ZEALAND EQUIPMENT(PK5) WHITE 		8-98234-066-0 01 1 1304-
535 FENDER; BLISTER 1-71267-294-1 01 1 0806-1008
535 FENDER; BLISTER
NEW ZEALAND EQUIPMENT(PK5) WHITE 		8-98234-067-0 01 1 1304-
535 FENDER; BLISTER
AUSTRALIA EQUIPMENT(RR3) 		1-71267-293-1 01 1 1009-
535 FENDER; BLISTER
AUSTRALIA EQUIPMENT(RR3) 		1-71267-294-1 01 1 1009-
535 FENDER; BLISTER
NEW ZEALAND EQUIPMENT(PK5) WHITE 		8-98105-663-1 01 1 1009-
535 FENDER; BLISTER
NEW ZEALAND EQUIPMENT(PK5) WHITE 		8-98105-664-1 01 1 1009-1303
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 0911-
687 COVER; FENDER
NEW ZEALAND EQUIPMENT(PK5) 		8-98234-587-0 02 1 1307-

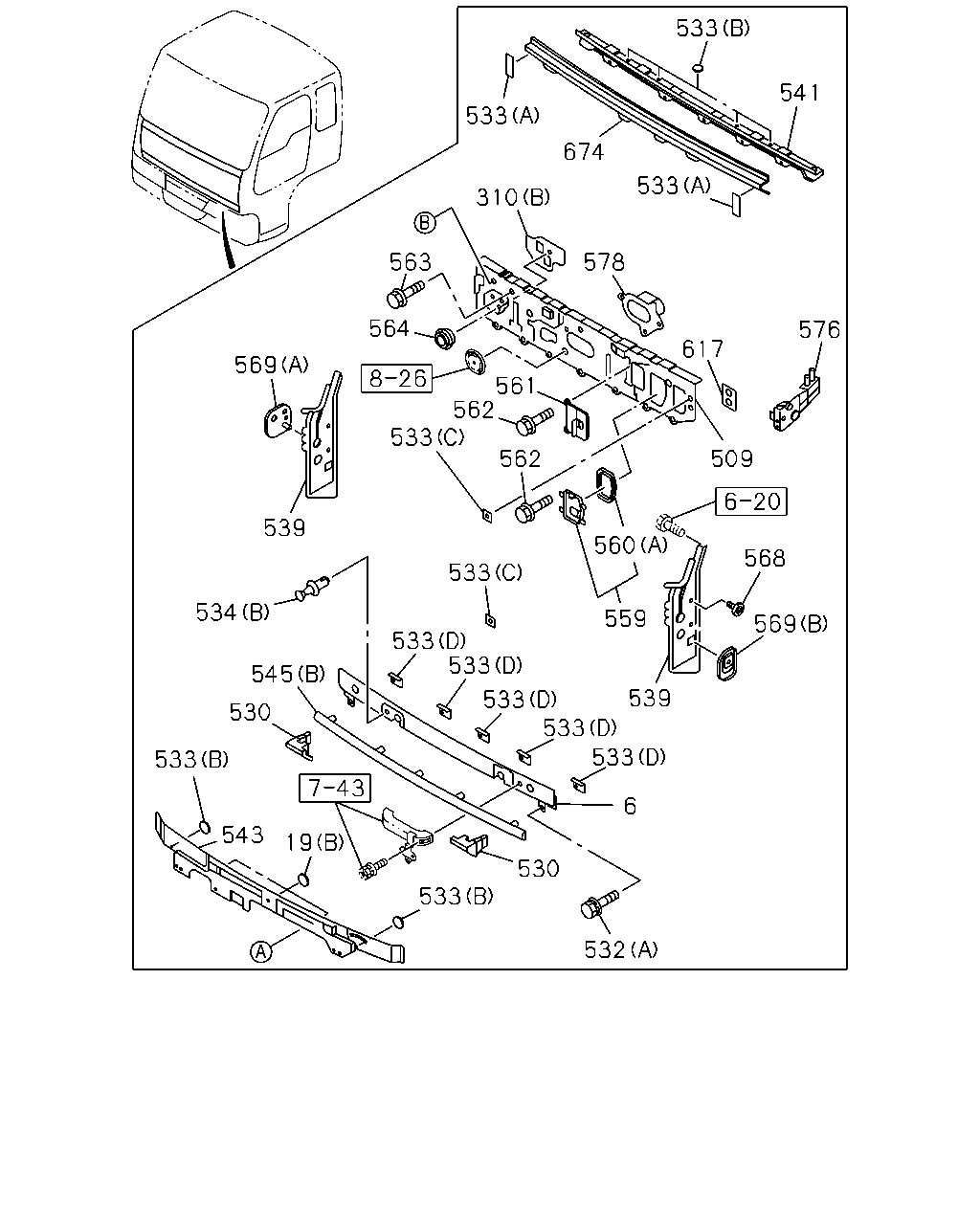

çizim 142622
533 541 533 674 533 310 563 578 564 576 617 569 561 562 533 509 562 539 560 568 533 534 559 569 533 533 545 539 533 533 530 533 533 6 543 19 530 533 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65473-144-0 01 1 0806-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0806-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0806-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0806-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0806-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0806-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0806-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0806-
509 PANEL; DASH 1-62270-478-6 01 1 0806-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0806-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0806-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0806-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0806-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0806-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0806-
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 0806-
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0806-
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0806-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0806-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0806-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0806-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0806-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0806-
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0806-
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0806-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0806-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0806-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0806-1105
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0806-1105
561 COVER; HEATER CORE 1-71998-829-1 01 1 0806-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0806-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0806-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0806-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0806-
568 PATCH; INST REINF 1-61480-675-2 02 1 0806-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0806-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0806-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0806-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0806-
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0806-
617 SEAL; DASH 1-61281-497-1 02 1 0806-
674 PANEL; UPR 1-61470-688-2 01 1 0806-

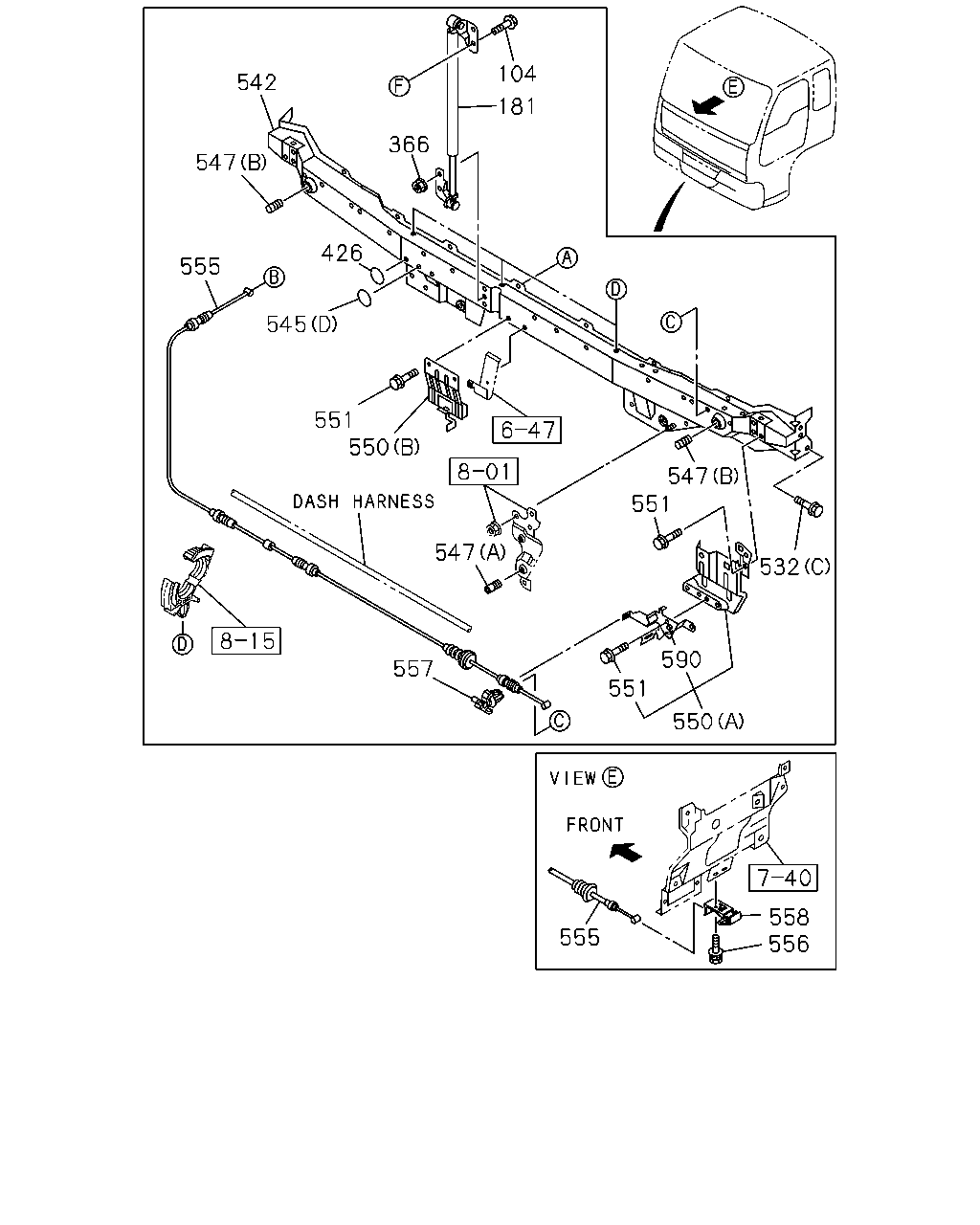

çizim 142662
104 542 181 366 547 426 555 545 551 550 547 551 547 532 590 557 551 550 558 556 555
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0806-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0806-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0806-
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0806-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0806-
532 BOLT; FRT PANEL
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0806-
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0806-
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0806-
545 SEAL; FRT LID
(A) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
(C) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
(C) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
(E) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0806-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0806-
547 RUBBER; CUSHION
(C) 		1-71907-804-2 01 1 0806-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0806-
550 LOCK ASM; FRT LID
(B) 		1-79317-020-1 01 1 0806-
550 LOCK ASM; FRT LID
(A) 		1-79317-025-1 01 1 0806-
550 LOCK ASM; FRT LID
(A) 		1-79317-026-1 01 1 0806-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0806-
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 0806-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0806-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0806-
558 LEVER; FRT LID 1-79338-007-1 01 1 0806-
590 LOCK; FRT LID 1-79318-009-4 01 1 0806-
590 LOCK; FRT LID 1-79318-010-2 01 1 0806-

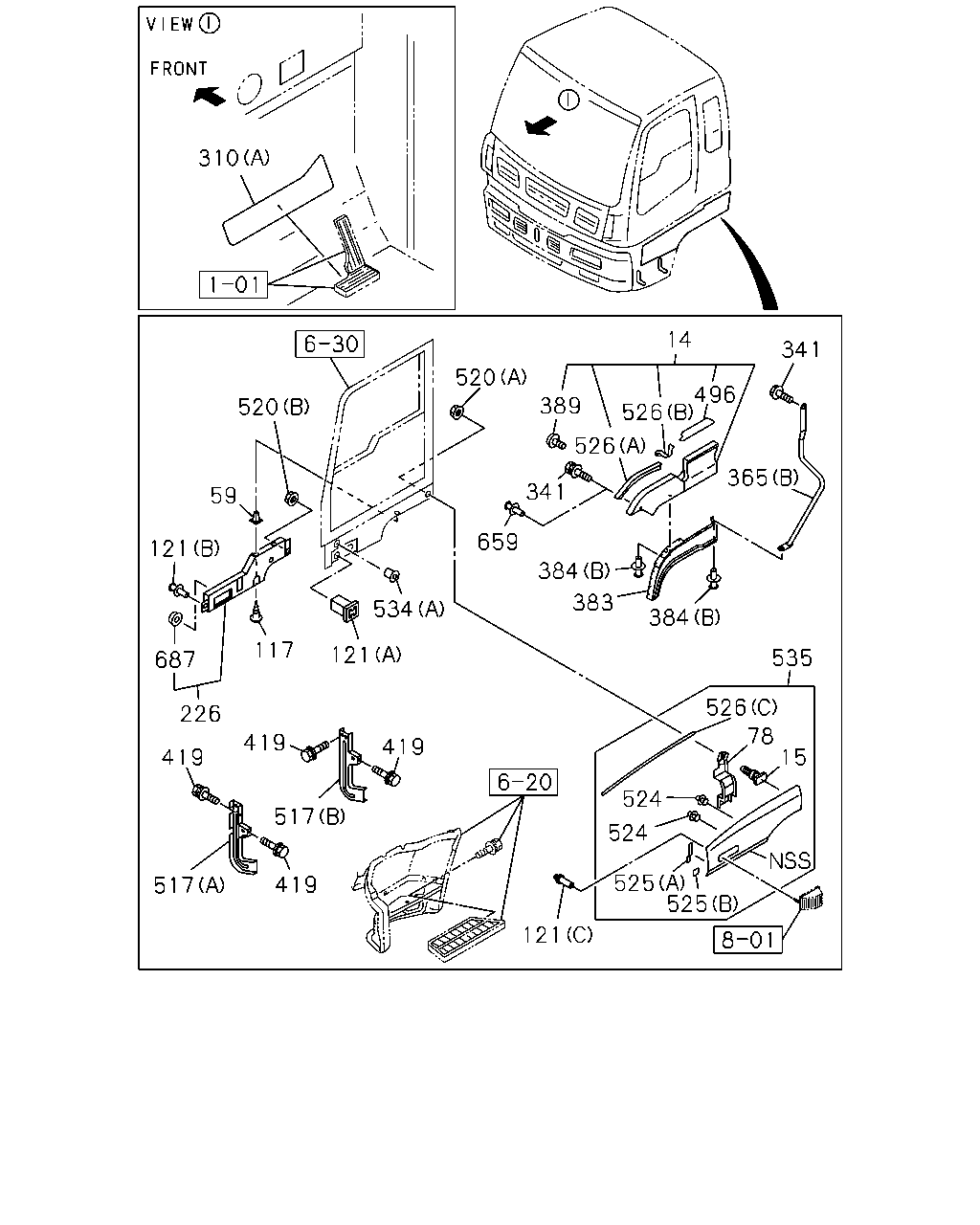

çizim 142710
310 520 59 121 687 226 419 517 419 517 419 117 121 534 419 520 659 384 383 384 365 496 526 526 341 389 14 341 535 526 78 15 525 525 524 524 121
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT 1-65472-874-9 01 1 0806-0901
14 FENDER; FRT 8-98137-383-0 01 1 0902-0910
14 FENDER; FRT 8-98154-744-1 01 1 0911-1008
14 FENDER; FRT 1-65472-875-9 01 1 0806-0901
14 FENDER; FRT 8-98137-384-0 01 1 0902-0910
14 FENDER; FRT 8-98154-744-1 01 1 0911-
14 FENDER; FRT 8-98154-745-1 01 1 0911-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0806-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0806-
78 BRACKET; FENDER 1-71267-214-0 01 1 0806-
78 BRACKET; FENDER 1-71267-215-0 01 1 0806-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0806-
121 GROMMET; FENDER
NEW ZEALAND EQUIPMENT(PK5) (C) 		8-98111-356-0 02 1 1009-1306
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0806-
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0806-
226 PROTECTOR; FRT
AUSTRALIA EQUIPMENT(RR3) 		1-71267-268-1 01 1 1009-
226 PROTECTOR; FRT
AUSTRALIA EQUIPMENT(RR3) 		1-71267-269-1 01 1 1009-
226 PROTECTOR; FRT 1-71267-268-1 01 1 0806-1008
226 PROTECTOR; FRT
NEW ZEALAND EQUIPMENT(PK5) 		8-98109-132-1 01 1 1009-1306
226 PROTECTOR; FRT
NEW ZEALAND EQUIPMENT(PK5) 		8-98234-709-0 01 1 1307-
226 PROTECTOR; FRT 1-71267-269-1 01 1 0806-1008
226 PROTECTOR; FRT
NEW ZEALAND EQUIPMENT(PK5) 		8-98109-134-1 01 1 1009-1306
226 PROTECTOR; FRT
NEW ZEALAND EQUIPMENT(PK5) 		8-98234-710-0 01 1 1307-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0806-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0806-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0806-0810
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0910
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911-
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 0806-0810
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811-
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 0806-0810
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811-
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0806-
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0806-
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 09 1 0806-0810
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 13 1 0811-
384 CLIP; FENDER LWR
(A) ID=6 		1-09987-266-0 04 1 0806-0810
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0806-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0806-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
496 RUBBER; STEP 1-71998-861-2 01 1 0806-
496 RUBBER; STEP 1-71998-862-2 01 1 0806-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0806-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0806-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0806-
517 SUPPORT; STEP PANEL
(A) 		1-65671-774-0 01 1 0806-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0806-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0806-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0806-
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 0806-1008
525 SEAL; FENDER
NEW ZEALAND EQUIPMENT(PK5) (B) 10X30 		8-97631-981-0 02 1 1009-
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 1009-
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0806-
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0806-
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0806-
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0806-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0806-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0806-
535 FENDER; BLISTER 1-71267-293-1 01 1 0806-1008
535 FENDER; BLISTER
NEW ZEALAND EQUIPMENT(PK5) WHITE 		8-98234-066-0 01 1 1304-
535 FENDER; BLISTER 1-71267-294-1 01 1 0806-1008
535 FENDER; BLISTER
NEW ZEALAND EQUIPMENT(PK5) WHITE 		8-98234-067-0 01 1 1304-
535 FENDER; BLISTER
AUSTRALIA EQUIPMENT(RR3) 		1-71267-293-1 01 1 1009-
535 FENDER; BLISTER
AUSTRALIA EQUIPMENT(RR3) 		1-71267-294-1 01 1 1009-
535 FENDER; BLISTER
NEW ZEALAND EQUIPMENT(PK5) WHITE 		8-98105-663-1 01 1 1009-
535 FENDER; BLISTER
NEW ZEALAND EQUIPMENT(PK5) WHITE 		8-98105-664-1 01 1 1009-1303
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 0911-
687 COVER; FENDER
NEW ZEALAND EQUIPMENT(PK5) 		8-98234-587-0 02 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
