Isuzu WW
▶
TRUCKS
▶
EXY
▶
11117 - EXY AUST/NZ HYDRAULIC RETARDER
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

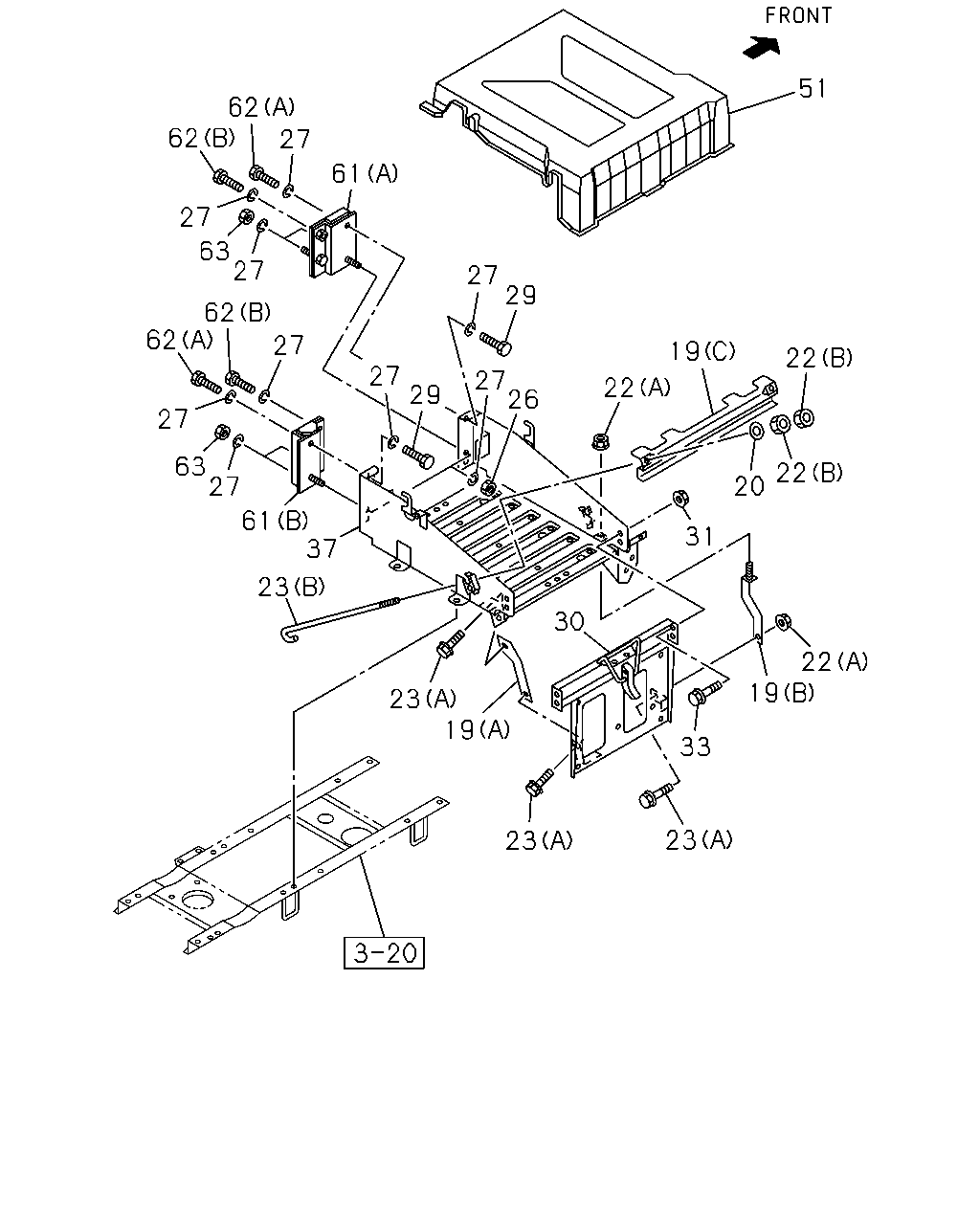

5-20 — BATTERY CARRIER
(#25234) — 22 parça
51
62
62
27
61
27
63
27
27
29
62
62
27
19
22
27
29
27
26
22
27
63
27
22
20
61
37
31
23
30
22
19
33
23
19
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0806-
19
STAY; BATTERY
(A)
8-98089-574-0
01
1
0806-
19
STAY; BATTERY
(B)
8-98116-952-0
01
1
0806-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0806-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0806-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0806-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
03
1
0806-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0806-
26
NUT; BRKT
M14
0-91110-514-0
02
1
0806-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
12
1
0806-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
0806-
30
PLATE; BATTERY
8-98089-572-1
01
1
0806-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0806-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0806-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
37
BRACKET; BATTERY
8-98116-984-0
01
1
0806-
51
COVER; BATTERY
1-53612-068-0
01
1
0806-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-504-0
01
1
0806-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
0806-
62
BOLT; DIST TO FRAME,BATTERY
(A) M14X45
1-09000-764-0
02
1
0806-
62
BOLT; DIST TO FRAME,BATTERY
(B) M14X60
1-09000-778-0
02
1
0806-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0806-
