◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#2523) — 55 parça
çizim 28582
123 11 60 57 60
BalonParca AdiParca NoAdetTipApplied Date
11 ACTUATOR; DOOR LK,FRT
POWER WINDOW<A30> 		1-79997-349-0 01 1 9205-
57 SWITCH; DOOR LK
AUTO DOOR LOCK<AU4> 		1-79998-672-0 01 1 9211-
60 SCREW; DOOR LK SW
AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9211-
123 ROD; ACTUATOR,DOOR LOCK
POWER WINDOW<A30> 		1-74517-163-0 01 1 9205-

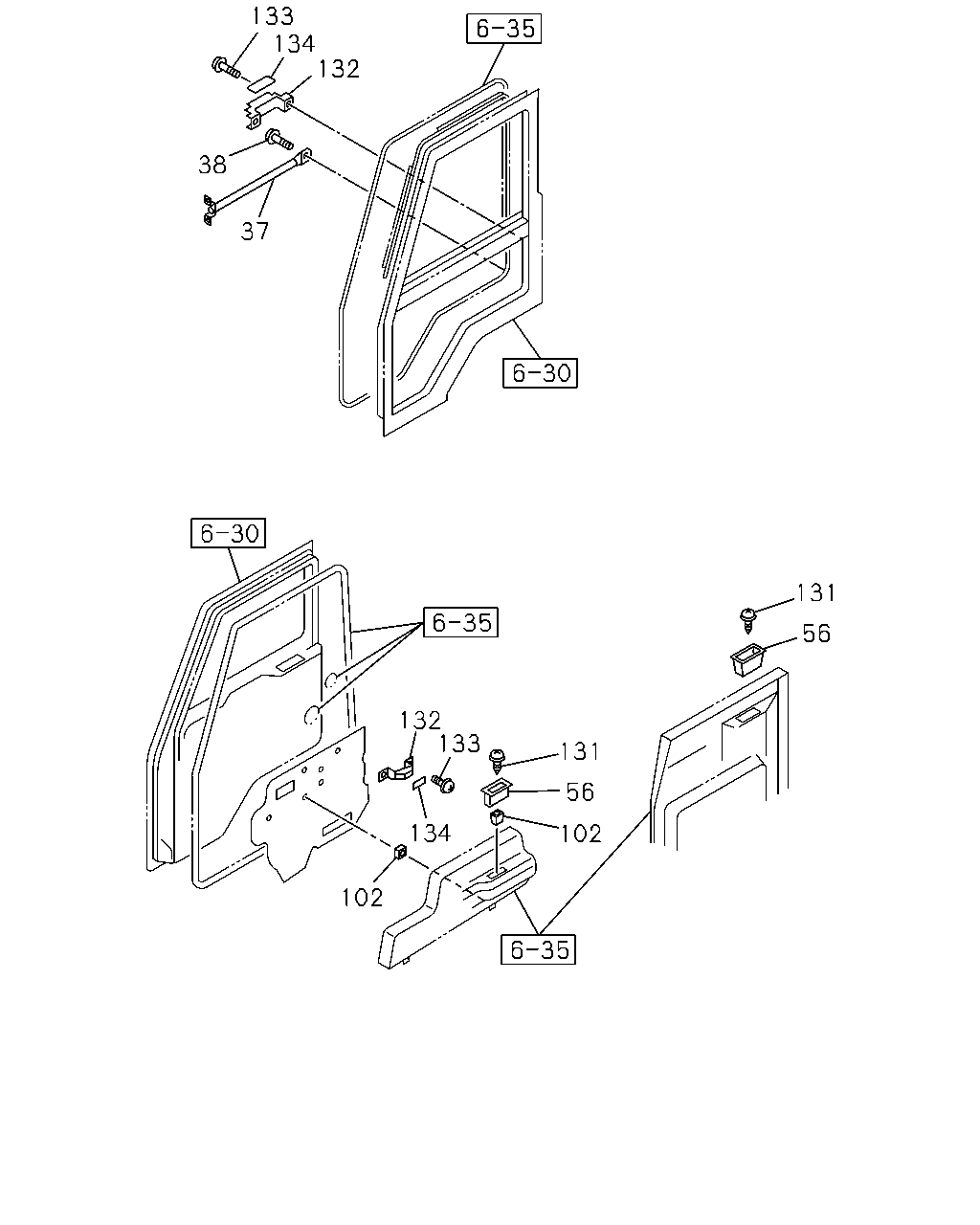

çizim 95120
133 134 132 38 37 131 56 132 133 131 56 134 102 102
BalonParca AdiParca NoAdetTipApplied Date
37 PIPE; GUARD,DOOR WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-038-1 01 1 9002-
38 BOLT; GUARD PIPE,DOOR WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER 		9-01960-616-0 03 1 9002-9204
38 BOLT; GUARD PIPE,DOOR WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9205-
56 ESCUTCHEON; LOCK KNOB 1-73337-195-2 02 1 9002-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL 1-09983-061-0 04 1 9002-9204
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL 1-09983-061-0 04 1 9205-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
POWER WINDOW<A30> 		1-09983-061-0 04 1 9205-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-09983-061-0 02 1 9307-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
EXC. POWER WINDOW<A30> 		1-09983-061-0 02 1 9307-
131 SCREW; ESCUTCHEON,DOOR PULL
M6X16 TAPPING W/PL WASHER 		0-74110-616-0 04 1 9002-
132 STAY; DOOR PULL
POWER WINDOW<A30> 		1-73337-321-0 02 1 9205-9306
132 STAY; DOOR PULL
EXC. POWER WINDOW<A30> 		1-73337-196-6 02 1 9002-
133 SCREW; DOOR PULL STAY
M6X12 W/LK&PL WASHER 		1-09981-430-0 04 1 9002-
134 RUBBER; CUSHION,DOOR PULL STAY 1-73337-197-2 02 1 9002-

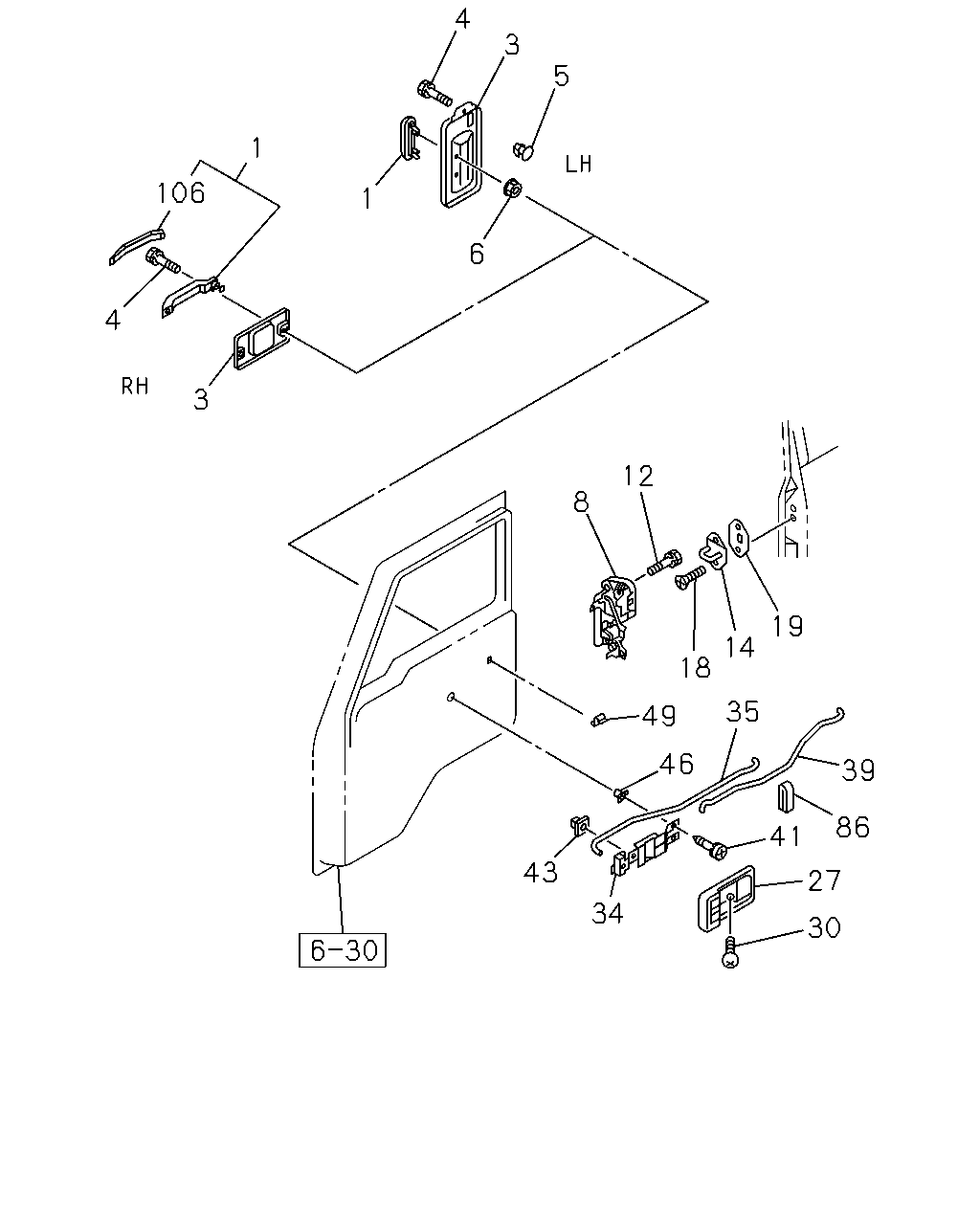

çizim 95149
4 3 5 1 106 1 6 4 3 12 8 19 14 18 35 49 46 39 86 41 43 27 34 30
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-029-5 01 1 9002-
1 HANDLE; OUTSIDE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-038-2 01 1 9002-
1 HANDLE; OUTSIDE,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-038-2 02 1 9002-
3 BASE; HANDLE,DOOR OUTSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-028-3 01 1 9002-
3 BASE; HANDLE,DOOR OUTSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-024-5 01 1 9002-
3 BASE; HANDLE,DOOR OUTSIDE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-024-5 02 1 9002-
4 SCREW; OUTSIDE HANDLE,DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER 		1-09981-439-0 02 1 9002-
4 SCREW; OUTSIDE HANDLE,DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER 		1-09981-439-0 04 1 9002-
5 CLIP; BASE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-09987-133-0 01 1 9002-
6 NUT; OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 02 1 9002-
8 LOCK; DOOR,FRT DOOR 1-74517-154-0 01 1 9002-9005
8 LOCK; DOOR,FRT DOOR 1-74517-158-0 01 1 9006-
8 LOCK; DOOR,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74517-156-1 01 1 9002-
8 LOCK; DOOR,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74517-155-0 01 1 9002-9110
8 LOCK; DOOR,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74517-162-0 01 1 9111-
12 SCREW; DOOR LK
M6X12 W/LK&PL WASHER 		1-09981-430-0 02 1 9002-
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9002-
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 9002-
14 STRIKER; FRT DOOR 1-74527-001-1 02 1 9002-
18 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9002-
19 SHEET; ADJ,DOOR STRIKER
T=1.4 		8-94282-546-0 AR 1 9002-
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK 		8-94201-500-1 01 1 9002-
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK 		8-94201-499-1 01 1 9002-
30 SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD 		0-70580-410-0 02 1 9002-
34 HANDLE; INSIDE,FRT DOOR 1-74717-019-4 01 1 9002-
34 HANDLE; INSIDE,FRT DOOR 1-74717-018-4 01 1 9002-
35 LINK; DOOR LOCK,INSIDE 1-74517-115-4 01 1 9002-
35 LINK; DOOR LOCK,INSIDE 1-74517-114-4 01 1 9002-
39 LINK; INSIDE HANDLE,FRT DOOR 1-74517-121-1 01 1 9002-
39 LINK; INSIDE HANDLE,FRT DOOR 1-74517-120-1 01 1 9002-
41 SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER 		0-74110-616-0 04 1 9002-
43 GROMMET; SCREW,INSIDE LEVER,DOOR 1-09983-061-0 04 1 9002-
46 BUSHING; DOOR LOCK TO OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> 		5-74617-009-0 01 1 9002-
49 CLAMP; DOOR LOCK LINK ROD 1-74517-116-0 02 1 9002-
86 SEAL; DOOR LOCK LINK 1-76777-101-2 02 1 9307-
106 COVER; DOOR,OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-033-1 01 1 9102-
106 COVER; DOOR,OUTSIDE HANDLE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-033-1 02 1 9102-
