◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#25229) — 134 parça

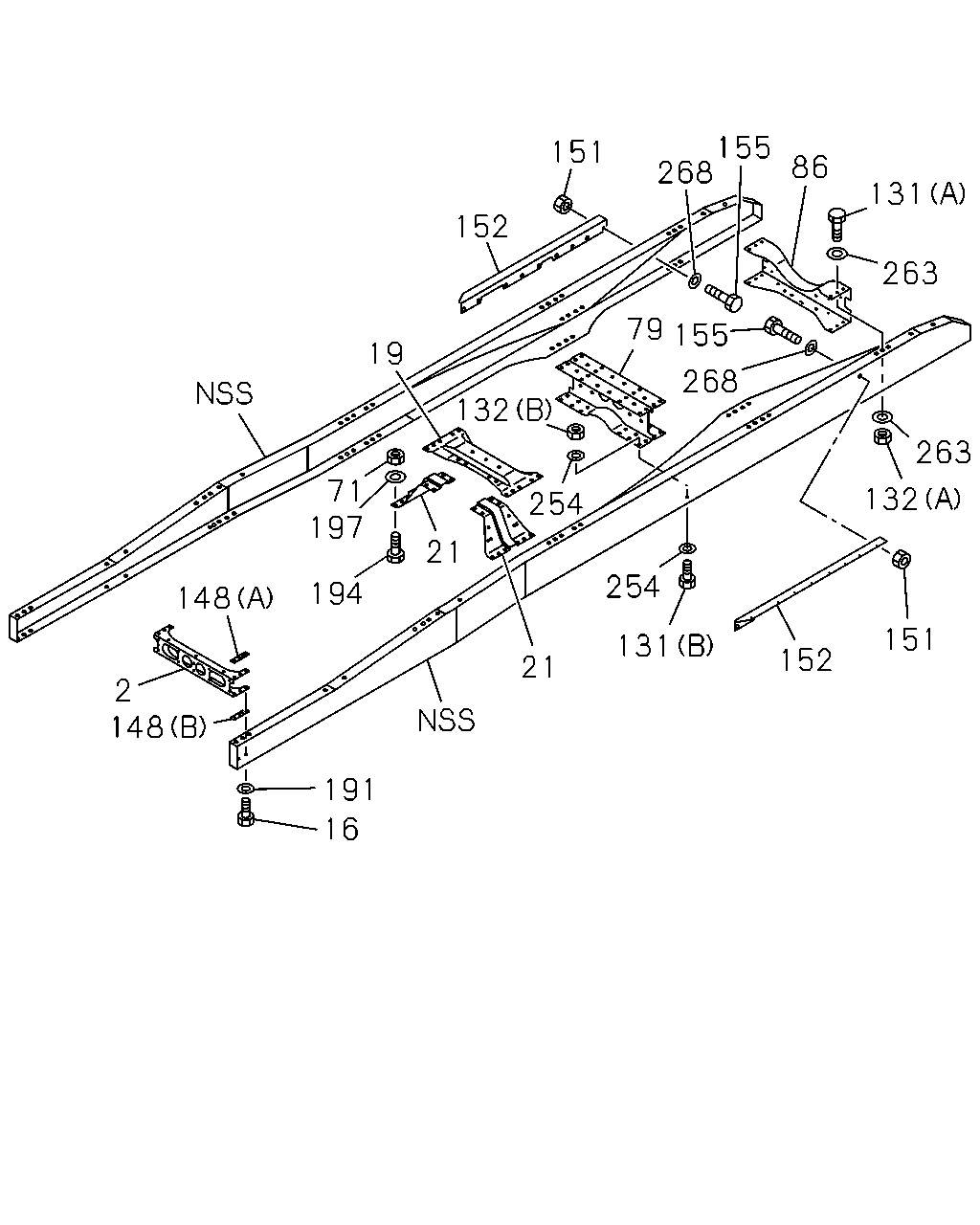

çizim 142614
155 268 151 86 131 152 263 132 254 79 155 19 268 263 71 197 132 21 254 194 148 151 131 152 21 2 148 191 16
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97604-959-2 01 1 0806-1008 ●
2 MEMBER; CROSS,1ST 8-97604-959-3 01 1 1009- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20951-640-0 02 1 0806-1008 ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20951-640-0 02 1 1009- ● ●
19 MEMBER; CROSS,2ND 1-53174-231-1 01 1 0806-1008 ●
19 MEMBER; CROSS,2ND 1-53174-231-2 01 1 1009- ● ●
21 GUSSET; 2ND CROSS 1-53164-226-0 01 1 0806-1008 ●
21 GUSSET; 2ND CROSS 1-53164-226-1 01 1 1009- ● ●
21 GUSSET; 2ND CROSS 1-53164-227-0 01 1 0806-1008 ●
21 GUSSET; 2ND CROSS 1-53164-227-1 01 1 1009- ● ●
71 NUT; 2ND C/MBR
M14 		0-91110-514-0 08 1 0806-1008 ●
71 NUT; 2ND C/MBR
M14 		0-91110-514-0 08 1 1009- ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53182-042-2 01 1 0806-1008 ●
79 MEMBER; CROSS,TRUNNION ASM 1-53182-042-2 01 1 1009- ● ●
86 MEMBER; CROSS,RR SUSP RR 8-98093-593-0 01 1 0806-1008 ●
86 MEMBER; CROSS,RR SUSP RR 8-98093-593-0 01 1 1009- ● ●
131 BOLT; END C/MBR
(B) M18X60 		8-98036-497-0 16 1 0806-1008 ●
131 BOLT; END C/MBR
(B) M18X60 		8-98036-497-0 16 1 1009- ● ●
131 BOLT; END C/MBR
(A) M12X40 		0-20951-240-0 02 1 0806-1008 ●
131 BOLT; END C/MBR
(A) M12X40 		0-20951-240-0 02 1 1009- ● ●
132 NUT; END C/MBR
(A) M12 		0-91110-512-0 02 1 0806-1008 ●
132 NUT; END C/MBR
(A) M12 		0-91110-512-0 02 1 1009- ● ●
132 NUT; END C/MBR
(B) M18 		0-91110-518-0 16 1 0806-1008 ●
132 NUT; END C/MBR
(B) M18 		0-91110-518-0 16 1 1009- ● ●
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 0806-1008 ●
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 1009- ● ●
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 0806-1008 ●
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 1009- ● ●
151 NUT; OUTRIGGER
M16 		0-91110-516-0 18 1 0806-1008 ●
151 NUT; OUTRIGGER
AUSTRALIA EQUIPMENT(RR3) M16 		0-91110-516-0 18 1 1009- ● ●
152 OUTRIGGER 8-97623-582-0 01 1 0806-1008 ●
152 OUTRIGGER
AUSTRALIA EQUIPMENT(RR3) 		8-97623-582-0 01 1 1009- ● ●
152 OUTRIGGER 8-97623-583-0 01 1 0806-1008 ●
152 OUTRIGGER
AUSTRALIA EQUIPMENT(RR3) 		8-97623-583-0 01 1 1009- ● ●
155 BOLT; OUTRIGGER
M16X50 		0-20951-650-0 22 1 0806-1008 ●
155 BOLT; OUTRIGGER
AUSTRALIA EQUIPMENT(RR3) M16X50 		0-20951-650-0 22 1 1009- ● ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-316-0 02 1 1009- ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-223-0 02 1 0806-1008 ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-223-0 02 1 1009- ●
194 BOLT; 2ND C/MBR
M14X50 		0-20951-450-0 08 1 0806-1008 ●
194 BOLT; 2ND C/MBR
M14X50 		0-20951-450-0 08 1 1009- ● ●
197 WASHER; PL,2ND C/MBR
ID=15 		8-98010-627-1 08 1 1009-1201 ●
197 WASHER; PL,2ND C/MBR
ID=15 		8-98010-627-1 08 1 1202- ● ●
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 0806-1008 ●
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 1009-1201 ●
254 WASHER; PL,C/MBR
ID=19 		0-91610-518-0 32 1 1009- ●
254 WASHER; PL,C/MBR
ID=19 		9-09160-518-0 32 1 0806-1008 ●
254 WASHER; PL,C/MBR
ID=19 		9-09160-518-0 32 1 1009- ●
263 WASHER; PL,SUB FRAME
ID=12.5 		9-09164-512-0 04 1 0806-1008 ●
263 WASHER; PL,SUB FRAME
ID=12.5 		9-09164-512-0 04 1 1009- ●
263 WASHER; PL,SUB FRAME
ID=12.5 		0-91614-512-0 04 1 1009- ●
268 WASHER; PL,OUTRIGGER
ID=17 OD=30 		9-09851-935-0 22 1 0806-1008 ●
268 WASHER; PL,OUTRIGGER
AUSTRALIA EQUIPMENT(RR3) ID=17 OD=30 		9-09851-935-0 22 1 1009- ● ●

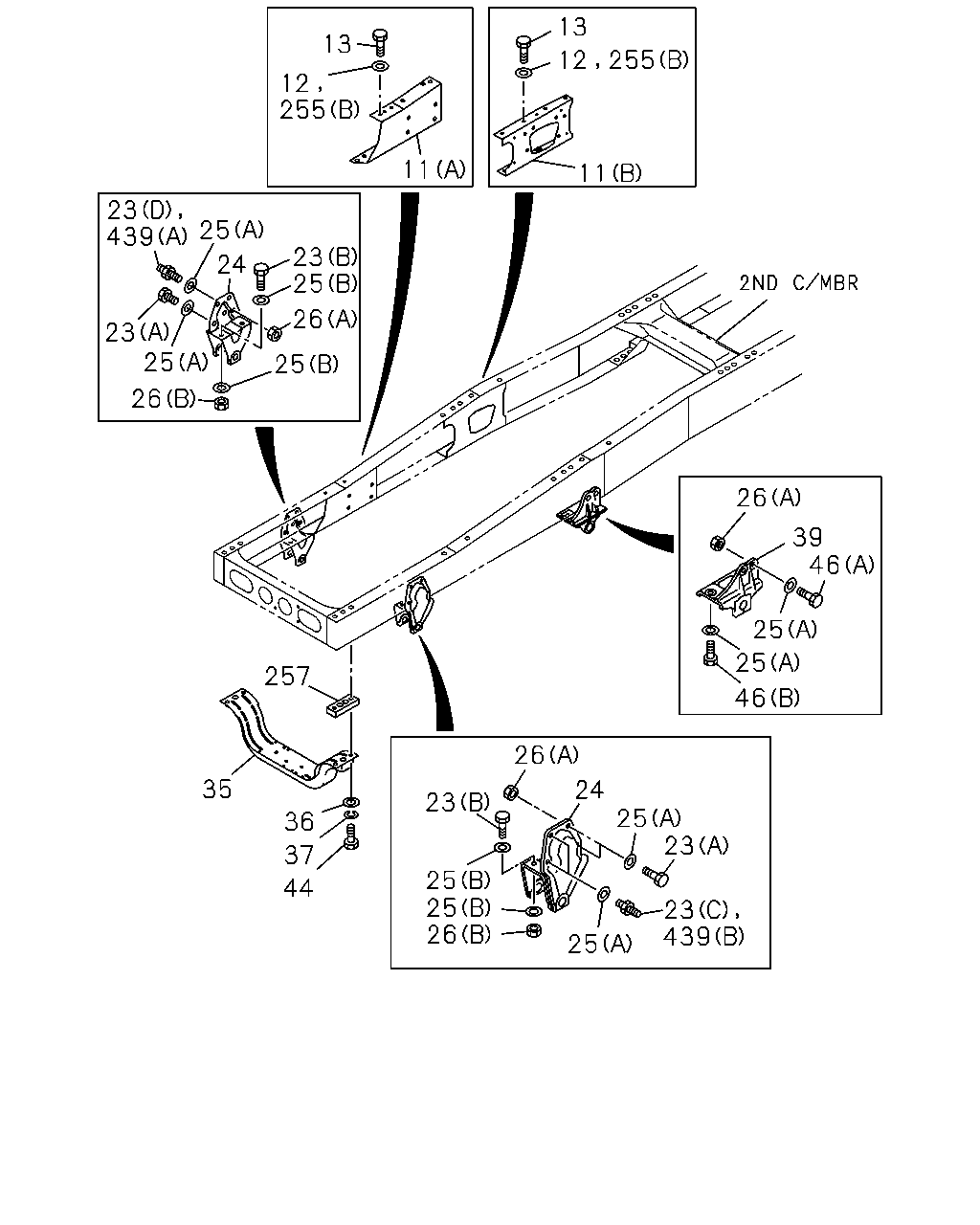

çizim 142616
13 13 12 255 11 11 23 439 25 23 25 24 26 23 25 25 26 26 39 46 25 25 257 46 26 35 24 23 25 23 36 37 25 25 26 44 23 439 25 12 255
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 0806-1008 ●
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 1009- ● ●
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 0806-1008 ●
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 1009- ● ●
11 BRACKET; ENG MTG
(B) 		8-98056-611-0 01 1 0806-1008 ●
11 BRACKET; ENG MTG
(B) 		8-98056-611-1 01 1 1009- ● ●
11 BRACKET; ENG MTG
(B) 		8-98056-612-0 01 1 0806-1008 ●
11 BRACKET; ENG MTG
(B) 		8-98056-612-0 01 1 1009- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 05 1 0806-1008 ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 05 1 1009-1201 ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 05 1 1202- ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 05 1 0806-1008 ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 05 1 1009- ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 0806-1008 ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 1009- ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0806-1008 ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 1009- ● ●
23 BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100 		1-09029-075-0 01 1 0806-1008 ●
23 BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100 		1-09029-075-0 01 1 1009- ●
23 BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81 		1-09029-103-0 02 1 0806-1008 ●
23 BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81 		1-09029-103-0 02 1 1009- ●
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0806-1008 ●
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 1009- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0806-1008 ●
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 1009- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1009- ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 32 1 1009-1201 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 32 1 1202- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0806-1008 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 1009- ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 32 1 0806-1008 ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 32 1 1009-1201 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 12 1 0806-1008 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 12 1 1009- ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0806-1008 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1009- ● ●
35 MEMBER; UNDER 1-53174-263-2 01 1 0806-1008 ●
35 MEMBER; UNDER 1-53174-263-2 01 1 1009- ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0806-1008 ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 1009- ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 0806-1008 ●
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 1009- ● ●
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 0806-1008 ●
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 1009- ● ●
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 0806-1008 ●
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 1009- ● ●
44 BOLT; UNDER MBR
M16X80 		0-10961-680-0 04 1 0806-1008 ●
44 BOLT; UNDER MBR
M16X80 		0-10961-680-0 04 1 1009-1504 ● ●
44 BOLT; UNDER MBR
M16X80 		8-98135-460-0 04 1 1505- ●
46 BOLT; BRKT FIX
(A) M14X40 		0-20951-440-0 04 1 0806-1008 ●
46 BOLT; BRKT FIX
(A) M14X40 		0-20951-440-0 04 1 1009- ● ●
46 BOLT; BRKT FIX
(B) M14X50 		0-20951-450-0 04 1 0806-1008 ●
46 BOLT; BRKT FIX
(B) M14X50 		0-20951-450-0 04 1 1009- ● ●
255 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 09 1 1009- ●
255 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 16 1 0806-1008 ●
255 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 16 1 1009- ●
257 SPACER; UNDER MBR 1-53168-447-1 02 1 0806-1008 ●
257 SPACER; UNDER MBR 1-53168-447-1 02 1 1009- ● ●
439 STUD; BRKT,SPR
(A) M12X35,M14X45 L=100 		1-09029-075-0 01 1 1009- ●
439 STUD; BRKT,SPR
(B) M12X25,M14X45 L=81 		1-09029-103-0 02 1 1009- ●

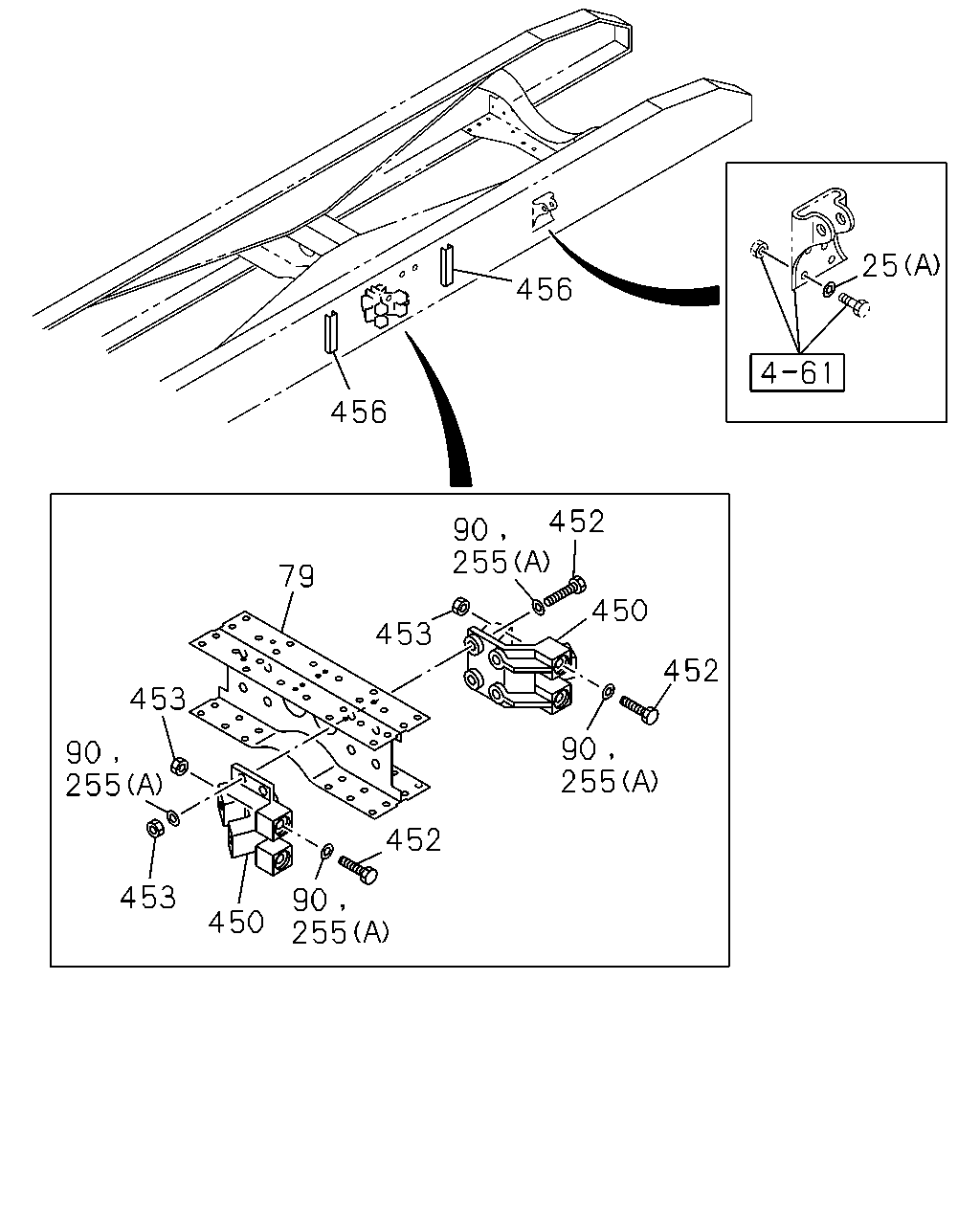

çizim 142634
25 456 456 452 90 255 79 450 453 452 453 90 255 90 255 452 453 90 255 450
BalonParca AdiParca NoAdetTipApplied Date A B
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1009- ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 32 1 1009-1201 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 32 1 1202- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0806-1008 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 1009- ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 32 1 0806-1008 ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 32 1 1009-1201 ●
79 MEMBER; CROSS,TRUNNION ASM 1-53182-042-2 01 1 0806-1008 ●
79 MEMBER; CROSS,TRUNNION ASM 1-53182-042-2 01 1 1009- ● ●
90 WASHER; PL
ID=16.2 		1-09503-316-0 16 1 1009- ●
255 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 09 1 1009- ●
255 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 16 1 0806-1008 ●
255 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 16 1 1009- ●
450 BRACKET; V ROD 1-53353-122-1 04 1 0806-1008 ●
450 BRACKET; V ROD 1-53353-122-1 04 1 1009- ● ●
452 BOLT; V ROD
M16X90 		1-09000-675-0 16 1 0806-1008 ●
452 BOLT; V ROD
M16X90 		1-09000-675-0 16 1 1009- ● ●
453 NUT; V ROD
M16 FLANGE 		1-09440-066-0 16 1 0806-1008 ●
453 NUT; V ROD
M16 FLANGE 		1-09440-066-0 16 1 1009- ● ●
456 PATCH; STOPPER 1-53119-203-0 04 1 0806-1008 ●
456 PATCH; STOPPER 1-53119-203-0 04 1 1009- ● ●
