◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#25228) — 26 parça

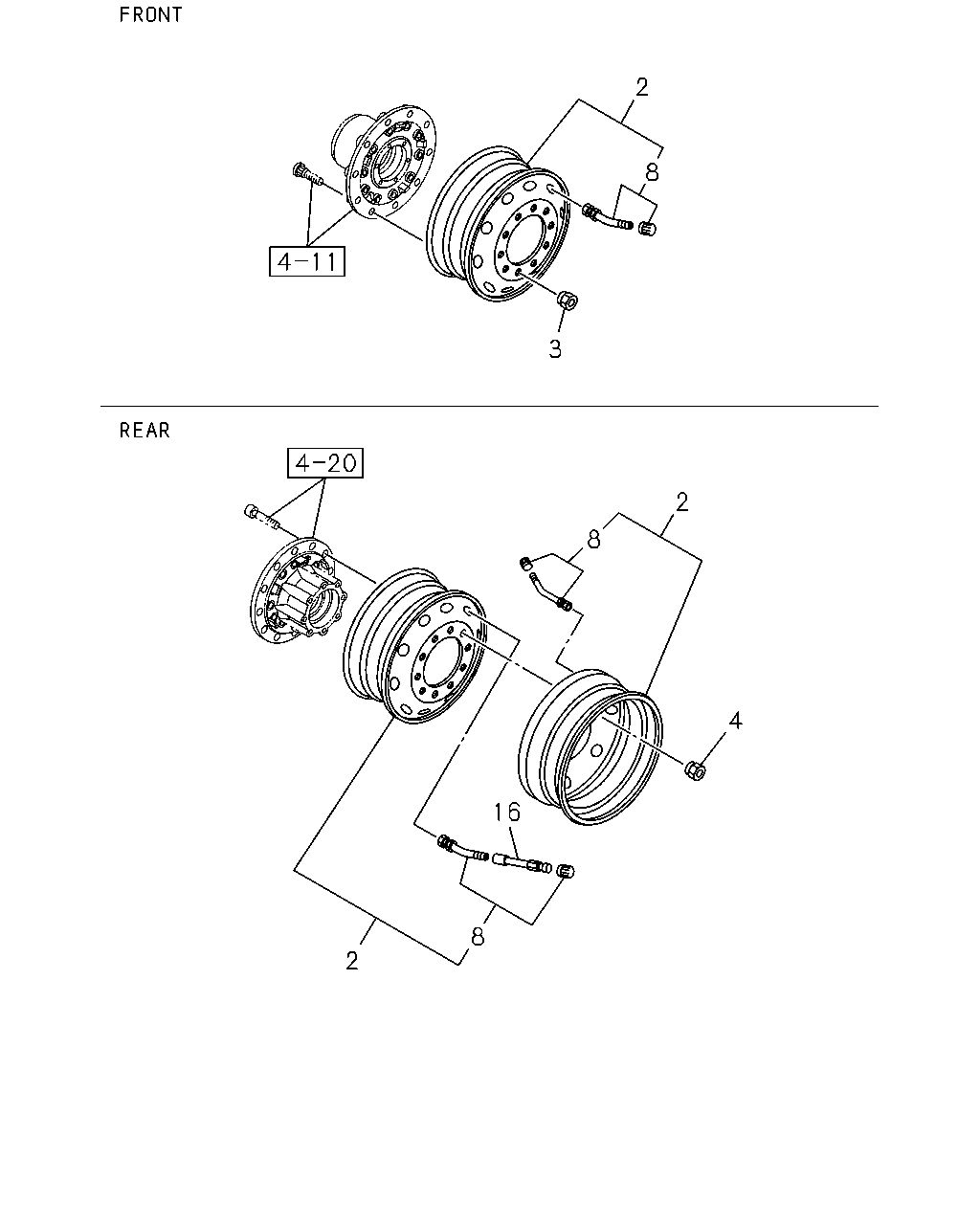

çizim 142587
2 8 3 2 8 4 16 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42350-638-1 01 1 1009-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42350-638-1 10 1 1009-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE 		1-42350-637-1 01 1 0806-1008
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR 		1-42350-637-1 10 1 1009-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR 		1-42350-637-1 10 1 0806-1008
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> FRONT,REAR 		1-42350-637-1 01 1 1009-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42350-694-0 01 1 0806-1008
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) FRONT,REAR 		1-42350-694-0 10 1 1009-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) FRONT,REAR 		1-42350-694-0 10 1 0806-1008
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42350-694-0 01 1 1009-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0806-0907
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 40 1 0806-0907
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 0908-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE 		1-42370-041-1 01 1 0806-1008
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT>, DISCWHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42370-041-1 01 1 1009-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR 		1-42370-041-1 10 1 0806-1008
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT>, DISCWHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> FRONT,REAR 		1-42370-041-1 10 1 1009-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42370-044-0 01 1 0806-1008
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) FRONT,REAR 		1-42370-044-0 10 1 1009-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) FRONT,REAR 		1-42370-044-0 10 1 0806-1008
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42370-044-0 01 1 1009-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 		1-42370-024-0 04 1 0806-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 		8-98167-052-0 04 1 1004-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115 		1-42370-015-2 04 1 0806-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115 		8-98167-051-0 04 1 1004-
