Isuzu WW
▶
TRUCKS
▶
EXY
▶
11117 - EXY AUST/NZ HYDRAULIC RETARDER
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-70 - AIR SUSPENSION VALVE AND CONTROL
▶
4-70 — AIR SUSPENSION VALVE AND CONTROL
(#25226) — 87 parça
◀

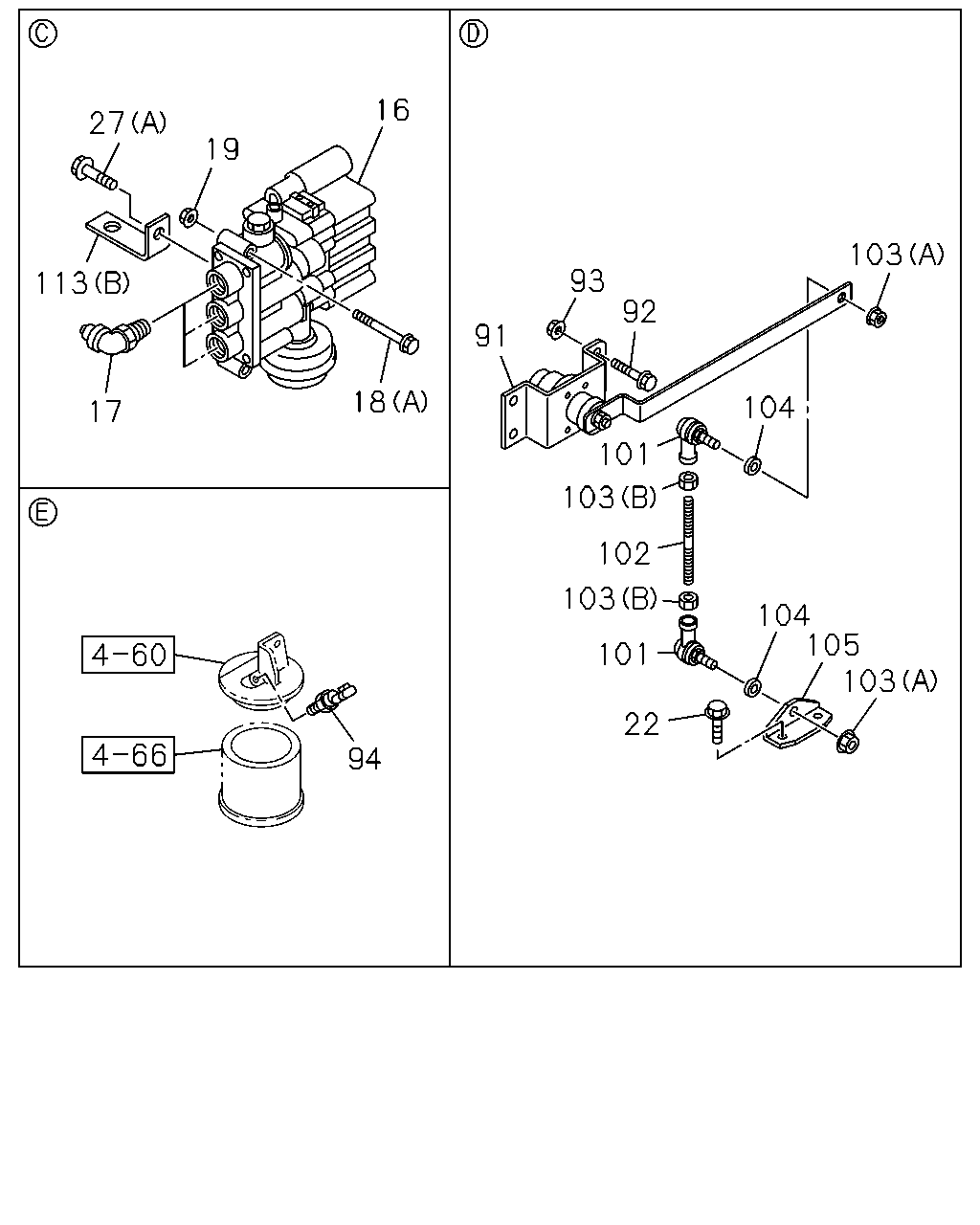

[470A] AIR VALVE AND SENSOR (22 parça)

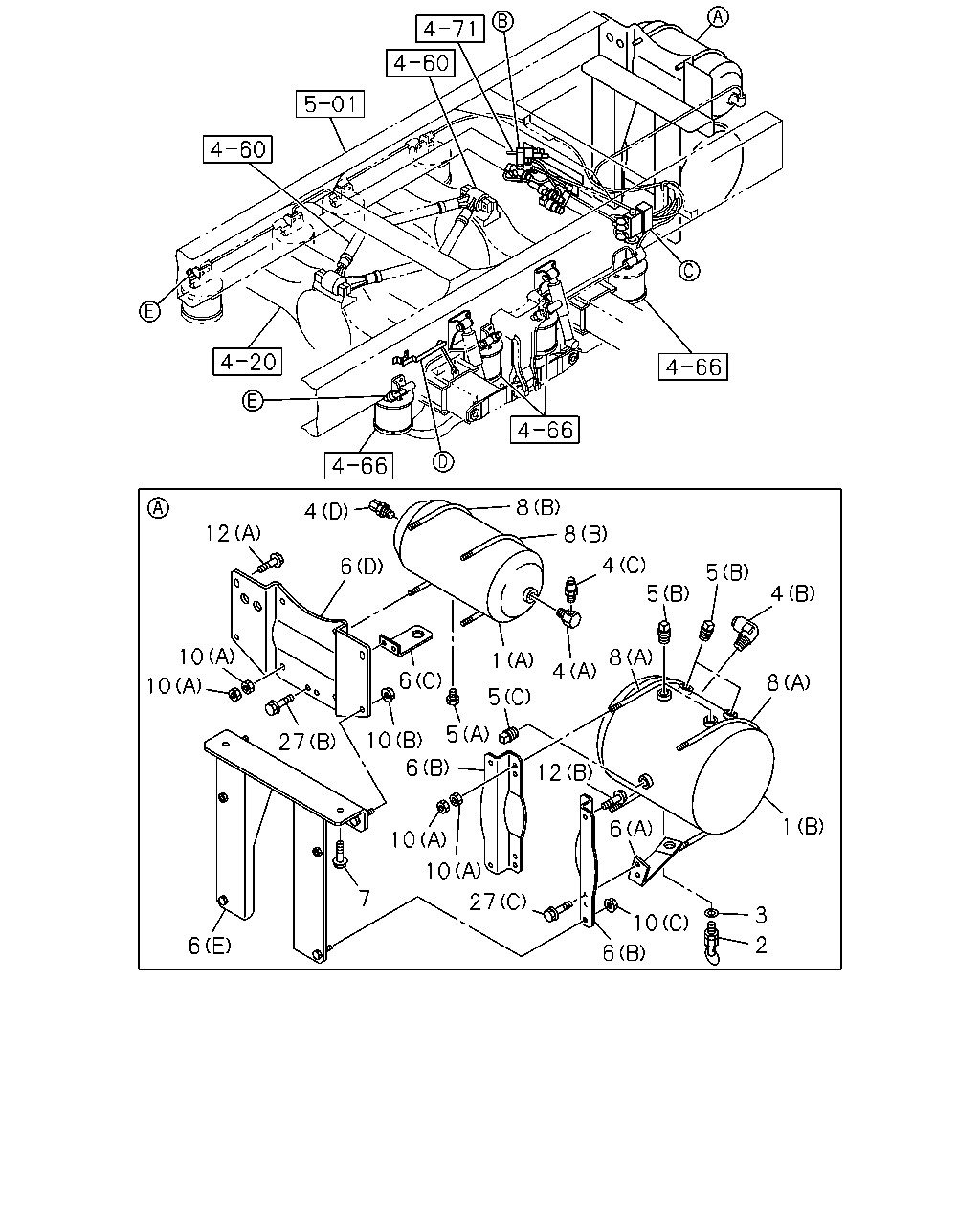

[470A] PIPING AND AIR TANK (29 parça)

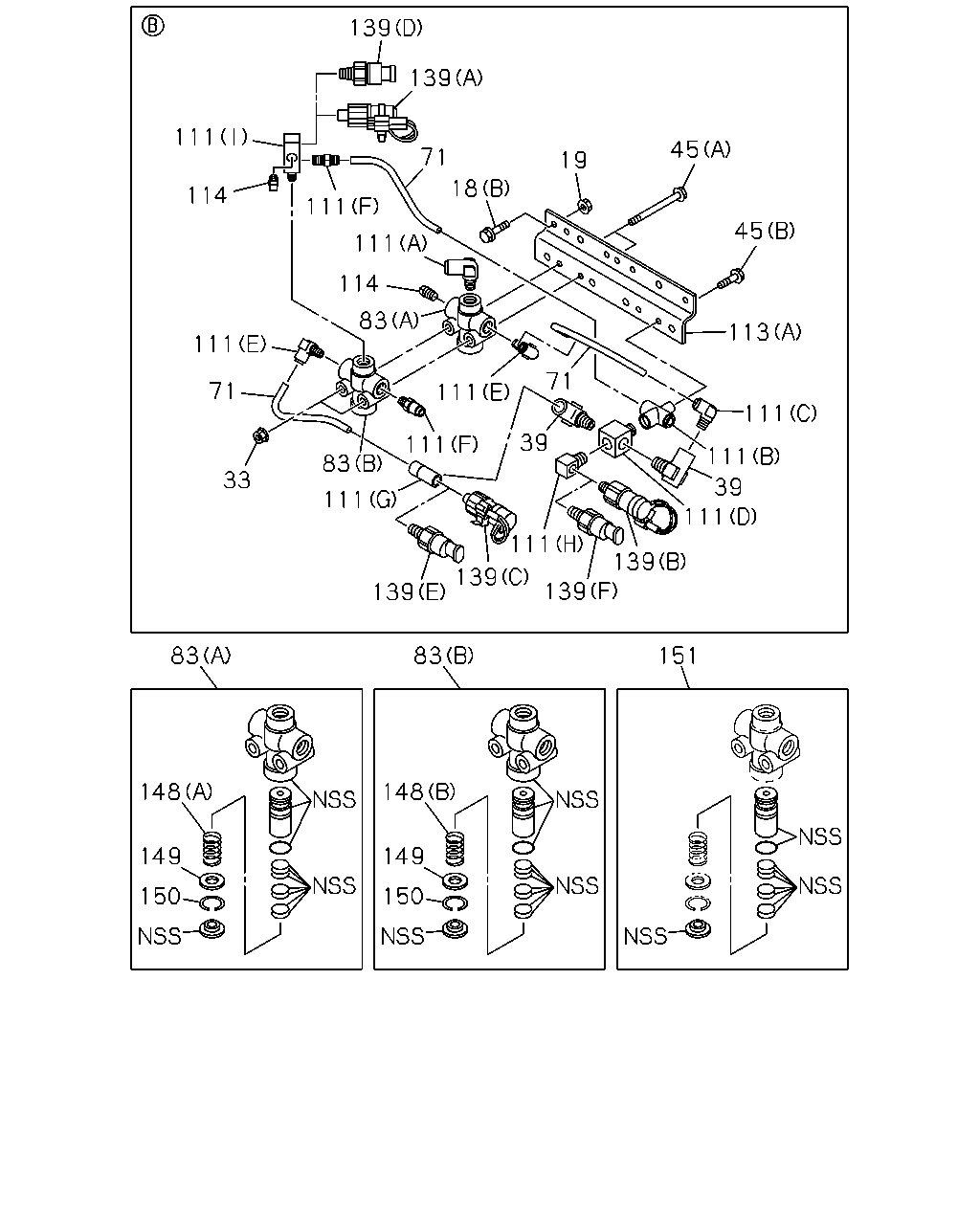

[470A] PROTECTION VALVE (36 parça)
▶
16
27
19
103
93
113
92
91
18
104
17
101
103
102
103
104
105
103
101
22
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
VALVE; AIR
1-82563-713-0
01
1
0806-
17
CONNECTOR; AIR VLV
1-09661-539-0
03
1
0806-
18
BOLT; AIR VLV
(A) M8X70
0-10855-870-0
02
1
0806-
18
BOLT; AIR VLV
(B) M8X25 FLANGE
0-28650-825-0
03
1
0806-
19
NUT; AIR VLV
M8 FLANGE
0-91180-108-0
05
1
0806-
22
BOLT; BRKT
M8X10 FLANGE
0-28050-810-0
04
1
0806-
27
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
01
1
0806-
27
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
02
1
0806-
27
BOLT; BRKT
(C) M8X25 FLANGE
0-28650-825-0
01
1
0806-
91
SENSOR ASM; ELEC,HIGHT CONT
1-81549-112-0
01
1
0806-
91
SENSOR ASM; ELEC,HIGHT CONT
1-81549-113-0
01
1
0806-
92
BOLT; SENSOR
M8X30 FLANGE
0-28650-830-0
04
1
0806-
93
NUT; SENSOR
M8 FLANGE
0-91180-108-0
04
1
0806-
94
SENSOR ASM; PRESSURE,AIR
THREAD R1/8
1-80220-025-0
02
1
0806-
101
JOINT ASM; BALL
L=45.5
1-09760-118-1
04
1
0806-
102
ROD; LINK
9-08400-824-0
02
1
0806-
103
NUT; LINK ROD
(B) M8
0-91111-508-0
04
1
0806-
103
NUT; LINK ROD
(A) M8 FLANGE
0-91180-108-0
04
1
0806-
104
WASHER; LINK ROD
ID=8.2
8-94312-733-0
04
1
0806-
105
BRACKET; AXLE LINK ROD
1-42129-238-0
02
1
0806-
113
BRACKET
(B) L=60 H=30
1-47477-716-1
01
1
0806-
113
BRACKET
(A)
1-47479-937-0
01
1
0806-
8
8
4
12
4
6
5
5
4
10
8
1
4
6
8
10
5
5
10
6
27
12
1
6
10
10
7
27
3
10
2
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A)
1-48371-165-3
01
1
0806-
1
TANK ASM; AIR
(B)
8-98069-078-1
01
1
0806-
2
COCK ASM; DRAIN
1-48312-017-0
01
1
0806-
3
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
0806-
4
CONNECTOR; AIR TANK
(A)
1-09650-529-0
01
1
0806-
4
CONNECTOR; AIR TANK
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0806-
4
CONNECTOR; AIR TANK
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0806-
4
CONNECTOR; AIR TANK
(D) DIN8 & M22 ELBOW
1-09661-495-0
01
1
0806-
5
PLUG; AIR TANK
(A) M14
1-09661-569-0
01
1
0806-
5
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
04
1
0806-
5
PLUG; AIR TANK
(C) PT1/4
9-99204-513-0
01
1
0806-
6
BRACKET; AIR TANK
(A)
1-48317-714-0
01
1
0806-
6
BRACKET; AIR TANK
(B)
8-98083-646-0
02
1
0806-
6
BRACKET; AIR TANK
(C)
8-98092-740-0
01
1
0806-
6
BRACKET; AIR TANK
(D)
8-98093-067-1
01
1
0806-
6
BRACKET; AIR TANK
(E)
8-98093-068-0
01
1
0806-0808
6
BRACKET; AIR TANK
(E)
8-98128-712-0
01
1
0809-
7
BOLT; BRKT,AIR TANK
M12X30 FLANGE
0-28651-230-0
02
1
0806-
8
U-BOLT; AIR TANK
(A) L=303
1-48317-087-2
02
1
0806-
8
U-BOLT; AIR TANK
(B) L=210
1-48317-458-1
02
1
0806-
10
NUT; U-BOLT
(A) M8
0-91110-508-0
16
1
0806-
10
NUT; U-BOLT
(B) M10 FLANGE
0-91180-210-0
02
1
0806-
10
NUT; U-BOLT
(C) M12 FLANGE
0-91180-212-0
02
1
0806-0808
10
NUT; U-BOLT
(C) M12 FLANGE
0-91180-212-0
04
1
0809-
12
BOLT; AIR TANK
(A) M10X30 FLANGE
0-28651-030-0
02
1
0806-
12
BOLT; AIR TANK
(B) M12X30 FLANGE
0-28651-230-0
02
1
0806-
27
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
01
1
0806-
27
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
02
1
0806-
27
BOLT; BRKT
(C) M8X25 FLANGE
0-28650-825-0
01
1
0806-
139
139
111
45
71
19
18
114
111
45
111
114
83
113
111
71
71
111
111
111
39
111
83
33
39
111
111
111
139
139
139
139
83
83
151
148
148
149
149
150
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BOLT; AIR VLV
(A) M8X70
0-10855-870-0
02
1
0806-
18
BOLT; AIR VLV
(B) M8X25 FLANGE
0-28650-825-0
03
1
0806-
19
NUT; AIR VLV
M8 FLANGE
0-91180-108-0
05
1
0806-
33
NUT
M8 FLANGE
0-91180-108-0
02
1
0806-
39
VALVE; CHECK
1-48320-031-1
02
1
0806-
45
BOLT
(A) M8X100 FLANGE
0-28050-800-0
02
1
0806-
45
BOLT
(B) M8X20 FLANGE
0-28650-820-0
01
1
0806-
71
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
03
1
0806-
83
VALVE; PROTECTION
(A)
1-48110-209-0
01
1
0806-
83
VALVE; PROTECTION
(B)
1-48110-222-0
01
1
0806-
111
CONNECTOR
(I) PT1/4 4WAY
1-09660-358-0
01
1
0806-
111
CONNECTOR
(H) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0806-
111
CONNECTOR
(E) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0806-
111
CONNECTOR
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0806-
111
CONNECTOR
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0806-
111
CONNECTOR
(F) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
0806-
111
CONNECTOR
(B) DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
0806-
111
CONNECTOR
(D) PT3/8 4WAY
1-09661-489-0
01
1
0806-
111
CONNECTOR
(G) DIN8 & RC1/4 & R3/8 3WAY
8-97620-116-0
01
1
0806-
113
BRACKET
(B) L=60 H=30
1-47477-716-1
01
1
0806-
113
BRACKET
(A)
1-47479-937-0
01
1
0806-
114
PLUG
PT1/4
9-99204-513-0
02
1
0806-
139
SWITCH; LOW PRESSURE
EXC. BRAKE REGULATION ADR<TDU> (D) STAMP 5.5
8-97609-249-0
01
1
1009-
139
SWITCH; LOW PRESSURE
EXC. BRAKE REGULATION ADR<TDU> (E) STAMP 0.4
8-97609-250-0
01
1
1009-
139
SWITCH; LOW PRESSURE
EXC. BRAKE REGULATION ADR<TDU> (F) STAMP 6.5
8-97609-252-0
01
1
1009-
139
SWITCH; LOW PRESSURE
(A)
1-48340-065-0
01
1
0806-1008
139
SWITCH; LOW PRESSURE
BRAKE REGULATION ADR<TDU> (A)
1-48340-065-0
01
1
1009-
139
SWITCH; LOW PRESSURE
(B)
1-48340-066-0
01
1
0806-1008
139
SWITCH; LOW PRESSURE
BRAKE REGULATION ADR<TDU> (B)
1-48340-066-0
01
1
1009-
139
SWITCH; LOW PRESSURE
(C)
1-82410-163-1
01
1
0806-1008
139
SWITCH; LOW PRESSURE
BRAKE REGULATION ADR<TDU> (C)
1-82410-163-1
01
1
1009-
148
SPRING; PROTECTION VALVE
(A)
1-48123-093-0
01
1
0806-
148
SPRING; PROTECTION VALVE
(B)
1-48123-094-0
01
1
0806-
149
SEAL; DUST,PROTECTION VALVE
1-48119-447-0
02
1
0806-
150
RING; SNAP,PROTECTION VALVE
1-48119-448-0
02
1
0806-
151
REPAIR KIT; PROTECTION VALVE
1-85576-319-0
02
1
0806-
