Sayfa 6-31 - Isuzu EPC

6-31 — FRONT DOOR GLASS AND REGULATOR (#2522) — 233 parça

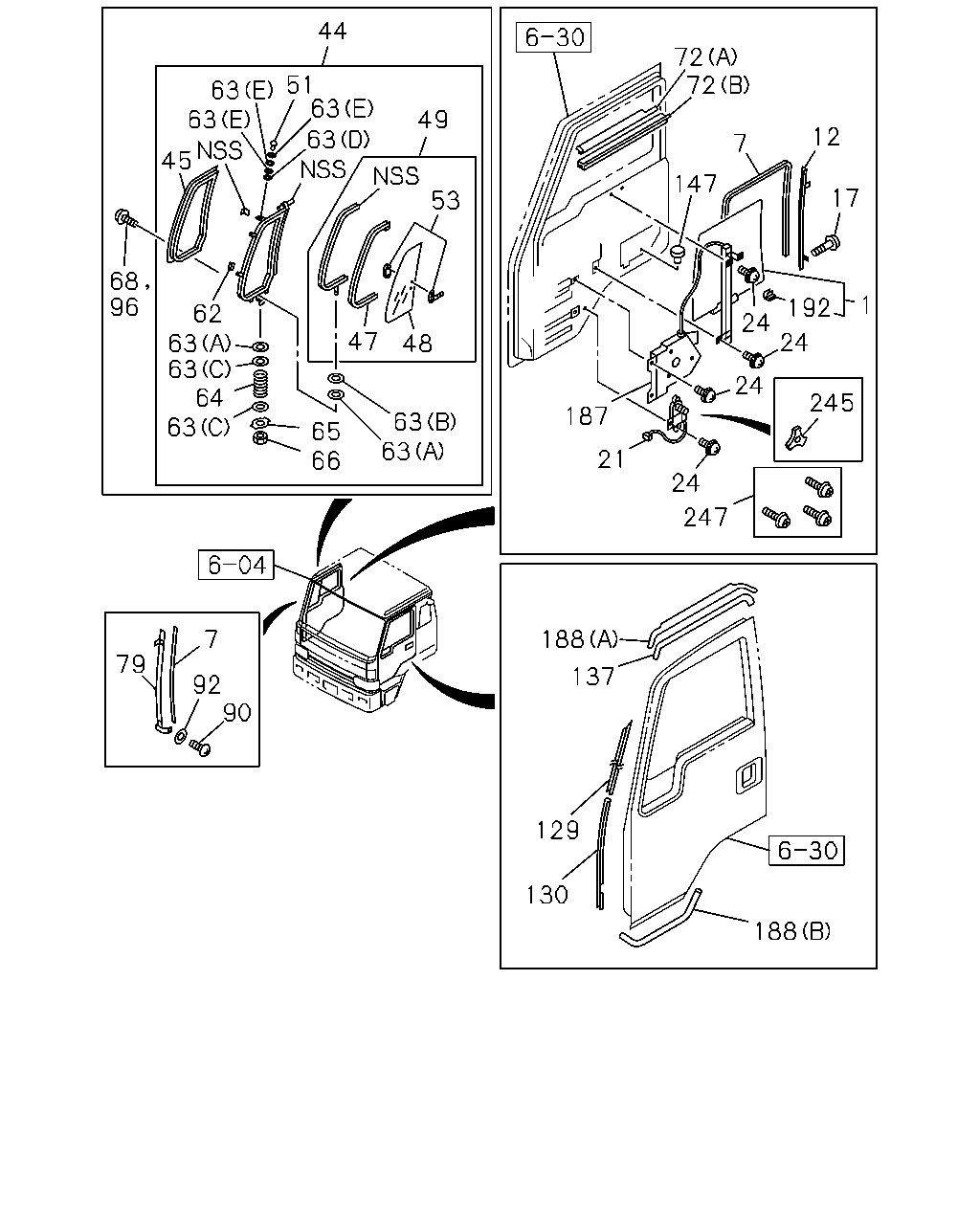

44 72 72 51 63 63 63 45 49 12 63 7 147 17 53 68 96 1 192 62 63 63 64 63 24 24 47 48 24 245 187 63 63 65 66 21 24 247 188 7 79 137 92 90 129 130 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-186-1	01	1	9205-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-134-1	01	1	9205-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76147-080-4	01	1	9002-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-084-4	01	1	9002-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=2180	1-74317-034-0	01	1	9002-9009
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=2161	1-74317-040-0	01	1	9010-9103
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74317-044-0	01	1	9104-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=635	1-74317-039-0	01	1	9010-9103
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=558	1-74317-042-0	01	1	9104-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=620	1-74317-035-0	01	1	9104-
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=2180	1-74317-034-0	02	1	9002-9009
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=2161	1-74317-040-0	02	1	9010-9103
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74317-044-0	02	1	9104-
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=635	1-74317-039-0	02	1	9010-9103
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=558	1-74317-042-0	02	1	9104-
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=620	1-74317-035-0	02	1	9104-
12	CHANNEL; GLASS RUN,FRT	1-74337-170-6	01	1	9002-9009
12	CHANNEL; GLASS RUN,FRT	1-74337-181-0	01	1	9010-9103
12	CHANNEL; GLASS RUN,FRT	1-74337-177-0	01	1	9104-
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-171-6	01	1	9002-9009
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-182-0	01	1	9010-9103
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-184-0	01	1	9104-
17	SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	03	1	9002-
17	SCREW; RR CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER	1-09981-431-0	03	1	9002-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74417-073-0	01	1	9205-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74417-069-2	01	1	9205-
24	SCREW; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9002-9008
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9009-
24	SCREW; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9009-
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	14	1	9205-
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	16	1	9002-9008
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	12	1	9009-
44	VENTILATOR ASM; CROSS,FRT DOOR	1-76148-022-5	01	1	9002-
44	VENTILATOR ASM; CROSS,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-023-5	01	1	9002-
45	WEATHERSTRIP; CROSS,VENTILATOR	1-76717-049-7	01	1	9002-
45	WEATHERSTRIP; CROSS,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76717-050-7	01	1	9002-
47	PROTECTOR; DIVISION BAR	1-76147-126-0	01	1	9002-
47	PROTECTOR; DIVISION BAR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-126-0	01	1	9002-
48	GLASS; CROSS VENTILATOR	1-76147-069-2	01	1	9002-
48	GLASS; CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-089-2	01	1	9002-
49	FRAME; INNER,CROSS VENTILATOR	1-76148-032-0	01	1	9002-
49	FRAME; INNER,CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-034-0	01	1	9002-
51	RIVET; PIVOT,UPR	1-76347-048-0	01	1	9002-
51	RIVET; PIVOT,UPR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76347-048-0	01	1	9002-
53	HANDLE; CATCH,CROSS VENTILATOR	1-76148-025-0	01	1	9002-
53	HANDLE; CATCH,CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-026-0	01	1	9002-
62	SEAL; CROSS VENTILATOR	1-76147-127-0	01	1	9002-
62	SEAL; CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-127-0	01	1	9002-
63	WASHER; PL,VENTILATOR (E) ID=5.0 OD=10 T=0.5 NYLON	1-76147-113-0	03	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (E) ID=5.0 OD=10 T=0.5 NYLON	1-76147-113-0	03	1	9002-
63	WASHER; PL,VENTILATOR (A) OD=13 T=1.0	1-76347-046-0	02	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=13 T=1.0	1-76347-046-0	02	1	9002-
63	WASHER; PL,VENTILATOR (D) ID=5.0 T=0.7	1-76347-047-0	01	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D) ID=5.0 T=0.7	1-76347-047-0	01	1	9002-
63	WASHER; PL,VENTILATOR (B) ID=6.1 OD=14 T=2.4	8-94279-609-0	01	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) ID=6.1 OD=14 T=2.4	8-94279-609-0	01	1	9002-
63	WASHER; PL,VENTILATOR (C) ID=6.1 OD=14 T=1	8-94279-619-0	02	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) ID=6.1 OD=14 T=1	8-94279-619-0	02	1	9002-
64	SPRING; CROSS VENT	1-76347-045-2	01	1	9002-
64	SPRING; CROSS VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76347-045-2	01	1	9002-
65	WASHER; LK,VENTILATOR	8-94279-610-0	01	1	9002-
65	WASHER; LK,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	8-94279-610-0	01	1	9002-
66	NUT; PIVOT,LWR M6	1-76147-112-0	01	1	9002-
66	NUT; PIVOT,LWR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6	1-76147-112-0	01	1	9002-
68	SCREW; VENTILATOR DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	03	1	9002-
68	SCREW; VENTILATOR DOOR WITH UNDER VIEW WINDOW<YD8> M6X10	1-09981-511-0	01	1	9002-
68	SCREW; VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-
68	SCREW; VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10	1-09981-511-0	02	1	9002-
72	SEAL; WAIST,FRT DOOR (B)	1-76737-093-4	01	1	9002-
72	SEAL; WAIST,FRT DOOR (A)	1-76737-144-1	01	1	9002-
72	SEAL; WAIST,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-126-2	01	1	9002-
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76737-094-4	01	1	9002-
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-145-1	01	1	9002-
79	CHANNEL; DOOR GLASS,FRT	1-74337-174-1	01	1	9002-9009
79	CHANNEL; DOOR GLASS,FRT	1-74337-179-0	01	1	9010-9103
79	CHANNEL; DOOR GLASS,FRT	1-74337-176-0	01	1	9104-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-175-1	01	1	9002-9009
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-180-0	01	1	9010-9103
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-183-0	01	1	9104-
90	SCREW; FRT CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9002-
90	SCREW; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9002-
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR ID=5.5	1-71997-525-1	01	1	9002-
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.5	1-71997-525-1	01	1	9002-
96	SCREW; GLASS TO REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	02	1	9009-
96	SCREW; GLASS TO REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	04	1	9009-
129	SEAL; DOOR,SUB UPR	1-76718-142-4	01	1	9002-9204
129	SEAL; DOOR,SUB UPR	1-76718-183-0	01	1	9205-
129	SEAL; DOOR,SUB UPR	1-76718-141-4	01	1	9002-9204
129	SEAL; DOOR,SUB UPR	1-76718-182-0	01	1	9205-
130	SEAL; DOOR,SUB LWR	1-76717-070-3	01	1	9002-
130	SEAL; DOOR,SUB LWR	1-76717-069-3	01	1	9002-
137	SEAL; DOOR SUB,UPR	1-76717-065-1	01	1	9002-9008
137	SEAL; DOOR SUB,UPR	1-76717-086-0	01	1	9009-
137	SEAL; DOOR SUB,UPR	1-76717-064-1	01	1	9002-9008
137	SEAL; DOOR SUB,UPR	1-76717-085-0	01	1	9009-
147	STOPPER; FRT DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74907-022-0	01	1	9002-
147	STOPPER; FRT DOOR GLASS EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74907-022-0	02	1	9002-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74417-072-0	01	1	9205-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74417-068-0	01	1	9205-
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-320-1	01	1	9111-
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-579-0	02	1	9111-
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-319-1	01	1	9111-
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-577-0	02	1	9111-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-160-0	04	1	9205-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74427-160-0	02	1	9002-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-160-0	02	1	9002-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30>	1-74417-074-0	02	1	9307-
247	SCREW; SET POWER WINDOW<A30>	1-74417-075-0	06	1	9307-

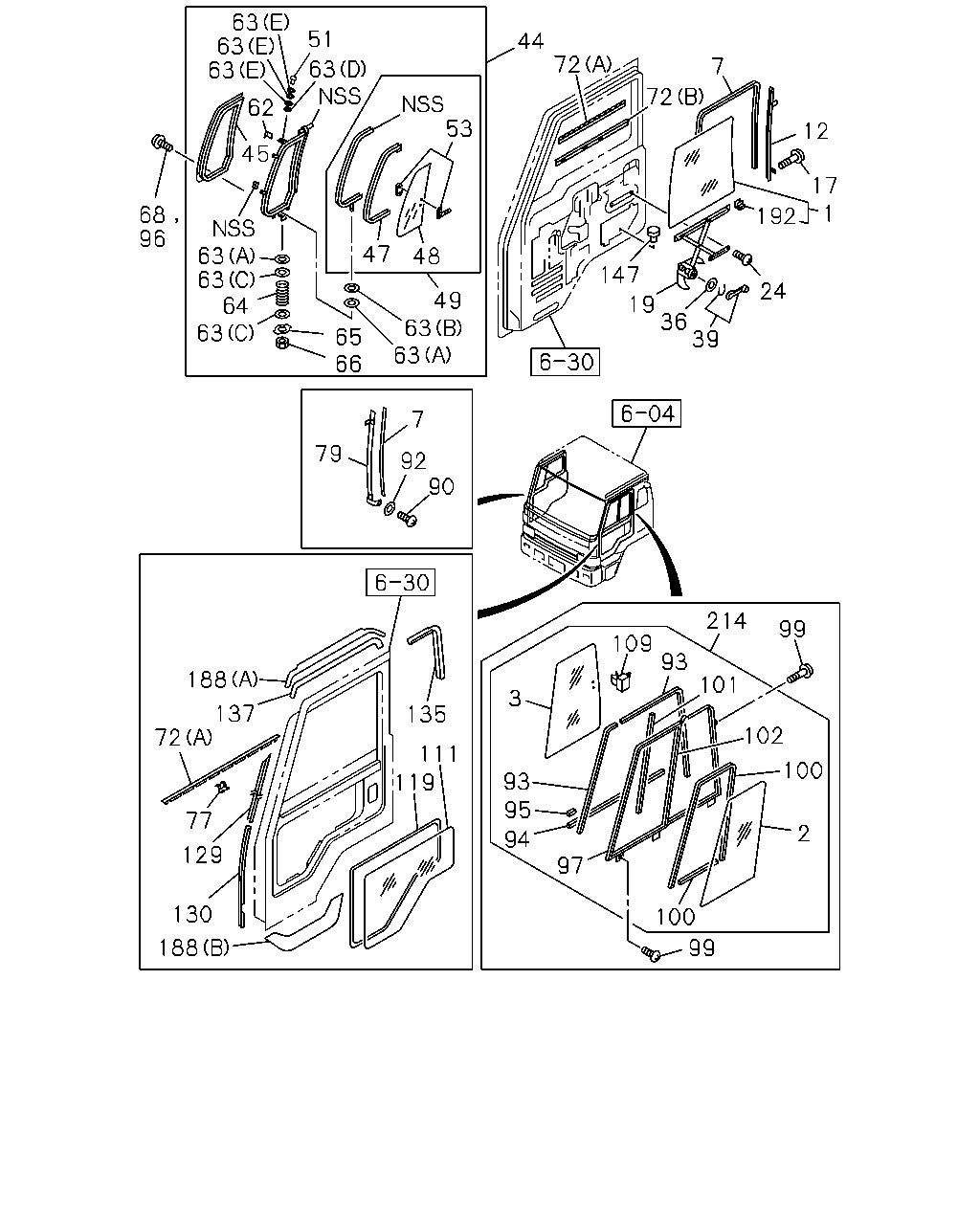

63 63 63 51 44 72 7 63 72 53 62 12 45 17 1 68 96 192 63 63 64 63 47 48 147 24 49 63 63 19 36 39 65 66 7 79 92 90 214 99 109 93 188 101 3 137 135 102 72 111 100 93 119 95 77 2 94 129 97 130 100 188 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-186-1	01	1	9205-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-134-1	01	1	9205-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76147-080-4	01	1	9002-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-084-4	01	1	9002-
2	GLASS; DOOR WINDOW,FRT DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-033-0	01	1	9002-
3	GLASS; DOOR WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-121-0	01	1	9002-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=2180	1-74317-034-0	01	1	9002-9009
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=2161	1-74317-040-0	01	1	9010-9103
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74317-044-0	01	1	9104-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=635	1-74317-039-0	01	1	9010-9103
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=558	1-74317-042-0	01	1	9104-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> L=620	1-74317-035-0	01	1	9104-
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=2180	1-74317-034-0	02	1	9002-9009
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=2161	1-74317-040-0	02	1	9010-9103
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74317-044-0	02	1	9104-
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=635	1-74317-039-0	02	1	9010-9103
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=558	1-74317-042-0	02	1	9104-
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> L=620	1-74317-035-0	02	1	9104-
12	CHANNEL; GLASS RUN,FRT	1-74337-170-6	01	1	9002-9009
12	CHANNEL; GLASS RUN,FRT	1-74337-181-0	01	1	9010-9103
12	CHANNEL; GLASS RUN,FRT	1-74337-177-0	01	1	9104-
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-171-6	01	1	9002-9009
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-182-0	01	1	9010-9103
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-184-0	01	1	9104-
17	SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	03	1	9002-
17	SCREW; RR CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER	1-09981-431-0	03	1	9002-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74417-062-0	01	1	9002-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74417-063-0	01	1	9002-
24	SCREW; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9002-9008
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9009-
24	SCREW; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9009-
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	14	1	9205-
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	16	1	9002-9008
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	12	1	9009-
36	ESCUTCHEON; HANDLE,WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	01	1	9002-
36	ESCUTCHEON; HANDLE,WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	02	1	9002-
39	HANDLE; WINDOW REG,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	5-74457-001-3	01	1	9009-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	5-74457-001-3	02	1	9205-
44	VENTILATOR ASM; CROSS,FRT DOOR	1-76148-022-5	01	1	9002-
44	VENTILATOR ASM; CROSS,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-023-5	01	1	9002-
45	WEATHERSTRIP; CROSS,VENTILATOR	1-76717-049-7	01	1	9002-
45	WEATHERSTRIP; CROSS,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76717-050-7	01	1	9002-
47	PROTECTOR; DIVISION BAR	1-76147-126-0	01	1	9002-
47	PROTECTOR; DIVISION BAR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-126-0	01	1	9002-
48	GLASS; CROSS VENTILATOR	1-76147-069-2	01	1	9002-
48	GLASS; CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-089-2	01	1	9002-
49	FRAME; INNER,CROSS VENTILATOR	1-76148-032-0	01	1	9002-
49	FRAME; INNER,CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-034-0	01	1	9002-
51	RIVET; PIVOT,UPR	1-76347-048-0	01	1	9002-
51	RIVET; PIVOT,UPR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76347-048-0	01	1	9002-
53	HANDLE; CATCH,CROSS VENTILATOR	1-76148-025-0	01	1	9002-
53	HANDLE; CATCH,CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-026-0	01	1	9002-
62	SEAL; CROSS VENTILATOR	1-76147-127-0	01	1	9002-
62	SEAL; CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-127-0	01	1	9002-
63	WASHER; PL,VENTILATOR (E) ID=5.0 OD=10 T=0.5 NYLON	1-76147-113-0	03	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (E) ID=5.0 OD=10 T=0.5 NYLON	1-76147-113-0	03	1	9002-
63	WASHER; PL,VENTILATOR (A) OD=13 T=1.0	1-76347-046-0	02	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=13 T=1.0	1-76347-046-0	02	1	9002-
63	WASHER; PL,VENTILATOR (D) ID=5.0 T=0.7	1-76347-047-0	01	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D) ID=5.0 T=0.7	1-76347-047-0	01	1	9002-
63	WASHER; PL,VENTILATOR (B) ID=6.1 OD=14 T=2.4	8-94279-609-0	01	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) ID=6.1 OD=14 T=2.4	8-94279-609-0	01	1	9002-
63	WASHER; PL,VENTILATOR (C) ID=6.1 OD=14 T=1	8-94279-619-0	02	1	9002-
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) ID=6.1 OD=14 T=1	8-94279-619-0	02	1	9002-
64	SPRING; CROSS VENT	1-76347-045-2	01	1	9002-
64	SPRING; CROSS VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76347-045-2	01	1	9002-
65	WASHER; LK,VENTILATOR	8-94279-610-0	01	1	9002-
65	WASHER; LK,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	8-94279-610-0	01	1	9002-
66	NUT; PIVOT,LWR M6	1-76147-112-0	01	1	9002-
66	NUT; PIVOT,LWR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6	1-76147-112-0	01	1	9002-
68	SCREW; VENTILATOR DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	03	1	9002-
68	SCREW; VENTILATOR DOOR WITH UNDER VIEW WINDOW<YD8> M6X10	1-09981-511-0	01	1	9002-
68	SCREW; VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-
68	SCREW; VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10	1-09981-511-0	02	1	9002-
72	SEAL; WAIST,FRT DOOR (B)	1-76737-093-4	01	1	9002-
72	SEAL; WAIST,FRT DOOR (A)	1-76737-144-1	01	1	9002-
72	SEAL; WAIST,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-126-2	01	1	9002-
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76737-094-4	01	1	9002-
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-145-1	01	1	9002-
77	CLIP; WAIST SEAL,DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76737-115-0	07	1	9002-
79	CHANNEL; DOOR GLASS,FRT	1-74337-174-1	01	1	9002-9009
79	CHANNEL; DOOR GLASS,FRT	1-74337-179-0	01	1	9010-9103
79	CHANNEL; DOOR GLASS,FRT	1-74337-176-0	01	1	9104-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-175-1	01	1	9002-9009
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-180-0	01	1	9010-9103
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-183-0	01	1	9104-
90	SCREW; FRT CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9002-
90	SCREW; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9002-
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR ID=5.5	1-71997-525-1	01	1	9002-
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.5	1-71997-525-1	01	1	9002-
93	RUN; GLASS,DOOR WINDOW MAIN DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-019-2	01	1	9002-
94	RUN; GLASS,DOOR WINDOW LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-020-1	01	1	9002-
95	STOPPER; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-76198-001-0	01	1	9002-
96	SCREW; GLASS TO REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	02	1	9009-
96	SCREW; GLASS TO REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	04	1	9009-
97	SASH; DOOR WINDOW,MAIN DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-025-1	01	1	9002-
99	SCREW; DOOR WINDOW SASH DOOR WITH UNDER VIEW WINDOW<YD8> M5X10	1-09981-428-0	03	1	9002-
99	SCREW; DOOR WINDOW SASH DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	03	1	9002-
100	SEAL; DOOR WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-018-2	01	1	9002-
101	SEAL; DOOR WINDOW,CENTER DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-017-2	01	1	9002-
102	SASH; DOOR WINDOW,SUB DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-016-2	01	1	9002-
109	LOCK ASM; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-022-0	01	1	9002-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-035-0	01	1	9002-
119	WEATHERSTRIP; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76738-081-0	01	1	9002-
129	SEAL; DOOR,SUB UPR	1-76718-142-4	01	1	9002-9204
129	SEAL; DOOR,SUB UPR	1-76718-183-0	01	1	9205-
129	SEAL; DOOR,SUB UPR	1-76718-141-4	01	1	9002-9204
129	SEAL; DOOR,SUB UPR	1-76718-182-0	01	1	9205-
130	SEAL; DOOR,SUB LWR	1-76717-070-3	01	1	9002-
130	SEAL; DOOR,SUB LWR	1-76717-069-3	01	1	9002-
135	SEAL; DOOR OUTER,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76737-119-3	01	1	9002-
137	SEAL; DOOR SUB,UPR	1-76717-065-1	01	1	9002-9008
137	SEAL; DOOR SUB,UPR	1-76717-086-0	01	1	9009-
137	SEAL; DOOR SUB,UPR	1-76717-064-1	01	1	9002-9008
137	SEAL; DOOR SUB,UPR	1-76717-085-0	01	1	9009-
147	STOPPER; FRT DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74907-022-0	01	1	9002-
147	STOPPER; FRT DOOR GLASS EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74907-022-0	02	1	9002-
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-320-1	01	1	9111-
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-579-0	02	1	9111-
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-319-1	01	1	9111-
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-577-0	02	1	9111-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-160-0	04	1	9205-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74427-160-0	02	1	9002-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-160-0	02	1	9002-
214	SASH ASM; DOOR WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-027-3	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
