◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#25211) — 21 parça

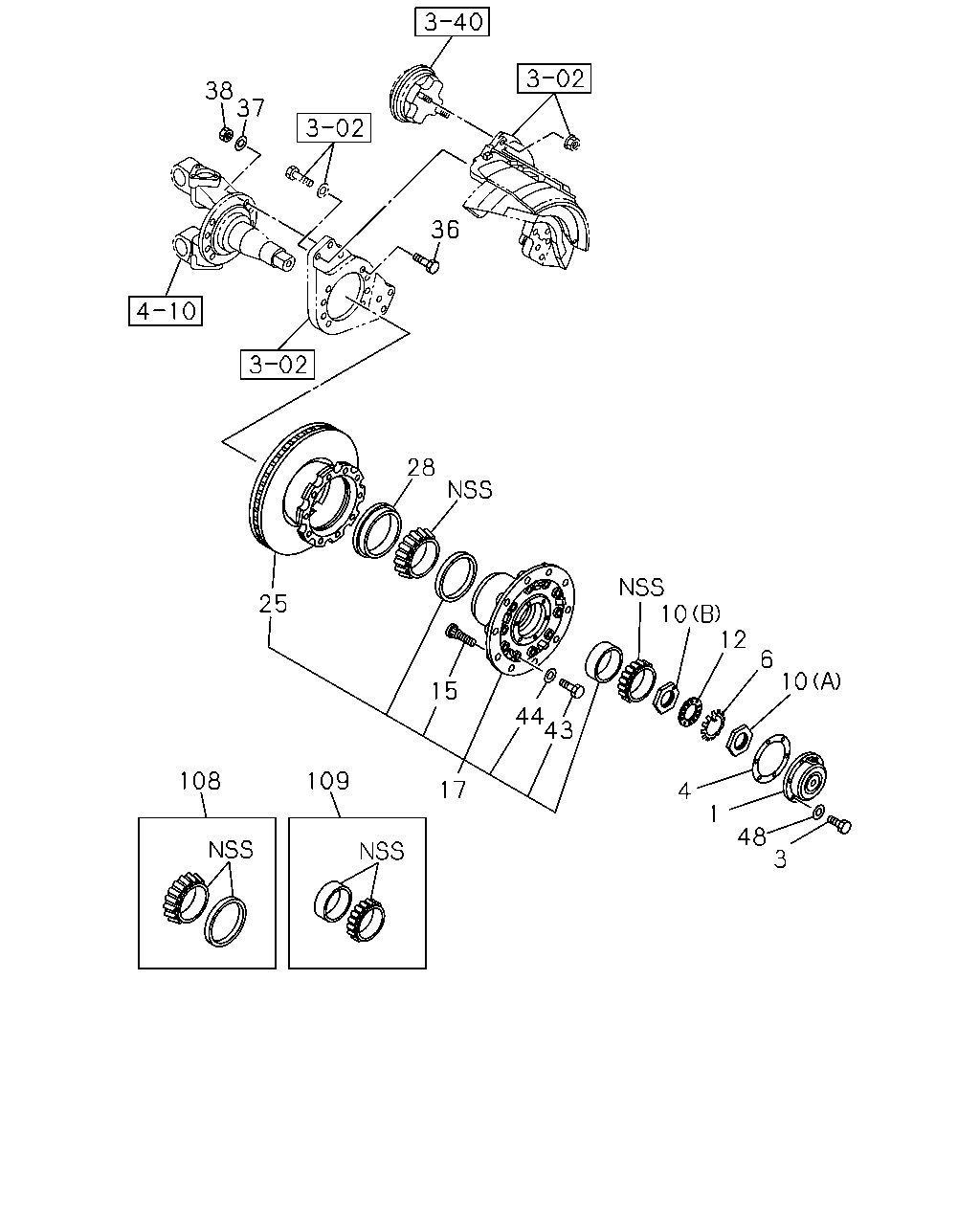

çizim 142565
10 6 12 10 28 36 37 38 25 108 109 17 15 43 44 4 1 48 3
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; HUB,FRT AXLE 1-42313-028-0 02 1 0806-
3 BOLT; HUB CAP,FRT WHEEL 1-42319-189-0 12 1 0806-
4 GASKET; HUB CAP,FRT WHEEL 1-42319-186-0 02 1 0806-
6 WASHER; LK,FRT HUB 1-42329-020-0 02 1 0806-
10 NUT; FRT HUB BRG
(A) 		1-42329-019-0 02 1 0806-
10 NUT; FRT HUB BRG
(B) 		1-42329-022-0 02 1 0806-
12 WASHER; LK,FRT HUB BRG 1-42329-021-0 02 1 0806-
15 PIN; WHEEL,FRT AXLE 1-42337-085-0 20 1 0806-
17 HUB; FRT AXLE 8-98105-037-0 02 1 0806-
25 ROTOR; DISC BRK,FRT 1-42316-051-0 02 1 0806-
28 SEAL; OIL,FRT HUB 1-09625-652-0 02 1 0806-
36 BOLT; BACK PLATE 1-42319-215-0 14 1 0806-1507
36 BOLT; BACK PLATE 8-98332-125-0 14 1 1508-
37 WASHER; LK,BACK PLATE 1-42319-214-0 14 1 0806-
38 NUT; BACK PLATE 1-42319-216-0 14 1 0806-1507
38 NUT; BACK PLATE 8-98332-124-0 14 1 1508-
43 BOLT; DISC BRAKE FIX 8-98105-043-0 20 1 0806-
44 WASHER; LK,DISC BRAKE 1-41229-168-0 20 1 0806-
48 WASHER; LK,HUB CAP,FRT WHEEL 1-42319-190-0 12 1 0806-
108 BEARING SET; HUB,INNER 8-98332-061-0 02 1 0806-
109 BEARING SET; HUB,OUTER 8-98332-060-0 02 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
