◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#25209) — 30 parça

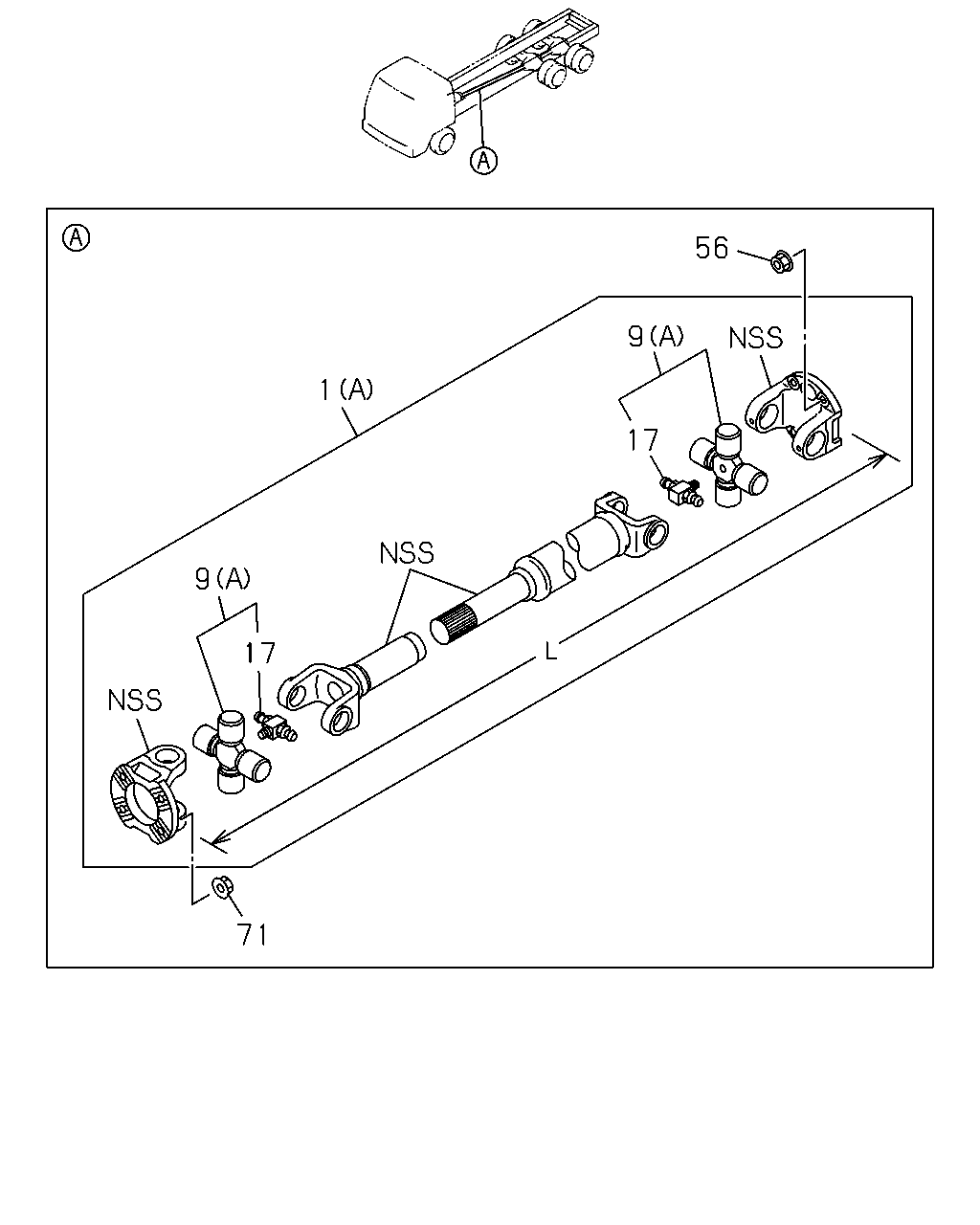

çizim 142563
56 9 1 17 9 17 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1250 		8-98156-778-0 01 1 1009- ●
1 SHAFT; PROP
(B) L=541 		8-98063-108-0 01 1 0806-1008 ●
1 SHAFT; PROP
(B) L=541 		8-98063-108-0 01 1 1009- ● ●
1 SHAFT; PROP
(A) L=900 		8-98098-474-0 01 1 0806- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98091-927-0 02 1 0806-1008 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98091-927-0 02 1 1009- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98092-251-0 02 1 0806-1008 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98092-251-0 02 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 0806-1008 ●
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 0806-1008 ●
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 1009- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 12 1 0806-1008 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 12 1 1009- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-1008 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1009- ● ●
çizim 142567
56 9 1 17 9 17 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1250 		8-98156-778-0 01 1 1009- ●
1 SHAFT; PROP
(B) L=541 		8-98063-108-0 01 1 0806-1008 ●
1 SHAFT; PROP
(B) L=541 		8-98063-108-0 01 1 1009- ● ●
1 SHAFT; PROP
(A) L=900 		8-98098-474-0 01 1 0806- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98091-927-0 02 1 0806-1008 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98091-927-0 02 1 1009- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98092-251-0 02 1 0806-1008 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98092-251-0 02 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 0806-1008 ●
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 0806-1008 ●
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 02 1 1009- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 12 1 0806-1008 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 12 1 1009- ● ●
