◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#25206) — 327 parça

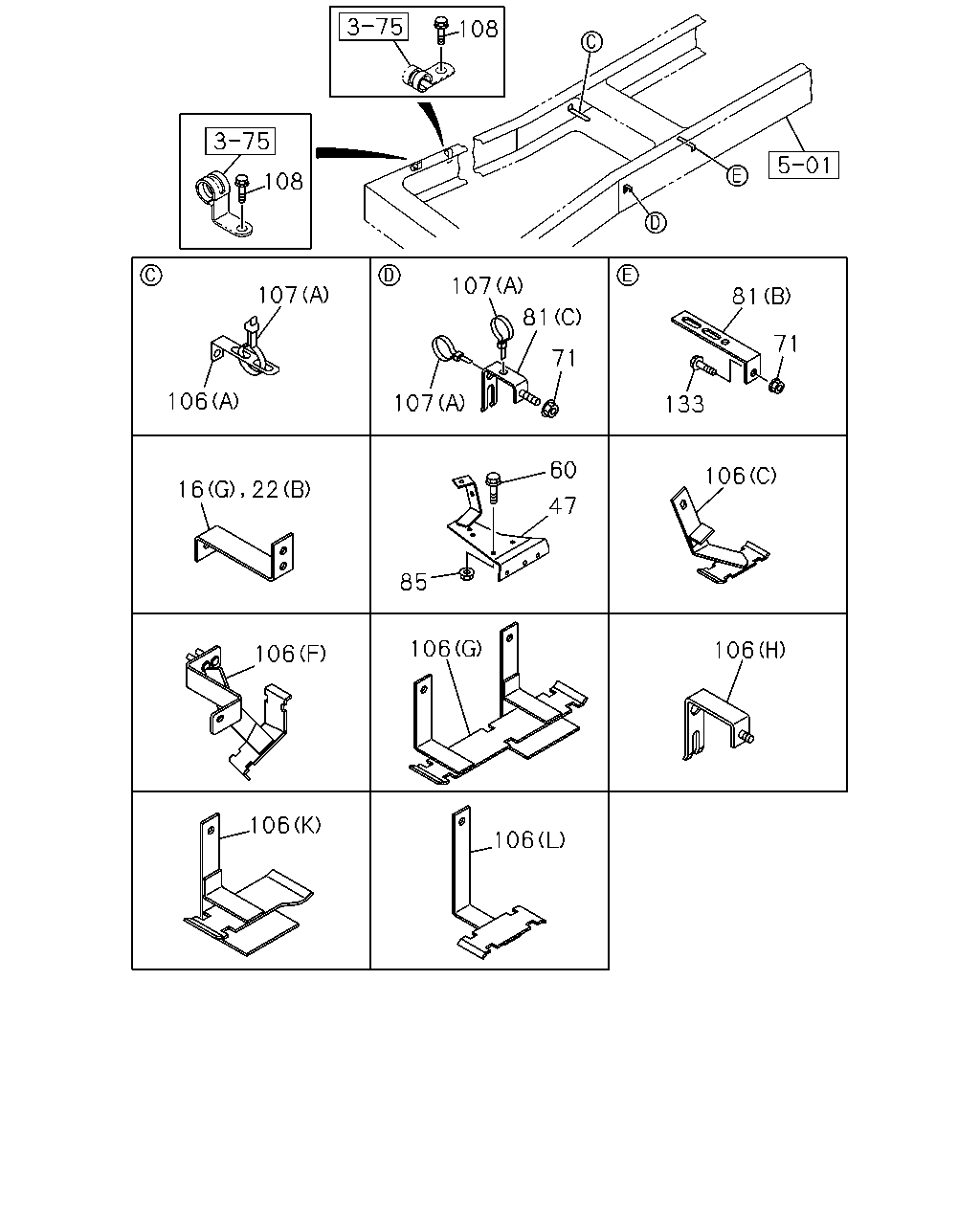

çizim 142551
108 108 107 107 81 81 71 71 106 107 133 60 106 16 22 47 85 106 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (B) L=100 H=30 		1-47477-645-2 05 1 1009-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-0908
16 BRACKET; PIPE CLIP
WHEEL BASE 4600MM(46W) (B) L=100 H=30 		1-47477-645-2 04 1 0909-
16 BRACKET; PIPE CLIP
(A) 		1-47479-840-0 01 1 0806-
16 BRACKET; PIPE CLIP
(F) 		1-47479-845-0 02 1 0806-
16 BRACKET; PIPE CLIP
(E) 		1-47479-896-0 01 1 0806-
16 BRACKET; PIPE CLIP
(D) 		1-47479-962-1 01 1 0806-
16 BRACKET; PIPE CLIP
(C) 		1-47479-963-0 01 1 0806-
16 BRACKET; PIPE CLIP
(G) 		1-82698-467-0 01 1 0806-
16 BRACKET; PIPE CLIP
(G) 		1-82698-467-0 02 1 0806-1008
16 BRACKET; PIPE CLIP
BRAKE REGULATION ADR<TDU> (G) 		1-82698-467-0 02 1 1009-
16 BRACKET; PIPE CLIP
(H) 		8-98089-469-0 01 1 0806-
22 BRACKET; CLIP
EXC. BRAKE REGULATION ADR<TDU> (C) L=100 H=30 		1-47477-645-2 02 1 1009-
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0806-0810
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0811-1008
22 BRACKET; CLIP
BRAKE REGULATION ADR<TDU> (C) L=100 H=30 		1-47477-645-2 01 1 1009-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0806-
22 BRACKET; CLIP
(D) 		1-47479-381-2 02 1 0806-
22 BRACKET; CLIP
(E) 		1-47479-961-1 01 1 0806-
22 BRACKET; CLIP
(B) 		1-82698-467-0 01 1 0806-
47 BRACKET; PIPE CLIP 1-47471-389-0 01 1 0806-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0806-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0806-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0806-
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0806-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0806-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0806-
81 BRACKET; CLIP
(I) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0806-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0806-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 0806-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0806-
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 03 1 0806-
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 0806-1412
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 0806-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 0806-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 0806-
106 BRACKET; TUBE CLIP
(L) 		8-98069-022-0 01 1 0806-
106 BRACKET; TUBE CLIP
(G) 		8-98091-850-0 01 1 0806-
106 BRACKET; TUBE CLIP
(K) 		8-98091-851-0 01 1 0806-
106 BRACKET; TUBE CLIP
(C) 		8-98117-368-0 01 1 0806-
106 BRACKET; TUBE CLIP
(F) 		8-98117-575-0 01 1 0806-
107 CLIP; NYLON TUBE
EXC. BRAKE REGULATION ADR<TDU> (A) L=350 		1-09707-183-0 16 1 1009-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 0806-1008
107 CLIP; NYLON TUBE
BRAKE REGULATION ADR<TDU> (A) L=350 		1-09707-183-0 15 1 1009-
107 CLIP; NYLON TUBE
(C) ID=28 L=45 		1-09700-825-1 01 1 0806-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0806-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0806-1008
108 BOLT; TUBE CLIP
EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28650-825-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 0806-0908
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0909-1008
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0909-1008
108 BOLT; TUBE CLIP
BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28650-830-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-1008
133 BOLT; BRKT
EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0806-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 0806-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0806-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0806-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0811-1008
133 BOLT; BRKT
BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28650-825-0 01 1 1009-

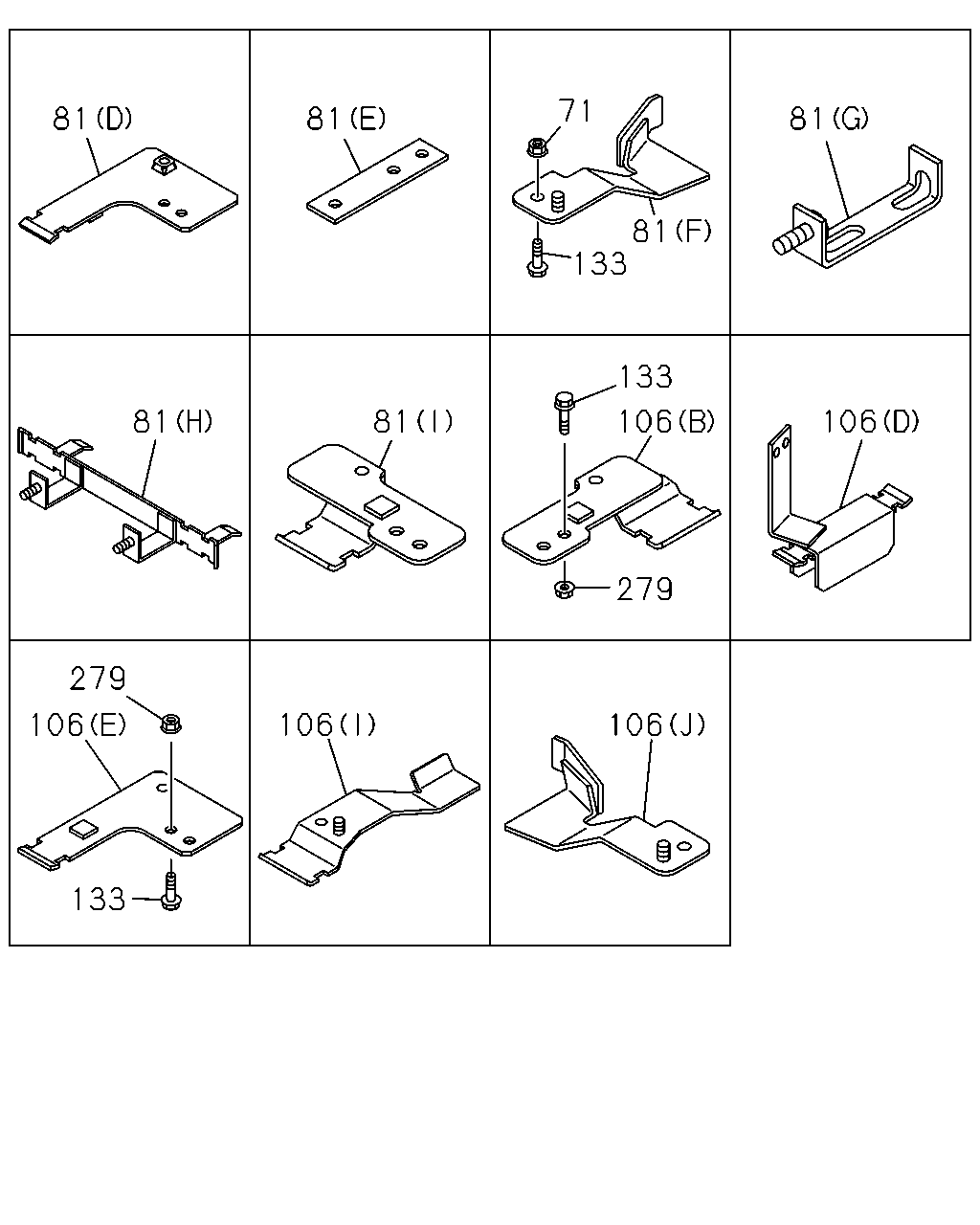

çizim 142555
71 81 81 81 81 133 133 81 81 106 106 279 279 106 106 106 133
BalonParca AdiParca NoAdetTipApplied Date
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0806-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0806-
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0806-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0806-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0806-
81 BRACKET; CLIP
(I) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0806-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 0806-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0806-
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 03 1 0806-
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 0806-1412
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(B) 		8-98052-409-0 01 1 0806-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 0806-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 0806-
106 BRACKET; TUBE CLIP
(L) 		8-98069-022-0 01 1 0806-
106 BRACKET; TUBE CLIP
(G) 		8-98091-850-0 01 1 0806-
106 BRACKET; TUBE CLIP
(K) 		8-98091-851-0 01 1 0806-
106 BRACKET; TUBE CLIP
(C) 		8-98117-368-0 01 1 0806-
106 BRACKET; TUBE CLIP
(F) 		8-98117-575-0 01 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-1008
133 BOLT; BRKT
EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0806-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 0806-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0806-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0806-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0811-1008
133 BOLT; BRKT
BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28650-825-0 01 1 1009-
279 NUT; BRKT
EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91180-108-0 10 1 1009-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 12 1 0806-1008
279 NUT; BRKT
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91180-108-0 12 1 1009-

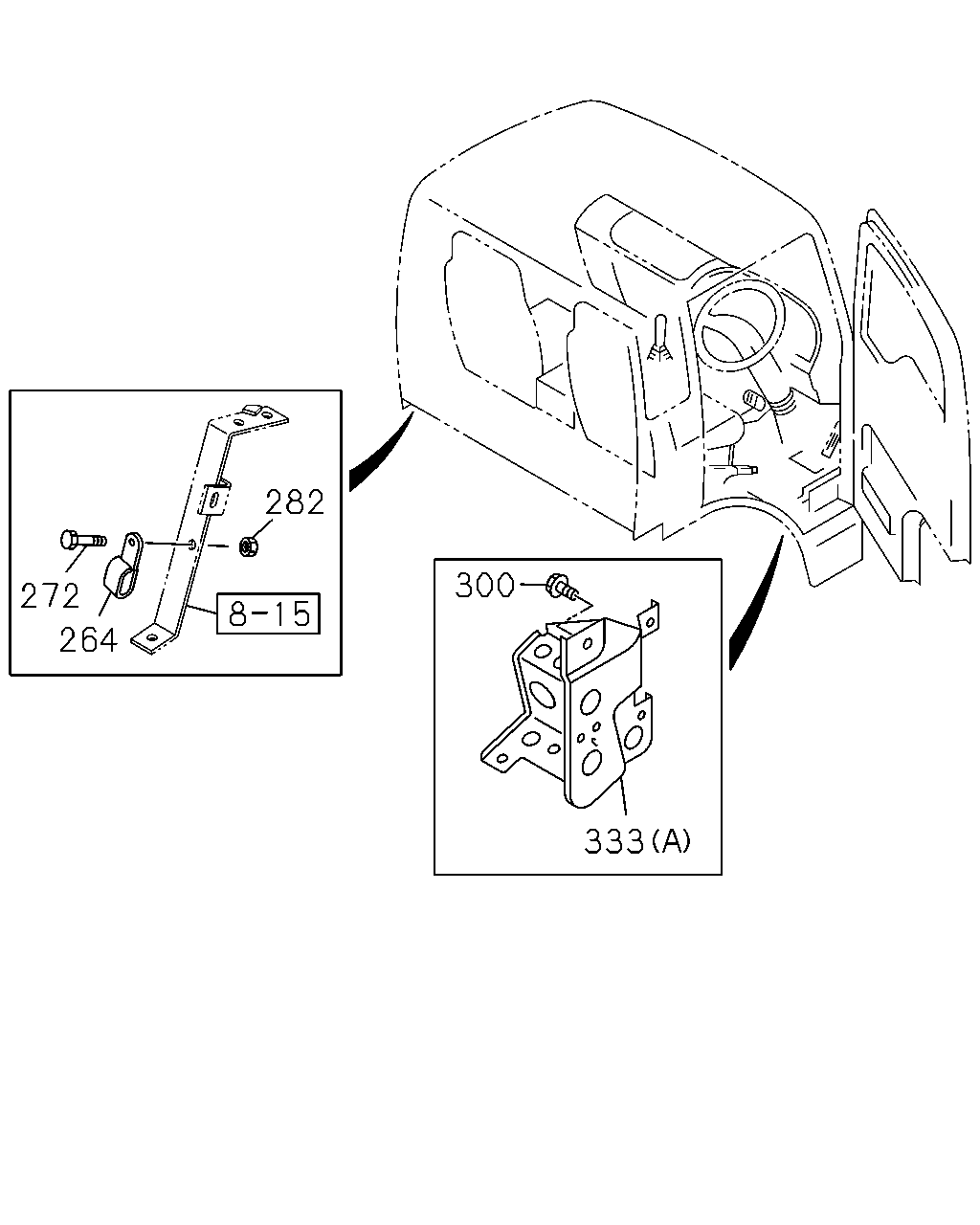

çizim 142557
282 300 272 264 333
BalonParca AdiParca NoAdetTipApplied Date
264 CLIP
ID=28 L=40 		1-09700-995-1 01 1 0806-
272 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0806-
282 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0806-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0806-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0806-
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0806-1008
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1009-

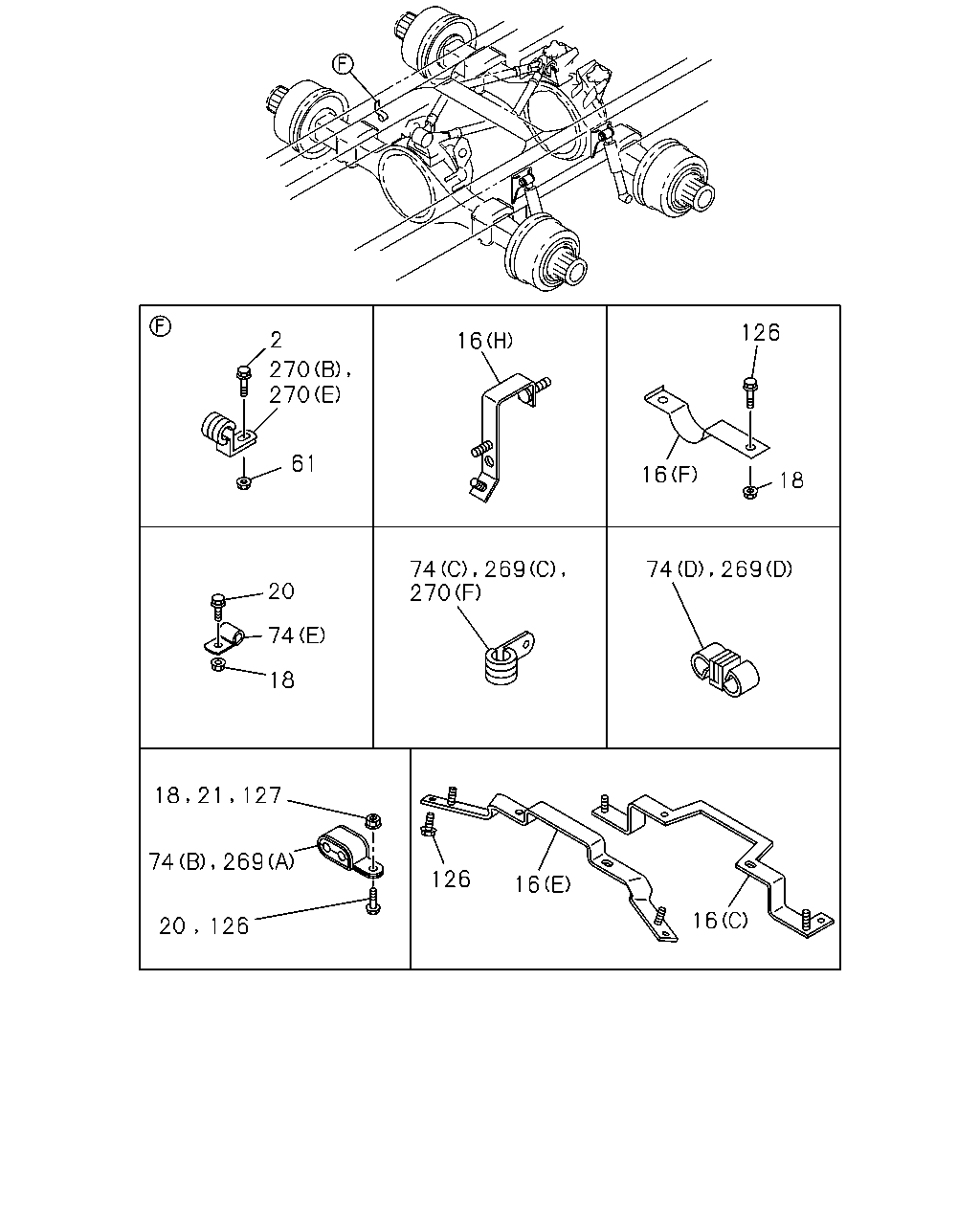

çizim 142559
126 2 16 270 270 61 16 18 270 20 74 18 18 127 126 16 16 20 126 74 269 74 269 21 74 269
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (B) L=100 H=30 		1-47477-645-2 05 1 1009-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-0908
16 BRACKET; PIPE CLIP
WHEEL BASE 4600MM(46W) (B) L=100 H=30 		1-47477-645-2 04 1 0909-
16 BRACKET; PIPE CLIP
(A) 		1-47479-840-0 01 1 0806-
16 BRACKET; PIPE CLIP
(F) 		1-47479-845-0 02 1 0806-
16 BRACKET; PIPE CLIP
(E) 		1-47479-896-0 01 1 0806-
16 BRACKET; PIPE CLIP
(D) 		1-47479-962-1 01 1 0806-
16 BRACKET; PIPE CLIP
(C) 		1-47479-963-0 01 1 0806-
16 BRACKET; PIPE CLIP
(G) 		1-82698-467-0 01 1 0806-
16 BRACKET; PIPE CLIP
(G) 		1-82698-467-0 02 1 0806-1008
16 BRACKET; PIPE CLIP
BRAKE REGULATION ADR<TDU> (G) 		1-82698-467-0 02 1 1009-
16 BRACKET; PIPE CLIP
(H) 		8-98089-469-0 01 1 0806-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0806-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0806-1008
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0806-1008
20 BOLT; CLIP
BRAKE REGULATION ADR<TDU> M8X20 FLANGE 		0-28650-820-0 02 1 1009-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 07 1 0806-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 0806-
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 06 1 1006-1008
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) BRAKE REGULATION ADR<TDU> (A) L=350 		1-09707-183-0 06 1 1009-
74 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 11 1 1009-
74 CLIP; NYLON TUBE
(C) ID=16 L=28 		1-09700-872-0 02 1 0806-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 02 1 0806-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 09 1 0806-0908
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 09 1 0909-
74 CLIP; NYLON TUBE
(D) ID=12 & 12 		1-09709-280-1 02 1 0806-
74 CLIP; NYLON TUBE
(E) ID=39 L=33 		8-98009-359-0 01 1 0806-
126 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 05 1 1009-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0806-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28050-835-0 01 1 0806-1008
126 BOLT; CLIP BRKT
BRAKE REGULATION ADR<TDU> M8X35 FLANGE 		0-28050-835-0 01 1 1009-
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-0908
126 BOLT; CLIP BRKT
WHEEL BASE 4600MM(46W) M8X25 FLANGE 		0-28650-825-0 04 1 0909-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0806-1008
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0806-1008
126 BOLT; CLIP BRKT
BRAKE REGULATION ADR<TDU> M8X35 FLANGE 		0-28650-835-0 01 1 1009-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1009-
127 NUT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 07 1 1009-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 09 1 0806-0908
127 NUT; CLIP BRKT
WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 09 1 0909-
269 CLIP; BAND,NYLON TUBE
EXC. BRAKE REGULATION ADR<TDU> (B) L=350 		1-09707-183-0 02 1 1009-
269 CLIP; BAND,NYLON TUBE
(C) ID=16 L=28 		1-09700-872-0 02 1 0806-
269 CLIP; BAND,NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 01 1 0806-
269 CLIP; BAND,NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 02 1 0806-1008
269 CLIP; BAND,NYLON TUBE
BRAKE REGULATION ADR<TDU> (C) ID=35 L=33 		1-09700-945-0 02 1 1009-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0806-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 07 1 0806-1008
269 CLIP; BAND,NYLON TUBE
BRAKE REGULATION ADR<TDU> (B) L=350 		1-09707-183-0 07 1 1009-
269 CLIP; BAND,NYLON TUBE
(D) ID=12 & 12 		1-09709-280-1 01 1 0806-
270 CLIP; NYLON TUBE
(D) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0806-
270 CLIP; NYLON TUBE
(E) ID=25 H=30 L=35 		1-09700-875-0 01 1 0806-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0806-
270 CLIP; NYLON TUBE
(F) ID=25 L=50 		1-09701-019-0 01 1 0806-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0806-
270 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0806-

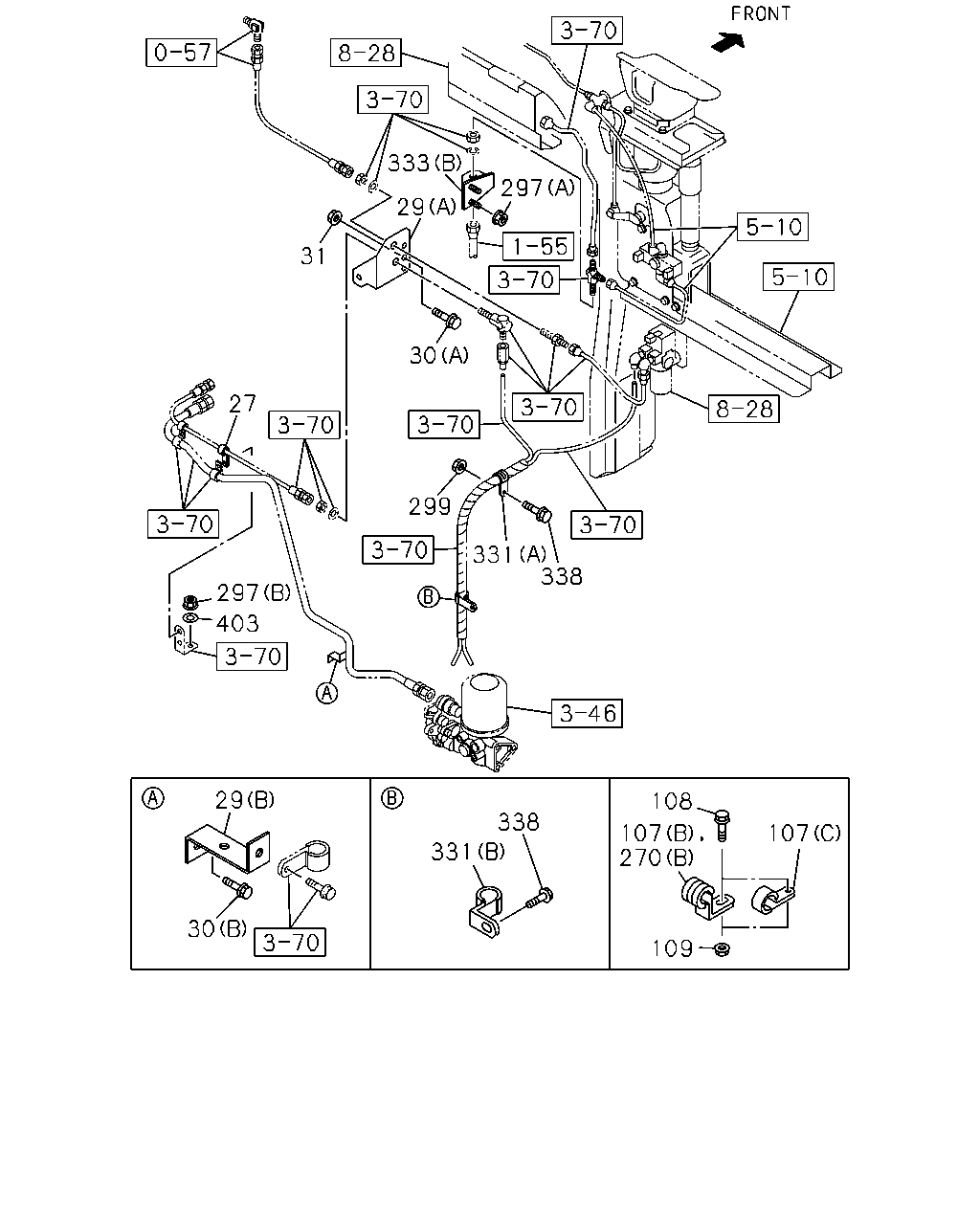

çizim 142560
333 297 29 31 30 27 299 331 338 297 403 29 108 338 107 270 107 331 30 109
BalonParca AdiParca NoAdetTipApplied Date
27 CLIP; FLEX HOSE
AUSTRALIA EQUIPMENT(RR3) ID=11 L=50 		0-95235-085-0 02 1 1009-
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 02 1 0806-1008
27 CLIP; FLEX HOSE
NEW ZEALAND EQUIPMENT(PK5) ID=11 L=50 		0-95235-085-0 01 1 1009-
29 BRACKET; CLIP,AIR PIPE
(B) 		1-47479-698-0 01 1 0806-1008
29 BRACKET; CLIP,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		1-47479-698-0 01 1 1009-
29 BRACKET; CLIP,AIR PIPE
(A) 		8-98095-833-0 01 1 0806-1008
29 BRACKET; CLIP,AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-98095-833-0 01 1 1009-
30 BOLT; CLIP BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0806-1008
30 BOLT; CLIP BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
30 BOLT; CLIP BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0806-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0806-
107 CLIP; NYLON TUBE
EXC. BRAKE REGULATION ADR<TDU> (A) L=350 		1-09707-183-0 16 1 1009-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 0806-1008
107 CLIP; NYLON TUBE
BRAKE REGULATION ADR<TDU> (A) L=350 		1-09707-183-0 15 1 1009-
107 CLIP; NYLON TUBE
(C) ID=28 L=45 		1-09700-825-1 01 1 0806-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0806-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0806-1008
108 BOLT; TUBE CLIP
EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28650-825-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 0806-0908
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0909-1008
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0909-1008
108 BOLT; TUBE CLIP
BRAKE REGULATION ADR<TDU> M8X30 FLANGE 		0-28650-830-0 02 1 1009-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0806-
270 CLIP; NYLON TUBE
(D) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0806-
270 CLIP; NYLON TUBE
(E) ID=25 H=30 L=35 		1-09700-875-0 01 1 0806-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0806-
270 CLIP; NYLON TUBE
(F) ID=25 L=50 		1-09701-019-0 01 1 0806-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0806-
270 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0806-
297 NUT; BRKT
EXC. BRAKE REGULATION ADR<TDU> (A) M8 FLANGE 		0-91180-108-0 07 1 1009-
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0806-
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 07 1 0806-0810
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 0811-1008
297 NUT; BRKT
BRAKE REGULATION ADR<TDU> (A) M8 FLANGE 		0-91180-108-0 06 1 1009-
297 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 0806-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0806-1008
299 NUT; CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 01 1 1009-
331 CLIP; NYLON TUBE
(A) ID=19 L=20 		0-95235-836-0 01 1 0806-1008
331 CLIP; NYLON TUBE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) ID=19 L=20 		0-95235-836-0 01 1 1009-
331 CLIP; NYLON TUBE
(B) ID=19 L=24 H=21 		1-09700-109-1 01 1 0806-1008
331 CLIP; NYLON TUBE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) ID=19 L=24 H=21 		1-09700-109-1 01 1 1009-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0806-
333 BRACKET; BRK AIR PIPE
(B) 		8-98094-592-0 01 1 0806-1008
333 BRACKET; BRK AIR PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-98094-592-0 01 1 1009-
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0806-1008
338 BOLT; PIPE CLIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X30 FLANGE 		0-28650-830-0 02 1 1009-
403 WASHER; PL
ID=12.5 OD=26 		9-09164-612-0 01 1 0806-1211
403 WASHER; PL
D=12 		0-91614-612-0 01 1 1212-

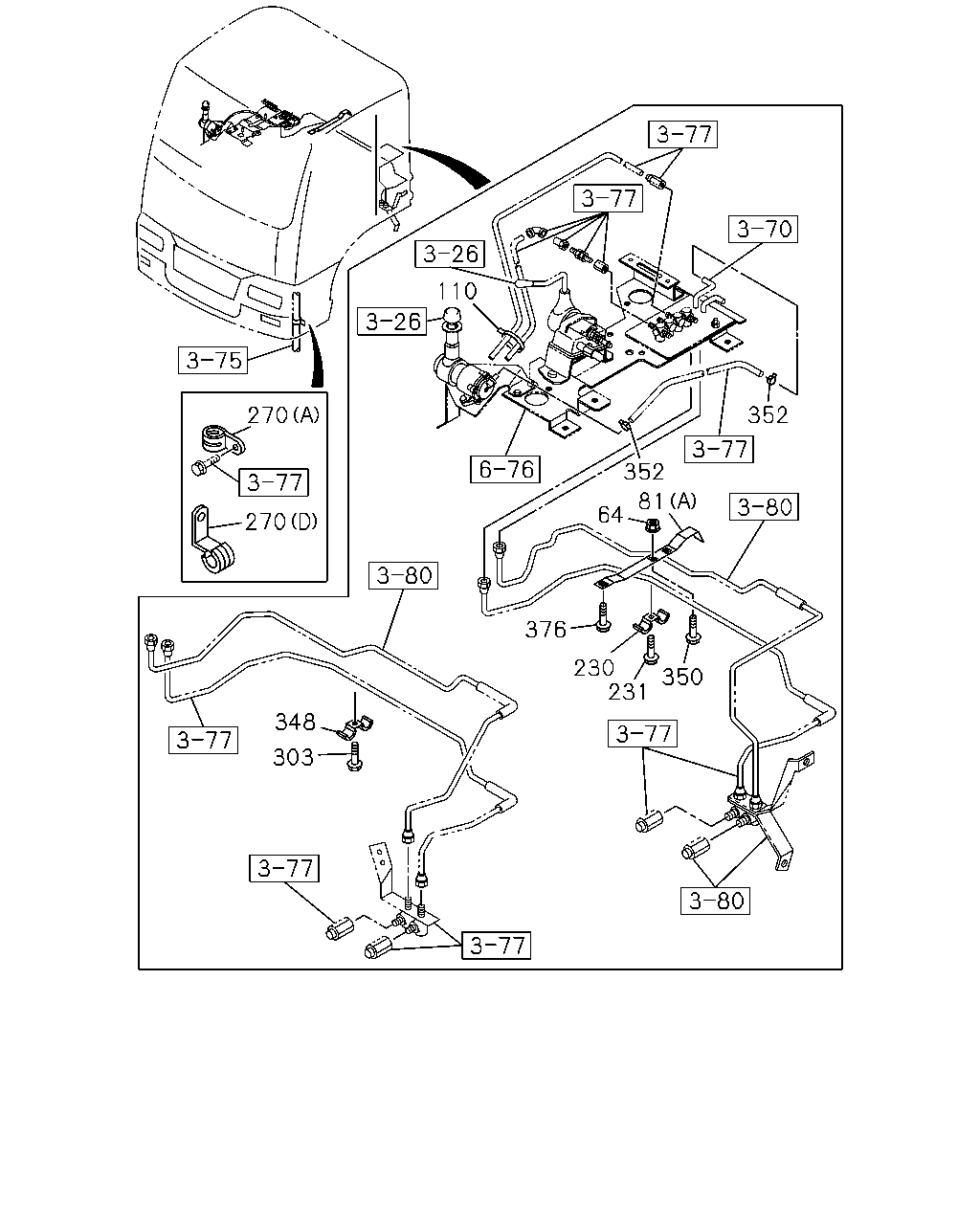

çizim 142562
110 352 270 352 81 64 270 376 230 231 350 348 303
BalonParca AdiParca NoAdetTipApplied Date
64 NUT; CLIP
EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91180-108-0 01 1 1009-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0806-
81 BRACKET; CLIP
(G) 		1-47471-274-0 01 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0806-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0806-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 0806-
81 BRACKET; CLIP
(I) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
(F) 		8-98052-415-0 01 1 0806-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0806-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0806-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-
270 CLIP; NYLON TUBE
(D) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0806-
270 CLIP; NYLON TUBE
(E) ID=25 H=30 L=35 		1-09700-875-0 01 1 0806-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0806-
270 CLIP; NYLON TUBE
(F) ID=25 L=50 		1-09701-019-0 01 1 0806-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0806-
270 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0806-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0806-
350 BOLT; PIPE CLIP
EXC. BRAKE REGULATION ADR<TDU> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1009-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0806-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-

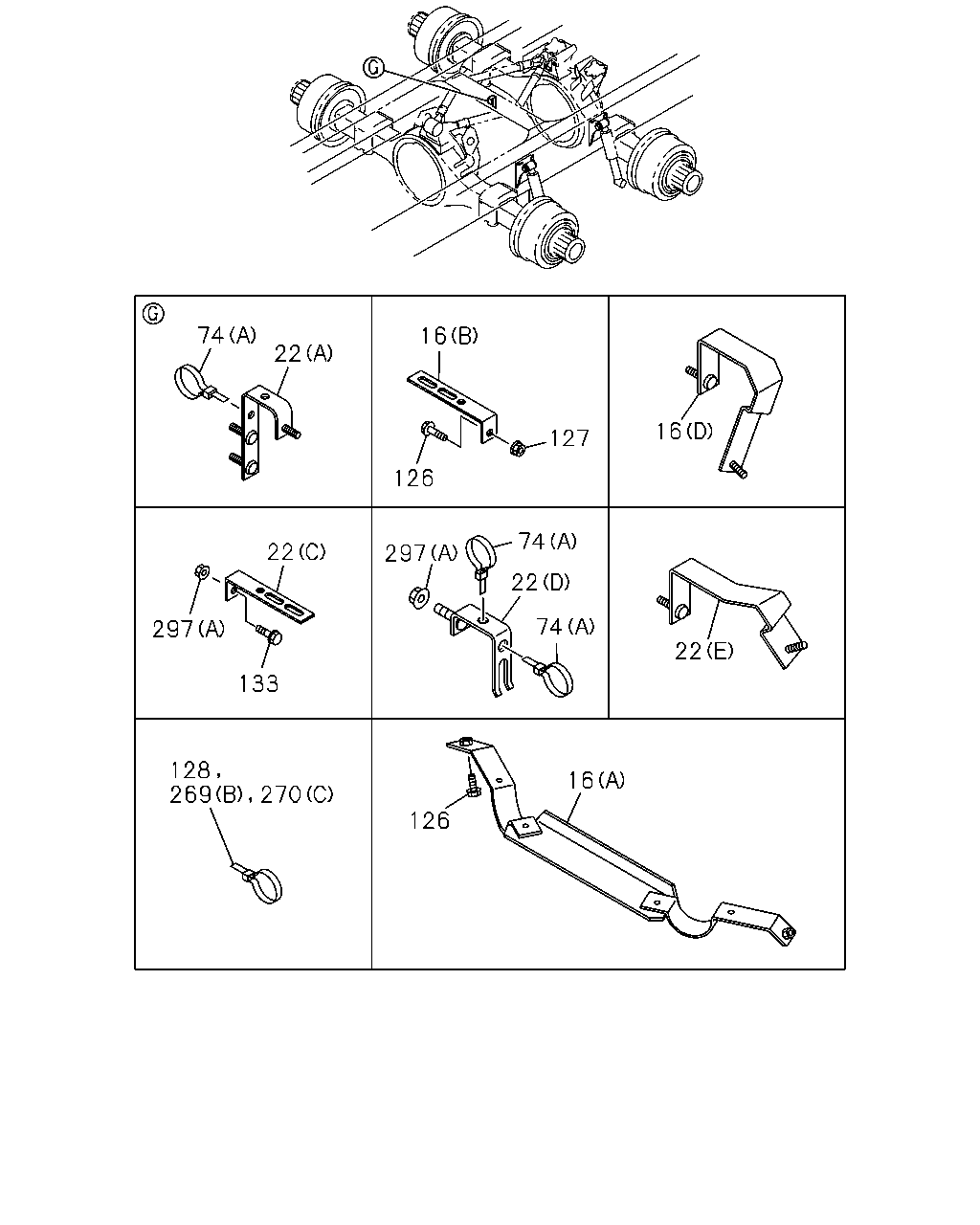

çizim 142568
74 16 22 16 127 126 74 22 297 22 74 297 22 133 128 16 126 269 270
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (B) L=100 H=30 		1-47477-645-2 05 1 1009-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-0908
16 BRACKET; PIPE CLIP
WHEEL BASE 4600MM(46W) (B) L=100 H=30 		1-47477-645-2 04 1 0909-
16 BRACKET; PIPE CLIP
(A) 		1-47479-840-0 01 1 0806-
16 BRACKET; PIPE CLIP
(F) 		1-47479-845-0 02 1 0806-
16 BRACKET; PIPE CLIP
(E) 		1-47479-896-0 01 1 0806-
16 BRACKET; PIPE CLIP
(D) 		1-47479-962-1 01 1 0806-
16 BRACKET; PIPE CLIP
(C) 		1-47479-963-0 01 1 0806-
16 BRACKET; PIPE CLIP
(G) 		1-82698-467-0 01 1 0806-
16 BRACKET; PIPE CLIP
(G) 		1-82698-467-0 02 1 0806-1008
16 BRACKET; PIPE CLIP
BRAKE REGULATION ADR<TDU> (G) 		1-82698-467-0 02 1 1009-
16 BRACKET; PIPE CLIP
(H) 		8-98089-469-0 01 1 0806-
22 BRACKET; CLIP
EXC. BRAKE REGULATION ADR<TDU> (C) L=100 H=30 		1-47477-645-2 02 1 1009-
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 0806-0810
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0811-1008
22 BRACKET; CLIP
BRAKE REGULATION ADR<TDU> (C) L=100 H=30 		1-47477-645-2 01 1 1009-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0806-
22 BRACKET; CLIP
(D) 		1-47479-381-2 02 1 0806-
22 BRACKET; CLIP
(E) 		1-47479-961-1 01 1 0806-
22 BRACKET; CLIP
(B) 		1-82698-467-0 01 1 0806-
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 06 1 1006-1008
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) BRAKE REGULATION ADR<TDU> (A) L=350 		1-09707-183-0 06 1 1009-
74 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 11 1 1009-
74 CLIP; NYLON TUBE
(C) ID=16 L=28 		1-09700-872-0 02 1 0806-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 02 1 0806-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 09 1 0806-0908
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 09 1 0909-
74 CLIP; NYLON TUBE
(D) ID=12 & 12 		1-09709-280-1 02 1 0806-
74 CLIP; NYLON TUBE
(E) ID=39 L=33 		8-98009-359-0 01 1 0806-
126 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 05 1 1009-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0806-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28050-835-0 01 1 0806-1008
126 BOLT; CLIP BRKT
BRAKE REGULATION ADR<TDU> M8X35 FLANGE 		0-28050-835-0 01 1 1009-
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-0908
126 BOLT; CLIP BRKT
WHEEL BASE 4600MM(46W) M8X25 FLANGE 		0-28650-825-0 04 1 0909-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0806-1008
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0806-1008
126 BOLT; CLIP BRKT
BRAKE REGULATION ADR<TDU> M8X35 FLANGE 		0-28650-835-0 01 1 1009-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1009-
127 NUT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 07 1 1009-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 09 1 0806-0908
127 NUT; CLIP BRKT
WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 09 1 0909-
128 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 10 1 1009-
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 09 1 0806-0908
128 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 09 1 0909-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-1008
133 BOLT; BRKT
EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0806-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 0806-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0806-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0806-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0811-1008
133 BOLT; BRKT
BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28650-825-0 01 1 1009-
269 CLIP; BAND,NYLON TUBE
EXC. BRAKE REGULATION ADR<TDU> (B) L=350 		1-09707-183-0 02 1 1009-
269 CLIP; BAND,NYLON TUBE
(C) ID=16 L=28 		1-09700-872-0 02 1 0806-
269 CLIP; BAND,NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 01 1 0806-
269 CLIP; BAND,NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 02 1 0806-1008
269 CLIP; BAND,NYLON TUBE
BRAKE REGULATION ADR<TDU> (C) ID=35 L=33 		1-09700-945-0 02 1 1009-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0806-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 07 1 0806-1008
269 CLIP; BAND,NYLON TUBE
BRAKE REGULATION ADR<TDU> (B) L=350 		1-09707-183-0 07 1 1009-
269 CLIP; BAND,NYLON TUBE
(D) ID=12 & 12 		1-09709-280-1 01 1 0806-
270 CLIP; NYLON TUBE
(D) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0806-
270 CLIP; NYLON TUBE
(E) ID=25 H=30 L=35 		1-09700-875-0 01 1 0806-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0806-
270 CLIP; NYLON TUBE
(F) ID=25 L=50 		1-09701-019-0 01 1 0806-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0806-
270 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0806-
297 NUT; BRKT
EXC. BRAKE REGULATION ADR<TDU> (A) M8 FLANGE 		0-91180-108-0 07 1 1009-
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0806-
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 07 1 0806-0810
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 0811-1008
297 NUT; BRKT
BRAKE REGULATION ADR<TDU> (A) M8 FLANGE 		0-91180-108-0 06 1 1009-
297 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
