3-75 — BRAKE PIPING; AIR,FRONT (#25204) — 83 parça

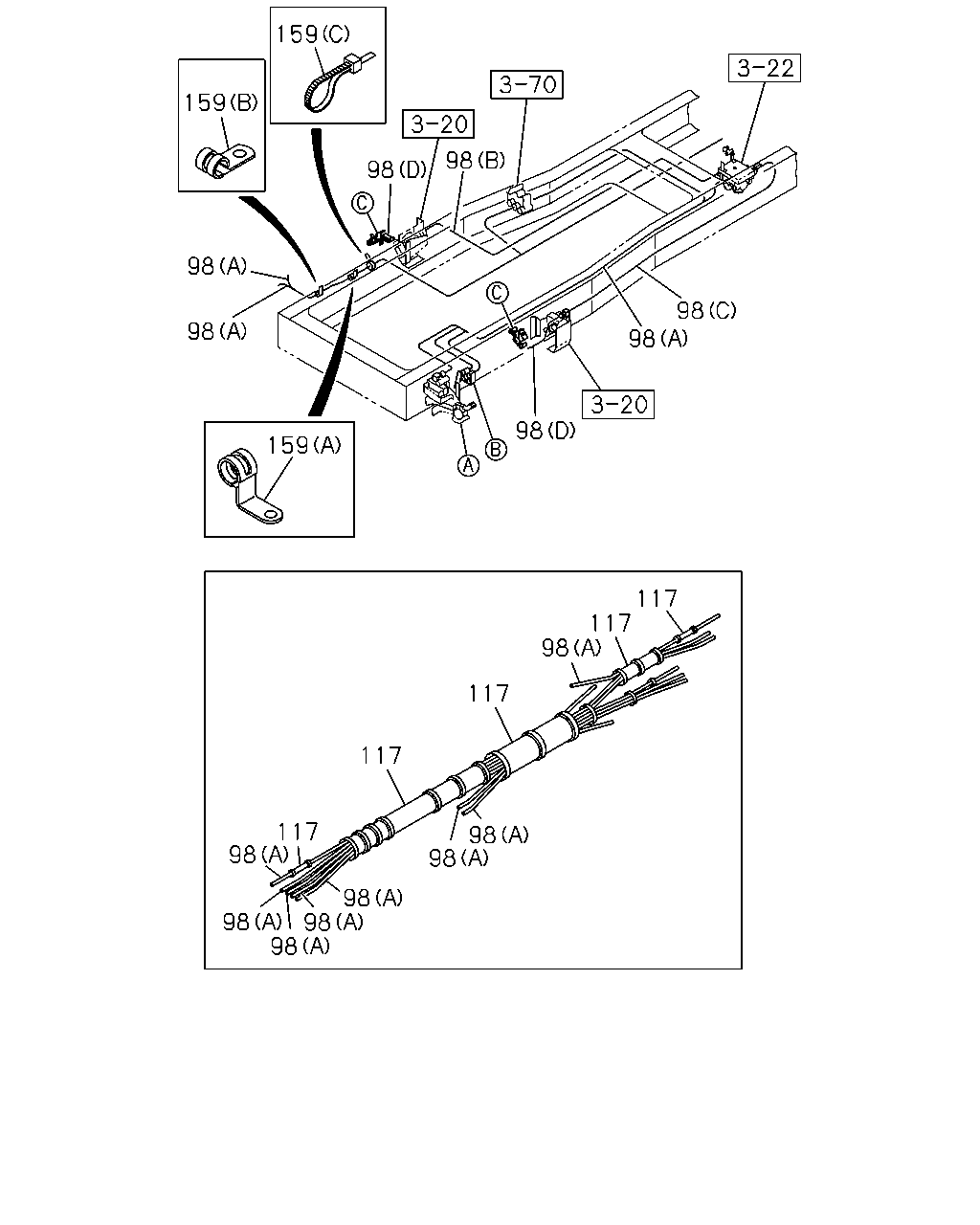

159 159 98 98 98 98 98 98 98 159 117 117 98 117 117 117 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	TUBE; NYLON (B)	8-98090-967-0	01	1	0806-
98	TUBE; NYLON (C)	8-98090-969-0	01	1	0806-
98	TUBE; NYLON (D)	8-98091-686-0	02	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87411-032-0	AR	1	0806-
159	CLIP; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (C) L=350	1-09707-183-0	25	1	1009-
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	03	1	0806-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	02	1	0806-
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	27	1	0806-1008
159	CLIP; NYLON TUBE BRAKE REGULATION ADR<TDU> (C) L=350	1-09707-183-0	27	1	1009-

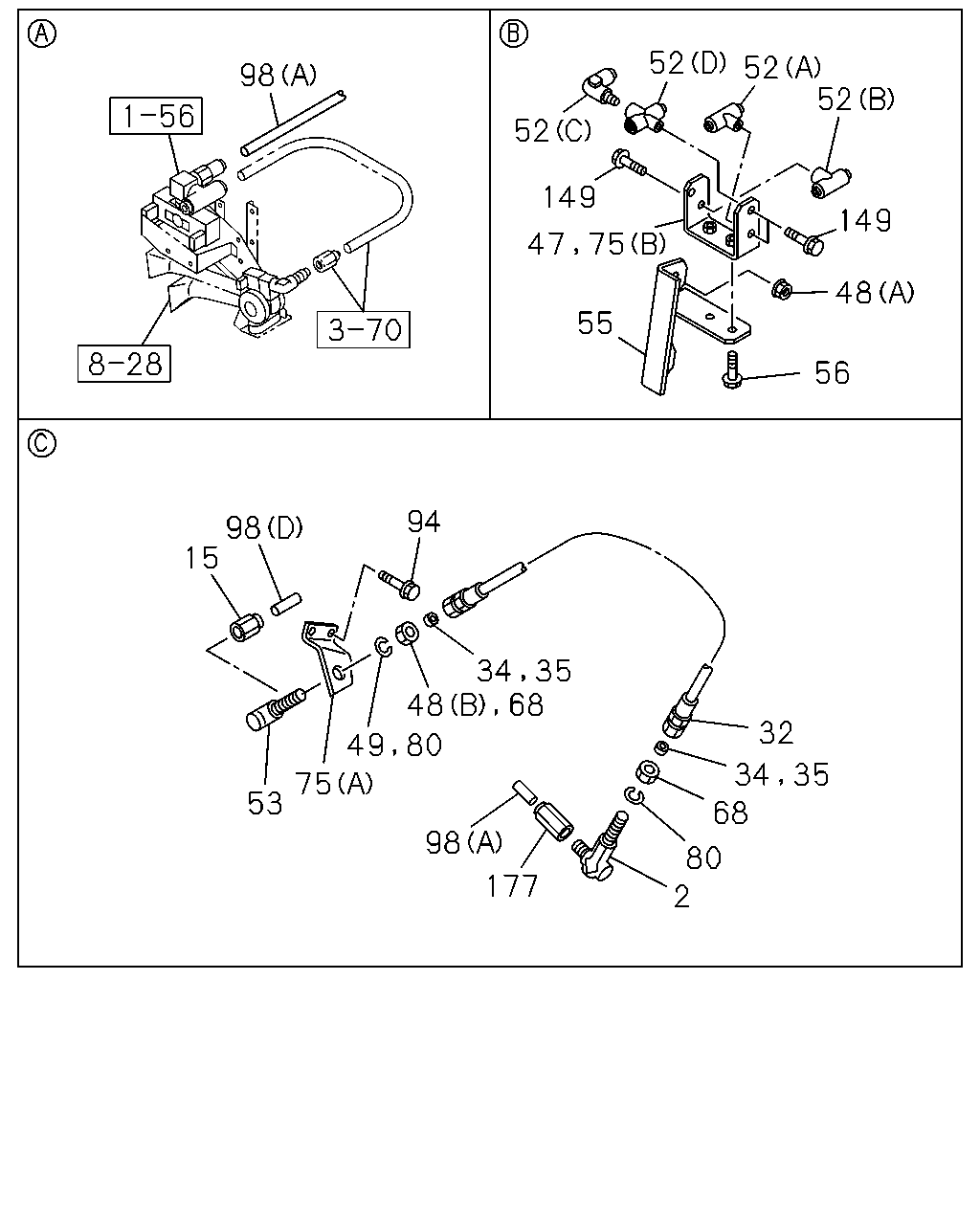

52 52 52 98 52 149 149 48 55 56 94 98 15 34 32 49 34 75 53 68 98 80 177 2 35 48 68 80 35 47 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE	1-09654-119-1	02	1	0806-
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0806-
32	HOSE; FLEX,FRT EXC. BRAKE REGULATION ADR<TDU> L=430	0-57847-430-1	02	1	1009-
32	HOSE; FLEX,FRT	0-87847-430-1	02	1	0806-1008
32	HOSE; FLEX,FRT BRAKE REGULATION ADR<TDU>	0-87847-430-1	02	1	1009-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0806-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0806-
47	BRACKET; PIPE UNION	8-98083-040-0	01	1	0806-1008
47	BRACKET; PIPE UNION BRAKE REGULATION ADR<TDU>	8-98083-040-0	01	1	1009-
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	0806-
48	NUT; UNION BRKT (A) M12 FLANGE	0-91180-212-0	02	1	0806-
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	0806-
52	CONNECTOR; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (B) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1009-
52	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0806-1008
52	CONNECTOR; NYLON TUBE BRAKE REGULATION ADR<TDU> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0806-
52	CONNECTOR; NYLON TUBE (D) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0806-1008
52	CONNECTOR; NYLON TUBE BRAKE REGULATION ADR<TDU> (D) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0806-1008
52	CONNECTOR; NYLON TUBE BRAKE REGULATION ADR<TDU> (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1009-
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	0806-
55	BRACKET; TUBE UNION	1-47478-381-1	01	1	0806-
56	BOLT; UNION BRKT M8X16 FLANGE	0-28050-816-0	02	1	0806-
68	NUT; UNION M20	0-91111-520-0	01	1	0806-
68	NUT; UNION M20	0-91111-520-0	02	1	0806-
75	BRACKET; UNION EXC. BRAKE REGULATION ADR<TDU> (B)	1-47478-382-0	01	1	1009-
75	BRACKET; UNION (A)	1-47479-765-1	01	1	0806-
75	BRACKET; UNION (A)	1-47479-766-1	01	1	0806-
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0806-
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	0806-
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0806-
98	TUBE; NYLON (B)	8-98090-967-0	01	1	0806-
98	TUBE; NYLON (C)	8-98090-969-0	01	1	0806-
98	TUBE; NYLON (D)	8-98091-686-0	02	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0806-
149	BOLT; UNION EXC. BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	04	1	1009-
149	BOLT; UNION M8X16 FLANGE	0-28050-816-0	03	1	0806-1008
149	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X16 FLANGE	0-28050-816-0	03	1	1009-
177	CONNECTOR DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0806-

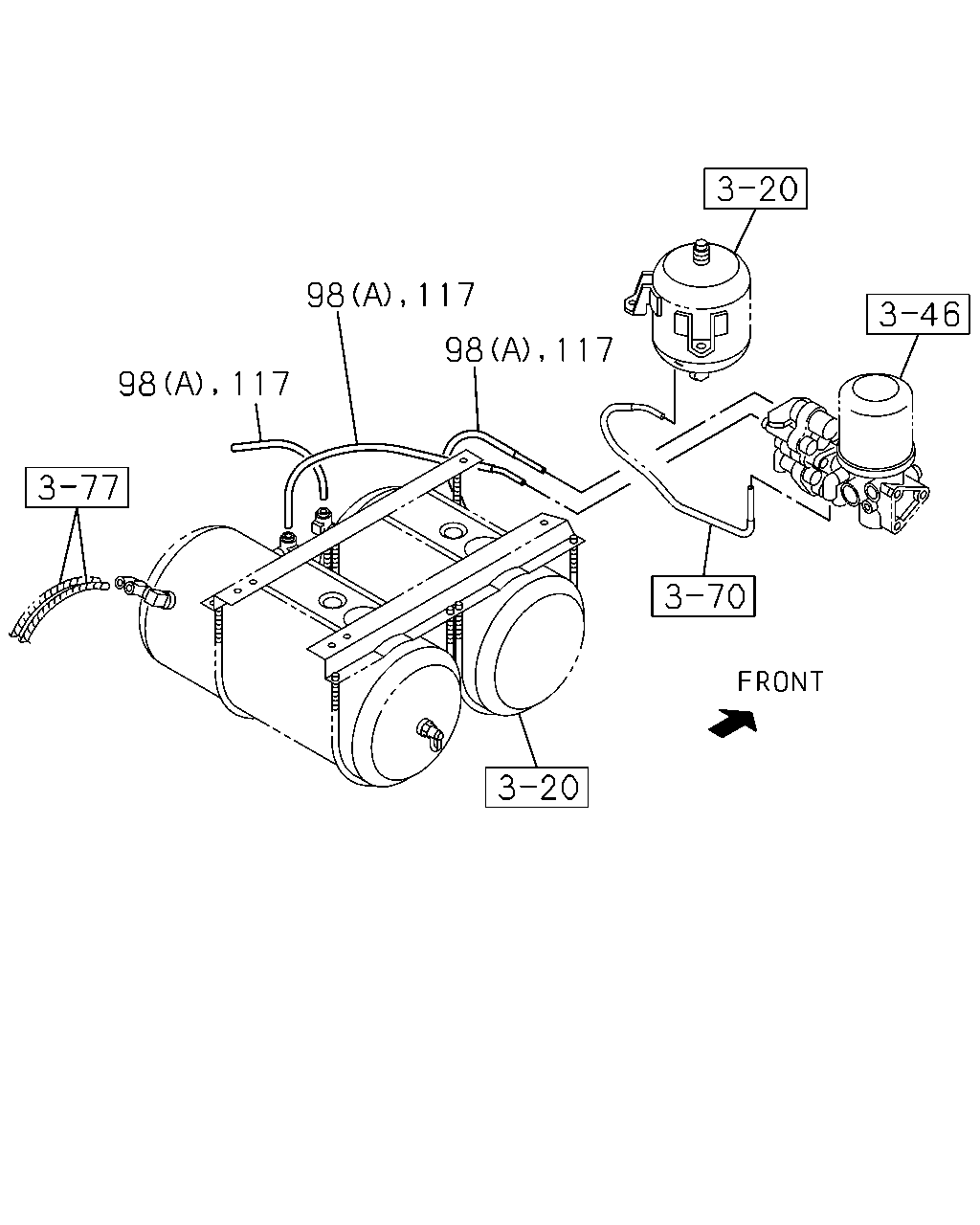

98 117 98 117 98 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	TUBE; NYLON (B)	8-98090-967-0	01	1	0806-
98	TUBE; NYLON (C)	8-98090-969-0	01	1	0806-
98	TUBE; NYLON (D)	8-98091-686-0	02	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0806-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0806-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87411-032-0	AR	1	0806-
