Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#25200) — 67 parça

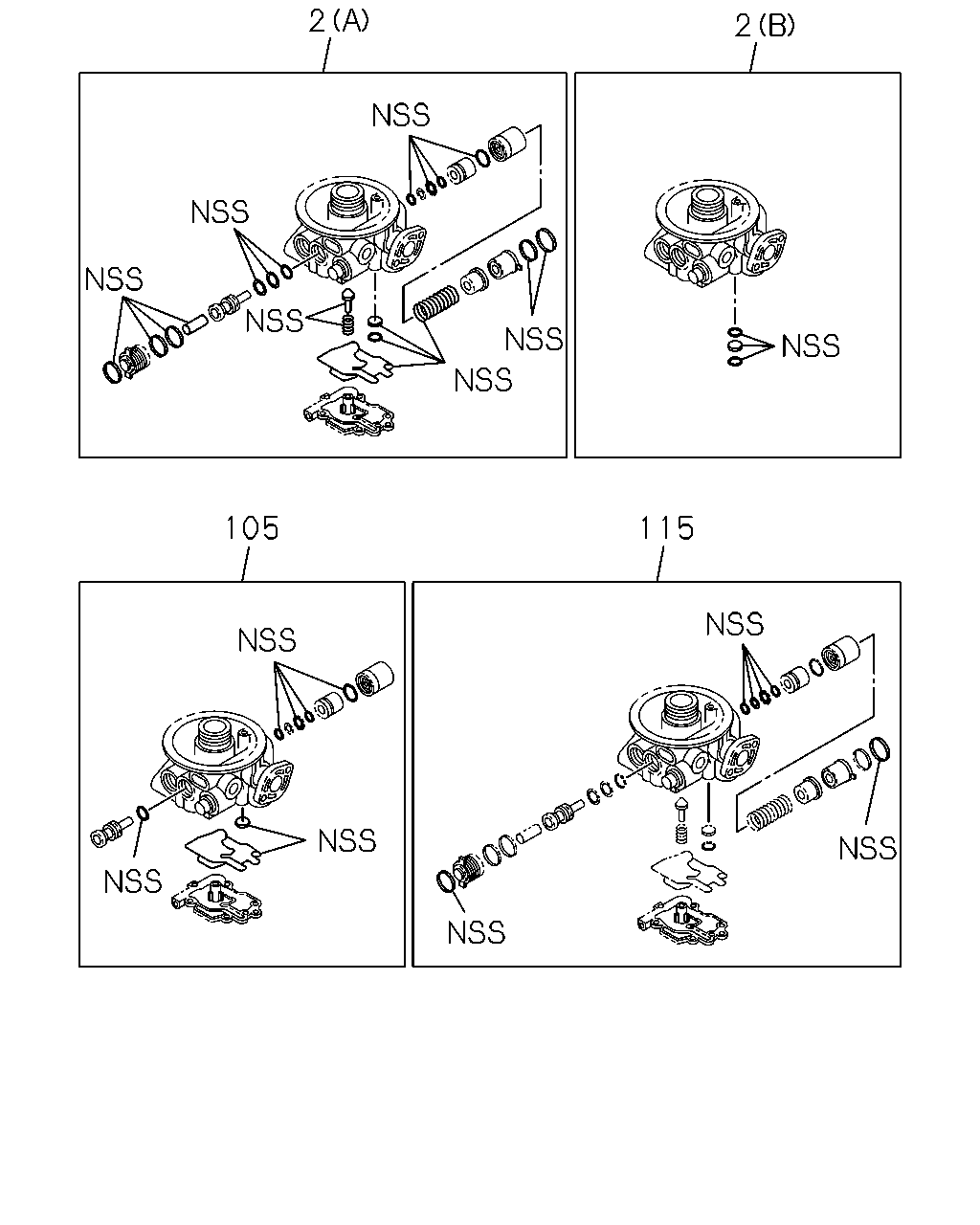

115 105 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B)	8-98302-391-0	01	1	1412-
2	REPAIR KIT; AIR DRYER (A)	1-85576-398-0	01	1	0806-1008
2	REPAIR KIT; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	1-85576-398-0	01	1	1009-1102
2	REPAIR KIT; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A)	8-98185-664-0	01	1	1103-
105	SEAL KIT; AIR DRYER	1-85576-397-0	01	1	0806-1008
105	SEAL KIT; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-397-0	01	1	1009-1102
105	SEAL KIT; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	8-98185-665-0	01	1	1103-
115	REPAIR KIT; GOVERNOR,AIR DRYER	1-85576-400-0	01	1	0806-1008
115	REPAIR KIT; GOVERNOR,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-400-0	01	1	1009-

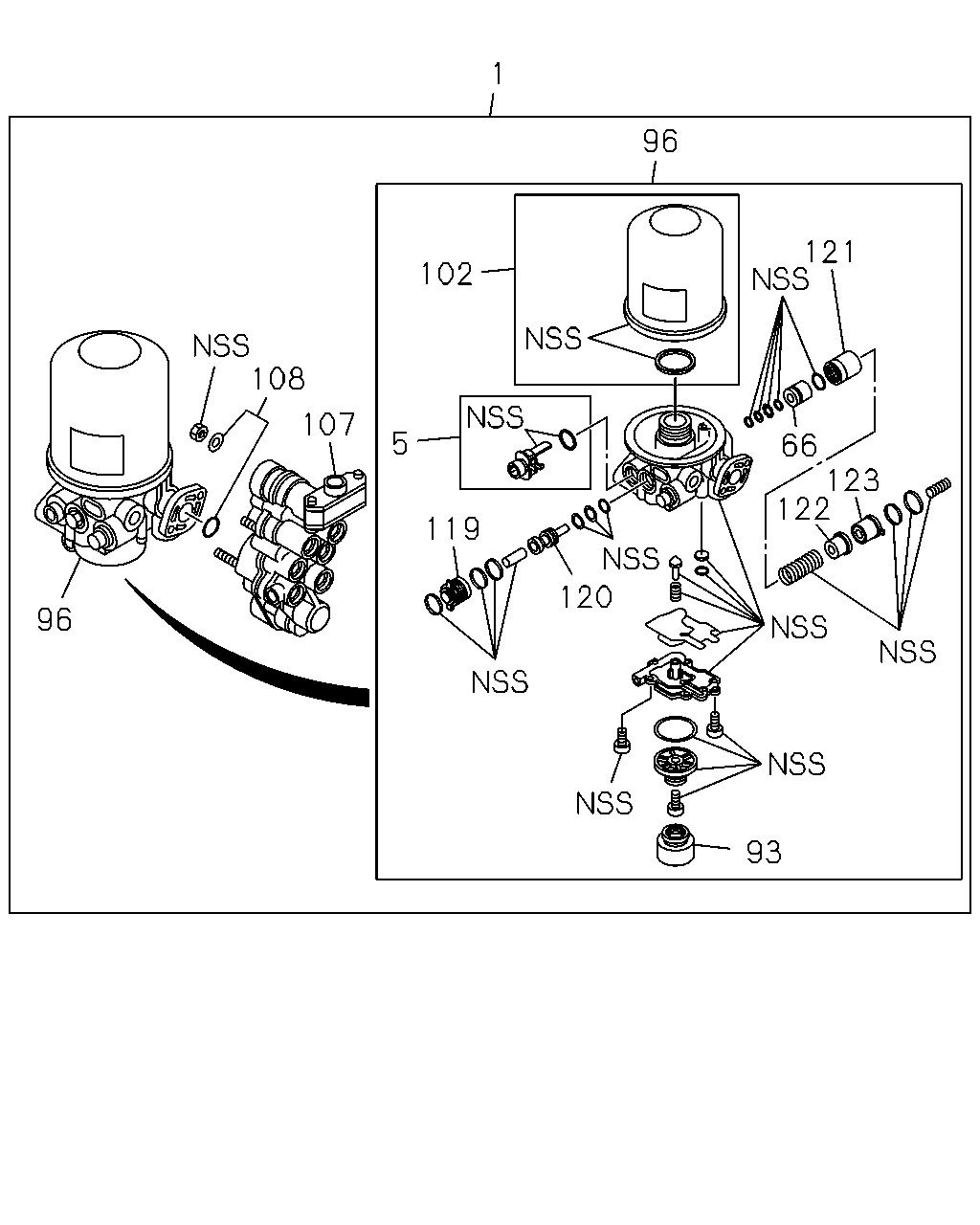

1 96 121 102 108 107 5 66 123 122 119 120 96 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR	1-48190-368-4	01	1	0806-1008
1	DRYER; AIR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-48190-368-4	01	1	1009-1102
1	DRYER; AIR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	8-98180-492-1	01	1	1103-
5	HEATER ASM; AIR DRYER	1-85576-363-0	01	1	0806-1008
5	HEATER ASM; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-363-0	01	1	1009-
66	PISTON; AIR DRYER	1-85576-475-0	01	1	0806-1008
66	PISTON; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-475-0	01	1	1009-
93	SILENCER; AIR DRYER	1-85576-362-0	01	1	0806-1008
93	SILENCER; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-362-0	01	1	1009-
96	DRYER KIT; AIR	1-85576-455-1	01	1	0806-1008
96	DRYER KIT; AIR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-455-1	01	1	1009-1102
96	DRYER KIT; AIR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	8-98185-663-1	01	1	1103-
102	CARTRIDGE; AIR DRYER	1-85576-450-2	01	1	0806-1008
102	CARTRIDGE; AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-450-2	01	1	1009-
107	VALVE ASM; PROTECTION,AIR DRYER	1-85576-369-3	01	1	0806-1008
107	VALVE ASM; PROTECTION,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-369-3	01	1	1009-
108	FIXING KIT; PROTECTION,AIR DRYER	1-85576-371-0	01	1	0806-1008
108	FIXING KIT; PROTECTION,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-371-0	01	1	1009-
119	COVER; PURGE VALVE	1-85576-473-0	01	1	0806-1008
119	COVER; PURGE VALVE JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-473-0	01	1	1009-
120	TAPPET	1-85576-474-0	01	1	0806-1008
120	TAPPET JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-474-0	01	1	1009-1102
120	TAPPET JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	8-98185-666-0	01	1	1103-
121	HOLDER; SPRING	1-85576-476-0	01	1	0806-1008
121	HOLDER; SPRING JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-476-0	01	1	1009-
122	SEAT; SPRING	1-85576-477-0	01	1	0806-1008
122	SEAT; SPRING JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-477-0	01	1	1009-
123	COVER; GOVERNER	1-85576-478-0	01	1	0806-1008
123	COVER; GOVERNER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-85576-478-0	01	1	1009-

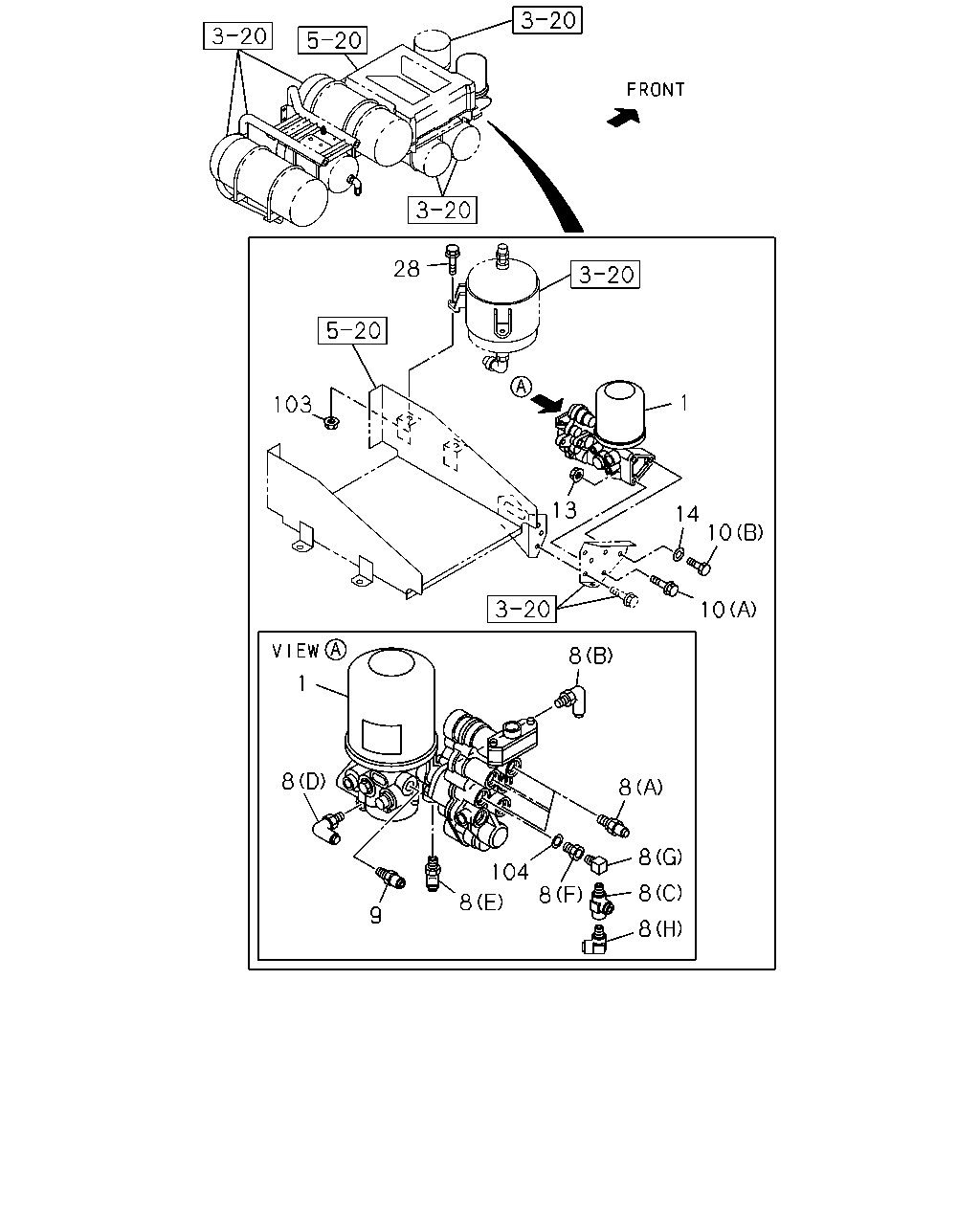

28 1 103 13 14 10 10 8 1 8 8 8 104 8 8 8 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR	1-48190-368-4	01	1	0806-1008
1	DRYER; AIR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	1-48190-368-4	01	1	1009-1102
1	DRYER; AIR JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG>	8-98180-492-1	01	1	1103-
8	CONNECTOR; OUT,AIR DRYER (F) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0806-1008
8	CONNECTOR; OUT,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (F) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	1009-
8	CONNECTOR; OUT,AIR DRYER (G) PT3/8 ELBOW	1-09660-696-0	01	1	0806-1008
8	CONNECTOR; OUT,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (G) PT3/8 ELBOW	1-09660-696-0	01	1	1009-
8	CONNECTOR; OUT,AIR DRYER (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0806-1008
8	CONNECTOR; OUT,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	05	1	0806-1008
8	CONNECTOR; OUT,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) DIN12 & M22 STRAIGHT	1-09661-050-0	05	1	1009-
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & R3/8 & RC3/8 3WAY	1-09661-181-0	01	1	0806-1008
8	CONNECTOR; OUT,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) DIN12 & R3/8 & RC3/8 3WAY	1-09661-181-0	01	1	1009-
8	CONNECTOR; OUT,AIR DRYER (E)	1-09661-499-0	01	1	0806-1008
8	CONNECTOR; OUT,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E)	1-09661-499-0	01	1	1009-
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	0806-1008
8	CONNECTOR; OUT,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	1009-
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	0806-1008
8	CONNECTOR; OUT,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	1009-
9	CONNECTOR; PIPE,AIR DRYER M22X2 STRAIGHT	8-98107-103-0	01	1	0806-1008
9	CONNECTOR; PIPE,AIR DRYER JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M22X2 STRAIGHT	8-98107-103-0	01	1	1009-
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28051-250-0	01	1	0806-
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	0806-
13	NUT; AIR DRYER M12 FLANGE	0-91180-212-0	01	1	0806-
14	WASHER; PL,AIR DRYER ID=12.5 OD=22	0-91610-512-0	02	1	0806-
28	BOLT; PURGE TANK M10X25 FLANGE	0-28651-025-0	02	1	0806-
103	NUT; PURGE TANK M10 FLANGE	0-91180-210-0	02	1	0806-
104	GASKET ID=22.5	9-09571-422-0	01	1	0806-1008
104	GASKET JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=22.5	9-09571-422-0	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
