6-20 — SIDE PANEL AND STEP (#2520) — 77 parça

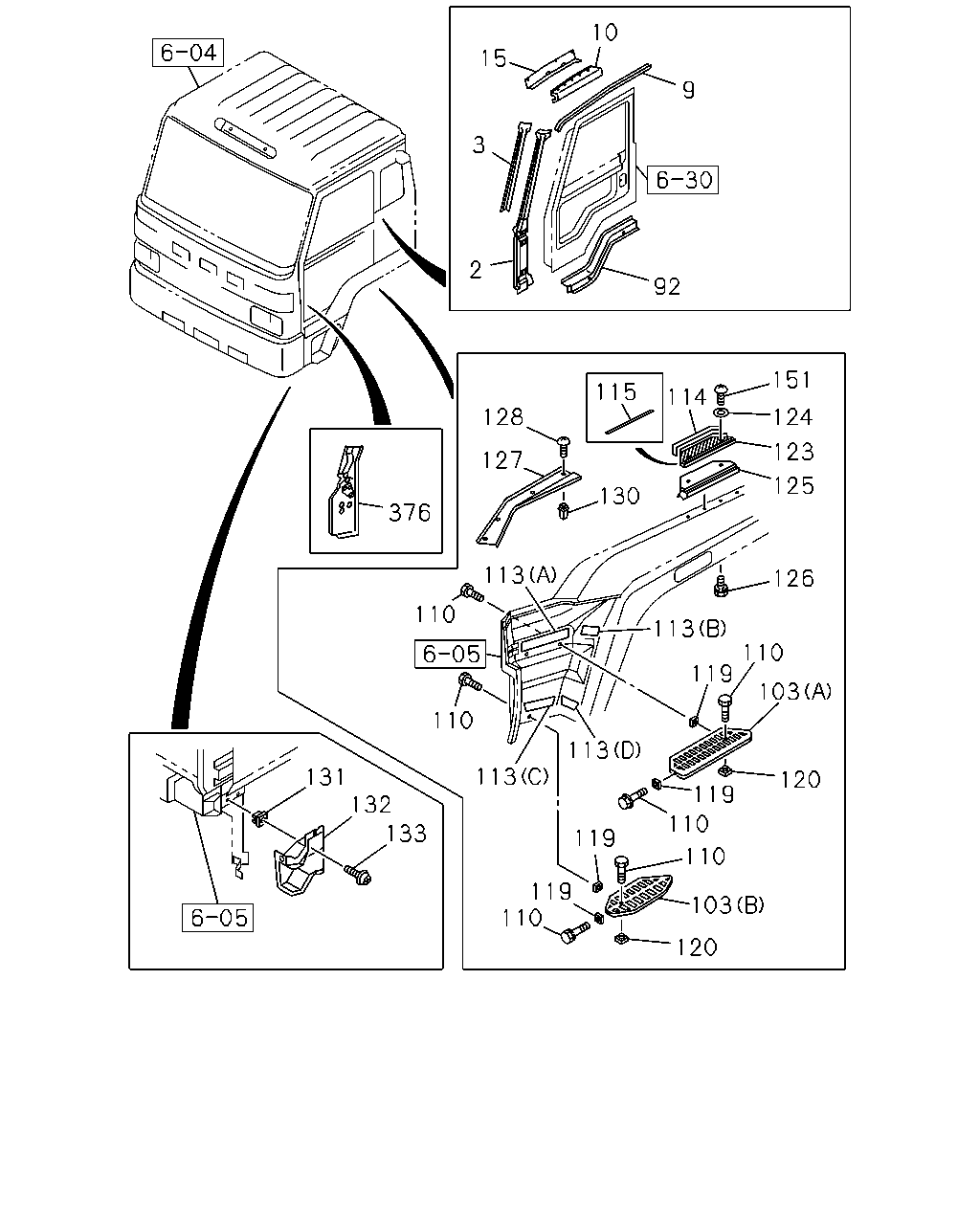

çizim 29282
10 15 9 3 2 92 151 115 114 124 128 123 127 125 130 376 113 126 110 113 110 119 103 110 113 113 131 120 119 132 133 110 119 110 119 110 103 120
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61270-647-0 01 1 9002-9103
2 PILLAR; FRT 1-61270-756-1 01 1 9104-
2 PILLAR; FRT 1-61270-645-0 01 1 9002-
3 PANEL; CLOSING,FRT PILLAR 1-61270-541-5 01 1 9002-
3 PANEL; CLOSING,FRT PILLAR 1-61270-540-5 01 1 9002-
9 MOLDING; DRIP,CAB SIDE 1-61270-537-6 01 1 9002-
9 MOLDING; DRIP,CAB SIDE 1-61270-536-6 01 1 9002-
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9002-
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9002-
15 PANEL; CANT RAIL SIDE 1-61270-557-8 01 1 9002-
15 PANEL; CANT RAIL SIDE 1-61270-556-8 01 1 9002-
92 PANEL; SIDE SILL,CAB 1-61270-561-4 01 1 9002-
92 PANEL; SIDE SILL,CAB 1-61270-560-4 01 1 9002-
103 PLATE; STEP
(A) 		1-53414-034-0 02 1 9002-
103 PLATE; STEP
(B) 		1-53414-035-0 02 1 9002-
110 BOLT; 1ST STEP PLATE
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002-
110 BOLT; 1ST STEP PLATE
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 9002-
113 PROTECTOR; 1ST STEP
(C) L=289 		1-71267-132-0 02 1 9002-
113 PROTECTOR; 1ST STEP
(A) 		1-71267-129-0 01 1 9002-
113 PROTECTOR; 1ST STEP
(B) 		1-71267-131-0 01 1 9002-
113 PROTECTOR; 1ST STEP
(D) L=154 		1-71267-134-0 01 1 9002-
113 PROTECTOR; 1ST STEP
(A) 		1-71267-128-0 01 1 9002-
113 PROTECTOR; 1ST STEP
(B) 		1-71267-130-0 01 1 9002-
113 PROTECTOR; 1ST STEP
(D) L=154 		1-71267-133-0 01 1 9002-
114 PROTECTOR; FENDER RR STEP
GRIP OUT SIDE<W52> 		1-71267-127-0 02 1 9002-
115 PROTECTOR; STAND STEP
GRIP OUT SIDE<W52> 		1-71267-138-0 02 1 9002-
119 CAP; STEP 1-65570-180-0 16 1 9002-
120 SPACER; 1ST STEP 1-65570-170-1 04 1 9002-
123 STEP; FENDER REAR TRAVERSE
GRIP OUT SIDE<W52> 		1-71997-441-3 02 1 9002-9202
123 STEP; FENDER REAR TRAVERSE
GRIP OUT SIDE<W52> 		1-71907-022-1 02 1 9203-
124 WASHER; PL,STEP,FENDER RR
GRIP OUT SIDE<W52> ID=5.3 OD=16 T=1.2 		1-09985-154-0 04 1 9002-9202
124 WASHER; PL,STEP,FENDER RR
GRIP OUT SIDE<W52> ID=5.3 OD=16 T=1.2 		1-09985-154-0 06 1 9203-
125 STAND; STEP,FENDER RR
GRIP OUT SIDE<W52> 		1-71997-714-2 02 1 9002-
126 BOLT; STEP STAND
GRIP OUT SIDE<W52> M6X20 		1-09980-279-0 06 1 9002-
127 PROTECTOR; FENDER 1-71267-125-1 01 1 9002-
127 PROTECTOR; FENDER 1-71267-124-1 01 1 9002-
128 SCREW; PROTECTOR,FENDER
M5X16 TAPPING 		0-71090-516-0 08 1 9002-
130 GROMMET; SCREW,PROTECTOR 8-94279-039-0 08 1 9002-
131 GROMMET; SCREW,AIR GUIDE 1-09983-081-0 04 1 9002-9306
131 GROMMET; SCREW,AIR GUIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-09983-081-0 06 1 9307-
131 GROMMET; SCREW,AIR GUIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-09983-081-0 04 1 9307-
132 GUIDE ASM; AIR FENDER STEP 1-71997-744-0 01 1 9002-9306
132 GUIDE ASM; AIR FENDER STEP 1-71997-743-0 01 1 9002-9306
132 GUIDE ASM; AIR FENDER STEP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71907-127-1 01 1 9307-
132 GUIDE ASM; AIR FENDER STEP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71907-126-1 01 1 9307-
132 GUIDE ASM; AIR FENDER STEP
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71997-744-0 01 1 9307-
132 GUIDE ASM; AIR FENDER STEP
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71997-743-0 01 1 9307-
133 SCREW; AIR GUIDE
M5X16 		1-09981-465-0 06 1 9002-
151 SCREW; STEP,FENDER RR
GRIP OUT SIDE<W52> M5X16 TAPPING 		0-71090-516-0 04 1 9002-9202
151 SCREW; STEP,FENDER RR
GRIP OUT SIDE<W52> M5X16 TAPPING 		0-71090-516-0 06 1 9203-
376 PANEL ASM; FRT SIDE INNER 1-61470-586-4 01 1 9002-
376 PANEL ASM; FRT SIDE INNER 1-61470-582-4 01 1 9002-

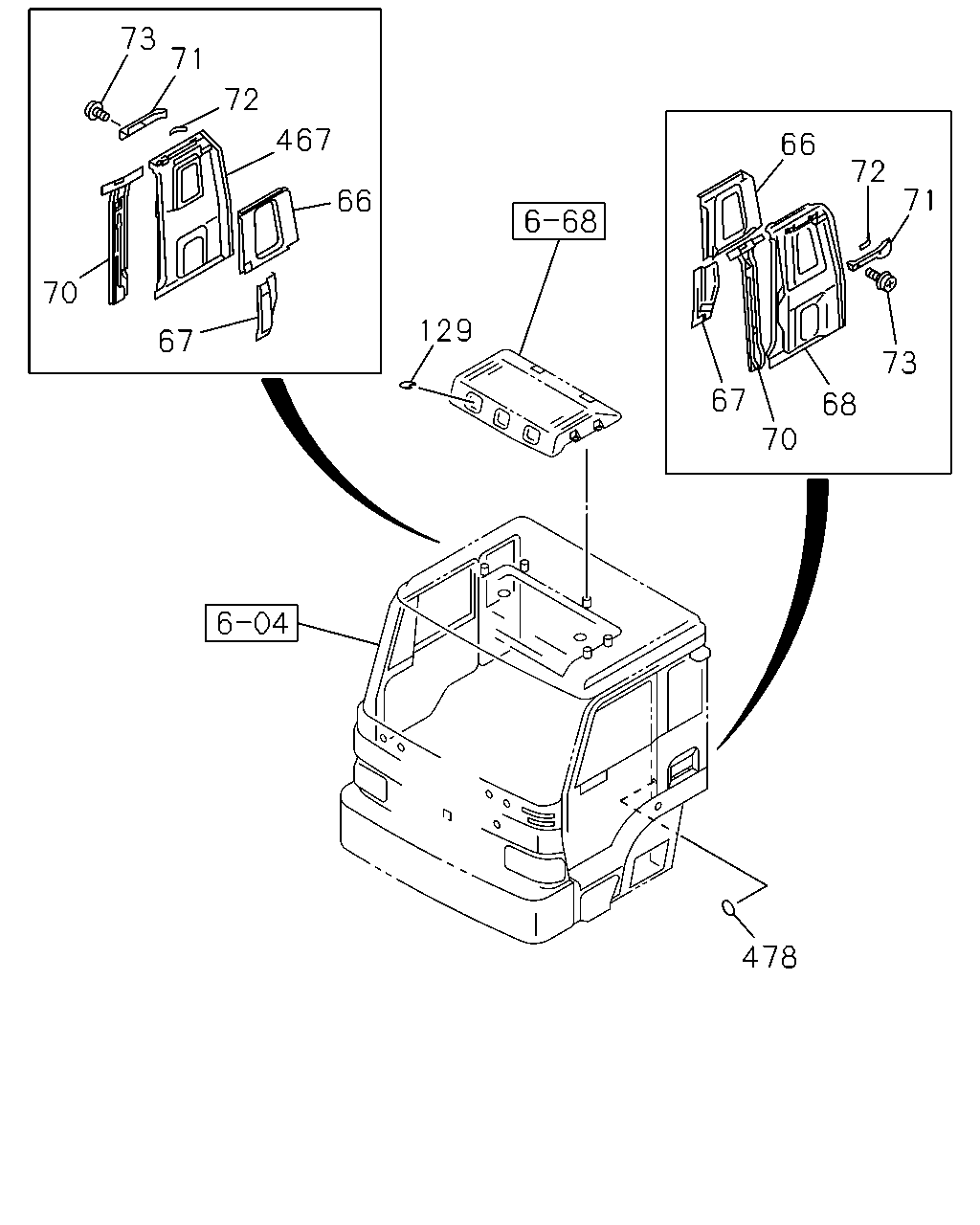

çizim 95156
73 71 72 467 66 72 71 66 70 129 67 73 67 68 70 478
BalonParca AdiParca NoAdetTipApplied Date
66 PANEL; BACK SIDE INNER 1-61270-666-1 01 1 9002-
66 PANEL; BACK SIDE INNER 1-61270-665-0 01 1 9002-9103
66 PANEL; BACK SIDE INNER 1-61270-741-0 01 1 9104-
67 PANEL; INNER,RR PILLAR LWR 1-61270-678-3 01 1 9002-9008
67 PANEL; INNER,RR PILLAR LWR 1-61270-750-0 01 1 9009-9103
67 PANEL; INNER,RR PILLAR LWR 1-61281-141-0 01 1 9104-9306
67 PANEL; INNER,RR PILLAR LWR 1-61270-675-4 01 1 9002-9501
67 PANEL; INNER,RR PILLAR LWR 1-61281-049-0 01 1 9502-
67 PANEL; INNER,RR PILLAR LWR 1-61281-141-0 01 1 9307-
68 PANEL; BACK SIDE OUTER 1-61270-547-9 01 1 9002-9103
68 PANEL; BACK SIDE OUTER 1-61270-727-1 01 1 9104-9306
70 REINFORCEMENT; BACK INNER PANEL 1-61270-672-5 01 1 9002-9103
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9104-
70 REINFORCEMENT; BACK INNER PANEL 1-61270-671-5 01 1 9002-9103
70 REINFORCEMENT; BACK INNER PANEL 1-61270-745-0 01 1 9104-
71 COVER; SIDE PANEL UPR
WHITE 		1-65471-051-1 01 1 9002-
71 COVER; SIDE PANEL UPR
WHITE 		1-65471-050-1 01 1 9002-
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9002-
73 SCREW; SIDE PANEL COVER
GRIP OUT SIDE<W52> M8X25 		1-09981-429-0 02 1 9002-
73 SCREW; SIDE PANEL COVER
GRIP OUT SIDE<W52> M8X30 		1-09981-467-0 02 1 9002-
73 SCREW; SIDE PANEL COVER
EXC. GRIP OUT SIDE<W52> M8X25 		1-09981-429-0 04 1 9002-
129 NUT; SPIRE,SPD INDICATOR
LAMPS FOUR ROOF MARKER<PJ5> 		1-09984-101-0 04 1 9002-
467 PANEL; OUTER,BACK CORNER 1-61270-625-0 01 1 9002-
467 PANEL; OUTER,BACK CORNER 1-61270-727-1 01 1 9307-
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 03 1 9307-
