Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

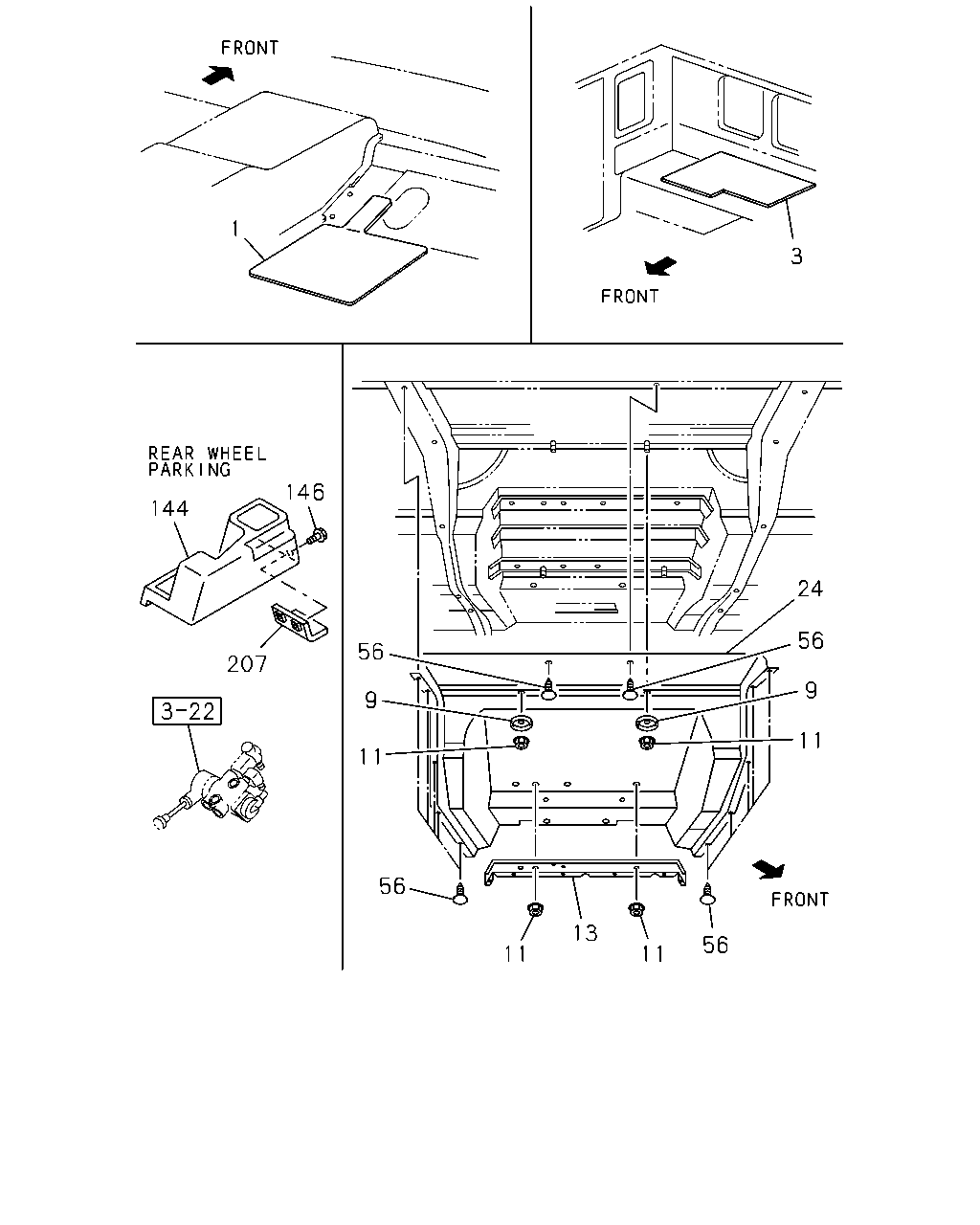

6-76 — FLOOR EQUIPMENT AND SEALING
(#252) — 12 parça
1
3
146
144
24
56
56
207
9
9
11
11
56
13
56
11
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0
1-61970-039-0
AR
1
9212-
3
SHEET; MELTING,BED PAN
DELUXE CAB(W14) CUT BULK SHEET 900X1000
1-61970-039-0
AR
1
9212-
9
WASHER; HEAT INSULATOR
1-73377-052-1
02
1
9212-
11
NUT; HEAT INSULATOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE
1-09984-141-0
05
1
9212-
11
NUT; HEAT INSULATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE
1-09984-141-0
04
1
9212-
13
PLATE; HEAT INSULATOR
1-71998-159-5
01
1
9212-
24
INSULATOR; HEAT,FRT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-71998-398-9
01
1
9212-
24
INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-71998-481-2
01
1
9212-
56
CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK
1-09987-114-0
12
1
9212-
144
COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-73998-819-0
01
1
9212-
146
BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/WASHER
9-03900-616-0
06
1
9212-
207
BRACKET ASM; HAND BRAKE VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-73998-575-0
01
1
9212-
