◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 3 - Brakes, Brake System ▶ 3-26 - TRAILER CONTROL ▶
3-26 — TRAILER CONTROL (#25196) — 240 parça
çizim 142374
246 244 245
BalonParca AdiParca NoAdetTipApplied Date
244 GRIP 8-97620-002-0 01 1 0806-1008
244 GRIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97620-002-0 01 1 1009-
245 BOLT; GRIP
M12X30 FLANGE 		0-28051-230-0 04 1 0806-1008
245 BOLT; GRIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X30 FLANGE 		0-28051-230-0 04 1 1009-
246 NUT; GRIP
M12 FLANGE 		0-91180-212-0 04 1 0806-1008
246 NUT; GRIP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12 FLANGE 		0-91180-212-0 04 1 1009-

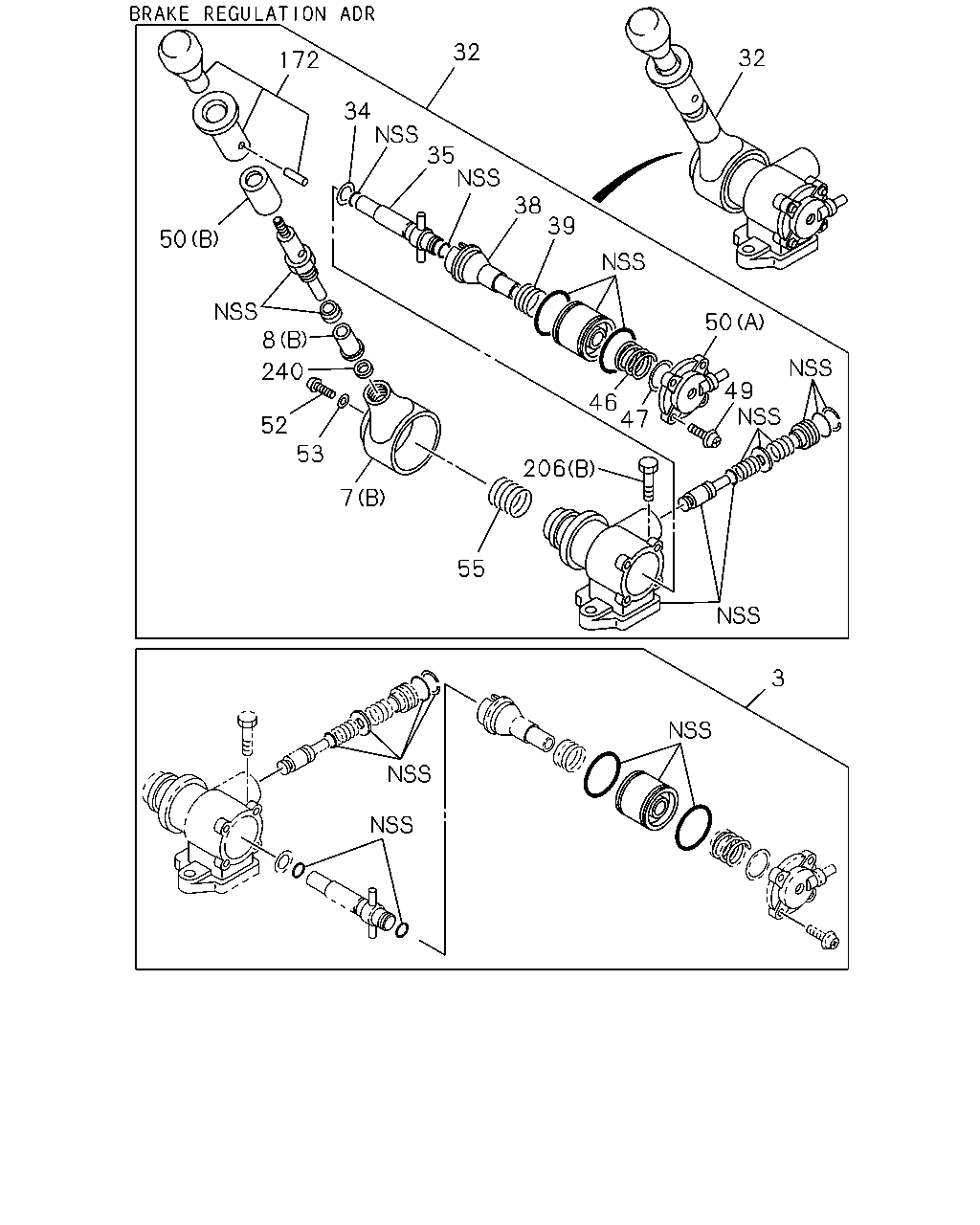

çizim 142522
32 32 172 34 35 38 39 50 8 50 240 49 46 47 52 53 7 55 3 206
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; HAND BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-85576-376-0 01 1 1009-
3 REPAIR KIT; HAND BRK VLV 1-85576-375-0 01 1 0806-1008
3 REPAIR KIT; HAND BRK VLV
BRAKE REGULATION ADR<TDU> 		1-85576-375-0 01 1 1009-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (C) 		1-48119-577-1 01 1 1009-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-48469-201-0 01 1 1009-
7 HEAD; BRK VLV
(A) 		1-48119-131-1 01 1 0806-1008
7 HEAD; BRK VLV
BRAKE REGULATION ADR<TDU> (A) 		1-48119-131-1 01 1 1009-
7 HEAD; BRK VLV
(B) 		1-48469-195-0 01 1 0806-1008
7 HEAD; BRK VLV
BRAKE REGULATION ADR<TDU> (B) 		1-48469-195-0 01 1 1009-
8 STOPPER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (C) 		1-48119-327-0 01 1 1009-
8 STOPPER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-48469-200-0 01 1 1009-
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 0806-1008
8 STOPPER; BRK VLV
BRAKE REGULATION ADR<TDU> (A) 		1-48119-239-0 01 1 1009-
8 STOPPER; BRK VLV
(B) 		1-48469-194-0 01 1 0806-1008
8 STOPPER; BRK VLV
BRAKE REGULATION ADR<TDU> (B) 		1-48469-194-0 01 1 1009-
32 VALVE; BRK,HAND CONT
EXC. BRAKE REGULATION ADR<TDU> 		1-48460-339-1 01 1 1009-
32 VALVE; BRK,HAND CONT 1-48460-340-1 01 1 0806-1008
32 VALVE; BRK,HAND CONT
BRAKE REGULATION ADR<TDU> 		1-48460-340-1 01 1 1009-
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 0806-
35 HOLDER; CAM
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-171-0 01 1 1009-
35 HOLDER; CAM 1-48469-148-0 01 1 0806-1008
35 HOLDER; CAM
BRAKE REGULATION ADR<TDU> 		1-48469-148-0 01 1 1009-
38 SEAT; EXH VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-172-0 01 1 1009-
38 SEAT; EXH VLV 1-48469-149-0 01 1 0806-1008
38 SEAT; EXH VLV
BRAKE REGULATION ADR<TDU> 		1-48469-149-0 01 1 1009-
39 SPRING; RETURN,CAM RING 1-48469-150-0 01 1 0806-
46 SPRING; MAIN,PISTON
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-173-0 01 1 1009-
46 SPRING; MAIN,PISTON 1-48469-152-0 01 1 0806-1008
46 SPRING; MAIN,PISTON
BRAKE REGULATION ADR<TDU> 		1-48469-152-0 01 1 1009-
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 0806-
49 SCREW; COVER 1-48469-169-0 04 1 0806-
50 COVER; HAND BRK VLV
(A) 		1-48469-153-0 01 1 0806-
50 COVER; HAND BRK VLV
(B) 		1-48469-196-0 01 1 0806-
52 SCREW; HANDLE 1-48469-062-0 01 1 0806-
53 WASHER; HANDLE 1-48469-061-0 01 1 0806-
55 SPRING; RETURN,HANDLE 1-48469-155-0 01 1 0806-
172 KNOB; VALVE
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-203-0 01 1 1009-
172 KNOB; VALVE 1-48469-204-0 01 1 0806-1008
172 KNOB; VALVE
BRAKE REGULATION ADR<TDU> 		1-48469-204-0 01 1 1009-
206 BOLT; HAND BRK VALVE
(A) M10X20 W/LK WASHER 		0-50541-020-0 02 1 0806-
206 BOLT; HAND BRK VALVE
(B) 		1-48469-160-0 01 1 0806-
240 RING; STOPPER
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-199-0 01 1 1009-
240 RING; STOPPER 1-48469-193-0 01 1 0806-1008
240 RING; STOPPER
BRAKE REGULATION ADR<TDU> 		1-48469-193-0 01 1 1009-

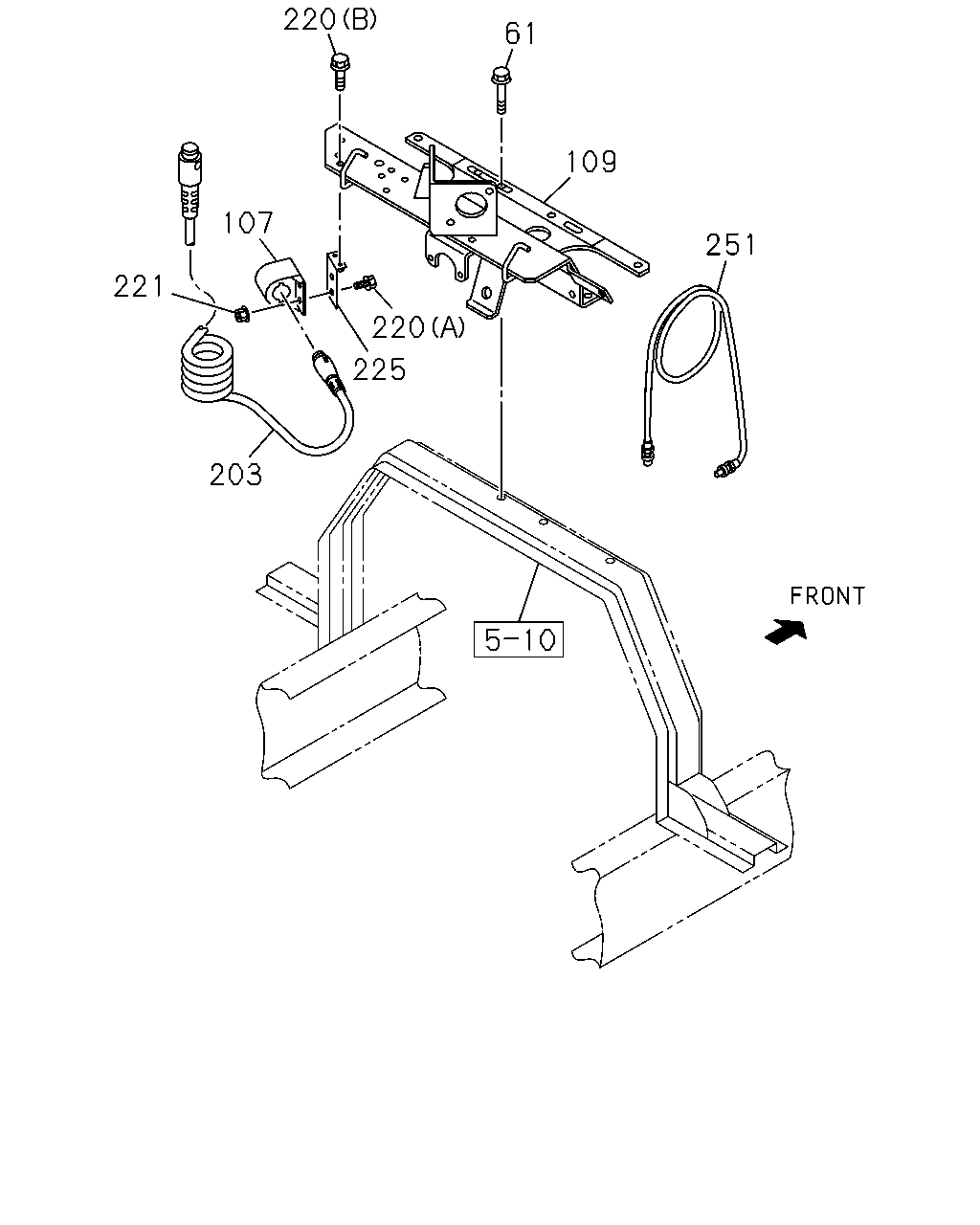

çizim 142528
220 61 109 107 251 221 220 225 203
BalonParca AdiParca NoAdetTipApplied Date
61 BOLT; STEP BOARD
M10X30 FLANGE 		0-28651-030-0 06 1 0806-
107 HANGER; JUMPER HOSE 1-57550-022-2 01 1 0806-
109 BRACKET; HOSE HANGER 8-98092-035-0 01 1 0806-
203 CABLE; JUMPER
EXC. AUSTRALIA EQUIPMENT(RR3) L=5500 		1-82659-201-2 01 1 1009-1009
203 CABLE; JUMPER
EXC. AUSTRALIA EQUIPMENT(RR3) L=5500 		8-98107-178-0 01 1 1010-
220 BOLT; HANGER
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-
220 BOLT; HANGER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
221 NUT; HANGER
M6 FLANGE 		0-91180-106-0 02 1 0806-
225 BRACKET; HANGER 1-82698-657-0 01 1 0806-
251 CABLE; JUMPER,EBS
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82659-210-2 01 1 1009-

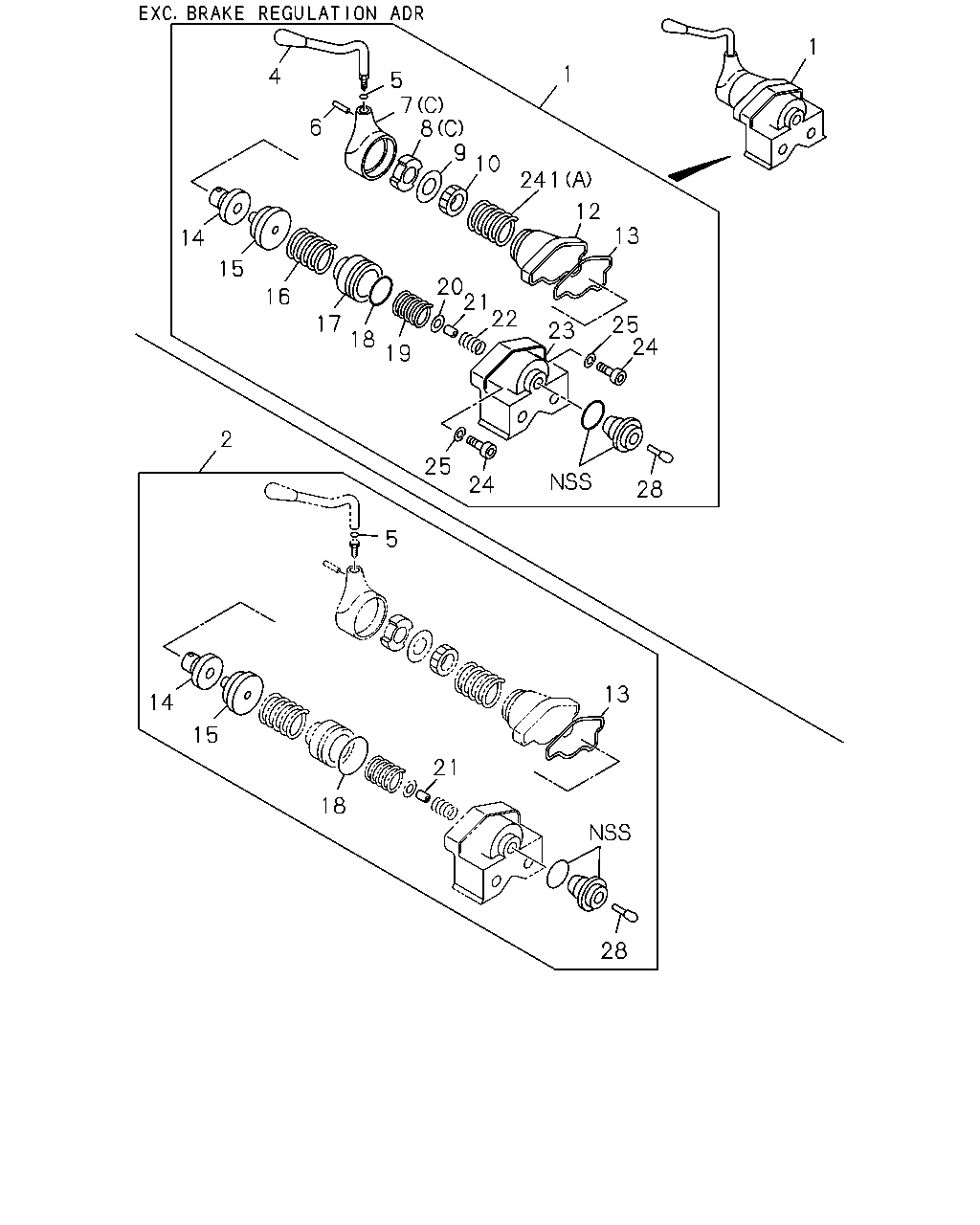

çizim 142530
1 1 4 5 7 8 9 6 10 241 12 13 14 15 20 21 22 16 23 17 25 24 18 19 2 25 24 28 5 13 14 15 21 18 28
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK
EXC. BRAKE REGULATION ADR<TDU> 		1-48100-859-0 01 1 1009-
1 VALVE ASM; HAND BRK 1-48100-848-0 01 1 0806-1008
1 VALVE ASM; HAND BRK
BRAKE REGULATION ADR<TDU> 		1-48100-848-0 01 1 1009-
2 REPAIR KIT; HAND BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-85576-305-0 01 1 1009-
2 REPAIR KIT; HAND BRK VLV 1-85576-181-0 01 1 0806-1008
2 REPAIR KIT; HAND BRK VLV
BRAKE REGULATION ADR<TDU> 		1-85576-181-0 01 1 1009-
4 HANDLE ASM; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-48119-580-1 01 1 1009-
4 HANDLE ASM; BRK VLV 1-48119-517-0 01 1 0806-1008
4 HANDLE ASM; BRK VLV
BRAKE REGULATION ADR<TDU> 		1-48119-517-0 01 1 1009-
5 GASKET; HANDLE 1-48119-128-0 01 1 0806-
6 PIN; SPR 1-48119-143-0 01 1 0806-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (C) 		1-48119-577-1 01 1 1009-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-48469-201-0 01 1 1009-
7 HEAD; BRK VLV
(A) 		1-48119-131-1 01 1 0806-1008
7 HEAD; BRK VLV
BRAKE REGULATION ADR<TDU> (A) 		1-48119-131-1 01 1 1009-
7 HEAD; BRK VLV
(B) 		1-48469-195-0 01 1 0806-1008
7 HEAD; BRK VLV
BRAKE REGULATION ADR<TDU> (B) 		1-48469-195-0 01 1 1009-
8 STOPPER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (C) 		1-48119-327-0 01 1 1009-
8 STOPPER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-48469-200-0 01 1 1009-
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 0806-1008
8 STOPPER; BRK VLV
BRAKE REGULATION ADR<TDU> (A) 		1-48119-239-0 01 1 1009-
8 STOPPER; BRK VLV
(B) 		1-48469-194-0 01 1 0806-1008
8 STOPPER; BRK VLV
BRAKE REGULATION ADR<TDU> (B) 		1-48469-194-0 01 1 1009-
9 WASHER; LK,ADJ 1-48119-123-0 01 1 0806-
10 RING; ADJ 1-48119-122-0 01 1 0806-
12 COVER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-48129-319-1 01 1 1009-
12 COVER; BRK VLV 1-48129-097-1 01 1 0806-1008
12 COVER; BRK VLV
BRAKE REGULATION ADR<TDU> 		1-48129-097-1 01 1 1009-
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 0806-
14 FOLLOWER; CAM 1-48129-135-0 01 1 0806-
15 CAM; FOLLOWER 1-48129-134-0 01 1 0806-
16 SPRING; GRUDUATING 1-48129-101-0 01 1 0806-
17 PISTON; SPR 1-48129-095-0 01 1 0806-
18 GASKET; BODY 1-48129-096-0 01 1 0806-
19 SPRING; PISTON 1-48129-094-0 01 1 0806-
20 GUIDE; VLV 1-48129-090-0 01 1 0806-
21 VALVE; IN & EXH 1-48121-017-0 01 1 0806-
22 SPRING; VLV 1-48123-024-0 01 1 0806-
23 BODY; BRK VLV 1-48111-060-1 01 1 0806-
24 BOLT; EXH VLV 1-48129-092-0 02 1 0806-
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 0806-
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 0806-
241 SPRING; RETURN
EXC. BRAKE REGULATION ADR<TDU> (A) 		1-48119-576-0 01 1 1009-
241 SPRING; RETURN
EXC. BRAKE REGULATION ADR<TDU> (B) 		1-48469-182-0 01 1 1009-

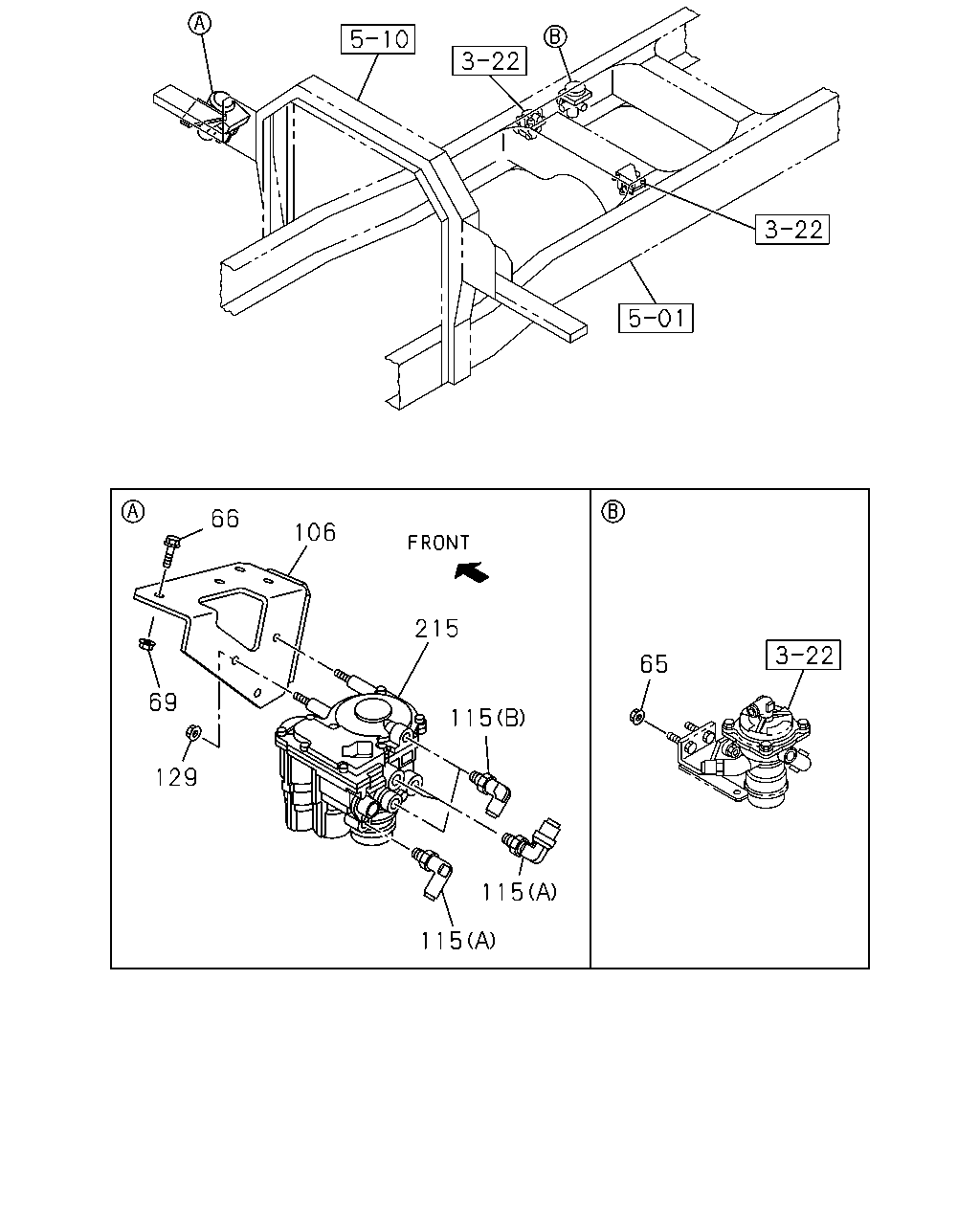

çizim 142531
66 106 215 65 69 115 129 115 115
BalonParca AdiParca NoAdetTipApplied Date
65 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 1006-1008
65 NUT; RELAY VLV
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91180-108-0 02 1 1009-
66 BOLT; VLV BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
69 NUT; VLV BRKT
M8 FLANGE 		0-91180-108-0 01 1 0806-
106 BRACKET; VLV 1-48495-281-0 01 1 0806-
115 CONNECTOR; DUAL RELAY VLV
(A) DIN12 & M22 ELBOW 		1-09661-521-0 03 1 0806-
115 CONNECTOR; DUAL RELAY VLV
(B) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0806-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 0806-
215 VALVE; TRAILER CONT 1-48240-191-1 01 1 0806-

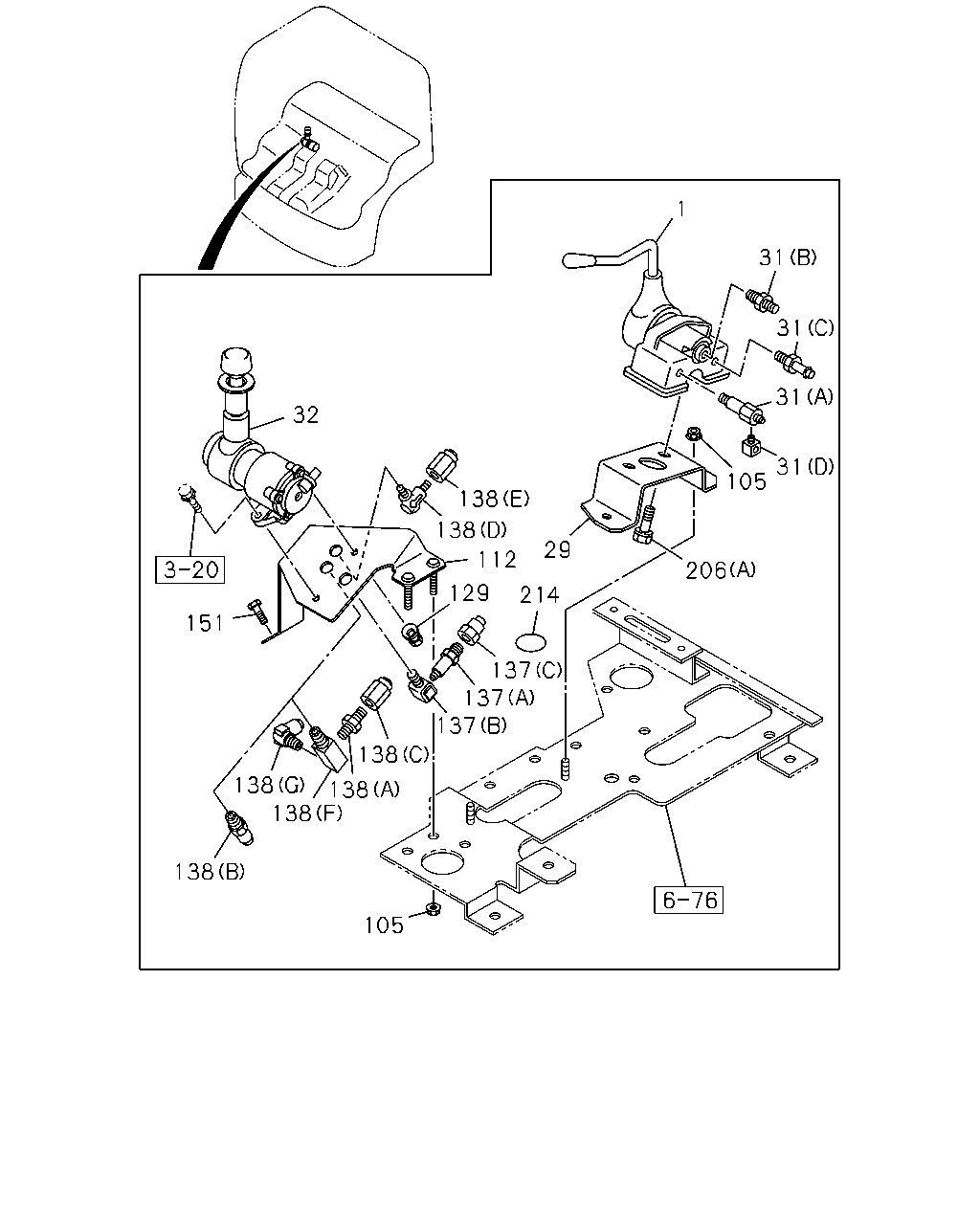

çizim 142536
1 31 31 31 32 31 105 138 138 29 112 129 214 151 137 137 137 138 138 138 138 138 105 206
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK
EXC. BRAKE REGULATION ADR<TDU> 		1-48100-859-0 01 1 1009-
1 VALVE ASM; HAND BRK 1-48100-848-0 01 1 0806-1008
1 VALVE ASM; HAND BRK
BRAKE REGULATION ADR<TDU> 		1-48100-848-0 01 1 1009-
29 BRACKET; HAND BRK 1-79997-357-1 01 1 0806-
31 CONNECTOR; HAND BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) PT1/4 2WAY 		1-09660-693-0 01 1 1009-
31 CONNECTOR; HAND BRK VLV
(B) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 0806-
31 CONNECTOR; HAND BRK VLV
(A) M14 		1-09656-391-2 01 1 0806-
31 CONNECTOR; HAND BRK VLV
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0806-1006
31 CONNECTOR; HAND BRK VLV
(C) L=45 		8-94338-874-0 01 1 0806-
32 VALVE; BRK,HAND CONT
EXC. BRAKE REGULATION ADR<TDU> 		1-48460-339-1 01 1 1009-
32 VALVE; BRK,HAND CONT 1-48460-340-1 01 1 0806-1008
32 VALVE; BRK,HAND CONT
BRAKE REGULATION ADR<TDU> 		1-48460-340-1 01 1 1009-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0806-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0806-
112 BRACKET; CONT VLV 1-79996-387-0 01 1 0806-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 0806-
137 CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 0806-
137 CONNECTOR; SUPPLY
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0806-
137 CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0806-
138 CONNECTOR; DELIVERY
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-09650-263-2 01 1 1009-
138 CONNECTOR; DELIVERY
EXC. BRAKE REGULATION ADR<TDU> (A) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 1009-
138 CONNECTOR; DELIVERY
EXC. BRAKE REGULATION ADR<TDU> (C) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1009-
138 CONNECTOR; DELIVERY
EXC. BRAKE REGULATION ADR<TDU> (E) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1009-
138 CONNECTOR; DELIVERY
EXC. BRAKE REGULATION ADR<TDU> (G) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-
138 CONNECTOR; DELIVERY
EXC. BRAKE REGULATION ADR<TDU> (B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1009-1110
138 CONNECTOR; DELIVERY
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1111-
138 CONNECTOR; DELIVERY
EXC. BRAKE REGULATION ADR<TDU> (F) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1009-
138 CONNECTOR; DELIVERY
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0806-0910
151 BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0806-
206 BOLT; HAND BRK VALVE
(A) M10X20 W/LK WASHER 		0-50541-020-0 02 1 0806-
206 BOLT; HAND BRK VALVE
(B) 		1-48469-160-0 01 1 0806-
214 SEAL; COVER,HAND BRK
OD=25 BLACK 		1-76798-019-0 02 1 0806-
çizim 142540
1 1 4 5 7 8 6 9 10 11 12 13 14 15 20 21 22 16 17 18 24 19 2 28 25 24 5 11 13 14 15 21 18 28 23 25
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK
EXC. BRAKE REGULATION ADR<TDU> 		1-48100-859-0 01 1 1009-
1 VALVE ASM; HAND BRK 1-48100-848-0 01 1 0806-1008
1 VALVE ASM; HAND BRK
BRAKE REGULATION ADR<TDU> 		1-48100-848-0 01 1 1009-
2 REPAIR KIT; HAND BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-85576-305-0 01 1 1009-
2 REPAIR KIT; HAND BRK VLV 1-85576-181-0 01 1 0806-1008
2 REPAIR KIT; HAND BRK VLV
BRAKE REGULATION ADR<TDU> 		1-85576-181-0 01 1 1009-
4 HANDLE ASM; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-48119-580-1 01 1 1009-
4 HANDLE ASM; BRK VLV 1-48119-517-0 01 1 0806-1008
4 HANDLE ASM; BRK VLV
BRAKE REGULATION ADR<TDU> 		1-48119-517-0 01 1 1009-
5 GASKET; HANDLE 1-48119-128-0 01 1 0806-
6 PIN; SPR 1-48119-143-0 01 1 0806-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (C) 		1-48119-577-1 01 1 1009-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-48469-201-0 01 1 1009-
7 HEAD; BRK VLV
(A) 		1-48119-131-1 01 1 0806-1008
7 HEAD; BRK VLV
BRAKE REGULATION ADR<TDU> (A) 		1-48119-131-1 01 1 1009-
7 HEAD; BRK VLV
(B) 		1-48469-195-0 01 1 0806-1008
7 HEAD; BRK VLV
BRAKE REGULATION ADR<TDU> (B) 		1-48469-195-0 01 1 1009-
8 STOPPER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (C) 		1-48119-327-0 01 1 1009-
8 STOPPER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-48469-200-0 01 1 1009-
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 0806-1008
8 STOPPER; BRK VLV
BRAKE REGULATION ADR<TDU> (A) 		1-48119-239-0 01 1 1009-
8 STOPPER; BRK VLV
(B) 		1-48469-194-0 01 1 0806-1008
8 STOPPER; BRK VLV
BRAKE REGULATION ADR<TDU> (B) 		1-48469-194-0 01 1 1009-
9 WASHER; LK,ADJ 1-48119-123-0 01 1 0806-
10 RING; ADJ 1-48119-122-0 01 1 0806-
11 GASKET; HD TO COVER 1-48119-130-0 01 1 0806-1008
11 GASKET; HD TO COVER
BRAKE REGULATION ADR<TDU> 		1-48119-130-0 01 1 1009-
12 COVER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-48129-319-1 01 1 1009-
12 COVER; BRK VLV 1-48129-097-1 01 1 0806-1008
12 COVER; BRK VLV
BRAKE REGULATION ADR<TDU> 		1-48129-097-1 01 1 1009-
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 0806-
14 FOLLOWER; CAM 1-48129-135-0 01 1 0806-
15 CAM; FOLLOWER 1-48129-134-0 01 1 0806-
16 SPRING; GRUDUATING 1-48129-101-0 01 1 0806-
17 PISTON; SPR 1-48129-095-0 01 1 0806-
18 GASKET; BODY 1-48129-096-0 01 1 0806-
19 SPRING; PISTON 1-48129-094-0 01 1 0806-
20 GUIDE; VLV 1-48129-090-0 01 1 0806-
21 VALVE; IN & EXH 1-48121-017-0 01 1 0806-
22 SPRING; VLV 1-48123-024-0 01 1 0806-
23 BODY; BRK VLV 1-48111-060-1 01 1 0806-
24 BOLT; EXH VLV 1-48129-092-0 02 1 0806-
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 0806-
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 0806-

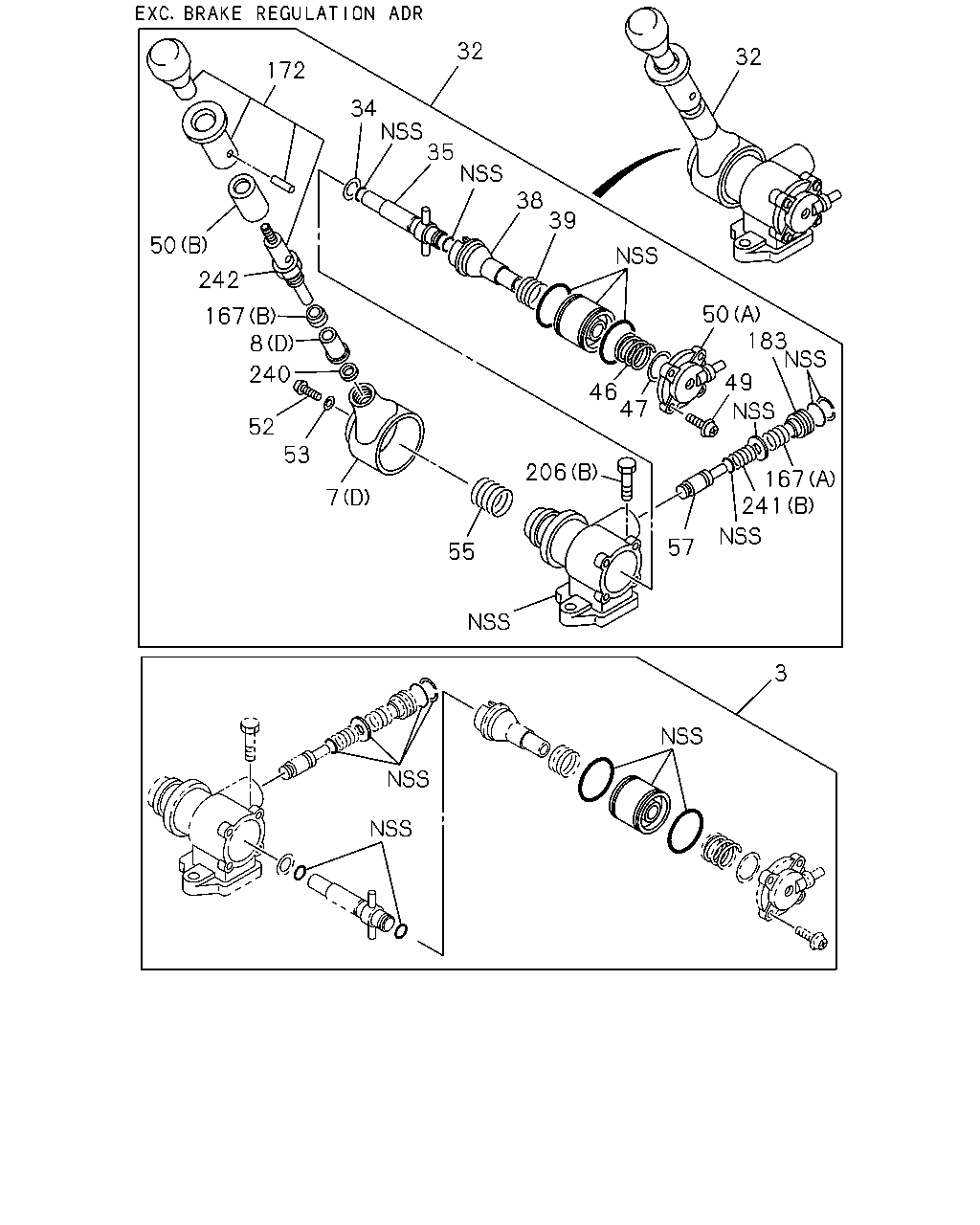

çizim 142543
32 32 172 34 35 38 39 50 242 50 183 167 8 240 49 46 47 52 53 167 241 206 7 57 55 3
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; HAND BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-85576-376-0 01 1 1009-
3 REPAIR KIT; HAND BRK VLV 1-85576-375-0 01 1 0806-1008
3 REPAIR KIT; HAND BRK VLV
BRAKE REGULATION ADR<TDU> 		1-85576-375-0 01 1 1009-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (C) 		1-48119-577-1 01 1 1009-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-48469-201-0 01 1 1009-
7 HEAD; BRK VLV
(A) 		1-48119-131-1 01 1 0806-1008
7 HEAD; BRK VLV
BRAKE REGULATION ADR<TDU> (A) 		1-48119-131-1 01 1 1009-
7 HEAD; BRK VLV
(B) 		1-48469-195-0 01 1 0806-1008
7 HEAD; BRK VLV
BRAKE REGULATION ADR<TDU> (B) 		1-48469-195-0 01 1 1009-
8 STOPPER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (C) 		1-48119-327-0 01 1 1009-
8 STOPPER; BRK VLV
EXC. BRAKE REGULATION ADR<TDU> (D) 		1-48469-200-0 01 1 1009-
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 0806-1008
8 STOPPER; BRK VLV
BRAKE REGULATION ADR<TDU> (A) 		1-48119-239-0 01 1 1009-
8 STOPPER; BRK VLV
(B) 		1-48469-194-0 01 1 0806-1008
8 STOPPER; BRK VLV
BRAKE REGULATION ADR<TDU> (B) 		1-48469-194-0 01 1 1009-
32 VALVE; BRK,HAND CONT
EXC. BRAKE REGULATION ADR<TDU> 		1-48460-339-1 01 1 1009-
32 VALVE; BRK,HAND CONT 1-48460-340-1 01 1 0806-1008
32 VALVE; BRK,HAND CONT
BRAKE REGULATION ADR<TDU> 		1-48460-340-1 01 1 1009-
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 0806-
35 HOLDER; CAM
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-171-0 01 1 1009-
35 HOLDER; CAM 1-48469-148-0 01 1 0806-1008
35 HOLDER; CAM
BRAKE REGULATION ADR<TDU> 		1-48469-148-0 01 1 1009-
38 SEAT; EXH VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-172-0 01 1 1009-
38 SEAT; EXH VLV 1-48469-149-0 01 1 0806-1008
38 SEAT; EXH VLV
BRAKE REGULATION ADR<TDU> 		1-48469-149-0 01 1 1009-
39 SPRING; RETURN,CAM RING 1-48469-150-0 01 1 0806-
46 SPRING; MAIN,PISTON
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-173-0 01 1 1009-
46 SPRING; MAIN,PISTON 1-48469-152-0 01 1 0806-1008
46 SPRING; MAIN,PISTON
BRAKE REGULATION ADR<TDU> 		1-48469-152-0 01 1 1009-
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 0806-
49 SCREW; COVER 1-48469-169-0 04 1 0806-
50 COVER; HAND BRK VLV
(A) 		1-48469-153-0 01 1 0806-
50 COVER; HAND BRK VLV
(B) 		1-48469-196-0 01 1 0806-
52 SCREW; HANDLE 1-48469-062-0 01 1 0806-
53 WASHER; HANDLE 1-48469-061-0 01 1 0806-
55 SPRING; RETURN,HANDLE 1-48469-155-0 01 1 0806-
57 PLUNGER; HAND BRK VLV
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-180-0 01 1 1009-
167 SPRING; VALVE
EXC. BRAKE REGULATION ADR<TDU> (A) 		1-48469-177-0 01 1 1009-
167 SPRING; VALVE
EXC. BRAKE REGULATION ADR<TDU> (B) 		1-48469-184-0 01 1 1009-
172 KNOB; VALVE
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-203-0 01 1 1009-
172 KNOB; VALVE 1-48469-204-0 01 1 0806-1008
172 KNOB; VALVE
BRAKE REGULATION ADR<TDU> 		1-48469-204-0 01 1 1009-
183 RETAINER; VALVE
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-185-0 01 1 1009-
206 BOLT; HAND BRK VALVE
(A) M10X20 W/LK WASHER 		0-50541-020-0 02 1 0806-
206 BOLT; HAND BRK VALVE
(B) 		1-48469-160-0 01 1 0806-
240 RING; STOPPER
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-199-0 01 1 1009-
240 RING; STOPPER 1-48469-193-0 01 1 0806-1008
240 RING; STOPPER
BRAKE REGULATION ADR<TDU> 		1-48469-193-0 01 1 1009-
241 SPRING; RETURN
EXC. BRAKE REGULATION ADR<TDU> (A) 		1-48119-576-0 01 1 1009-
241 SPRING; RETURN
EXC. BRAKE REGULATION ADR<TDU> (B) 		1-48469-182-0 01 1 1009-
242 NUT; LK
EXC. BRAKE REGULATION ADR<TDU> 		1-48469-179-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
