Sayfa 3-22 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶

3-22 — AIR CONTROL PARTS (#25195) — 181 parça

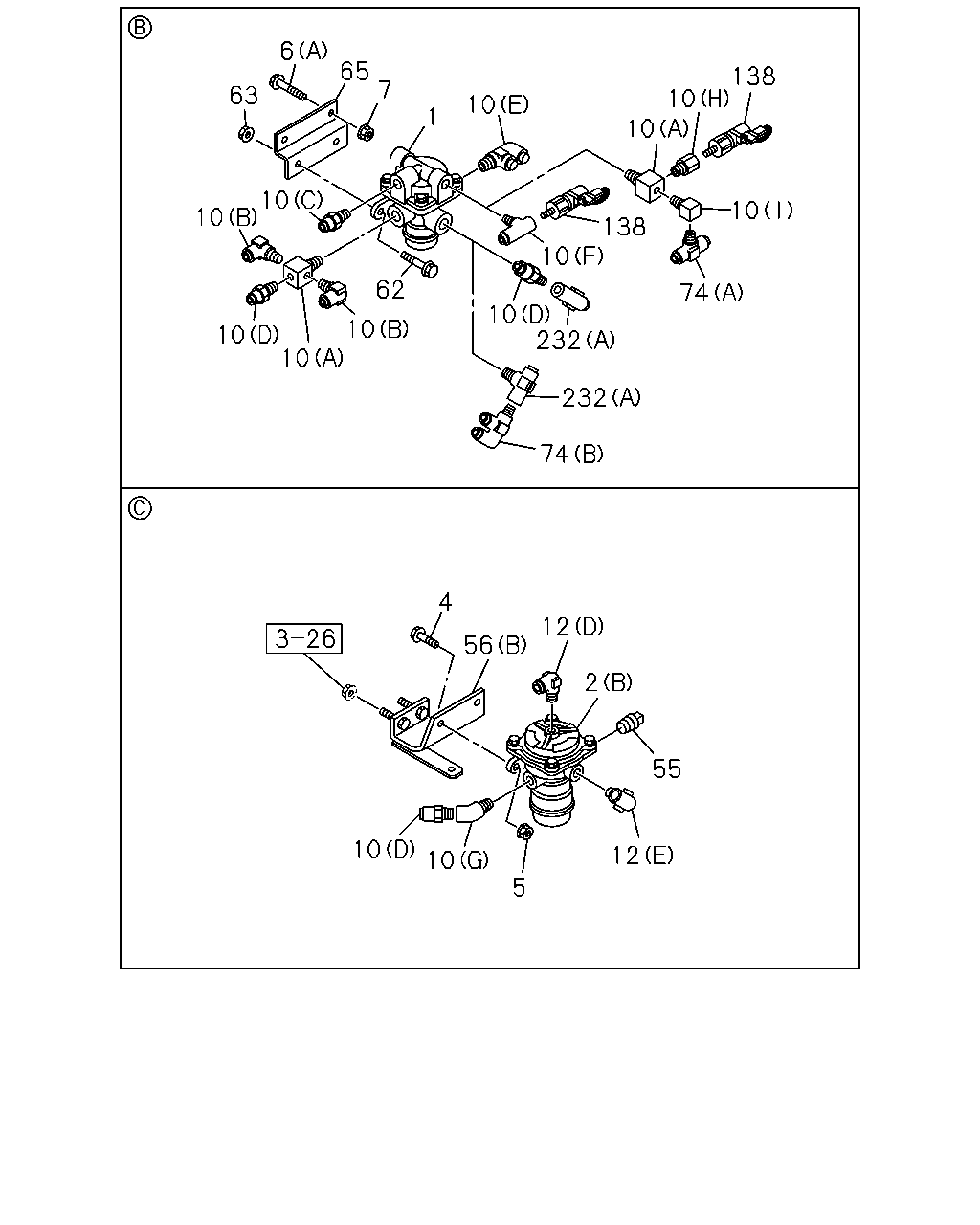

6 65 7 138 10 10 63 10 1 10 10 10 138 10 62 74 10 232 10 10 10 232 74 4 12 56 2 55 10 12 10 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ADR<TDU>	1-48240-041-1	01	1	1009-
1	VALVE; RELAY RWD RR	1-48240-469-0	01	1	0806-1008
1	VALVE; RELAY RWD RR BRAKE REGULATION ADR<TDU>	1-48240-469-0	01	1	1009-
2	VALVE; RELAY (B)	1-48210-997-0	01	1	1006-1008
2	VALVE; RELAY BRAKE REGULATION ADR<TDU> (B)	1-48210-997-0	01	1	1009-
2	VALVE; RELAY (A)	1-48240-245-1	01	1	0806-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1006-1008
4	BOLT; RELAY VLV TO BRKT BRAKE REGULATION ADR<TDU> M10X35 FLANGE	0-28651-035-0	02	1	1009-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1006-1008
5	NUT BRAKE REGULATION ADR<TDU> M10 FLANGE	0-91180-210-0	02	1	1009-
5	NUT M8 FLANGE	0-91180-108-0	03	1	0806-
6	BOLT; VLV EXC. BRAKE REGULATION ADR<TDU> (B) M8X12 FLANGE	0-28050-812-0	02	1	1009-
6	BOLT; VLV (B) M8X14 FLANGE	0-28080-814-0	02	1	0806-1008
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X14 FLANGE	0-28080-814-0	02	1	1009-
6	BOLT; VLV (C) M8X25 FLANGE	0-28650-825-0	01	1	0806-
6	BOLT; VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0806-
7	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	02	1	0806-
10	CONNECTOR (G) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1006-1008
10	CONNECTOR BRAKE REGULATION ADR<TDU> (G) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1009-
10	CONNECTOR (H)	8-98133-234-0	01	1	1006-1008
10	CONNECTOR BRAKE REGULATION ADR<TDU> (H)	8-98133-234-0	01	1	1009-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8 3WAY	1-09661-300-0	01	1	1009-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU> (F) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1009-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0806-1005
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1006-1008
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
10	CONNECTOR (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0806-
10	CONNECTOR (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0806-
10	CONNECTOR (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0806-
10	CONNECTOR (A) PT3/8 4WAY	1-09661-489-0	01	1	0806-1005
10	CONNECTOR (A) PT3/8 3WAY	1-09661-300-0	02	1	1006-1008
10	CONNECTOR BRAKE REGULATION ADR<TDU> (A) PT3/8 3WAY	1-09661-300-0	02	1	1009-
10	CONNECTOR (F) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	0806-1005
10	CONNECTOR (I) PT3/8 ELBOW	1-09660-696-0	01	1	1006-1008
10	CONNECTOR BRAKE REGULATION ADR<TDU> (I) PT3/8 ELBOW	1-09660-696-0	01	1	1009-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1006-1008
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1006-1008
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0806-
12	CONNECTOR; RELAY VLV (B) PT3/8 3WAY	1-09661-300-0	01	1	0806-
12	CONNECTOR; RELAY VLV (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	0806-
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1006-1008
55	PLUG; SUPPLY BRAKE REGULATION ADR<TDU> PT3/8	9-09204-517-0	01	1	1009-
56	BRACKET; RELAY VLV (B)	8-98168-462-0	01	1	1006-1008
56	BRACKET; RELAY VLV BRAKE REGULATION ADR<TDU> (B)	8-98168-462-0	01	1	1009-
56	BRACKET; RELAY VLV (A)	1-48495-246-0	01	1	0806-
62	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	0806-1005
62	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	1006-1008
62	BOLT; BRKT FIX BRAKE REGULATION ADR<TDU> M10X35 FLANGE	0-28651-035-0	02	1	1009-
63	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	02	1	0806-1008
63	NUT; BRKT FIX BRAKE REGULATION ADR<TDU> M10 FLANGE	0-91180-210-0	02	1	1009-
65	BRACKET; RELAY VLV RR	1-47479-328-0	01	1	0806-1008
65	BRACKET; RELAY VLV RR BRAKE REGULATION ADR<TDU>	1-47479-328-0	01	1	1009-
74	CONNECTOR; 3WAY (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1006-1008
74	CONNECTOR; 3WAY BRAKE REGULATION ADR<TDU> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1009-
74	CONNECTOR; 3WAY (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1006-1008
74	CONNECTOR; 3WAY BRAKE REGULATION ADR<TDU> (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-
138	SWITCH; RELAY VALVE EXC. BRAKE REGULATION ADR<TDU> STAMP 2.0	8-98010-856-2	01	1	1009-
138	SWITCH; RELAY VALVE	1-48340-067-0	01	1	0806-1008
138	SWITCH; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-48340-067-0	01	1	1009-
232	VALVE; CHECK (A)	1-48320-031-1	01	1	0806-
232	VALVE; CHECK (B)	1-48410-531-1	01	1	0806-

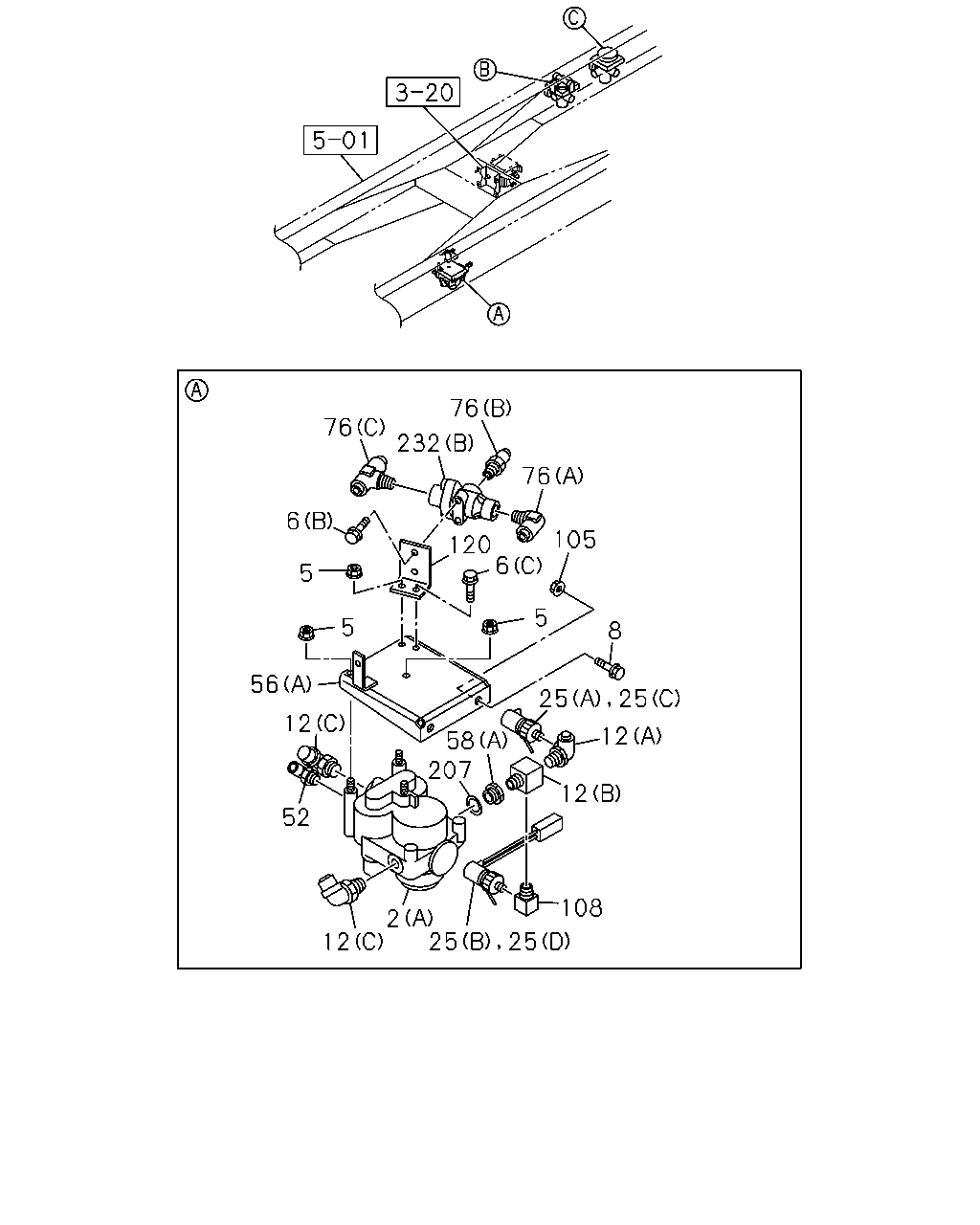

76 76 232 76 6 120 6 105 5 5 5 8 56 25 25 12 12 8 207 12 52 108 2 12 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (B)	1-48210-997-0	01	1	1006-1008
2	VALVE; RELAY BRAKE REGULATION ADR<TDU> (B)	1-48210-997-0	01	1	1009-
2	VALVE; RELAY (A)	1-48240-245-1	01	1	0806-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1006-1008
5	NUT BRAKE REGULATION ADR<TDU> M10 FLANGE	0-91180-210-0	02	1	1009-
5	NUT M8 FLANGE	0-91180-108-0	03	1	0806-
6	BOLT; VLV EXC. BRAKE REGULATION ADR<TDU> (B) M8X12 FLANGE	0-28050-812-0	02	1	1009-
6	BOLT; VLV (B) M8X14 FLANGE	0-28080-814-0	02	1	0806-1008
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X14 FLANGE	0-28080-814-0	02	1	1009-
6	BOLT; VLV (C) M8X25 FLANGE	0-28650-825-0	01	1	0806-
6	BOLT; VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0806-
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0806-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1006-1008
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1006-1008
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0806-
12	CONNECTOR; RELAY VLV (B) PT3/8 3WAY	1-09661-300-0	01	1	0806-
12	CONNECTOR; RELAY VLV (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	0806-
25	SWITCH; PRESSURE EXC. BRAKE REGULATION ADR<TDU> (C) STAMP 0.3	8-98010-857-0	01	1	1009-
25	SWITCH; PRESSURE EXC. BRAKE REGULATION ADR<TDU> (D) STAMP 2.2	8-98010-858-0	01	1	1009-
25	SWITCH; PRESSURE (A) GREEN	1-82410-176-1	01	1	0806-1008
25	SWITCH; PRESSURE BRAKE REGULATION ADR<TDU> (A) GREEN	1-82410-176-1	01	1	1009-
25	SWITCH; PRESSURE (B)	8-97383-820-1	01	1	0806-1008
25	SWITCH; PRESSURE BRAKE REGULATION ADR<TDU> (B)	8-97383-820-1	01	1	1009-
52	CONNECTOR; RELAY VLV DIN8 & M16 ELBOW	1-09661-520-0	01	1	0806-
56	BRACKET; RELAY VLV (B)	8-98168-462-0	01	1	1006-1008
56	BRACKET; RELAY VLV BRAKE REGULATION ADR<TDU> (B)	8-98168-462-0	01	1	1009-
56	BRACKET; RELAY VLV (A)	1-48495-246-0	01	1	0806-
76	CONNECTOR; CONT VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0806-
76	CONNECTOR; CONT VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0806-
76	CONNECTOR; CONT VLV (C) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0806-
105	NUT; BRKT,VALVE M8 FLANGE	0-91180-108-0	02	1	0806-
108	CONNECTOR; ELBOW PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0806-
120	BRACKET; VLV	1-47479-362-0	01	1	0806-
207	GASKET; ADAPTER ID=22.5	9-09571-422-0	01	1	0806-
232	VALVE; CHECK (A)	1-48320-031-1	01	1	0806-
232	VALVE; CHECK (B)	1-48410-531-1	01	1	0806-

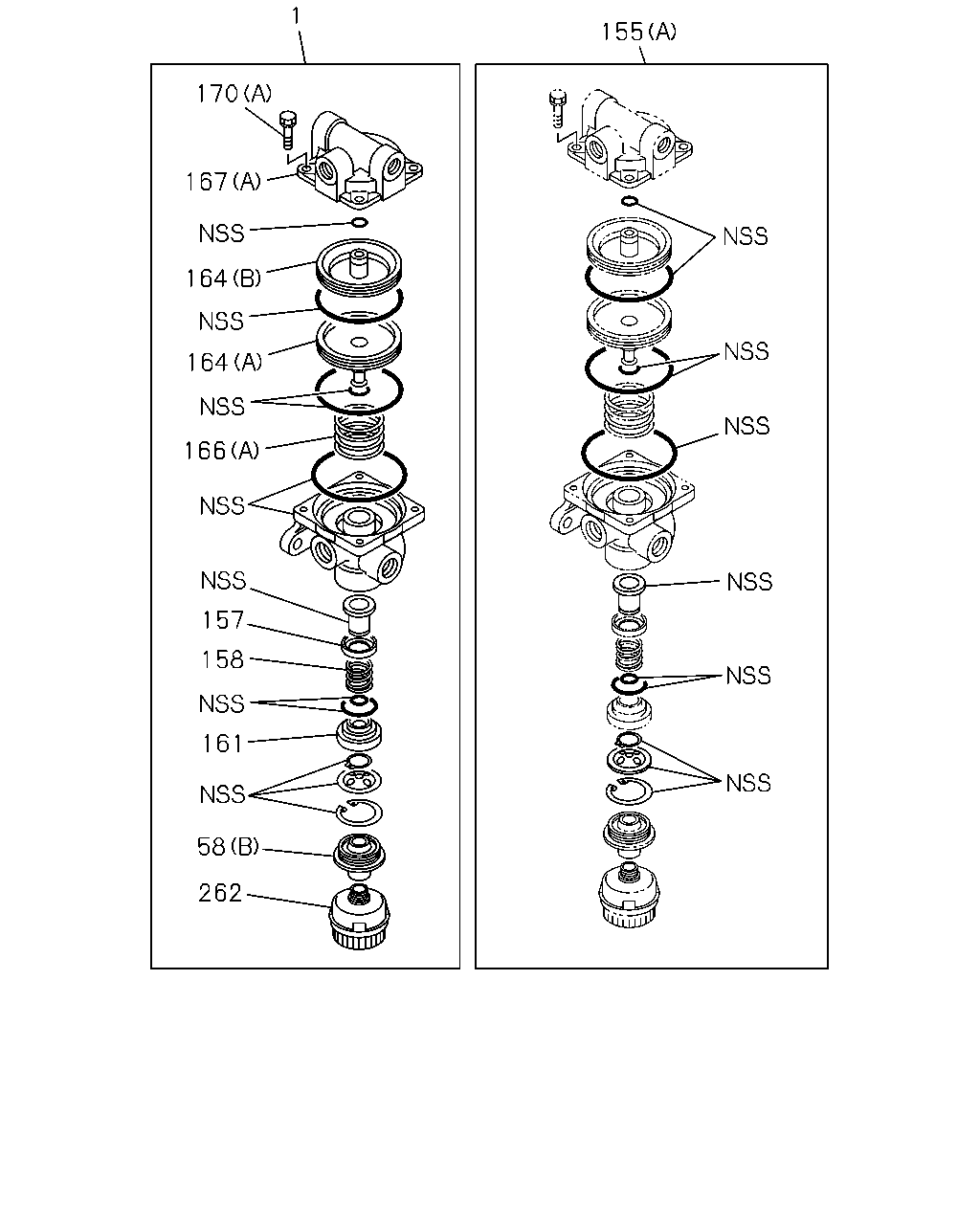

1 155 170 167 164 164 166 157 158 161 58 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ADR<TDU>	1-48240-041-1	01	1	1009-
1	VALVE; RELAY RWD RR	1-48240-469-0	01	1	0806-1008
1	VALVE; RELAY RWD RR BRAKE REGULATION ADR<TDU>	1-48240-469-0	01	1	1009-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0806-
58	ADAPTER (B)	1-48219-154-0	01	1	0806-1005
58	ADAPTER (B)	1-48219-154-0	02	1	1006-1008
58	ADAPTER BRAKE REGULATION ADR<TDU> (B)	1-48219-154-0	02	1	1009-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-294-0	01	1	1006-1008
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ADR<TDU> (B)	1-85576-294-0	01	1	1009-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION ADR<TDU> (A)	1-85576-035-0	01	1	1009-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-453-0	01	1	0806-1008
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ADR<TDU> (A)	1-85576-453-0	01	1	1009-
157	RETAINER; VALVE EXC. BRAKE REGULATION ADR<TDU>	1-48213-002-0	01	1	1009-
157	RETAINER; VALVE	1-48213-002-0	01	1	0806-1005
157	RETAINER; VALVE	1-48213-002-0	02	1	1006-1008
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU>	1-48213-002-0	02	1	1009-
158	SPRING; VALVE EXC. BRAKE REGULATION ADR<TDU>	1-47819-089-0	01	1	1009-
158	SPRING; VALVE	1-47819-089-0	01	1	0806-1005
158	SPRING; VALVE	1-47819-089-0	02	1	1006-1008
158	SPRING; VALVE BRAKE REGULATION ADR<TDU>	1-47819-089-0	02	1	1009-
161	GUIDE; VALVE EXC. BRAKE REGULATION ADR<TDU>	1-48129-014-0	01	1	1009-
161	GUIDE; VALVE	1-48129-014-0	01	1	0806-1005
161	GUIDE; VALVE	1-48129-014-0	02	1	1006-1008
161	GUIDE; VALVE BRAKE REGULATION ADR<TDU>	1-48129-014-0	02	1	1009-
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	1006-1008
164	PISTON; RELAY VALVE BRAKE REGULATION ADR<TDU> (C)	1-48219-071-0	01	1	1009-
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	0806-
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	0806-
166	SPRING; PISTON (B)	1-47819-090-0	01	1	1006-1008
166	SPRING; PISTON BRAKE REGULATION ADR<TDU> (B)	1-47819-090-0	01	1	1009-
166	SPRING; PISTON (A)	1-48219-048-0	01	1	0806-
167	COVER; VALVE (B)	1-48219-070-0	01	1	1006-1008
167	COVER; VALVE BRAKE REGULATION ADR<TDU> (B)	1-48219-070-0	01	1	1009-
167	COVER; VALVE (A)	1-48219-050-1	01	1	0806-
170	SCREW; COVER TO BODY (B)	1-48219-039-0	04	1	1006-1008
170	SCREW; COVER TO BODY BRAKE REGULATION ADR<TDU> (B)	1-48219-039-0	04	1	1009-
170	SCREW; COVER TO BODY (A)	1-48219-041-0	04	1	0806-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0806-1005
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1006-1008
262	SILENCER; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-48219-149-0	02	1	1009-

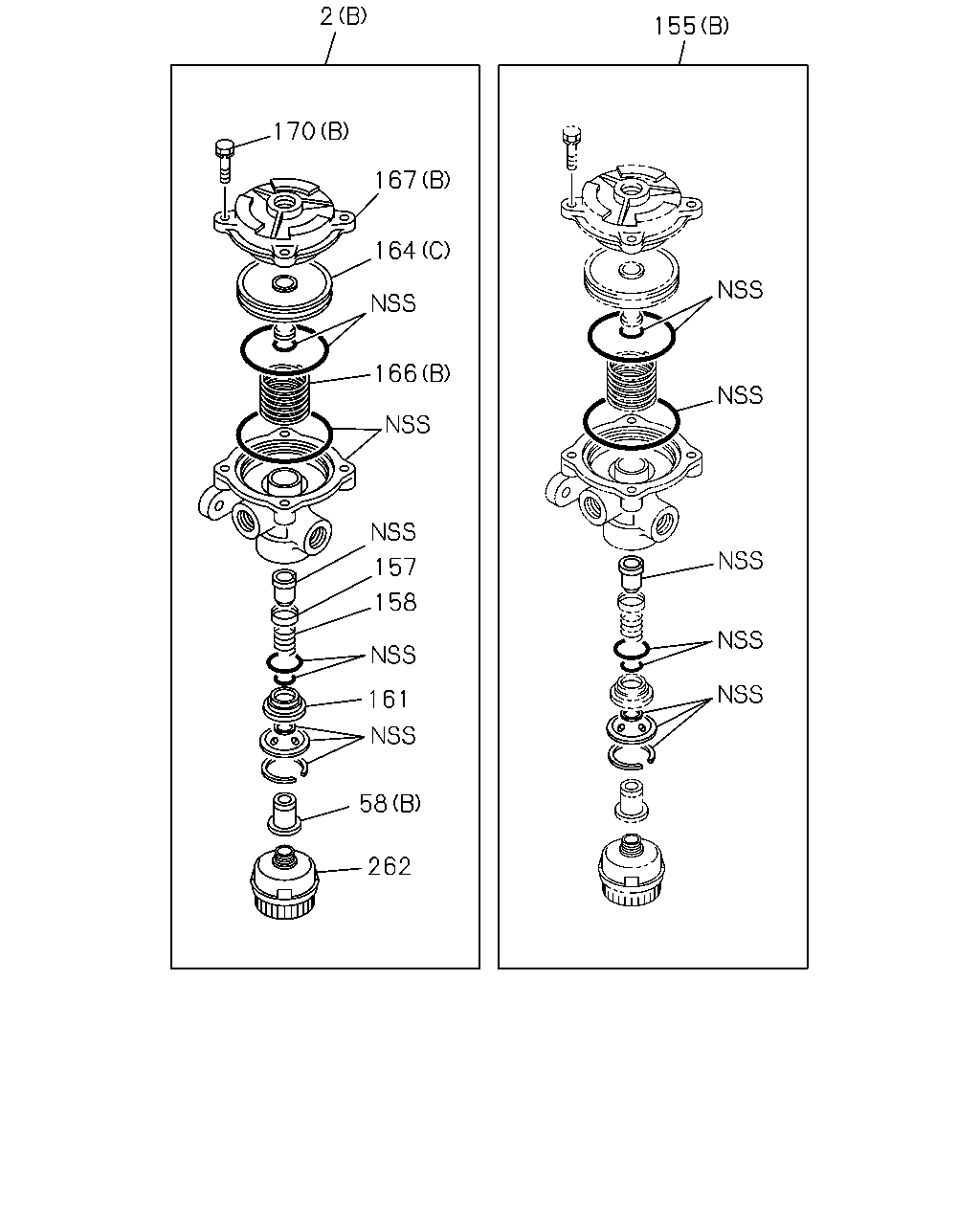

2 155 170 167 164 166 157 158 161 58 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (B)	1-48210-997-0	01	1	1006-1008
2	VALVE; RELAY BRAKE REGULATION ADR<TDU> (B)	1-48210-997-0	01	1	1009-
2	VALVE; RELAY (A)	1-48240-245-1	01	1	0806-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	0806-
58	ADAPTER (B)	1-48219-154-0	01	1	0806-1005
58	ADAPTER (B)	1-48219-154-0	02	1	1006-1008
58	ADAPTER BRAKE REGULATION ADR<TDU> (B)	1-48219-154-0	02	1	1009-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-294-0	01	1	1006-1008
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ADR<TDU> (B)	1-85576-294-0	01	1	1009-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION ADR<TDU> (A)	1-85576-035-0	01	1	1009-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-453-0	01	1	0806-1008
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ADR<TDU> (A)	1-85576-453-0	01	1	1009-
157	RETAINER; VALVE EXC. BRAKE REGULATION ADR<TDU>	1-48213-002-0	01	1	1009-
157	RETAINER; VALVE	1-48213-002-0	01	1	0806-1005
157	RETAINER; VALVE	1-48213-002-0	02	1	1006-1008
157	RETAINER; VALVE BRAKE REGULATION ADR<TDU>	1-48213-002-0	02	1	1009-
158	SPRING; VALVE EXC. BRAKE REGULATION ADR<TDU>	1-47819-089-0	01	1	1009-
158	SPRING; VALVE	1-47819-089-0	01	1	0806-1005
158	SPRING; VALVE	1-47819-089-0	02	1	1006-1008
158	SPRING; VALVE BRAKE REGULATION ADR<TDU>	1-47819-089-0	02	1	1009-
161	GUIDE; VALVE EXC. BRAKE REGULATION ADR<TDU>	1-48129-014-0	01	1	1009-
161	GUIDE; VALVE	1-48129-014-0	01	1	0806-1005
161	GUIDE; VALVE	1-48129-014-0	02	1	1006-1008
161	GUIDE; VALVE BRAKE REGULATION ADR<TDU>	1-48129-014-0	02	1	1009-
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	1006-1008
164	PISTON; RELAY VALVE BRAKE REGULATION ADR<TDU> (C)	1-48219-071-0	01	1	1009-
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	0806-
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	0806-
166	SPRING; PISTON (B)	1-47819-090-0	01	1	1006-1008
166	SPRING; PISTON BRAKE REGULATION ADR<TDU> (B)	1-47819-090-0	01	1	1009-
166	SPRING; PISTON (A)	1-48219-048-0	01	1	0806-
167	COVER; VALVE (B)	1-48219-070-0	01	1	1006-1008
167	COVER; VALVE BRAKE REGULATION ADR<TDU> (B)	1-48219-070-0	01	1	1009-
167	COVER; VALVE (A)	1-48219-050-1	01	1	0806-
170	SCREW; COVER TO BODY (B)	1-48219-039-0	04	1	1006-1008
170	SCREW; COVER TO BODY BRAKE REGULATION ADR<TDU> (B)	1-48219-039-0	04	1	1009-
170	SCREW; COVER TO BODY (A)	1-48219-041-0	04	1	0806-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0806-1005
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1006-1008
262	SILENCER; RELAY VALVE BRAKE REGULATION ADR<TDU>	1-48219-149-0	02	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
