Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#25194) — 274 parça

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0806-

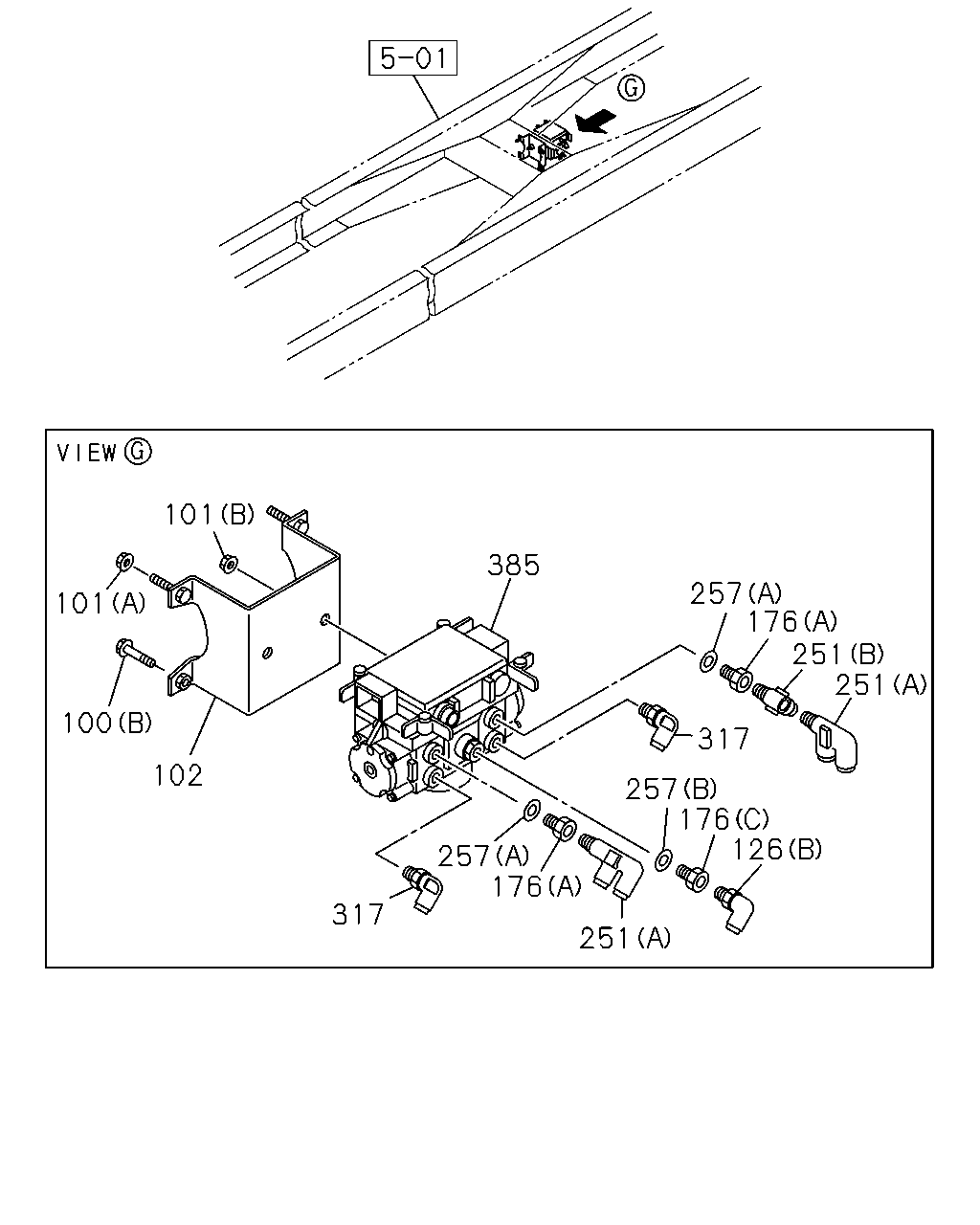

101 385 257 176 251 251 101 100 317 102 257 176 126 257 176 317 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	0806-
100	BOLT; MODULATOR (B) M10X35 FLANGE	0-28651-035-0	02	1	0806-
101	NUT; MODULATOR (A) M10 FLANGE	0-91180-210-0	02	1	0806-
101	NUT; MODULATOR (B) M12 FLANGE	0-91180-212-0	02	1	0806-
102	BRACKET; MODULATOR	1-47471-186-0	01	1	0806-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0806-
176	ADAPTER EXC. BRAKE REGULATION ADR<TDU> (D)	1-09660-884-0	01	1	1009-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0806-
176	ADAPTER (B)	1-09660-778-1	01	1	0806-
176	ADAPTER (C) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0806-
251	CONNECTOR; DELIVERY (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0806-
251	CONNECTOR; DELIVERY (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	0806-
257	GASKET; PLUG (B) ID=16.2 OD=24	9-09571-416-0	01	1	0806-
257	GASKET; PLUG (A) ID=22.5	9-09571-422-0	02	1	0806-
317	CONNECTOR; MODULATOR DIN12 & M22 ELBOW	1-09661-521-0	02	1	0806-
385	MODULATOR	1-48240-124-1	01	1	0806-

28 60 37 80 4 8 4 176 46 46 28 80 5 1 28 39 28 39 18 17 7 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR EXC. BRAKE REGULATION ADR<TDU> (B)	1-48371-165-3	01	1	1009-
1	TANK ASM; AIR (A)	8-98069-078-1	02	1	0806-
4	CONNECTOR; FLARE EXC. BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-
4	CONNECTOR; FLARE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0806-
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (E) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1009-
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (D) PT1/4 2WAY	1-09660-693-0	01	1	1009-
5	UNION; AIR TANK (D) PT1/4 2WAY	1-09660-693-0	02	1	0806-1008
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) PT1/4 2WAY	1-09660-693-0	02	1	1009-
5	UNION; AIR TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0806-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0806-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B)	1-48312-012-0	01	1	1009-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	03	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	02	1	0806-1008
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	02	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	0806-1008
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	0806-1008
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	01	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	1009-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0806-1008
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	02	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-1008
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-1008
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (E) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1009-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (F) PT3/8 3WAY	1-09661-300-0	01	1	1009-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-1008
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0806-
8	CONNECTOR; AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0806-
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
8	CONNECTOR; AIR TANK AUSTRALIA EQUIPMENT(RR3) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (C) M14	1-09661-569-0	01	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	03	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	1009-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	02	1	1009-
17	ADAPTER; AUTO DRAIN EXC. BRAKE REGULATION ADR<TDU>	9-09902-374-0	01	1	1009-
18	GASKET; ADAPTER EXC. BRAKE REGULATION ADR<TDU> ID=22.5	9-09571-422-0	01	1	1009-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (I)	1-48317-473-2	01	1	1009-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (J)	8-98085-700-0	01	1	1009-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (K)	8-98085-701-0	02	1	1009-
28	BRACKET; AIR TANK (F)	1-48317-714-0	02	1	0806-
28	BRACKET; AIR TANK (G)	1-48317-733-2	02	1	0806-
28	BRACKET; AIR TANK (A)	8-98068-277-1	01	1	0806-
28	BRACKET; AIR TANK (B)	8-98068-278-1	01	1	0806-
28	BRACKET; AIR TANK (C)	8-98071-979-0	01	1	0806-
28	BRACKET; AIR TANK (D)	8-98083-016-1	01	1	0806-
28	BRACKET; AIR TANK (E)	8-98083-020-1	01	1	0806-
28	BRACKET; AIR TANK (H)	8-98083-646-0	02	1	0806-
37	BOLT; AIR TANK EXC. BRAKE REGULATION ADR<TDU> M12X40 FLANGE	0-28651-240-0	02	1	1009-
39	U-BOLT; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) L=210	1-48317-458-1	02	1	1009-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0806-
46	NUT; U-BOLT EXC. BRAKE REGULATION ADR<TDU> M8	0-91110-508-0	24	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	0806-1008
46	NUT; U-BOLT BRAKE REGULATION ADR<TDU> M8	0-91110-508-0	16	1	1009-
60	NUT; AIR TANK FIX EXC. BRAKE REGULATION ADR<TDU> M12 FLANGE	0-91180-212-0	02	1	1009-
80	BOLT; BRKT EXC. BRAKE REGULATION ADR<TDU> (C) M10X30 FLANGE	0-28651-030-0	04	1	1009-
80	BOLT; BRKT EXC. BRAKE REGULATION ADR<TDU> (B) M12X30 FLANGE	0-28651-230-0	12	1	1009-
80	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0806-
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	08	1	0806-1008
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (B) M12X30 FLANGE	0-28651-230-0	08	1	1009-
176	ADAPTER EXC. BRAKE REGULATION ADR<TDU> (D)	1-09660-884-0	01	1	1009-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0806-
176	ADAPTER (B)	1-09660-778-1	01	1	0806-
176	ADAPTER (C) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0806-

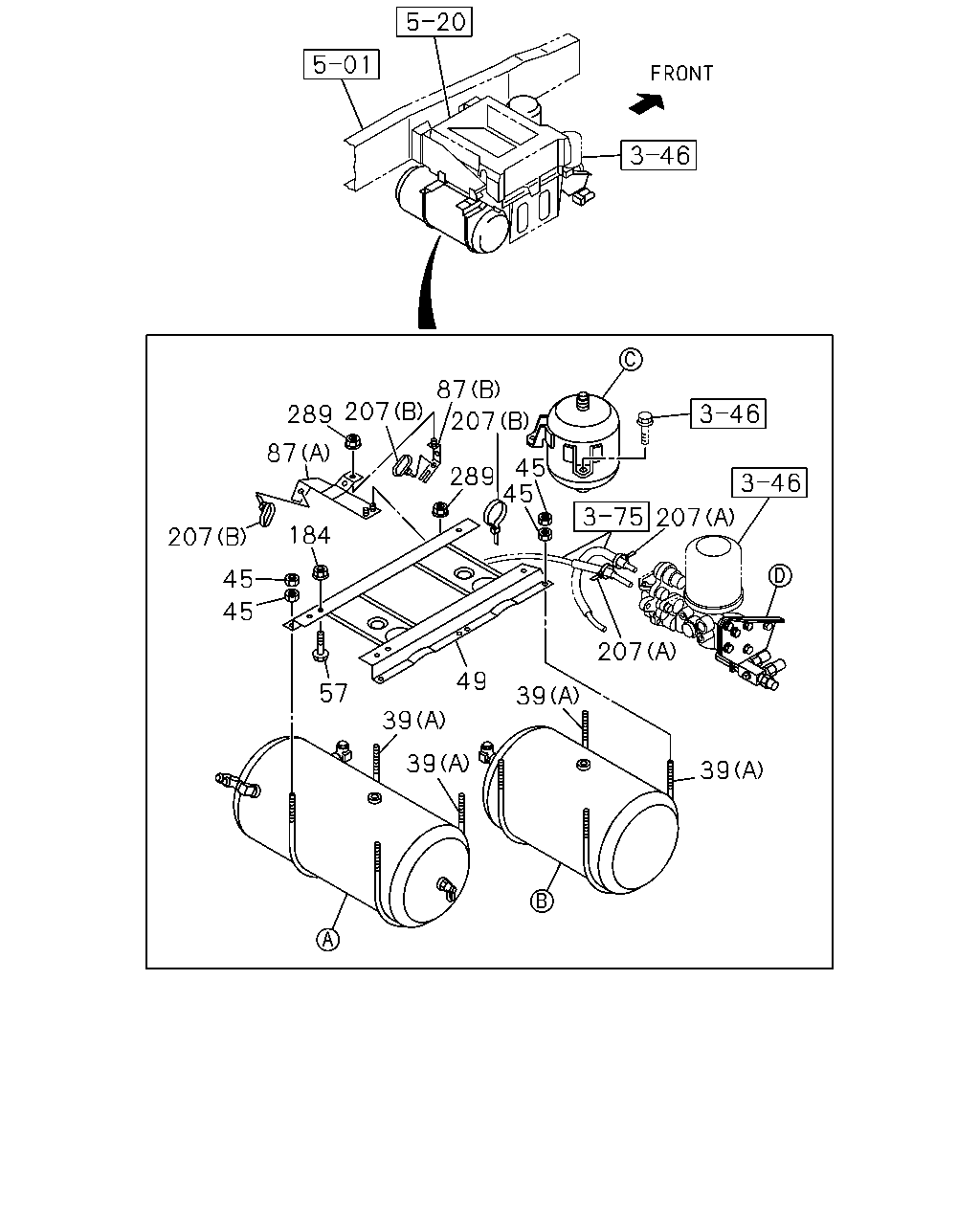

87 207 289 207 87 45 289 45 207 184 207 45 45 207 49 57 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	U-BOLT; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) L=210	1-48317-458-1	02	1	1009-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0806-
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	16	1	0806-
49	BRACKET; AIR TANK	8-98068-276-1	01	1	0806-
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	0806-
87	BRACKET; AIR PIPE JOINT (B)	8-98060-053-0	01	1	0806-
87	BRACKET; AIR PIPE JOINT (A)	8-98083-167-0	01	1	0806-
184	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0806-
207	CLIP; AIR PIPE EXC. BRAKE REGULATION ADR<TDU> (B) L=350	1-09707-183-0	08	1	1009-
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	10	1	0806-1008
207	CLIP; AIR PIPE BRAKE REGULATION ADR<TDU> (B) L=350	1-09707-183-0	10	1	1009-
207	CLIP; AIR PIPE (A) L=256	1-09707-189-0	03	1	0806-
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	0806-

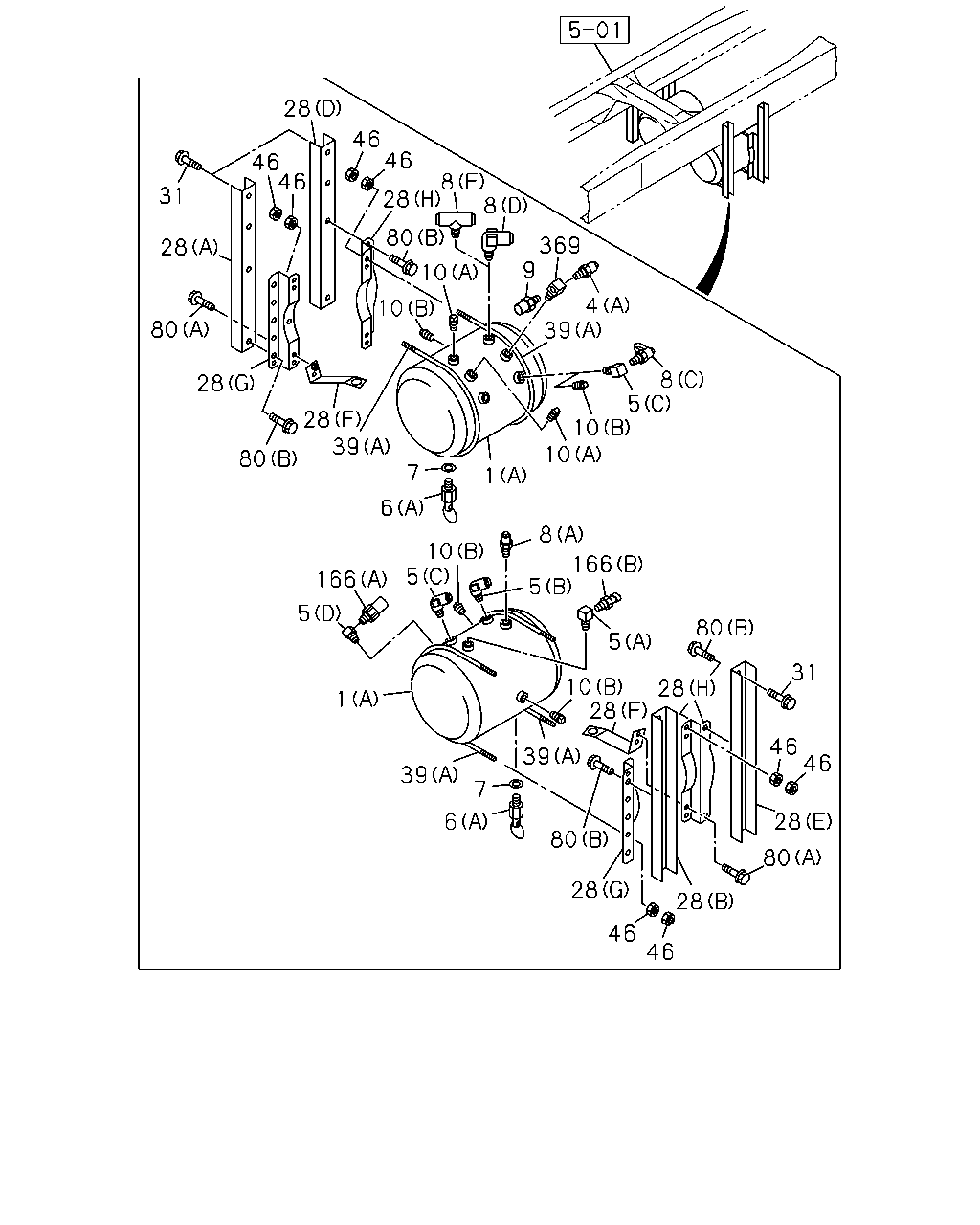

28 46 46 46 46 8 28 8 31 80 10 369 9 28 4 39 10 80 8 5 10 10 28 28 39 80 7 1 6 8 10 166 5 5 166 5 80 5 31 10 28 28 1 46 46 39 39 7 28 6 80 80 28 28 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR EXC. BRAKE REGULATION ADR<TDU> (B)	1-48371-165-3	01	1	1009-
1	TANK ASM; AIR (A)	8-98069-078-1	02	1	0806-
4	CONNECTOR; FLARE EXC. BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-
4	CONNECTOR; FLARE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0806-
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (E) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1009-
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (D) PT1/4 2WAY	1-09660-693-0	01	1	1009-
5	UNION; AIR TANK (D) PT1/4 2WAY	1-09660-693-0	02	1	0806-1008
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) PT1/4 2WAY	1-09660-693-0	02	1	1009-
5	UNION; AIR TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0806-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0806-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B)	1-48312-012-0	01	1	1009-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	03	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	02	1	0806-1008
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	02	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	0806-1008
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	0806-1008
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	01	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	1009-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0806-1008
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	02	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-1008
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-1008
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (E) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1009-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (F) PT3/8 3WAY	1-09661-300-0	01	1	1009-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-1008
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0806-
8	CONNECTOR; AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0806-
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
8	CONNECTOR; AIR TANK AUSTRALIA EQUIPMENT(RR3) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE REGULATION ADR<TDU> STAMP 5.5	8-97609-249-0	01	1	1009-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-065-0	01	1	0806-1008
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE REGULATION ADR<TDU>	1-48340-065-0	01	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (C) M14	1-09661-569-0	01	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	03	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	1009-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	02	1	1009-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (I)	1-48317-473-2	01	1	1009-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (J)	8-98085-700-0	01	1	1009-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (K)	8-98085-701-0	02	1	1009-
28	BRACKET; AIR TANK (F)	1-48317-714-0	02	1	0806-
28	BRACKET; AIR TANK (G)	1-48317-733-2	02	1	0806-
28	BRACKET; AIR TANK (A)	8-98068-277-1	01	1	0806-
28	BRACKET; AIR TANK (B)	8-98068-278-1	01	1	0806-
28	BRACKET; AIR TANK (C)	8-98071-979-0	01	1	0806-
28	BRACKET; AIR TANK (D)	8-98083-016-1	01	1	0806-
28	BRACKET; AIR TANK (E)	8-98083-020-1	01	1	0806-
28	BRACKET; AIR TANK (H)	8-98083-646-0	02	1	0806-
31	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	0806-
39	U-BOLT; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) L=210	1-48317-458-1	02	1	1009-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0806-
46	NUT; U-BOLT EXC. BRAKE REGULATION ADR<TDU> M8	0-91110-508-0	24	1	1009-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	0806-1008
46	NUT; U-BOLT BRAKE REGULATION ADR<TDU> M8	0-91110-508-0	16	1	1009-
80	BOLT; BRKT EXC. BRAKE REGULATION ADR<TDU> (C) M10X30 FLANGE	0-28651-030-0	04	1	1009-
80	BOLT; BRKT EXC. BRAKE REGULATION ADR<TDU> (B) M12X30 FLANGE	0-28651-230-0	12	1	1009-
80	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0806-
80	BOLT; BRKT (B) M12X30 FLANGE	0-28651-230-0	08	1	0806-1008
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (B) M12X30 FLANGE	0-28651-230-0	08	1	1009-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ADR<TDU> (A) STAMP 5.5	8-97609-249-0	01	1	1009-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A)	1-48340-066-0	01	1	0806-1008
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> (A)	1-48340-066-0	01	1	1009-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B) THREAD R1/4	1-80220-023-1	01	1	0806-
369	CONNECTOR; 3WAY	1-09656-708-0	01	1	0806-

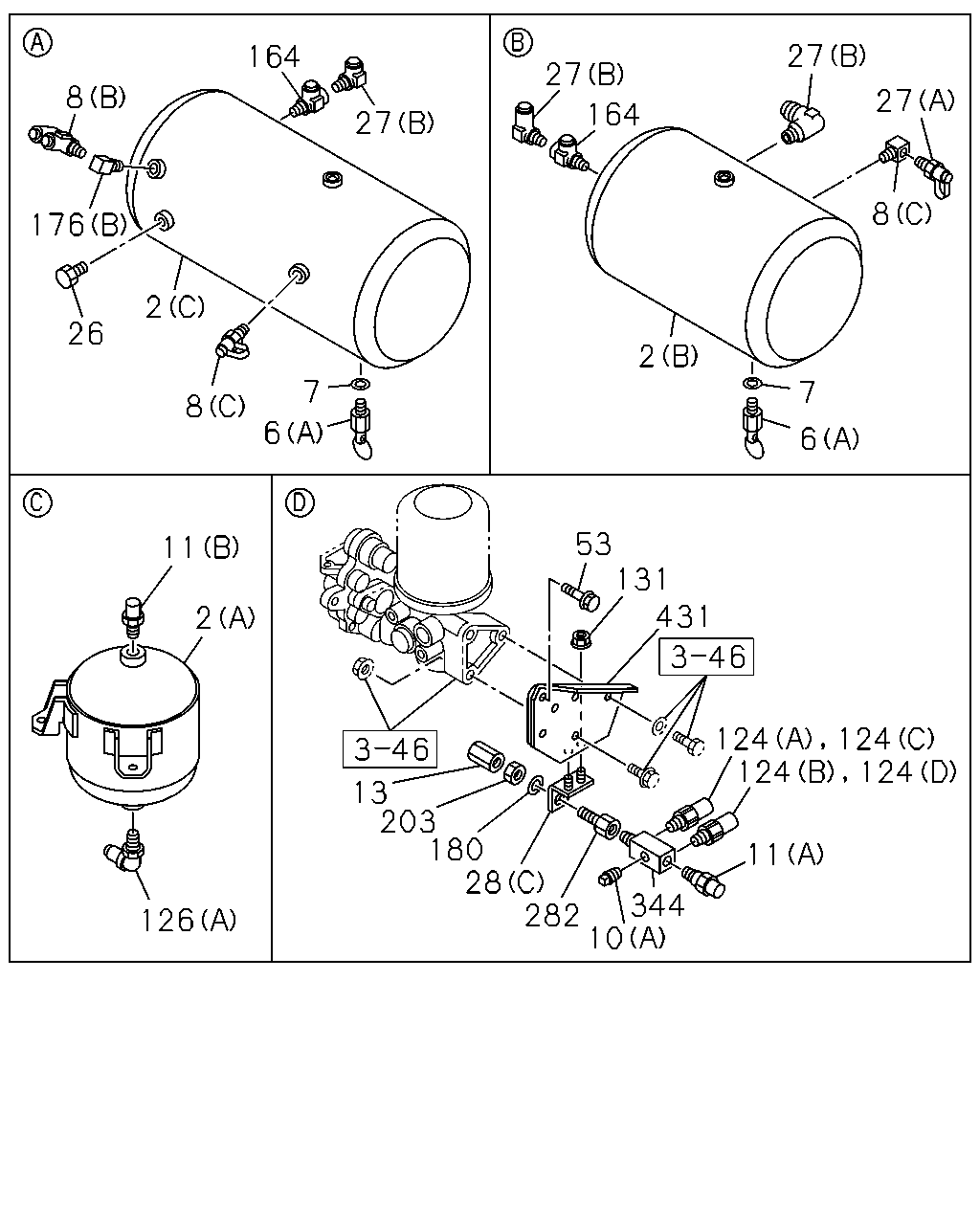

27 164 27 8 27 164 27 8 176 2 26 2 7 7 8 6 6 53 131 431 11 2 124 124 124 124 13 203 180 28 344 282 10 11 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48371-166-3	01	1	0806-
2	TANK; AIR (B)	8-98069-081-0	01	1	0806-
2	TANK; AIR (C)	8-98069-082-1	01	1	0806-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B)	1-48312-012-0	01	1	1009-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	03	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	02	1	0806-1008
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	02	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	0806-1008
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	0806-1008
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU> (A)	1-48312-017-0	01	1	1009-
6	COCK; DRAIN,AIR TANK (A)	1-48312-017-0	01	1	1009-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0806-1008
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	02	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-1008
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-1008
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	1009-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (E) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1009-
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (F) PT3/8 3WAY	1-09661-300-0	01	1	1009-
8	CONNECTOR; AIR TANK (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-1008
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0806-
8	CONNECTOR; AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0806-
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0806-1008
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
8	CONNECTOR; AIR TANK AUSTRALIA EQUIPMENT(RR3) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (C) M14	1-09661-569-0	01	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	03	1	1009-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	1009-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	1009-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	0806-1008
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	02	1	1009-
11	VALVE; SAFETY,AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A)	1-48320-012-2	01	1	1009-
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	02	1	0806-1008
11	VALVE; SAFETY,AIR TANK BRAKE REGULATION ADR<TDU> (A)	1-48320-012-2	02	1	1009-
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	0806-
13	ADAPTER; NYLON TUBE DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0806-
26	PLUG; SUB AIR TANK EXC. BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	01	1	1009-
26	PLUG; SUB AIR TANK NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	1009-
27	UNION; ELBOW,AIR TANK (A) PT1/4 2WAY	1-09660-693-0	01	1	0806-1008
27	UNION; ELBOW,AIR TANK AUSTRALIA EQUIPMENT(RR3) (A) PT1/4 2WAY	1-09660-693-0	01	1	1009-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0806-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (I)	1-48317-473-2	01	1	1009-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (J)	8-98085-700-0	01	1	1009-
28	BRACKET; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (K)	8-98085-701-0	02	1	1009-
28	BRACKET; AIR TANK (F)	1-48317-714-0	02	1	0806-
28	BRACKET; AIR TANK (G)	1-48317-733-2	02	1	0806-
28	BRACKET; AIR TANK (A)	8-98068-277-1	01	1	0806-
28	BRACKET; AIR TANK (B)	8-98068-278-1	01	1	0806-
28	BRACKET; AIR TANK (C)	8-98071-979-0	01	1	0806-
28	BRACKET; AIR TANK (D)	8-98083-016-1	01	1	0806-
28	BRACKET; AIR TANK (E)	8-98083-020-1	01	1	0806-
28	BRACKET; AIR TANK (H)	8-98083-646-0	02	1	0806-
53	BOLT; STAY,AIR TANK M12X40 FLANGE	0-28651-240-0	03	1	0806-
124	SWITCH; AIR PRESSURE EXC. BRAKE REGULATION ADR<TDU> (C) STAMP 5.5	8-97609-249-0	01	1	1009-
124	SWITCH; AIR PRESSURE EXC. BRAKE REGULATION ADR<TDU> (D) STAMP 6.5	8-97609-252-0	01	1	1009-
124	SWITCH; AIR PRESSURE (A)	1-48340-065-0	01	1	0806-1008
124	SWITCH; AIR PRESSURE BRAKE REGULATION ADR<TDU> (A)	1-48340-065-0	01	1	1009-
124	SWITCH; AIR PRESSURE (B)	1-48340-066-0	01	1	0806-1008
124	SWITCH; AIR PRESSURE BRAKE REGULATION ADR<TDU> (B)	1-48340-066-0	01	1	1009-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0806-
131	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0806-
164	CONNECTOR; SUB AIR TANK DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	0806-1008
164	CONNECTOR; SUB AIR TANK DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	0806-1008
164	CONNECTOR; SUB AIR TANK DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1009-
164	CONNECTOR; SUB AIR TANK DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1009-
176	ADAPTER EXC. BRAKE REGULATION ADR<TDU> (D)	1-09660-884-0	01	1	1009-
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0806-
176	ADAPTER (B)	1-09660-778-1	01	1	0806-
176	ADAPTER (C) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	0806-
180	WASHER; LK ID=16.2	0-91510-516-0	01	1	0806-
203	NUT M16	0-91110-516-0	01	1	0806-
282	UNION; 2 WAY	1-09650-222-1	01	1	0806-
344	CONNECTOR; 4WAY	1-09660-521-2	01	1	0806-
431	BRACKET; AIR DRYER	8-98068-279-0	01	1	0806-

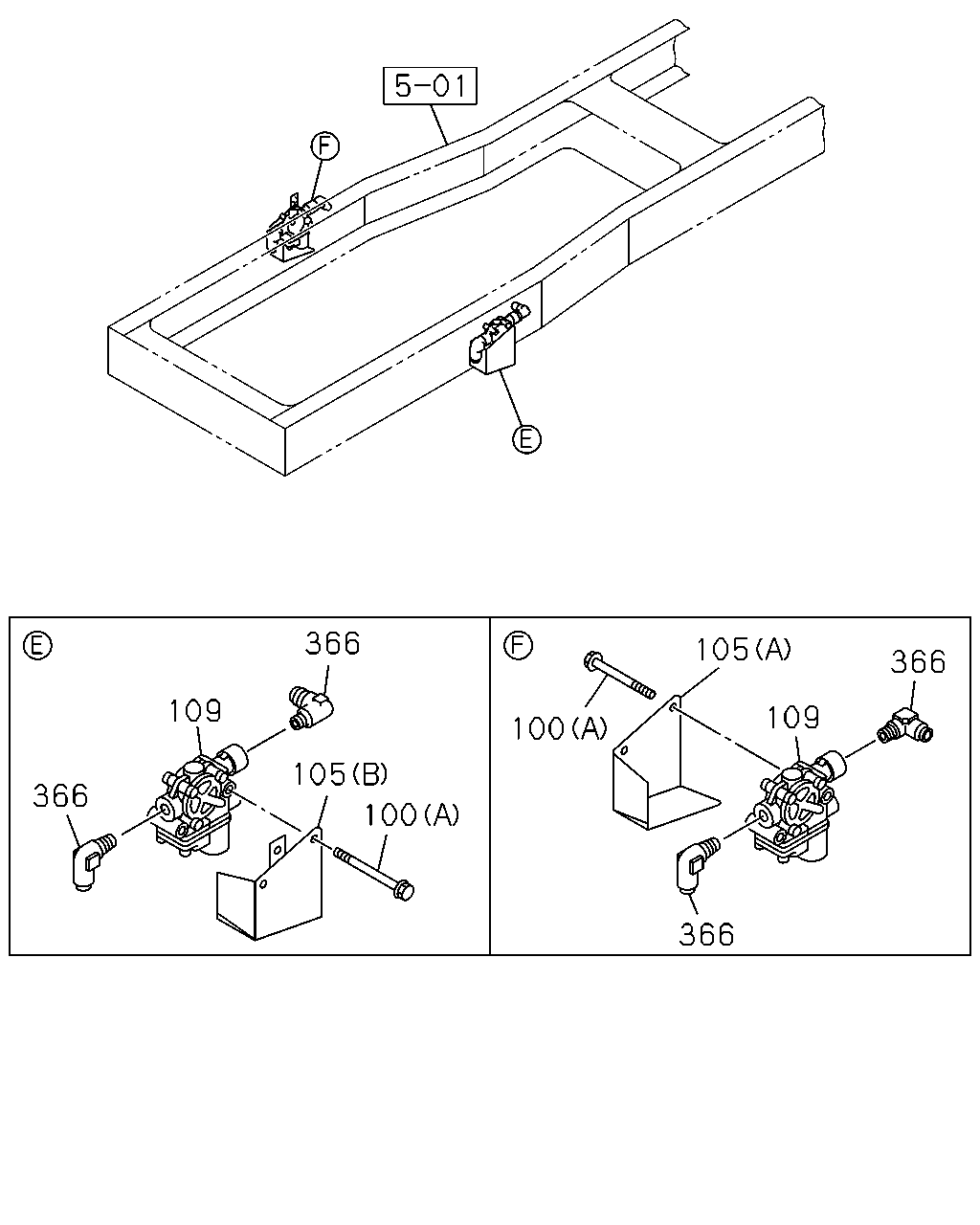

366 105 366 109 109 100 105 366 100 366

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	0806-
100	BOLT; MODULATOR (B) M10X35 FLANGE	0-28651-035-0	02	1	0806-
105	COVER; MODULATOR (A)	8-98081-578-0	01	1	0806-
105	COVER; MODULATOR (B)	8-98081-826-0	01	1	0806-
109	MODULATOR; FRT	1-48240-083-1	02	1	0806-
366	CONNECTOR; NYLON TUBE DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
