Isuzu WW
▶
TRUCKS
▶
EXY
▶
11117 - EXY AUST/NZ HYDRAULIC RETARDER
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

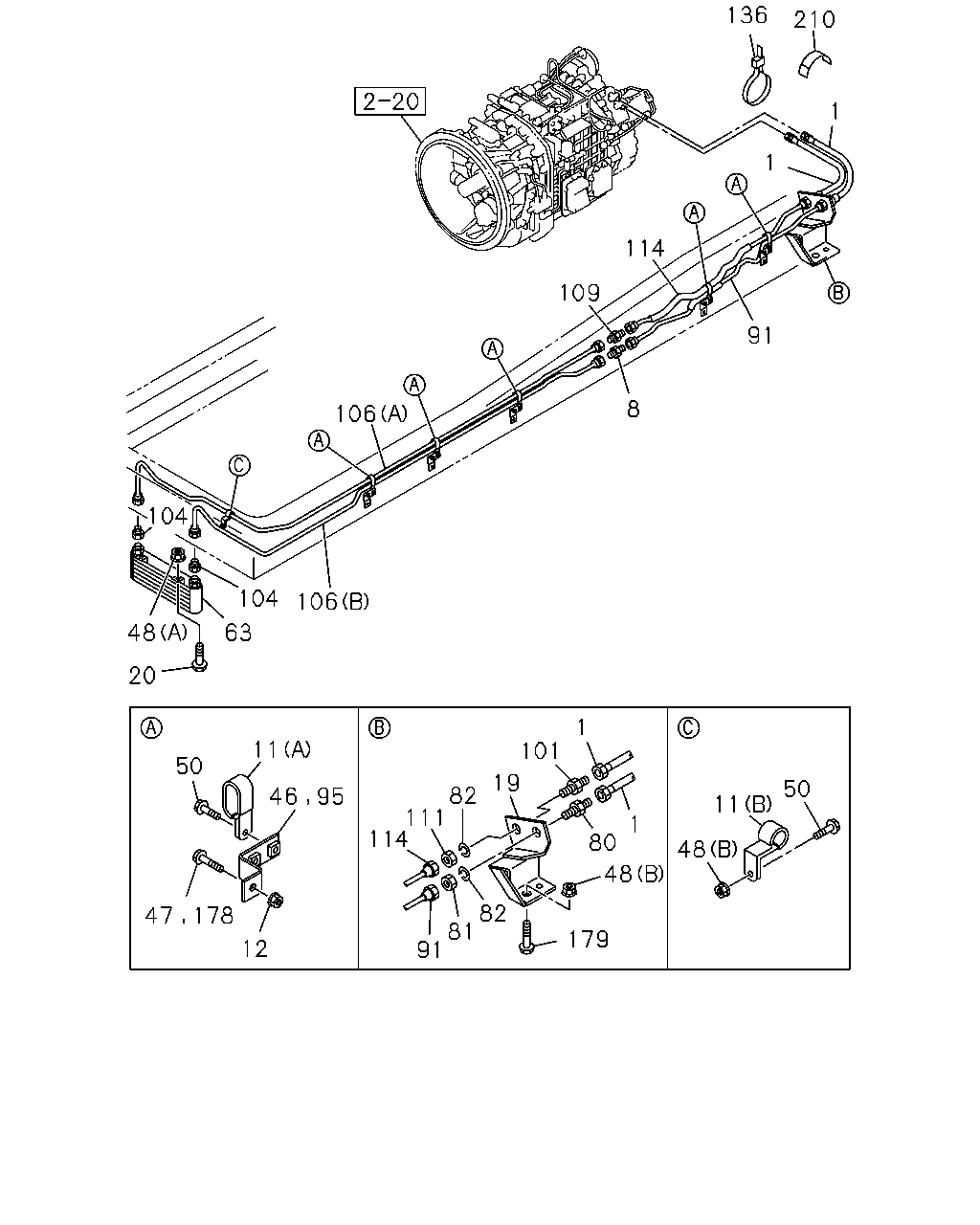

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#25187) — 31 parça
136
210
1
1
114
109
91
8
106
104
104
106
48
63
20
1
11
101
50
19
50
82
111
114
46
11
1
80
48
48
82
81
91
47
179
12
95
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=530
1-09365-248-0
02
1
0806-
8
UNION
M22 L=51
0-92123-015-0
01
1
0806-
11
CLIP; PIPE
(A) ID=16X2 L=20
0-95325-535-0
06
1
0806-
11
CLIP; PIPE
(B) ID=15 H=24 L=20
1-09700-606-0
01
1
0806-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0806-
19
BRACKET; FLEX HOSE
8-98082-152-0
01
1
0806-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0806-
46
BRACKET; OIL PIPE
1-47479-482-0
04
1
0806-
47
BOLT; BRKT TO FRAME
M8X30 FLANGE
0-28650-830-0
04
1
0806-
48
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
04
1
0806-
48
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
0806-
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
05
1
0806-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
02
1
0806-
63
COOLER; OIL
1-21700-394-0
01
1
0806-1405
63
COOLER; OIL
8-98269-766-0
01
1
1406-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0806-
81
NUT; UNION
M22
0-91111-522-0
01
1
0806-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
0806-
91
PIPE; OIL,FLEX HOSE TO UNION
L=1630
8-98090-999-0
01
1
0806-
95
BRACKET; CLIP
1-47479-482-0
02
1
0806-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0806-
104
CONNECTOR; COOLER
1-09654-398-0
02
1
0806-
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=2344
8-98056-487-0
01
1
0806-
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=1750
8-98096-141-0
01
1
0806-
109
UNION
M22 L=51
0-92123-015-0
01
1
0806-
111
NUT; UNION
M22
0-91111-522-0
01
1
0806-
114
PIPE; OIL,UNION TO FLEX HOSE
L=1558
8-98091-000-0
01
1
0806-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
0806-
178
BOLT; BRKT,CLIP
M8X30 FLANGE
0-28650-830-0
02
1
0806-
179
BOLT; BRKT
M10X40 FLANGE
0-28651-040-0
02
1
0806-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0806-
