Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#2518) — 283 parça

45 56 41 53 45 52 45 45 46 55 47 49 51 50 48 26 18 22 40 9 10 12 13 283 307 16 22 18 3 305 19 6 11 16 8 24 304 11 8 25 22 8 19 21 20 6 8 39 37 297 494

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	FINISHER; FRT PANEL UPR L=2040	1-71997-513-1	01	1	9002-9008
3	FINISHER; FRT PANEL UPR L=2040	1-71907-013-0	01	1	9009-9012
3	FINISHER; FRT PANEL UPR L=2100	1-71907-093-0	01	1	9101-
6	PANEL; FRONT (A)	1-65470-915-1	01	1	9002-9101
6	PANEL; FRONT (A)	1-65471-493-1	01	1	9102-9306
6	PANEL; FRONT (B)	1-65471-382-0	01	1	9002-9306
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32> (A)	1-65471-708-0	01	1	9307-
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-382-0	01	1	9307-
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-493-1	01	1	9307-
6	PANEL; FRONT DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-453-2	01	1	9307-
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09980-574-0	05	1	9002-
8	SCREW; FRT PANEL (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9002-9306
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9307-
8	SCREW; FRT PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M5X40	1-09140-012-0	02	1	9307-
9	FASTENER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32>	1-65570-152-1	02	1	9002-
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32>	1-65570-152-1	01	1	9002-
10	WASHER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	02	1	9002-
10	WASHER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	01	1	9002-
11	WASHER; NYLON,FRT PANEL SIDE ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	09	1	9002-9306
11	WASHER; NYLON,FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	09	1	9307-
12	WASHER; PL,FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	02	1	9002-
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	01	1	9002-
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M6 CAP NUT FLANGE	1-65471-734-0	05	1	9307-
13	NUT; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	02	1	9002-
13	NUT; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
16	PANEL; FRONT,SIDE	1-65471-473-0	01	1	9002-9306
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-
16	PANEL; FRONT,SIDE DOOR MIRROR<D32>	1-65470-940-3	01	1	9002-9306
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM>	1-65471-767-0	01	1	9307-
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>	1-65471-474-0	01	1	9002-9306
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>,DECAL ISUZU FRONT PANEL<TAM>	1-65471-498-0	01	1	9307-
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32>	1-65471-643-4	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-172-1	01	1	9002-9306
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-171-1	01	1	9002-9306
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-76718-164-1	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-76718-163-1	01	1	9307-
19	SEAL; FRT SIDE PANEL	1-65570-205-0	01	1	9002-9306
19	SEAL; FRT SIDE PANEL	1-65570-204-0	01	1	9002-9306
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9307-
20	CLIP; FRT PANEL SIDE	1-71997-793-1	04	1	9002-9306
21	GROMMET; SCREW,FRT SIDE PANEL D=10X10 L=8 M6	1-09983-119-0	02	1	9002-9306
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	04	1	9307-9403
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	02	1	9404-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=8 M6	1-09983-119-0	02	1	9307-
22	SCREW; FRT PANEL SIDE (C) M6X16 TAPPING SCREW	1-09981-426-0	04	1	9002-9306
22	SCREW; FRT PANEL SIDE (C) M6X16 W/PL WASHER	1-09981-438-0	02	1	9002-9306
22	SCREW; FRT PANEL SIDE (A) SCREW GRQMET M6 D=10X16 L=8 M6	1-09983-118-0	02	1	9002-9306
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9401-
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M6X12 W/PL WASHER	1-09981-380-0	02	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M6X12 W/PL WASHER	1-09981-380-0	04	1	9401-
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 TAPPING SCREW	1-09981-426-0	06	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 W/PL WASHER	1-09981-438-0	02	1	9307-
24	SEAL; FRT PANEL LWR (C)	1-65570-159-0	01	1	9002-9306
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM> (C)	1-65570-159-0	01	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	9002-
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-569-1	01	1	9002-
37	PANEL ASM; HEADLAMP RIM	1-65671-004-4	01	1	9002-9306
37	PANEL ASM; HEADLAMP RIM	1-65671-003-4	01	1	9002-9306
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-595-0	01	1	9307-
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-594-0	01	1	9307-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-004-4	01	1	9307-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-003-4	01	1	9307-
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-372-8	01	1	9307-
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-371-8	01	1	9307-
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9002-9306
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9307-9307
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	04	1	9308-
39	BOLT; PNL,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9308-
40	PLUG; FRT PANEL OD=15 L=14.5	1-76378-157-0	01	1	9002-
41	VENTILATOR ASM; DASH	1-76337-255-6	01	1	9002-
45	SEAL; VENT (A)	1-76337-260-1	01	1	9002-
45	SEAL; VENT (B)	1-76337-261-0	01	1	9002-
45	SEAL; VENT (C)	1-76337-318-0	02	1	9002-
46	CLIP; VENT	1-76337-243-0	02	1	9002-
47	SPRING; VENT	1-76337-244-0	01	1	9002-
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-
50	BRACKET; CABLE,DASH VENT	1-76337-292-1	01	1	9002-
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	9002-
52	GUIDE; AIR,DASH VENT	1-76337-264-2	01	1	9002-9306
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-264-2	01	1	9307-
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-450-0	01	1	9307-
53	SEAL; AIR GUIDE,DASH VENT L=730	1-76337-235-1	01	1	9002-9306
53	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=730	1-76337-235-2	01	1	9307-
53	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=640	1-76337-452-1	01	1	9307-
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-
56	SEAL; AIR GUIDE,DASH VENT L=470	1-76337-236-1	01	1	9002-9306
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=340	1-76337-453-1	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=70	1-76337-455-1	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER	1-61470-653-2	01	1	9002-9306
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-653-2	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-694-1	01	1	9307-
297	FINISHER; SIDE PANEL,CAB L=2040	1-71907-013-0	02	1	9009-9012
297	FINISHER; SIDE PANEL,CAB SERVICED BY L=190	1-71998-300-0	02	1	9101-9205
297	FINISHER; SIDE PANEL,CAB L=170	1-71907-124-1	02	1	9206-9306
297	FINISHER; SIDE PANEL,CAB EXC. DECAL ISUZU FRONT PANEL<TAM> L=170	1-71907-124-1	02	1	9307-
304	SPACER; FRT PANEL DOOR MIRROR<D32>	1-09985-144-0	01	1	9002-
305	SUPPORT ASM; OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32>	1-65570-145-1	01	1	9002-
307	GROMMET; FRT PANEL OD=20	5-09983-020-0	02	1	9002-9210
307	GROMMET; FRT PANEL OD=23.5	1-09983-101-0	02	1	9211-
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-

56 41 53 52 45 55 26 45 51 45 40 49 46 45 47 50 510 307 48 511 9 283 18 511 10 12 13 13 510 511 22 16 510 19 3 305 22 22 8 6 22 59 304 8 22 18 25 293 8 24 293 494 465 8 16 19 6 24 22 39 37 21 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	FINISHER; FRT PANEL UPR L=2040	1-71997-513-1	01	1	9002-9008
3	FINISHER; FRT PANEL UPR L=2040	1-71907-013-0	01	1	9009-9012
3	FINISHER; FRT PANEL UPR L=2100	1-71907-093-0	01	1	9101-
6	PANEL; FRONT (A)	1-65470-915-1	01	1	9002-9101
6	PANEL; FRONT (A)	1-65471-493-1	01	1	9102-9306
6	PANEL; FRONT (B)	1-65471-382-0	01	1	9002-9306
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32> (A)	1-65471-708-0	01	1	9307-
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-382-0	01	1	9307-
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-493-1	01	1	9307-
6	PANEL; FRONT DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-453-2	01	1	9307-
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09980-574-0	05	1	9002-
8	SCREW; FRT PANEL (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9002-9306
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9307-
8	SCREW; FRT PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M5X40	1-09140-012-0	02	1	9307-
9	FASTENER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32>	1-65570-152-1	02	1	9002-
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32>	1-65570-152-1	01	1	9002-
10	WASHER; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	02	1	9002-
10	WASHER; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=9 OD=20	1-09985-145-0	01	1	9002-
12	WASHER; PL,FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	02	1	9002-
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> ID=8.4 OD=22	1-09985-188-0	01	1	9002-
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M6 CAP NUT FLANGE	1-65471-734-0	05	1	9307-
13	NUT; FRT PANEL TO SIDE PANEL DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	02	1	9002-
13	NUT; FRT PANEL TO SIDE PANEL EXC. DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	01	1	9002-
16	PANEL; FRONT,SIDE	1-65471-473-0	01	1	9002-9306
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-
16	PANEL; FRONT,SIDE DOOR MIRROR<D32>	1-65470-940-3	01	1	9002-9306
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> DECAL ISUZU FRONT PANEL<TAM>	1-65471-767-0	01	1	9307-
16	PANEL; FRONT,SIDE DOOR MIRROR<D32> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>	1-65471-474-0	01	1	9002-9306
16	PANEL; FRONT,SIDE EXC. DOOR MIRROR<D32>,DECAL ISUZU FRONT PANEL<TAM>	1-65471-498-0	01	1	9307-
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM> EXC. DOOR MIRROR<D32>	1-65471-643-4	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-172-1	01	1	9002-9306
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-171-1	01	1	9002-9306
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-76718-164-1	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-76718-163-1	01	1	9307-
19	SEAL; FRT SIDE PANEL	1-65570-205-0	01	1	9002-9306
19	SEAL; FRT SIDE PANEL	1-65570-204-0	01	1	9002-9306
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL D=10X10 L=8 M6	1-09983-119-0	02	1	9002-9306
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	04	1	9307-9403
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	02	1	9404-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=8 M6	1-09983-119-0	02	1	9307-
22	SCREW; FRT PANEL SIDE (C) M6X16 TAPPING SCREW	1-09981-426-0	04	1	9002-9306
22	SCREW; FRT PANEL SIDE (C) M6X16 W/PL WASHER	1-09981-438-0	02	1	9002-9306
22	SCREW; FRT PANEL SIDE (A) SCREW GRQMET M6 D=10X16 L=8 M6	1-09983-118-0	02	1	9002-9306
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9401-
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M6X12 W/PL WASHER	1-09981-380-0	02	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M6X12 W/PL WASHER	1-09981-380-0	04	1	9401-
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 TAPPING SCREW	1-09981-426-0	06	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 W/PL WASHER	1-09981-438-0	02	1	9307-
24	SEAL; FRT PANEL LWR (C)	1-65570-159-0	01	1	9002-9306
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM> (C)	1-65570-159-0	01	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	9002-
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-569-1	01	1	9002-
37	PANEL ASM; HEADLAMP RIM	1-65671-004-4	01	1	9002-9306
37	PANEL ASM; HEADLAMP RIM	1-65671-003-4	01	1	9002-9306
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-595-0	01	1	9307-
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-594-0	01	1	9307-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-004-4	01	1	9307-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-003-4	01	1	9307-
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-372-8	01	1	9307-
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-371-8	01	1	9307-
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9002-9306
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9307-9307
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	04	1	9308-
39	BOLT; PNL,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9308-
40	PLUG; FRT PANEL OD=15 L=14.5	1-76378-157-0	01	1	9002-
41	VENTILATOR ASM; DASH	1-76337-255-6	01	1	9002-
45	SEAL; VENT (A)	1-76337-260-1	01	1	9002-
45	SEAL; VENT (B)	1-76337-261-0	01	1	9002-
45	SEAL; VENT (C)	1-76337-318-0	02	1	9002-
46	CLIP; VENT	1-76337-243-0	02	1	9002-
47	SPRING; VENT	1-76337-244-0	01	1	9002-
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9002-
50	BRACKET; CABLE,DASH VENT	1-76337-292-1	01	1	9002-
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	9002-
52	GUIDE; AIR,DASH VENT	1-76337-264-2	01	1	9002-9306
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-264-2	01	1	9307-
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-450-0	01	1	9307-
53	SEAL; AIR GUIDE,DASH VENT L=730	1-76337-235-1	01	1	9002-9306
53	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=730	1-76337-235-2	01	1	9307-
53	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=640	1-76337-452-1	01	1	9307-
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-
56	SEAL; AIR GUIDE,DASH VENT L=470	1-76337-236-1	01	1	9002-9306
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=340	1-76337-453-1	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=70	1-76337-455-1	01	1	9307-
59	GROMMET; SCREW DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9307-
283	PANEL ASM; FRT CENTER,INNER	1-61470-653-2	01	1	9002-9306
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-653-2	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-694-1	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A) LOWER	1-65471-689-2	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B) UPPER	1-65481-043-3	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A) LOWER	1-65471-688-2	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B) UPPER	1-65481-042-3	01	1	9307-
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> M5	1-09983-116-0	04	1	9307-9312
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> M5	1-09983-116-0	08	1	9401-
304	SPACER; FRT PANEL DOOR MIRROR<D32>	1-09985-144-0	01	1	9002-
305	SUPPORT ASM; OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32>	1-65570-145-1	01	1	9002-
307	GROMMET; FRT PANEL OD=20	5-09983-020-0	02	1	9002-9210
307	GROMMET; FRT PANEL OD=23.5	1-09983-101-0	02	1	9211-
465	CLIP; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM>	1-65471-500-0	07	1	9307-
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-729-1	01	1	9307-
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (C)	1-65471-730-0	01	1	9307-
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-728-0	01	1	9307-
511	BOLT; SET,BRKT DECAL ISUZU FRONT PANEL<TAM> M6X20 W/LK&PL WASHER	1-09980-493-0	06	1	9307-

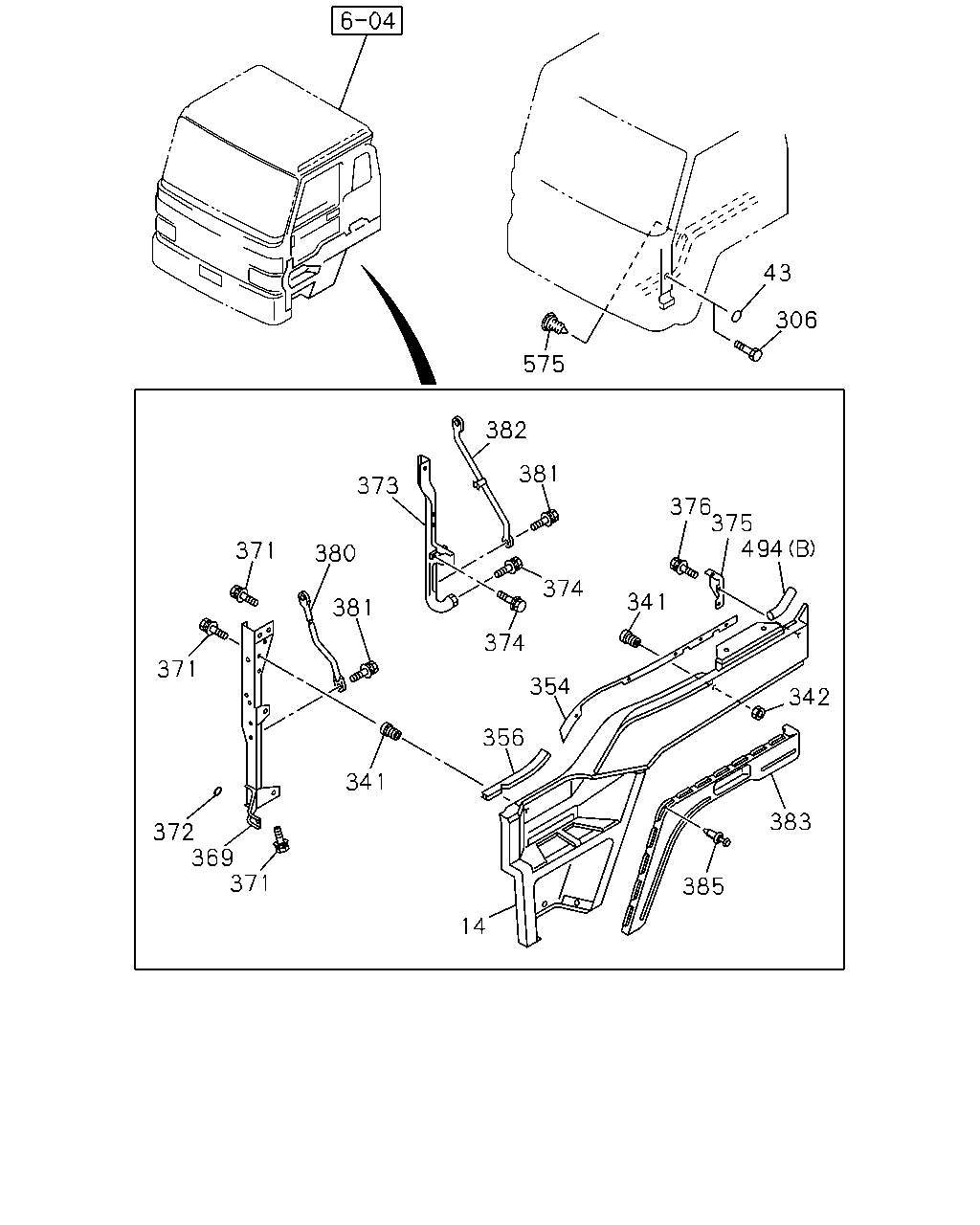

43 306 575 382 381 373 376 375 494 371 380 374 341 381 374 371 354 342 356 341 383 372 369 371 385 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT GRIP OUT SIDE<W52>	1-65471-171-0	01	1	9002-
14	FENDER; FRT GRIP OUT SIDE<W52>	1-65471-170-0	01	1	9002-
14	FENDER; FRT EXC. GRIP OUT SIDE<W52>	1-65471-169-0	01	1	9002-
14	FENDER; FRT EXC. GRIP OUT SIDE<W52>	1-65471-168-0	01	1	9002-
43	GROMMET; LOCATION HOLE,A-POST OD=36	1-76778-007-0	02	1	9002-9306
43	GROMMET; LOCATION HOLE,A-POST OD=36	5-76777-035-0	02	1	9307-
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-9504
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9505-
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	15	1	9002-
342	NUT; FENDER TO COWL M6 FLANGE	1-09984-141-0	02	1	9002-
354	SEAL; FENDER SIDE	1-76777-080-1	01	1	9002-
354	SEAL; FENDER SIDE	1-76777-079-1	01	1	9002-
356	FINISHER; STEP CLOSING,FENDER	1-76777-074-0	01	1	9002-
356	FINISHER; STEP CLOSING,FENDER	1-76777-071-2	01	1	9002-
369	SUPPORT; FENDER STEP FRT	1-65670-834-0	01	1	9002-
369	SUPPORT; FENDER STEP FRT	1-65670-833-0	01	1	9002-
371	BOLT; SUPPORT,FENDER STEP FRT M8X25	1-09980-491-0	05	1	9002-9201
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-
372	SEAL; SUPPORT OD=20	1-76797-006-0	04	1	9002-9508
373	SUPPORT; FENDER STEP REAR	1-65670-842-2	01	1	9002-
373	SUPPORT; FENDER STEP REAR	1-65670-841-2	01	1	9002-
374	BOLT; SUPPORT,FENDER STEP REAR M8X25	1-09980-491-0	04	1	9002-9201
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-
375	SUPPORT; FENDER REAR	1-65670-627-2	02	1	9002-
376	BOLT; SUPPORT,FENDER RR M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9306
376	BOLT; SUPPORT,FENDER RR M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9307-
380	STAY ASM; FENDER STEP FRT	1-65670-716-2	01	1	9002-
380	STAY ASM; FENDER STEP FRT	1-65670-715-2	01	1	9002-
381	BOLT; STAY,FENDER STEP M8X25	1-09980-491-0	08	1	9002-9301
381	BOLT; STAY,FENDER STEP M8X20 W/LK&PL WASHER	1-09980-512-0	08	1	9302-
382	STAY ASM; FENDER STEP RR	1-65670-641-6	01	1	9002-
382	STAY ASM; FENDER STEP RR	1-65670-640-6	01	1	9002-
383	GUARD; MUD,FENDER LWR HONG KONG EQUIPMENT(PQ1)	1-71997-638-1	01	1	9307-
383	GUARD; MUD,FENDER LWR HONG KONG EQUIPMENT(PQ1)	1-71997-637-1	01	1	9307-
385	SCREW; FENDER LWR HONG KONG EQUIPMENT(PQ1) D6X16 PUSH RIVET	1-09983-105-0	24	1	9307-
494	FINISHER; FENDER (A)	1-71998-300-0	02	1	9002-
494	FINISHER; FENDER (B)	1-76777-072-1	02	1	9002-
575	PLUG; STAY OD=15 L=14.5	1-76378-157-0	04	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
