◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#25170) — 313 parça

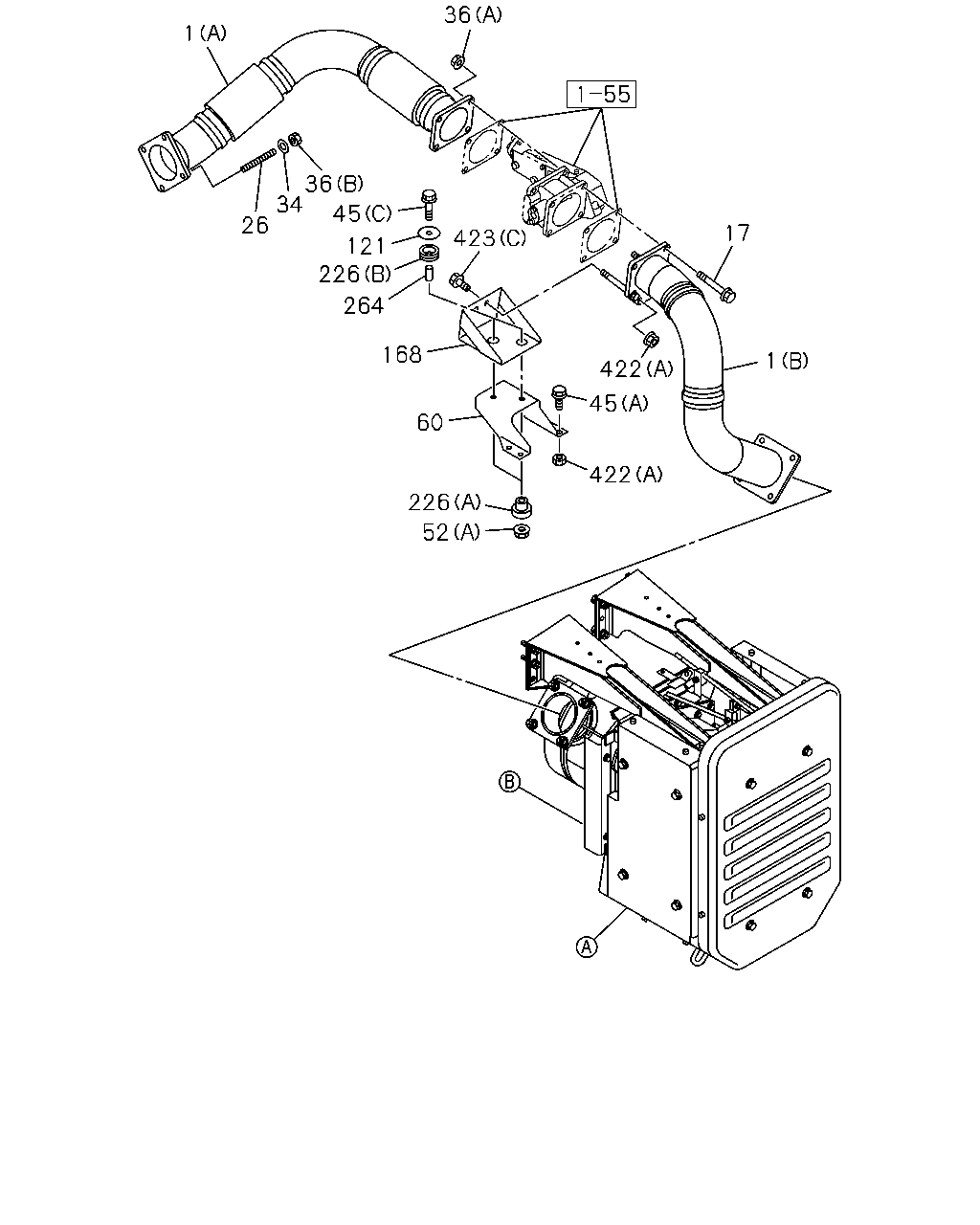

çizim 142469
36 1 423 36 34 26 45 17 121 226 264 168 1 422 45 60 422 226 52
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) 		8-97620-124-0 01 1 0806-1008
1 PIPE; EXH
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97620-124-0 01 1 1009-
1 PIPE; EXH
(B) 		8-97621-308-0 01 1 0806-1008
1 PIPE; EXH
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97621-308-0 01 1 1009-
17 BOLT; EXH PIPE
M12X120 FLANGE 		0-28056-212-0 02 1 0806-1008
17 BOLT; EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X120 FLANGE 		0-28056-212-0 02 1 1009-
26 STUD; EXH MANIF
M12X125 L=145 		8-97617-265-0 04 1 0806-1008
26 STUD; EXH MANIF
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X125 L=145 		8-97617-265-0 04 1 1009-1402
26 STUD; EXH MANIF
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X125 L=145 		8-97648-063-0 04 1 1403-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 0806-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0806-1008
36 NUT; EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M12 FLANGE 		0-91180-212-0 04 1 1009-
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 0806-
45 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 04 1 0806-1008
45 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10X25 FLANGE 		0-28051-025-0 04 1 1009-
45 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0806-1008
45 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
45 BOLT; BRKT
(C) M10X60 FLANGE 		0-28051-060-0 02 1 0806-1008
45 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X60 FLANGE 		0-28051-060-0 02 1 1009-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0806-1008
52 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10 FLANGE 		0-91180-210-0 08 1 1009-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0806-1008
52 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 FLANGE 		0-91180-212-0 16 1 1009-
60 BRACKET; FRAME TO BRKT 8-97620-122-0 01 1 0806-1008
60 BRACKET; FRAME TO BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97620-122-0 01 1 1009-
121 WASHER; PL,BRKT
OD=55 		9-09852-169-0 02 1 0806-1008
121 WASHER; PL,BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> OD=55 		9-09852-169-0 02 1 1009-
168 BRACKET; EXH PIPE,FRT 8-97620-118-1 01 1 0806-1008
168 BRACKET; EXH PIPE,FRT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97620-118-1 01 1 1009-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0806-1008
226 RUBBER; CUSHION
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-94457-277-1 02 1 1009-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0806-1008
226 RUBBER; CUSHION
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-94457-278-1 02 1 1009-
264 TUBE; DIST,SUPPORT RUBBER
L=37.5 		9-22151-217-0 02 1 0806-1008
264 TUBE; DIST,SUPPORT RUBBER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=37.5 		9-22151-217-0 02 1 1009-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0806-1008
422 NUT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10 FLANGE 		0-91180-210-0 02 1 1009-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0806-1008
422 NUT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 FLANGE 		0-91180-212-0 04 1 1009-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0806-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0806-1008
423 BOLT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X30 FLANGE 		0-28051-030-0 02 1 1009-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0806-1008
423 BOLT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M12X35 FLANGE 		0-28051-235-0 02 1 1009-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0806-

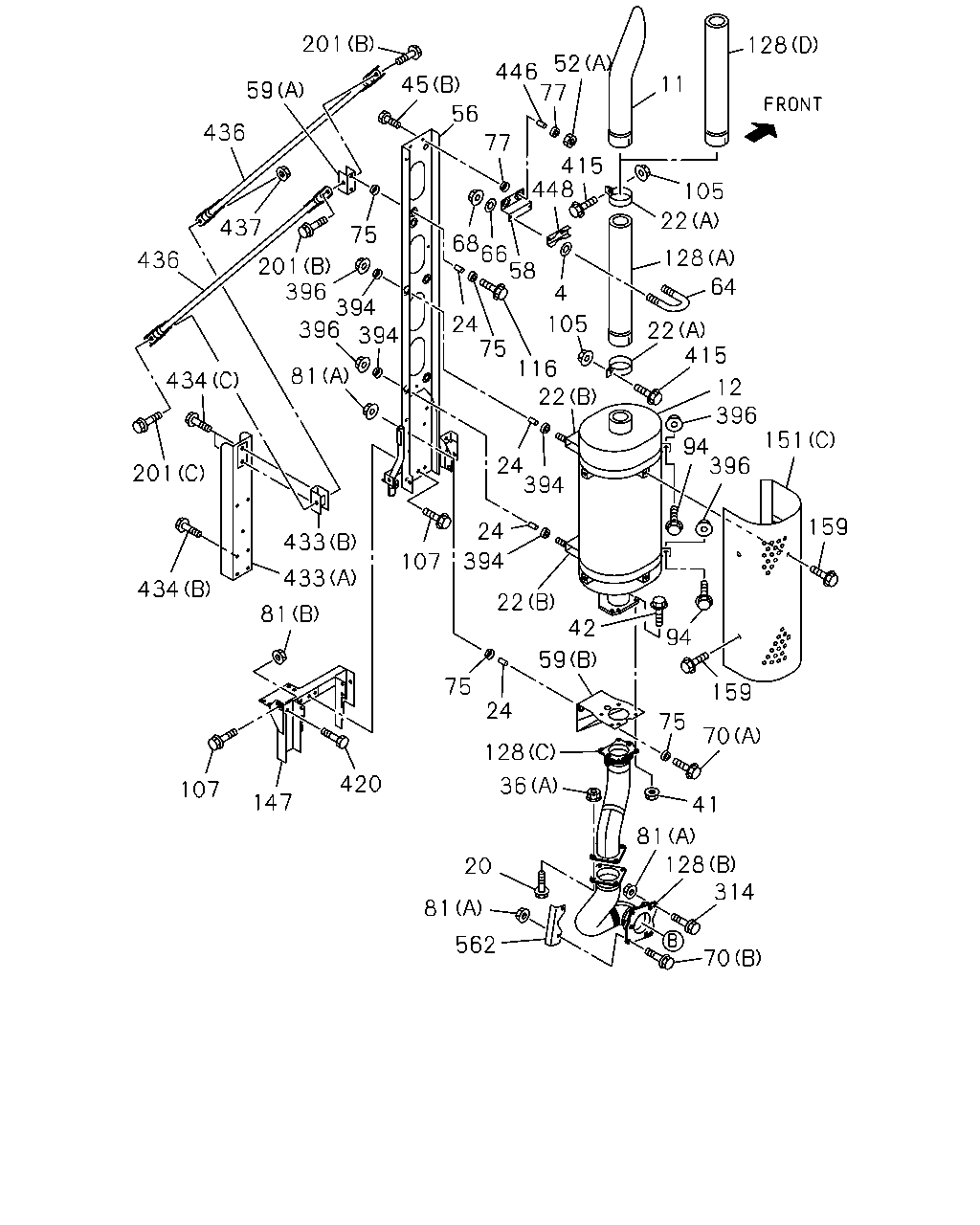

çizim 142477
201 128 52 446 77 45 11 59 56 436 77 415 448 105 22 437 75 68 66 58 128 436 201 396 394 396 394 64 4 105 24 75 22 415 116 22 81 434 12 396 151 94 396 24 394 201 24 159 433 394 107 433 434 22 81 42 94 59 75 159 24 75 70 128 420 36 107 147 41 81 128 314 20 81 562 70
BalonParca AdiParca NoAdetTipApplied Date
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 0806-1008
4 WASHER; PL,U BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=8.4 OD=22 		0-91610-708-0 02 1 1009-
11 PIPE; EXH,RR 1-22123-086-1 01 1 0806-1008
11 PIPE; EXH,RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-22123-086-1 01 1 1009-
12 SILENCER ASM; EXH 8-97621-716-0 01 1 0806-1008
12 SILENCER ASM; EXH
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97621-716-0 01 1 1009-
20 BOLT; FLANGE,EXH PIPE
M12X35 FLANGE 		0-28051-235-0 06 1 0806-0911
20 BOLT; FLANGE,EXH PIPE
M12X35 FLANGE 		0-28051-235-0 08 1 0912-1008
20 BOLT; FLANGE,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X35 FLANGE 		0-28051-235-0 08 1 1009-
22 CLAMP; EXH PIPE
(A) 		1-22133-266-1 02 1 0806-1008
22 CLAMP; EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		1-22133-266-1 02 1 1009-
22 CLAMP; EXH PIPE
(B) 		1-22133-270-0 02 1 0806-1008
22 CLAMP; EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		1-22133-270-0 02 1 1009-
24 COLLAR; DIST,CLAMP
L=25 		1-14234-083-0 10 1 0806-1008
24 COLLAR; DIST,CLAMP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=25 		1-14234-083-0 10 1 1009-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0806-1008
36 NUT; EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M12 FLANGE 		0-91180-212-0 04 1 1009-
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 0806-
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91180-212-0 04 1 0806-1008
41 NUT; EXH PIPE TO EXH SILENCER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12 FLANGE 		0-91180-212-0 04 1 1009-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X40 FLANGE 		0-28051-240-0 04 1 0806-1008
42 BOLT; EXH PIPE TO EXH SILENCER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X40 FLANGE 		0-28051-240-0 04 1 1009-
45 BOLT; BRKT
(A) M10X25 FLANGE 		0-28051-025-0 04 1 0806-1008
45 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10X25 FLANGE 		0-28051-025-0 04 1 1009-
45 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 0806-1008
45 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M10X50 FLANGE 		0-28051-050-0 02 1 1009-
45 BOLT; BRKT
(C) M10X60 FLANGE 		0-28051-060-0 02 1 0806-1008
45 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X60 FLANGE 		0-28051-060-0 02 1 1009-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0806-1008
52 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10 FLANGE 		0-91180-210-0 08 1 1009-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0806-1008
52 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 FLANGE 		0-91180-212-0 16 1 1009-
56 BRACKET; CLAMP,EXH PIPE 8-97624-058-2 01 1 0806-1008
56 BRACKET; CLAMP,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97624-058-2 01 1 1009-
58 BRACKET; EXH PIPE,RR 1-22131-799-0 01 1 0806-1008
58 BRACKET; EXH PIPE,RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-22131-799-0 01 1 1009-
59 BRACKET; EXH SILENCER,FRT
(A) 		1-22119-408-0 01 1 0806-1008
59 BRACKET; EXH SILENCER,FRT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		1-22119-408-0 01 1 1009-
59 BRACKET; EXH SILENCER,FRT
(B) 		8-97618-865-0 01 1 0806-1008
59 BRACKET; EXH SILENCER,FRT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97618-865-0 01 1 1009-
64 U-BOLT; EXH PIPE,RR 1-22113-097-0 01 1 0806-1008
64 U-BOLT; EXH PIPE,RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-22113-097-0 01 1 1009-
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0806-1008
66 WASHER; LK,U BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=8.2 		0-91510-508-0 02 1 1009-
68 NUT; U BOLT
M8 		0-91110-508-0 02 1 0806-1008
68 NUT; U BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 		0-91110-508-0 02 1 1009-
70 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 04 1 0806-1008
70 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M10X60 FLANGE 		0-28051-060-0 04 1 1009-
70 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 01 1 0806-1008
70 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10X40 FLANGE 		0-28651-040-0 01 1 1009-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 04 1 0806-1008
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 1009-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 0806-1008
75 RUBBER; SUPPORT,BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> OD=40 		1-22159-094-0 04 1 1009-
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 04 1 0806-1008
77 RUBBER; CUSHION,BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> OD=40 		1-22159-094-0 04 1 1009-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 05 1 0806-1008
81 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10 FLANGE 		0-91180-210-0 05 1 1009-
81 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 05 1 0806-1008
81 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 FLANGE 		0-91180-212-0 05 1 1009-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28051-040-0 02 1 0806-1008
94 BOLT; CLAMP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X40 FLANGE 		0-28051-040-0 02 1 1009-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 01 1 0806-1008
105 NUT; CLAMP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10 FLANGE 		0-91180-210-0 01 1 1009-
107 BOLT; BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 0806-1008
107 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X30 FLANGE 		0-28051-230-0 08 1 1009-
116 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0806-1008
116 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X60 FLANGE 		0-28051-060-0 02 1 1009-
128 PIPE; EXH,RR
(A) 		1-22123-087-1 01 1 0806-1008
128 PIPE; EXH,RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		1-22123-087-1 01 1 1009-
128 PIPE; EXH,RR
(D) 		1-22123-444-0 01 1 0806-1008
128 PIPE; EXH,RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		1-22123-444-0 01 1 1009-
128 PIPE; EXH,RR
(B) 		8-97621-274-0 01 1 0806-1008
128 PIPE; EXH,RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97621-274-0 01 1 1009-
128 PIPE; EXH,RR
(C) 		8-97621-300-1 01 1 0806-1008
128 PIPE; EXH,RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) 		8-97621-300-1 01 1 1009-
147 BRACKET; VERTICAL PIPE 8-97624-060-3 01 1 0806-1008
147 BRACKET; VERTICAL PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97624-060-3 01 1 1009-
151 PROTECTOR; HEAT,EXH PIPE
(B) 		8-97616-261-1 01 1 0806-1008
151 PROTECTOR; HEAT,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97616-261-1 01 1 1009-
151 PROTECTOR; HEAT,EXH PIPE
(D) 		8-97620-030-0 01 1 0806-1008
151 PROTECTOR; HEAT,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-97620-030-0 01 1 1009-
151 PROTECTOR; HEAT,EXH PIPE
(A) 		8-97624-244-0 01 1 0806-1008
151 PROTECTOR; HEAT,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97624-244-0 01 1 1009-
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97628-216-0 01 1 0806-1008
151 PROTECTOR; HEAT,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) 		8-97628-216-0 01 1 1009-
159 BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER 		1-09030-042-0 18 1 0806-1008
159 BOLT; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X22 W/LK&PL WASHER 		1-09030-042-0 18 1 1009-
201 BOLT; STAY
(A) M10X50 		0-10956-050-0 04 1 0806-1008
201 BOLT; STAY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10X50 		0-10956-050-0 04 1 1009-
201 BOLT; STAY
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0806-1008
201 BOLT; STAY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M10X25 FLANGE 		0-28051-025-0 02 1 1009-
201 BOLT; STAY
(C) M10X70 FLANGE 		0-28051-070-0 01 1 0806-1008
201 BOLT; STAY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X70 FLANGE 		0-28051-070-0 01 1 1009-
314 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0806-1008
314 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X16 FLANGE 		0-28050-816-0 04 1 1009-
314 BOLT; BRKT
M10X35 FLANGE 		0-28051-035-0 04 1 0806-1008
314 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X35 FLANGE 		0-28051-035-0 04 1 1009-
394 RUBBER; SUPPORT,CLAMP
OD=40 		1-22159-094-0 08 1 0806-1008
394 RUBBER; SUPPORT,CLAMP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> OD=40 		1-22159-094-0 08 1 1009-
396 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 06 1 0806-1008
396 NUT; CLAMP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10 FLANGE 		0-91180-210-0 06 1 1009-
415 BOLT; CLAMP
M10X40 FLANGE 		0-28051-040-0 01 1 0806-1008
415 BOLT; CLAMP
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X40 FLANGE 		0-28051-040-0 01 1 1009-
420 BOLT; BRKT,VERTICAL PIPE
M12X35 FLANGE 		0-28051-235-0 05 1 0806-1008
420 BOLT; BRKT,VERTICAL PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X35 FLANGE 		0-28051-235-0 05 1 1009-
433 BRACKET; STAY,EXH PIPE
(A) 		8-97620-409-2 01 1 0806-1008
433 BRACKET; STAY,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97620-409-2 01 1 1009-
433 BRACKET; STAY,EXH PIPE
(B) 		8-97622-822-0 01 1 0806-1008
433 BRACKET; STAY,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97622-822-0 01 1 1009-
434 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0806-
434 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0806-1008
434 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X30 FLANGE 		0-28051-030-0 02 1 1009-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0806-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0806-
436 STAY; SUPPORT,EXH 8-97616-276-0 02 1 0806-1008
436 STAY; SUPPORT,EXH
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97616-276-0 02 1 1009-
437 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0806-1008
437 NUT; STAY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10 FLANGE 		0-91180-210-0 01 1 1009-
446 PIECE; DIST,EXH PIPE,RR
L=25 		1-14234-083-0 02 1 0806-1008
446 PIECE; DIST,EXH PIPE,RR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=25 		1-14234-083-0 02 1 1009-
448 PIECE; DIST,U-BOLT 1-22113-095-0 01 1 0806-1008
448 PIECE; DIST,U-BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-22113-095-0 01 1 1009-
562 PLATE; STUD,BOLT 8-97623-014-0 01 1 0806-0911
562 PLATE; STUD,BOLT 8-97633-857-0 01 1 0912-1008
562 PLATE; STUD,BOLT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97633-857-0 01 1 1009-

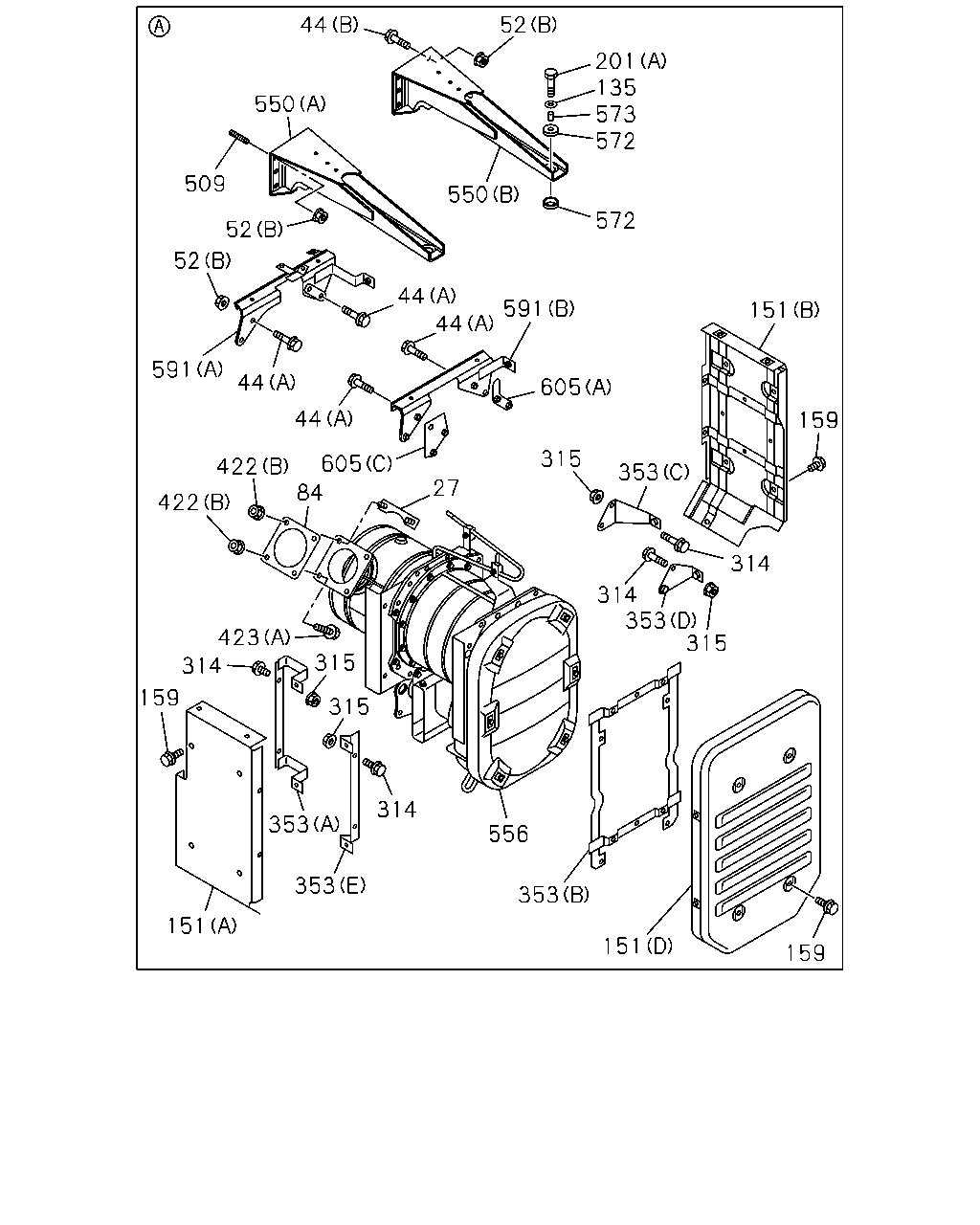

çizim 142479
44 52 201 135 573 572 550 509 550 572 52 52 44 591 151 44 591 44 605 44 159 315 605 422 84 353 27 422 314 314 353 315 423 315 314 159 315 314 353 556 353 353 151 151 159
BalonParca AdiParca NoAdetTipApplied Date
27 STUD; EXH PIPE 8-97616-750-0 01 1 0806-1008
27 STUD; EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97616-750-0 01 1 1009-
44 BOLT; BRKT
(A) M10X40 FLANGE 		0-28051-040-0 08 1 0806-1008
44 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10X40 FLANGE 		0-28051-040-0 08 1 1009-
44 BOLT; BRKT
(B) M12X35 FLANGE 		0-28051-235-0 04 1 0806-1008
44 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1009-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0806-1008
52 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10 FLANGE 		0-91180-210-0 08 1 1009-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 16 1 0806-1008
52 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 FLANGE 		0-91180-212-0 16 1 1009-
84 GASKET; EXH PIPE 1-22116-030-0 01 1 0806-1008
84 GASKET; EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		1-22116-030-0 01 1 1009-
135 WASHER; PL,STAY
ID=10.5 OD=32 		0-91614-810-0 04 1 0806-1008
135 WASHER; PL,STAY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> ID=10.5 OD=32 		0-91614-810-0 04 1 1009-
151 PROTECTOR; HEAT,EXH PIPE
(B) 		8-97616-261-1 01 1 0806-1008
151 PROTECTOR; HEAT,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97616-261-1 01 1 1009-
151 PROTECTOR; HEAT,EXH PIPE
(D) 		8-97620-030-0 01 1 0806-1008
151 PROTECTOR; HEAT,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-97620-030-0 01 1 1009-
151 PROTECTOR; HEAT,EXH PIPE
(A) 		8-97624-244-0 01 1 0806-1008
151 PROTECTOR; HEAT,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97624-244-0 01 1 1009-
151 PROTECTOR; HEAT,EXH PIPE
(C) 		8-97628-216-0 01 1 0806-1008
151 PROTECTOR; HEAT,EXH PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) 		8-97628-216-0 01 1 1009-
159 BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER 		1-09030-042-0 18 1 0806-1008
159 BOLT; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X22 W/LK&PL WASHER 		1-09030-042-0 18 1 1009-
201 BOLT; STAY
(A) M10X50 		0-10956-050-0 04 1 0806-1008
201 BOLT; STAY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10X50 		0-10956-050-0 04 1 1009-
201 BOLT; STAY
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0806-1008
201 BOLT; STAY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M10X25 FLANGE 		0-28051-025-0 02 1 1009-
201 BOLT; STAY
(C) M10X70 FLANGE 		0-28051-070-0 01 1 0806-1008
201 BOLT; STAY
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X70 FLANGE 		0-28051-070-0 01 1 1009-
314 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0806-1008
314 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X16 FLANGE 		0-28050-816-0 04 1 1009-
314 BOLT; BRKT
M10X35 FLANGE 		0-28051-035-0 04 1 0806-1008
314 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10X35 FLANGE 		0-28051-035-0 04 1 1009-
315 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0806-1008
315 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8 FLANGE 		0-91180-108-0 04 1 1009-
315 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0806-1008
315 NUT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M10 FLANGE 		0-91180-210-0 02 1 1009-
353 BRACKET; HEAT PROTECTOR
(B) 		8-97616-210-0 01 1 0806-1008
353 BRACKET; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97616-210-0 01 1 1009-
353 BRACKET; HEAT PROTECTOR
(C) 		8-97616-262-0 01 1 0806-1008
353 BRACKET; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) 		8-97616-262-0 01 1 1009-
353 BRACKET; HEAT PROTECTOR
(D) 		8-97616-263-0 01 1 0806-1008
353 BRACKET; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (D) 		8-97616-263-0 01 1 1009-
353 BRACKET; HEAT PROTECTOR
(E) 		8-97616-265-0 01 1 0806-1008
353 BRACKET; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (E) 		8-97616-265-0 01 1 1009-
353 BRACKET; HEAT PROTECTOR
(A) 		8-97624-246-0 01 1 0806-1008
353 BRACKET; HEAT PROTECTOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97624-246-0 01 1 1009-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0806-1008
422 NUT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10 FLANGE 		0-91180-210-0 02 1 1009-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0806-1008
422 NUT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 FLANGE 		0-91180-212-0 04 1 1009-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0806-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0806-1008
423 BOLT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X30 FLANGE 		0-28051-030-0 02 1 1009-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0806-1008
423 BOLT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M12X35 FLANGE 		0-28051-235-0 02 1 1009-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0806-
509 STUD; BRKT
M12X40 L=56 		1-09300-123-0 04 1 0806-1008
509 STUD; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M12X40 L=56 		1-09300-123-0 04 1 1009-
550 BRACKET; DPD
(A) 		8-97616-254-0 01 1 0806-1008
550 BRACKET; DPD
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97616-254-0 01 1 1009-
550 BRACKET; DPD
(B) 		8-97616-255-0 01 1 0806-1008
550 BRACKET; DPD
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97616-255-0 01 1 1009-
550 BRACKET; DPD
(C) 		8-98048-156-0 01 1 0806-
550 BRACKET; DPD
(D) 		8-98057-201-0 01 1 0806-
550 BRACKET; DPD
(E) 		8-98057-205-0 01 1 0806-
556 DPD ASM 8-98057-166-2 01 1 0806-0909
556 DPD ASM 8-98084-619-5 01 1 0910-
572 RUBBER 8-98035-816-0 08 1 0806-1008
572 RUBBER
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-98035-816-0 08 1 1009-
573 TUBE; DIST
L=22 		9-22159-024-0 04 1 0806-1008
573 TUBE; DIST
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> L=22 		9-22159-024-0 04 1 1009-
591 STAY; DPD
(A) 		8-97616-256-1 01 1 0806-1008
591 STAY; DPD
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97616-256-1 01 1 1009-
591 STAY; DPD
(B) 		8-97616-257-0 01 1 0806-1008
591 STAY; DPD
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97616-257-0 01 1 1009-
605 PLATE; NUT
(A) 		8-97619-175-1 02 1 0806-1008
605 PLATE; NUT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97619-175-1 02 1 1009-
605 PLATE; NUT
(C) 		8-97619-554-1 01 1 0806-1008
605 PLATE; NUT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) 		8-97619-554-1 01 1 1009-
605 PLATE; NUT
(B) 		8-98048-577-0 02 1 0806-

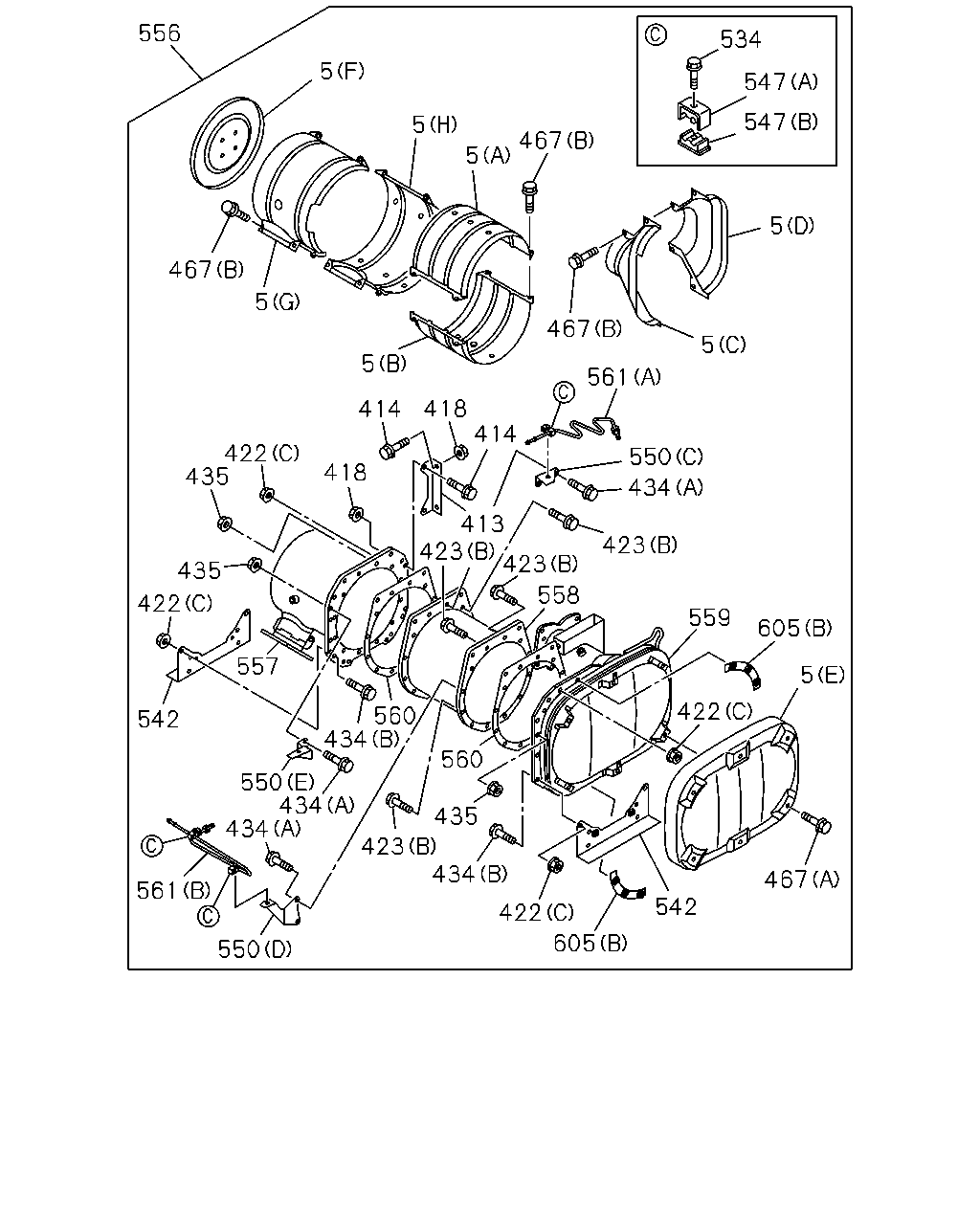

çizim 142481
556 534 5 547 547 5 467 5 5 467 5 467 5 5 561 418 414 414 422 435 550 418 434 413 423 423 423 435 558 422 559 605 557 5 422 560 434 542 560 550 434 434 435 423 434 467 561 542 422 605 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-98048-157-0 01 1 0806-
5 PROTECTOR; HEAT
(B) 		8-98048-158-0 01 1 0806-
5 PROTECTOR; HEAT
(C) 		8-98048-159-0 01 1 0806-
5 PROTECTOR; HEAT
(D) 		8-98048-160-0 01 1 0806-
5 PROTECTOR; HEAT
(E) 		8-98048-161-0 01 1 0806-
5 PROTECTOR; HEAT
(F) 		8-98060-018-0 01 1 0806-
5 PROTECTOR; HEAT
(G) 		8-98060-019-0 01 1 0806-
5 PROTECTOR; HEAT
(H) 		8-98060-020-0 01 1 0806-
413 BRACKET; EXH PIPE,CONN 8-98048-297-0 01 1 0806-
414 BOLT; BRKT
M10X30 FLANGE 		0-28051-030-0 04 1 0806-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 04 1 0806-
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0806-1008
422 NUT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M10 FLANGE 		0-91180-210-0 02 1 1009-
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0806-1008
422 NUT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) M12 FLANGE 		0-91180-212-0 04 1 1009-
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 20 1 0806-0909
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 18 1 0910-
423 BOLT; PIPE
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0806-1008
423 BOLT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X30 FLANGE 		0-28051-030-0 02 1 1009-
423 BOLT; PIPE
(A) M12X35 FLANGE 		0-28051-235-0 02 1 0806-1008
423 BOLT; PIPE
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) M12X35 FLANGE 		0-28051-235-0 02 1 1009-
423 BOLT; PIPE
(B) M8X35 FLANGE 		0-28650-835-0 24 1 0806-
434 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0806-
434 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0806-1008
434 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) M10X30 FLANGE 		0-28051-030-0 02 1 1009-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0806-
434 BOLT; BRKT
(B) M10X25 FLANGE 		0-28051-025-0 04 1 0806-
435 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0806-
467 BOLT; PROTECTOR
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0806-
467 BOLT; PROTECTOR
(B) M6X16 		8-98019-179-0 16 1 0806-0909
467 BOLT; PROTECTOR
(B) M6X16 		8-98019-179-0 17 1 0910-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0806-
542 BRACKET 8-98048-298-2 02 1 0806-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0806-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0806-
550 BRACKET; DPD
(A) 		8-97616-254-0 01 1 0806-1008
550 BRACKET; DPD
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97616-254-0 01 1 1009-
550 BRACKET; DPD
(B) 		8-97616-255-0 01 1 0806-1008
550 BRACKET; DPD
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (B) 		8-97616-255-0 01 1 1009-
550 BRACKET; DPD
(C) 		8-98048-156-0 01 1 0806-
550 BRACKET; DPD
(D) 		8-98057-201-0 01 1 0806-
550 BRACKET; DPD
(E) 		8-98057-205-0 01 1 0806-
556 DPD ASM 8-98057-166-2 01 1 0806-0909
556 DPD ASM 8-98084-619-5 01 1 0910-
557 CATALYST ASM 8-98048-141-5 01 1 0806-
558 FILTER ASM 8-98061-187-2 01 1 0806-
559 COVER; RR 8-98057-197-1 01 1 0806-0909
559 COVER; RR 8-98084-621-0 01 1 0910-
560 GASKET; DPD 8-97381-467-0 02 1 0806-
561 PIPE; DPD
(A) 		8-98048-164-0 01 1 0806-0909
561 PIPE; DPD
(A) 		8-98084-625-1 01 1 0910-
561 PIPE; DPD
(B) 		8-98057-199-0 01 1 0806-0909
561 PIPE; DPD
(B) 		8-98084-624-1 01 1 0910-
605 PLATE; NUT
(A) 		8-97619-175-1 02 1 0806-1008
605 PLATE; NUT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (A) 		8-97619-175-1 02 1 1009-
605 PLATE; NUT
(C) 		8-97619-554-1 01 1 0806-1008
605 PLATE; NUT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> (C) 		8-97619-554-1 01 1 1009-
605 PLATE; NUT
(B) 		8-98048-577-0 02 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
