◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶

1-40 — FUEL TANK (#25167) — 97 parça

467 329 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
329	JOINT ASM; EYE,FUEL PIPE NEW ZEALAND EQUIPMENT(PK5) (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1009-
329	JOINT ASM; EYE,FUEL PIPE NEW ZEALAND EQUIPMENT(PK5) (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1009-
467	BOLT NEW ZEALAND EQUIPMENT(PK5) (B) NPTF3/8-18	8-97329-623-0	01	1	1009-
467	BOLT FUEL TANK 550L+450L<EDQ> (A) M8X20 FLANGE	0-28650-820-0	04	1	0806-

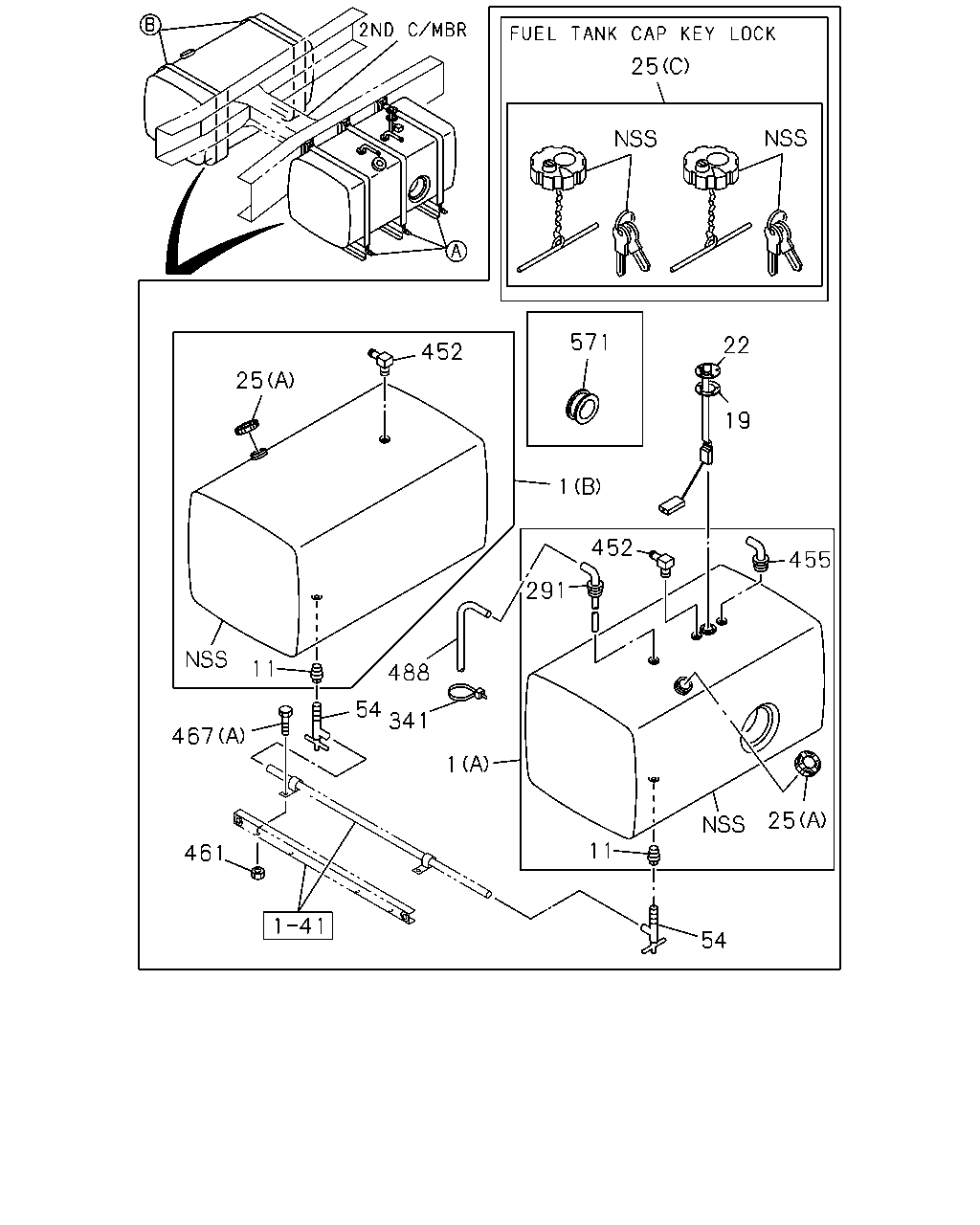

25 571 22 452 25 19 1 452 455 291 11 488 54 341 467 1 25 11 461 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A) 1250X700X700 550L	8-98063-226-2	01	1	0806-
1	TANK; FUEL FUEL TANK 550L+450L<EDQ> (B) 1050X700X700 450L	8-98093-781-0	01	1	0806-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0806-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0806-
19	GASKET; FUEL TANK UNIT ID=45 OD=67	1-83149-003-0	01	1	0806-
22	UNIT; FUEL TANK	1-83141-150-1	01	1	0806-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP> FUEL TANK CAP KEY LOCK<N05> (B)	8-98096-700-0	01	1	0806-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0806-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0806-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> FUEL TANK CAP KEY LOCK<N05> (C)	8-98117-149-0	01	1	0806-
54	COCK ASM; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-09680-097-0	02	1	0806-
291	PIPE; FUEL,SUCTION FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	8-98098-902-0	01	1	0806-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5) L=350	1-09707-183-0	02	1	1009-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5) L=350	1-09707-183-0	02	1	1009-
452	BREATHER; FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0806-
452	BREATHER; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0806-
455	PIPE; FUEL,RETURN FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-016-0	01	1	0806-
461	NUT; CLIP,FUEL PIPE FUEL TANK 550L+450L<EDQ> M8 FLANGE	0-91180-108-0	04	1	0806-
467	BOLT NEW ZEALAND EQUIPMENT(PK5) (B) NPTF3/8-18	8-97329-623-0	01	1	1009-
467	BOLT FUEL TANK 550L+450L<EDQ> (A) M8X20 FLANGE	0-28650-820-0	04	1	0806-
488	HOSE; RUBBER FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5)	8-98151-246-0	01	1	1009-
488	HOSE; RUBBER FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5)	8-98151-246-0	01	1	1009-
571	GROMMET FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5) ID=24 OD=30 T=22	1-09332-126-0	01	1	1009-

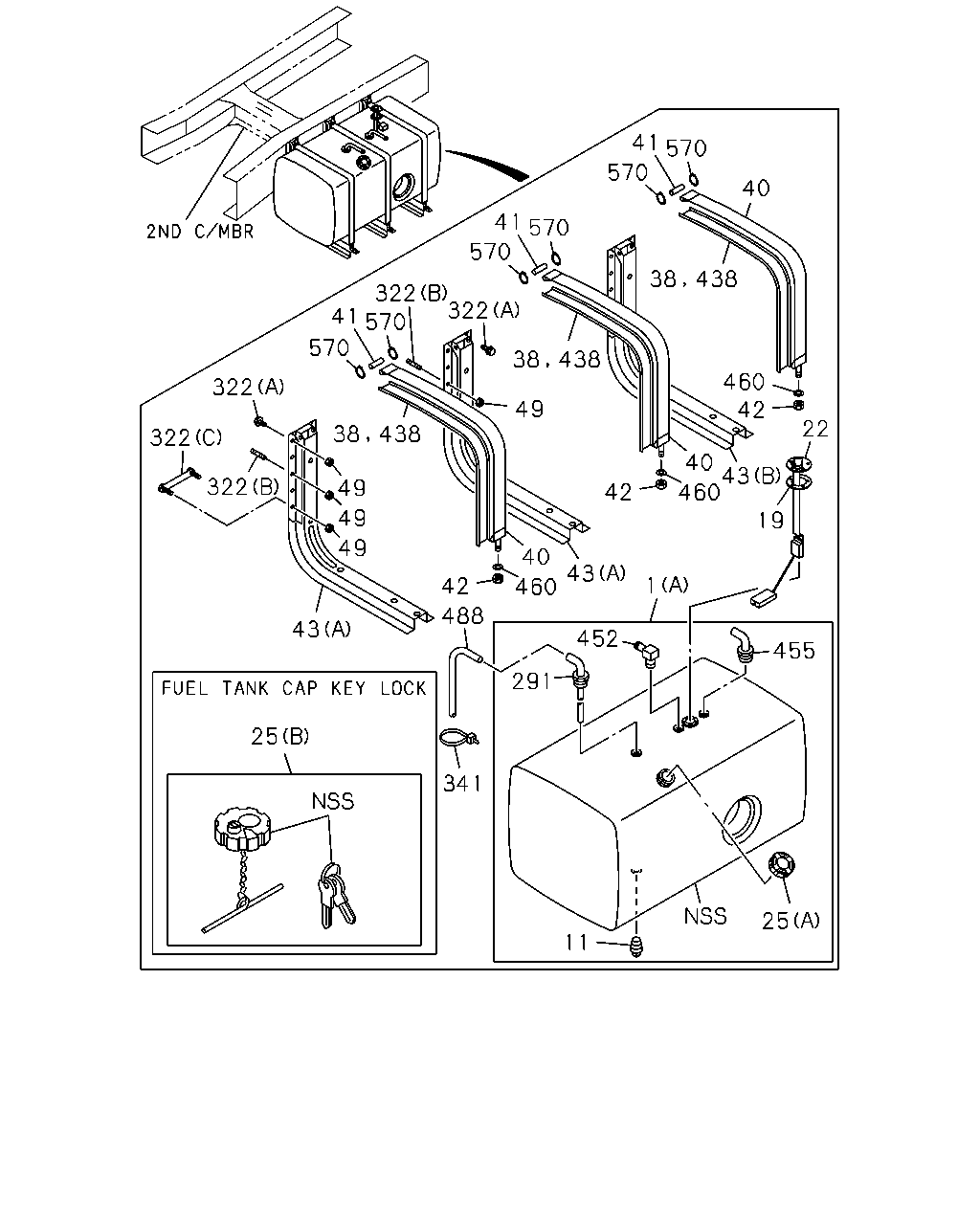

41 570 570 40 41 570 570 38 322 322 41 570 570 38 460 42 322 49 22 322 40 43 460 322 49 42 49 19 49 40 43 460 1 42 488 43 452 455 291 25 341 25 11 438 438 38 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A) 1250X700X700 550L	8-98063-226-2	01	1	0806-
1	TANK; FUEL FUEL TANK 550L+450L<EDQ> (B) 1050X700X700 450L	8-98093-781-0	01	1	0806-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0806-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-018-0	01	1	0806-
19	GASKET; FUEL TANK UNIT ID=45 OD=67	1-83149-003-0	01	1	0806-
22	UNIT; FUEL TANK	1-83141-150-1	01	1	0806-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP> FUEL TANK CAP KEY LOCK<N05> (B)	8-98096-700-0	01	1	0806-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0806-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	1-22441-015-0	01	1	0806-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L+450L<EDQ> FUEL TANK CAP KEY LOCK<N05> (C)	8-98117-149-0	01	1	0806-
38	INSULATION; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0806-
38	INSULATION; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0806-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L<EDP>	8-98048-517-0	03	1	0806-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98048-517-0	05	1	0806-
41	PIN; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-491-0	03	1	0806-
41	PIN; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-491-0	05	1	0806-
42	NUT; SUPPORT BELT FUEL TANK 550L<EDP>	1-22559-027-0	03	1	0806-
42	NUT; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	1-22559-027-0	05	1	0806-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (A)	8-98093-785-0	02	1	0806-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (B)	8-98093-786-0	01	1	0806-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	8-98093-785-0	03	1	0806-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ> (B)	8-98093-786-0	02	1	0806-
49	NUT; BRKT FUEL TANK 550L<EDP> M12	0-91110-512-0	06	1	0806-
49	NUT; BRKT FUEL TANK 550L+450L<EDQ> M12	0-91110-512-0	14	1	0806-
291	PIPE; FUEL,SUCTION FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	8-98098-902-0	01	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (A) M12X45 FLANGE	0-28051-245-0	12	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (B) M12X50 L=66	1-09300-124-0	04	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (C)	8-98093-605-0	01	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (A) M12X45 FLANGE	0-28051-245-0	16	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (B) M12X50 L=66	1-09300-124-0	08	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (C)	8-98093-605-0	03	1	0806-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5) L=350	1-09707-183-0	02	1	1009-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5) L=350	1-09707-183-0	02	1	1009-
438	LINER; RUBBER FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0806-0806
438	LINER; RUBBER FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0806-0806
452	BREATHER; FUEL TANK FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0806-
452	BREATHER; FUEL TANK FUEL TANK 550L+450L<EDQ>	1-22419-017-0	01	1	0806-
455	PIPE; FUEL,RETURN FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ>	1-22419-016-0	01	1	0806-
460	WASHER; PL,BRKT FUEL TANK 550L<EDP> ID=17 OD=32	9-09160-616-0	03	1	0806-
460	WASHER; PL,BRKT FUEL TANK 550L+450L<EDQ> ID=17 OD=32	9-09160-616-0	05	1	0806-
488	HOSE; RUBBER FUEL TANK 550L<EDP>,FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5)	8-98151-246-0	01	1	1009-
488	HOSE; RUBBER FUEL TANK 550L+450L<EDQ> NEW ZEALAND EQUIPMENT(PK5)	8-98151-246-0	01	1	1009-
570	CLIP; PIN FUEL TANK 550L<EDP>	1-22559-024-0	06	1	0806-
570	CLIP; PIN FUEL TANK 550L+450L<EDQ>	1-22559-024-0	10	1	0806-

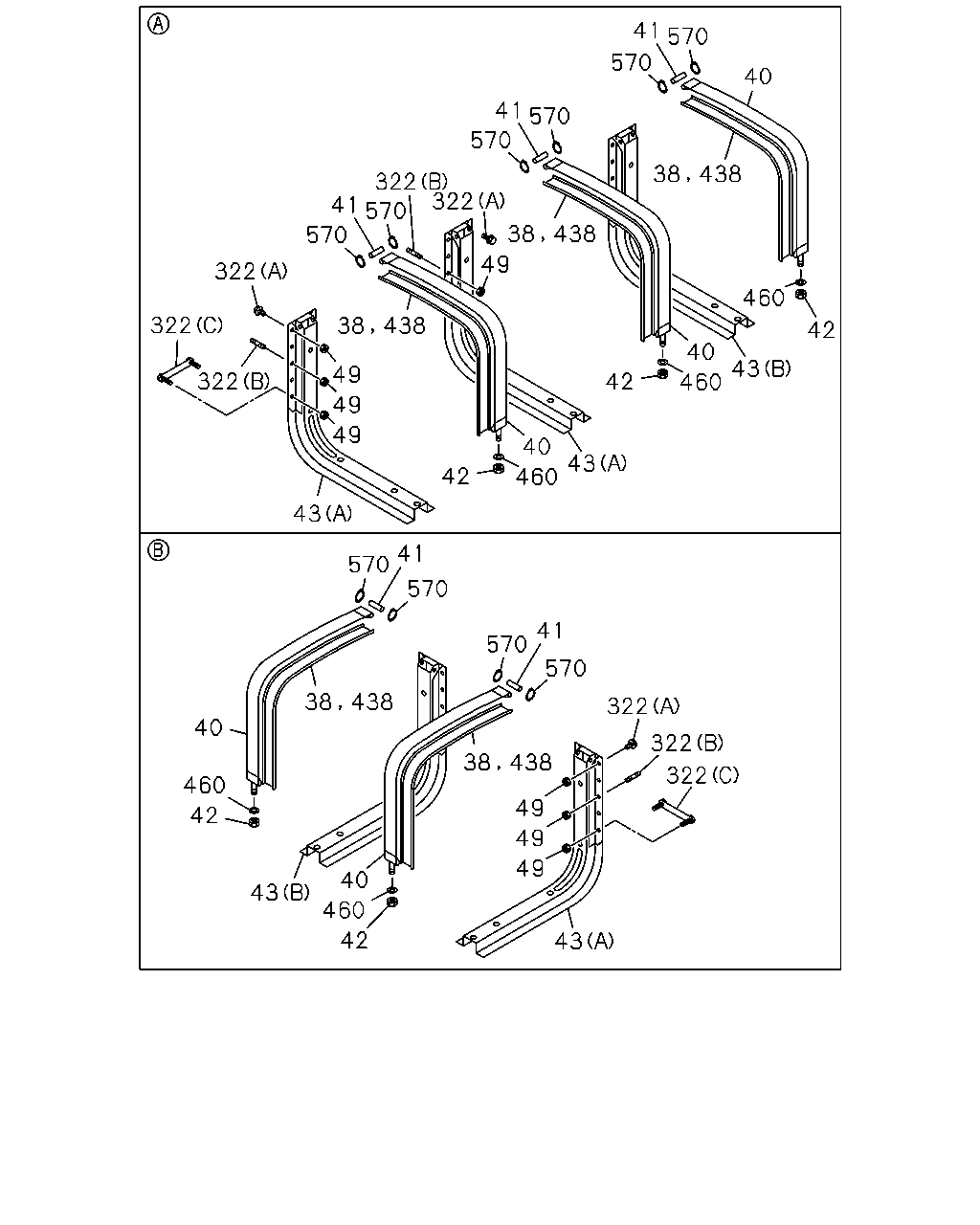

41 570 570 40 41 570 570 38 322 322 41 570 38 570 49 322 460 322 38 42 40 43 460 49 322 42 49 49 40 43 460 42 43 41 570 570 41 570 570 38 322 40 322 38 322 460 49 42 49 49 40 43 460 42 43 438 438 438 438 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	INSULATION; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0806-
38	INSULATION; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0806-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L<EDP>	8-98048-517-0	03	1	0806-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L+450L<EDQ>	8-98048-517-0	05	1	0806-
41	PIN; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-491-0	03	1	0806-
41	PIN; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	8-98048-491-0	05	1	0806-
42	NUT; SUPPORT BELT FUEL TANK 550L<EDP>	1-22559-027-0	03	1	0806-
42	NUT; SUPPORT BELT FUEL TANK 550L+450L<EDQ>	1-22559-027-0	05	1	0806-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (A)	8-98093-785-0	02	1	0806-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (B)	8-98093-786-0	01	1	0806-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ> (A)	8-98093-785-0	03	1	0806-
43	BRACKET; FUEL TANK FUEL TANK 550L+450L<EDQ> (B)	8-98093-786-0	02	1	0806-
49	NUT; BRKT FUEL TANK 550L<EDP> M12	0-91110-512-0	06	1	0806-
49	NUT; BRKT FUEL TANK 550L+450L<EDQ> M12	0-91110-512-0	14	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (A) M12X45 FLANGE	0-28051-245-0	12	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (B) M12X50 L=66	1-09300-124-0	04	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> (C)	8-98093-605-0	01	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (A) M12X45 FLANGE	0-28051-245-0	16	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (B) M12X50 L=66	1-09300-124-0	08	1	0806-
322	BOLT; BRKT FIX FUEL TANK 550L+450L<EDQ> (C)	8-98093-605-0	03	1	0806-
438	LINER; RUBBER FUEL TANK 550L<EDP>	8-98048-490-0	03	1	0806-0806
438	LINER; RUBBER FUEL TANK 550L+450L<EDQ>	8-98048-490-0	05	1	0806-0806
460	WASHER; PL,BRKT FUEL TANK 550L<EDP> ID=17 OD=32	9-09160-616-0	03	1	0806-
460	WASHER; PL,BRKT FUEL TANK 550L+450L<EDQ> ID=17 OD=32	9-09160-616-0	05	1	0806-
570	CLIP; PIN FUEL TANK 550L<EDP>	1-22559-024-0	06	1	0806-
570	CLIP; PIN FUEL TANK 550L+450L<EDQ>	1-22559-024-0	10	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
