Sayfa 1-31 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

1-31 — AIR DUCT (#25165) — 161 parça

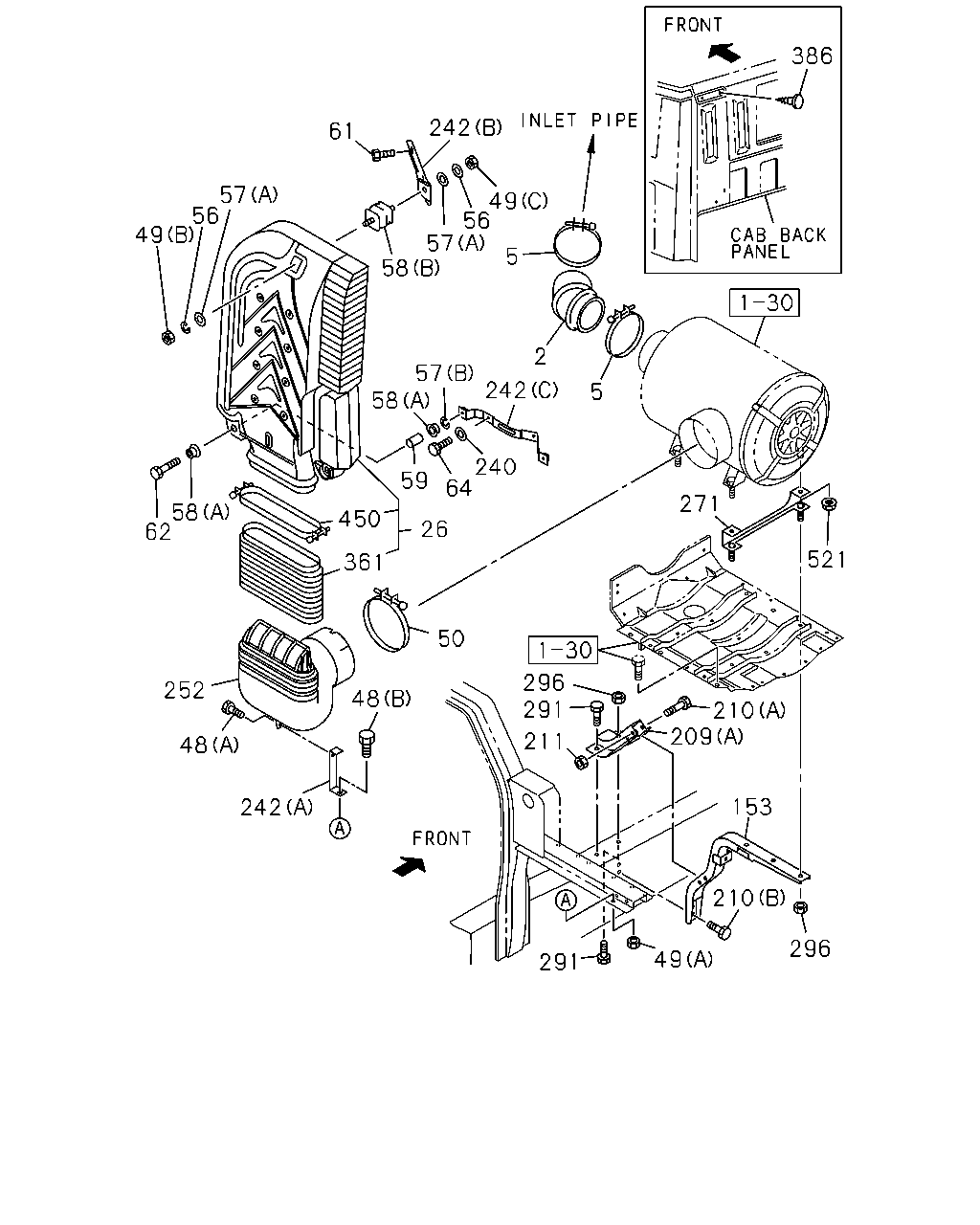

386 242 61 57 56 49 49 56 57 58 5 2 57 58 242 5 240 64 59 271 58 62 450 26 521 361 50 296 291 252 48 210 209 211 48 153 242 210 296 49 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-955-1	01	1	0806-1008	●
2	HOSE; ACL	1-14231-955-1	01	1	1009-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0806-1008	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	1009-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	1009-	●	●
26	DUCT; AIR INT	1-14230-202-2	01	1	0806-1003	●
26	DUCT; AIR INT	8-98122-904-2	01	1	1004-1008	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1009-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	1009-	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0806-	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0806-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	01	1	1009-	●	●
49	NUT; AIR DUCT (C) M8	0-91110-508-0	01	1	0806-0808	●
49	NUT; AIR DUCT (C) M8 FLANGE	1-09984-122-0	01	1	0809-1008	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	1009-	●	●
49	NUT; AIR DUCT (A) M10 FLANGE	0-91180-210-0	01	1	0806-	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	01	1	0806-1008	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	1009-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0806-1008	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	1009-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	1009-	●	●
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	02	1	0806-1008	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	1009-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	1009-	●	●
57	WASHER; PL,AIR INT DUCT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0806-1008	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1009-	●	●
57	WASHER; PL,AIR INT DUCT (A) ID=8.4 OD=22	1-09985-188-0	02	1	0806-1008	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	1009-	●	●
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> (B)	1-14119-452-0	01	1	0806-0810	●
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> (B)	8-98125-944-0	01	1	0811-0907	●
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (B)	8-98125-944-1	01	1	0908-1008	●
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (B)	8-98125-944-1	01	1	1009-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0806-1008	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	1009-	●	●
58	SUPPORT; AIR INL DUCT EXC. GRIP OUT SIDE<W52> (B)	8-97080-149-0	01	1	0806-0907	●
58	SUPPORT; AIR INL DUCT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (B)	8-97080-149-0	01	1	0908-1008	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (B)	8-97080-149-0	01	1	1009-	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0806-	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0806-1008	●
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1009-	●	●
62	BOLT; AIR INT DUCT M10X60	1-09030-044-1	02	1	0806-1008	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	1009-	●	●
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0806-1008	●
64	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1009-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0806-1008	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	1009-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	1009-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	1009-	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0806-1008	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	1009-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0806-1008	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	1009-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0806-1008	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	1009-	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0806-1008	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
240	WASHER; PL,BRKT ID=8.4 OD=22	1-09985-188-0	01	1	0806-1008	●
240	WASHER; PL,BRKT EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	1009-	●	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> (C)	1-53419-351-1	01	1	0806-0807	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> (C)	8-98113-588-0	01	1	0808-0907	●	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (C)	8-98113-588-1	01	1	0908-1008	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (C)	8-98113-588-1	01	1	1009-	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0806-1008	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	1009-	●
242	BRACKET; AIR DUCT (B)	1-53419-325-1	01	1	0806-1008	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	1009-	●	●
242	BRACKET; AIR DUCT EXC. GRIP OUT SIDE<W52> (C)	8-98041-993-0	01	1	0806-0907	●
242	BRACKET; AIR DUCT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (C)	8-98041-993-1	01	1	0908-1008	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (C)	8-98041-993-1	01	1	1009-	●	●
252	DUCT; AIR INT	1-14230-194-0	01	1	0806-1008	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	1009-	●	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0806-1008	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	1009-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0806-1004	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1005-1008	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1009-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0806-1008	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
361	RUBBER; CUSHION,AIR DUCT	1-14230-149-2	01	1	0806-1008	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	1009-	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE,DRIVER & PASSENGER<W63> OD=15 L=14.5	1-76378-157-0	04	1	0908-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0806-0907	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE,DRIVER & PASSENGER<W63> OD=15 L=14.5	1-76378-157-0	01	1	0908-	●	●
450	CLAMP; HOSE	1-14239-237-0	01	1	0806-1008	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	1009-	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0806-1008	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	1009-	●	●

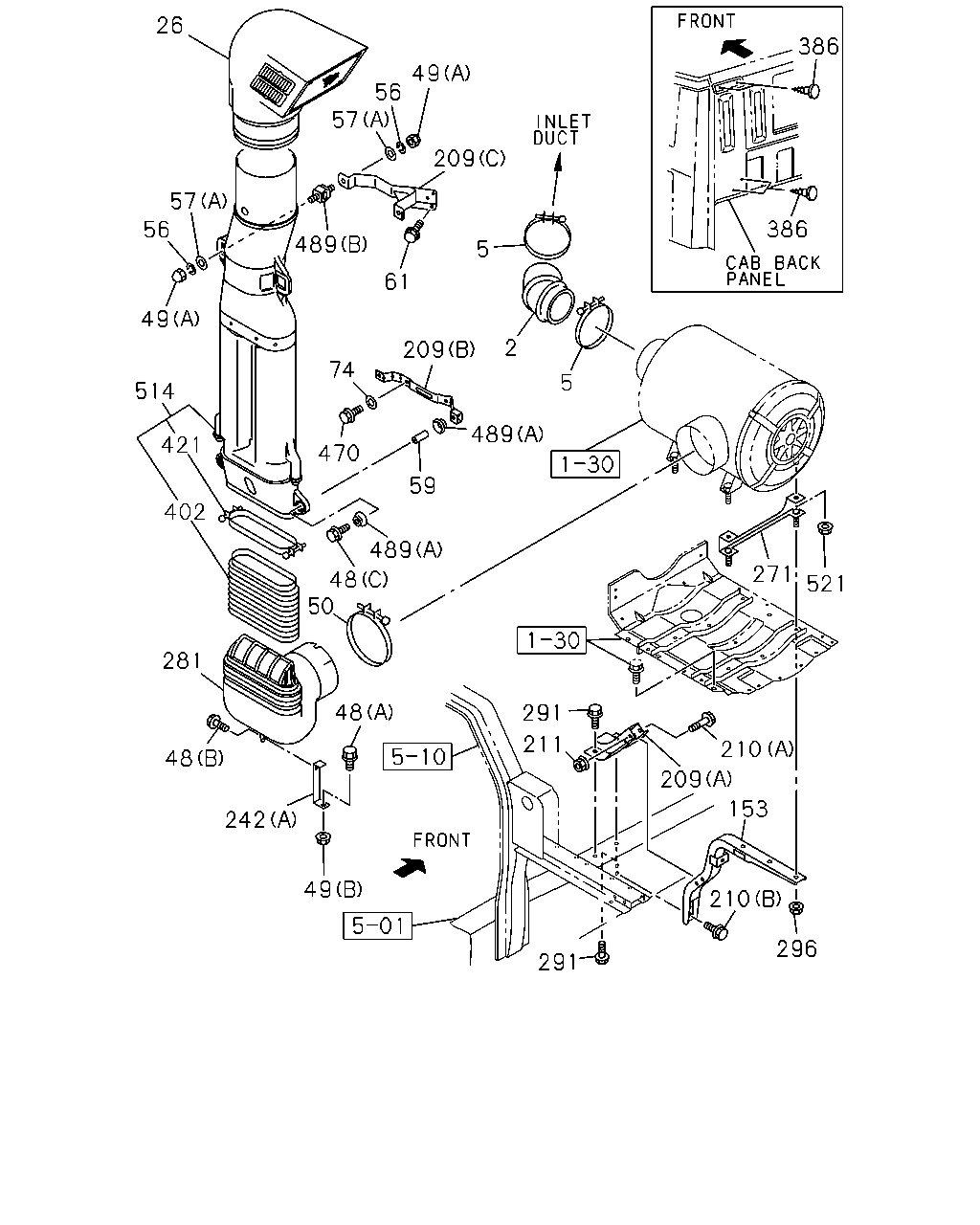

26 386 49 56 57 209 57 386 56 489 5 61 49 2 209 74 5 514 489 421 470 59 402 489 271 48 50 521 281 48 291 211 210 48 209 153 242 210 49 296 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-955-1	01	1	0806-1008	●
2	HOSE; ACL	1-14231-955-1	01	1	1009-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0806-1008	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	1009-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	1009-	●	●
26	DUCT; AIR INT	1-14230-202-2	01	1	0806-1003	●
26	DUCT; AIR INT	8-98122-904-2	01	1	1004-1008	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1009-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	1009-	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0806-	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0806-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	01	1	1009-	●	●
49	NUT; AIR DUCT (C) M8	0-91110-508-0	01	1	0806-0808	●
49	NUT; AIR DUCT (C) M8 FLANGE	1-09984-122-0	01	1	0809-1008	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	1009-	●	●
49	NUT; AIR DUCT (A) M10 FLANGE	0-91180-210-0	01	1	0806-	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	01	1	0806-1008	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M8 FLANGE	1-09984-126-0	04	1	1009-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0806-1008	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	1009-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	1009-	●	●
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	02	1	0806-1008	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	1009-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	1009-	●	●
57	WASHER; PL,AIR INT DUCT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0806-1008	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1009-	●	●
57	WASHER; PL,AIR INT DUCT (A) ID=8.4 OD=22	1-09985-188-0	02	1	0806-1008	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	1009-	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0806-	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0806-1008	●
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1009-	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	1009-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0806-1008	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	1009-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	1009-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	1009-	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0806-1008	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	1009-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0806-1008	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	1009-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0806-1008	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	1009-	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0806-1008	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-	●	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> (C)	1-53419-351-1	01	1	0806-0807	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> (C)	8-98113-588-0	01	1	0808-0907	●	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (C)	8-98113-588-1	01	1	0908-1008	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (C)	8-98113-588-1	01	1	1009-	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0806-1008	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	1009-	●
242	BRACKET; AIR DUCT (B)	1-53419-325-1	01	1	0806-1008	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	1009-	●	●
242	BRACKET; AIR DUCT EXC. GRIP OUT SIDE<W52> (C)	8-98041-993-0	01	1	0806-0907	●
242	BRACKET; AIR DUCT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (C)	8-98041-993-1	01	1	0908-1008	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (C)	8-98041-993-1	01	1	1009-	●	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0806-1008	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	1009-	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	1009-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0806-1004	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1005-1008	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1009-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0806-1008	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE,DRIVER & PASSENGER<W63> OD=15 L=14.5	1-76378-157-0	04	1	0908-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0806-0907	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE,DRIVER & PASSENGER<W63> OD=15 L=14.5	1-76378-157-0	01	1	0908-	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-2	01	1	1009-	●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	1009-	●	●
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	1009-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	1009-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	1009-	●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-1	01	1	1009-	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0806-1008	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	1009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
