◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#25164) — 41 parça
çizim 142456
1 6 8 94 1 27 26 94 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-837-0 01 1 1009- ● ●
1 CLEANER ASM; AIR
(B) 		8-98059-841-0 01 1 0806-1008 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		8-98059-841-0 01 1 1009- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 1009- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-166-0 01 1 1009- ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0806-1008 ●
8 COVER ASM; ACL 1-14212-132-0 01 1 1009- ● ●
26 FILTER; ACL,INNER 1-14215-220-0 01 1 0806-1008 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 1009- ● ●
27 FILTER; ACL,OUTER 1-14215-213-0 01 1 0806-1008 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 1009- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-166-0 01 1 0806-1008 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-166-0 01 1 1009- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0806-1008 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 1009- ● ●

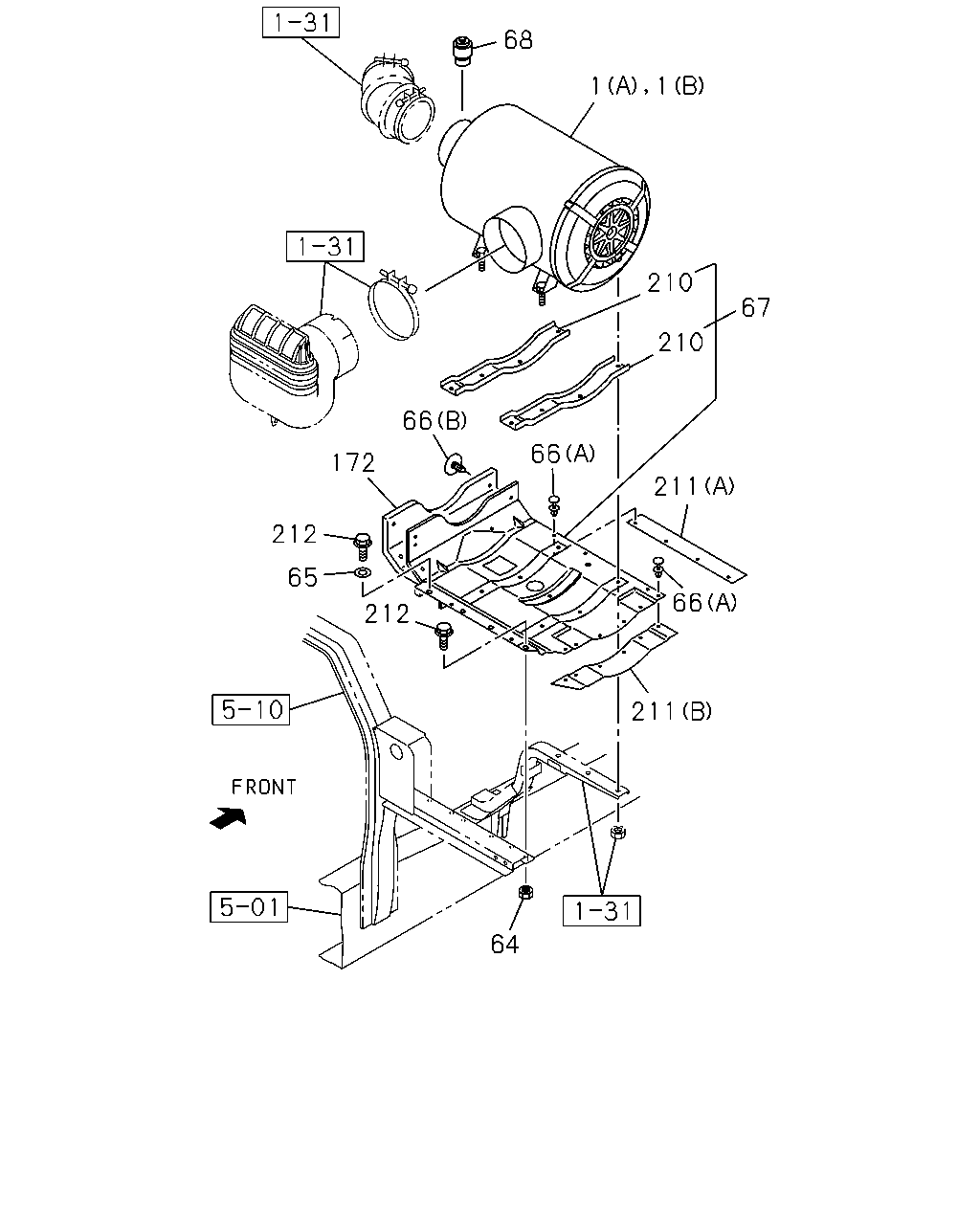

çizim 142461
68 1 1 210 67 210 66 66 172 211 212 65 212 66 211 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-837-0 01 1 1009- ● ●
1 CLEANER ASM; AIR
(B) 		8-98059-841-0 01 1 0806-1008 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		8-98059-841-0 01 1 1009- ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0806-1008 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 1009- ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0806-1008 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 1009-1204 ● ●
65 WASHER; PL
ID=10.5 		0-91610-710-0 04 1 1205- ●
66 CLIP; ACL
(A) 		5-09987-033-0 10 1 0806-1008 ●
66 CLIP; ACL
(A) 		5-09987-033-0 10 1 1009- ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 06 1 0806-1008 ●
66 CLIP; ACL
(B) 		8-94279-048-0 06 1 1009- ● ●
67 COVER; ACL 1-53419-416-0 01 1 0806-1008 ●
67 COVER; ACL 1-53419-416-0 01 1 1009- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0806-1008 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 1009- ● ●
172 INSULATOR; NOISE 1-53449-105-0 01 1 0806-1008 ●
172 INSULATOR; NOISE 1-53449-105-0 01 1 1009- ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0806-1008 ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 1009- ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0806-1008 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 1009- ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0806-1008 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 1009- ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0806-1008 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
