0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#25158) — 112 parça

1 2 167 17 33 20 77

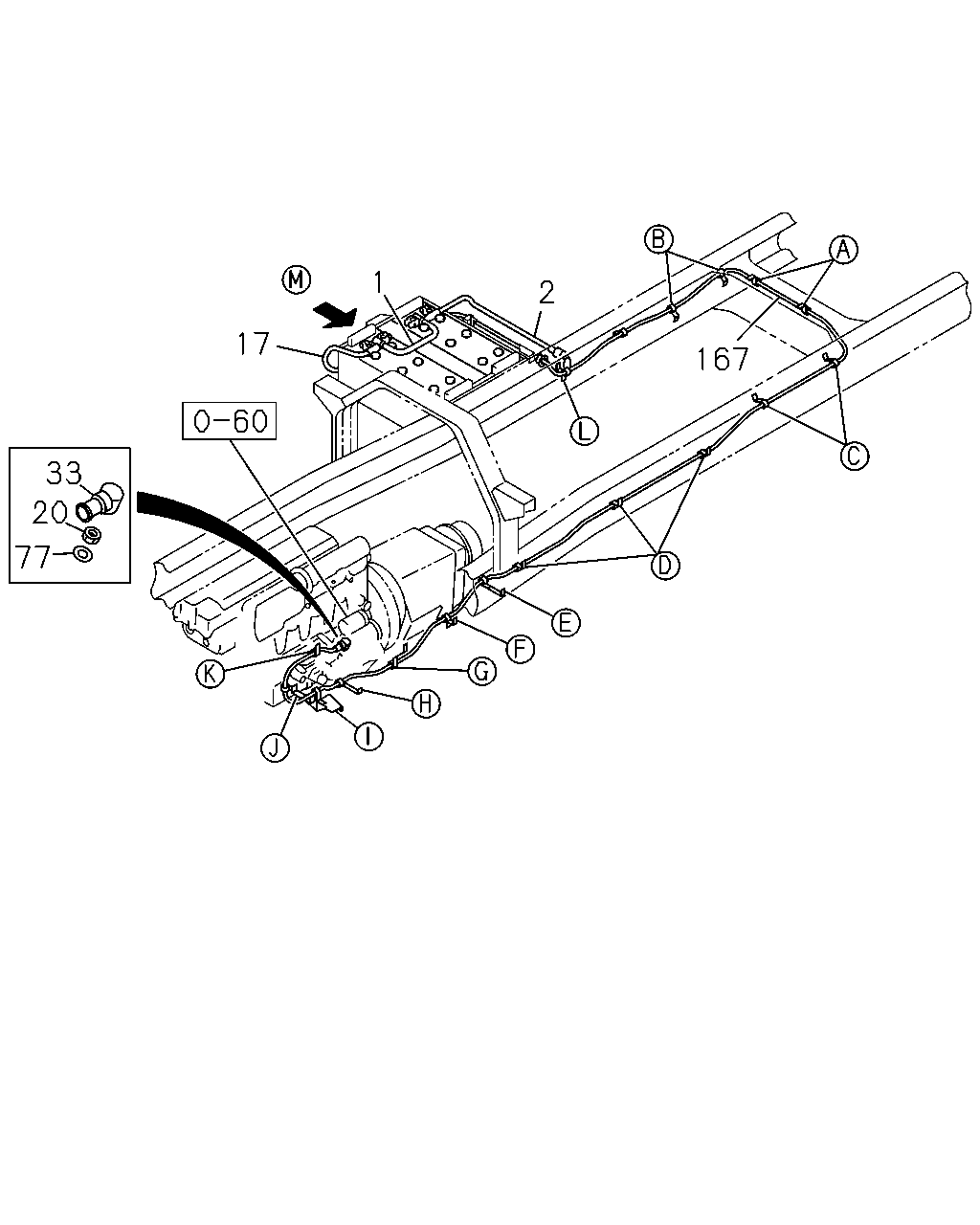

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=450	1-82650-389-1	01	1	1009-
1	CABLE; BATTERY L=450	1-82650-391-1	01	1	0806-1008
1	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> L=450	1-82650-391-1	01	1	1009-
2	CABLE; BATTERY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-384-1	01	1	1009-
2	CABLE; BATTERY L=720	1-82650-386-1	01	1	0806-1008
2	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-386-1	01	1	1009-
17	CABLE; BATTERY (+) TO RELAY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-760-3	01	1	1009-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-762-3	01	1	0806-1008
17	CABLE; BATTERY (+) TO RELAY BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-762-3	01	1	1009-
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	0806-
33	CAP; INSULATOR	8-97181-965-0	01	1	0806-
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	0806-
167	CABLE; BATTERY RELAY TO STARTER	8-97618-844-2	01	1	0806-

81 57 13 11 110 109 60 108 22 76 17 76 1 22 2 167 81 14 81 22 15 9 81 76 78 76 9 66 180 64 155 13 68 17 162 69 158 167 63 65

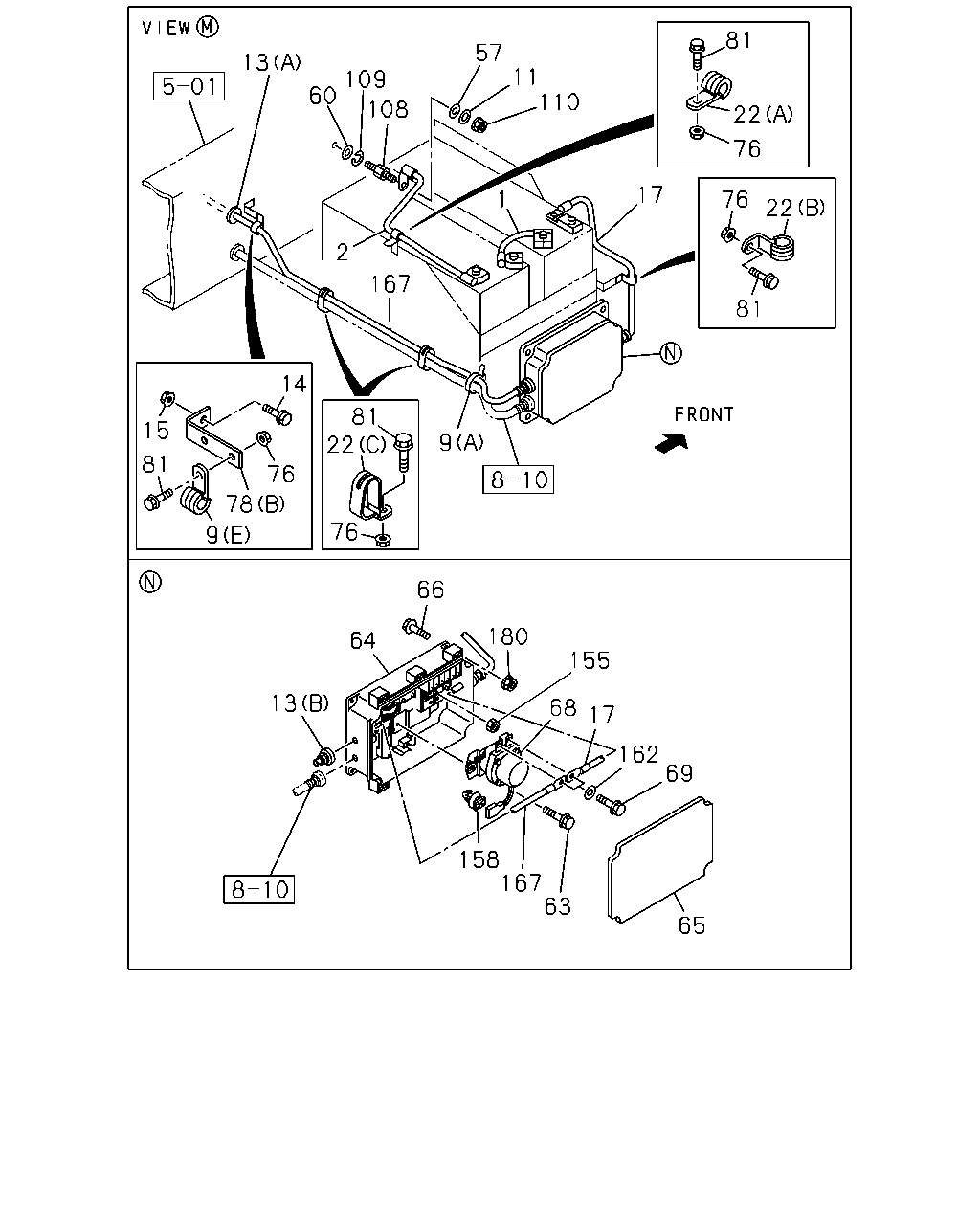

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=450	1-82650-389-1	01	1	1009-
1	CABLE; BATTERY L=450	1-82650-391-1	01	1	0806-1008
1	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> L=450	1-82650-391-1	01	1	1009-
2	CABLE; BATTERY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-384-1	01	1	1009-
2	CABLE; BATTERY L=720	1-82650-386-1	01	1	0806-1008
2	CABLE; BATTERY BATTERY CABLE W/TERMINAL CAP<ECQ> L=720	1-82650-386-1	01	1	1009-
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0806-1008
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	02	1	0806-
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0806-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0806-
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	03	1	0806-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	0806-
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	01	1	0806-1008
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	01	1	1009-
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	02	1	0806-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0806-
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	0806-
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	0806-
14	BOLT; BRKT CLIP M8X25 FLANGE	0-28650-825-0	01	1	0809-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	02	1	0806-0808
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	02	1	0806-
17	CABLE; BATTERY (+) TO RELAY EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-760-3	01	1	1009-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-762-3	01	1	0806-1008
17	CABLE; BATTERY (+) TO RELAY BATTERY CABLE W/TERMINAL CAP<ECQ> L=640	1-82652-762-3	01	1	1009-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0806-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0806-
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0806-
22	CLIP; BATTERY CABLE (A) ID=21 L=24	8-94176-807-1	01	1	0806-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0806-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0806-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0806-
64	BOX; BATTERY RELAY GENERATOR NIKKO 24V-90A 2.5KW(SD2)	1-82510-652-0	01	1	0806-
64	BOX; BATTERY RELAY EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2)	1-82510-650-0	01	1	0806-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0806-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0806-
68	RELAY; BATTERY	1-82550-313-0	01	1	0806-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0806-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0806-
78	BRACKET; CLIP BATTERY (A)	1-47478-113-0	01	1	0806-
78	BRACKET; CLIP BATTERY (B) L=82 B=20	1-47478-420-0	01	1	0806-1404
78	BRACKET; CLIP BATTERY (B) L=82 B=20	8-98259-390-0	01	1	1405-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	0806-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0806-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0806-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0806-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0806-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0806-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0806-
167	CABLE; BATTERY RELAY TO STARTER	8-97618-844-2	01	1	0806-
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0806-

100 10 101 99 12 100 99 101 100 99 9 101 24 10 9 10 12 24 24 9 9 28 28 9 10 28 23 23 23 28 23 12 9 15 14 12 10 12 23 61 75 81 9 78 9 18 28 12

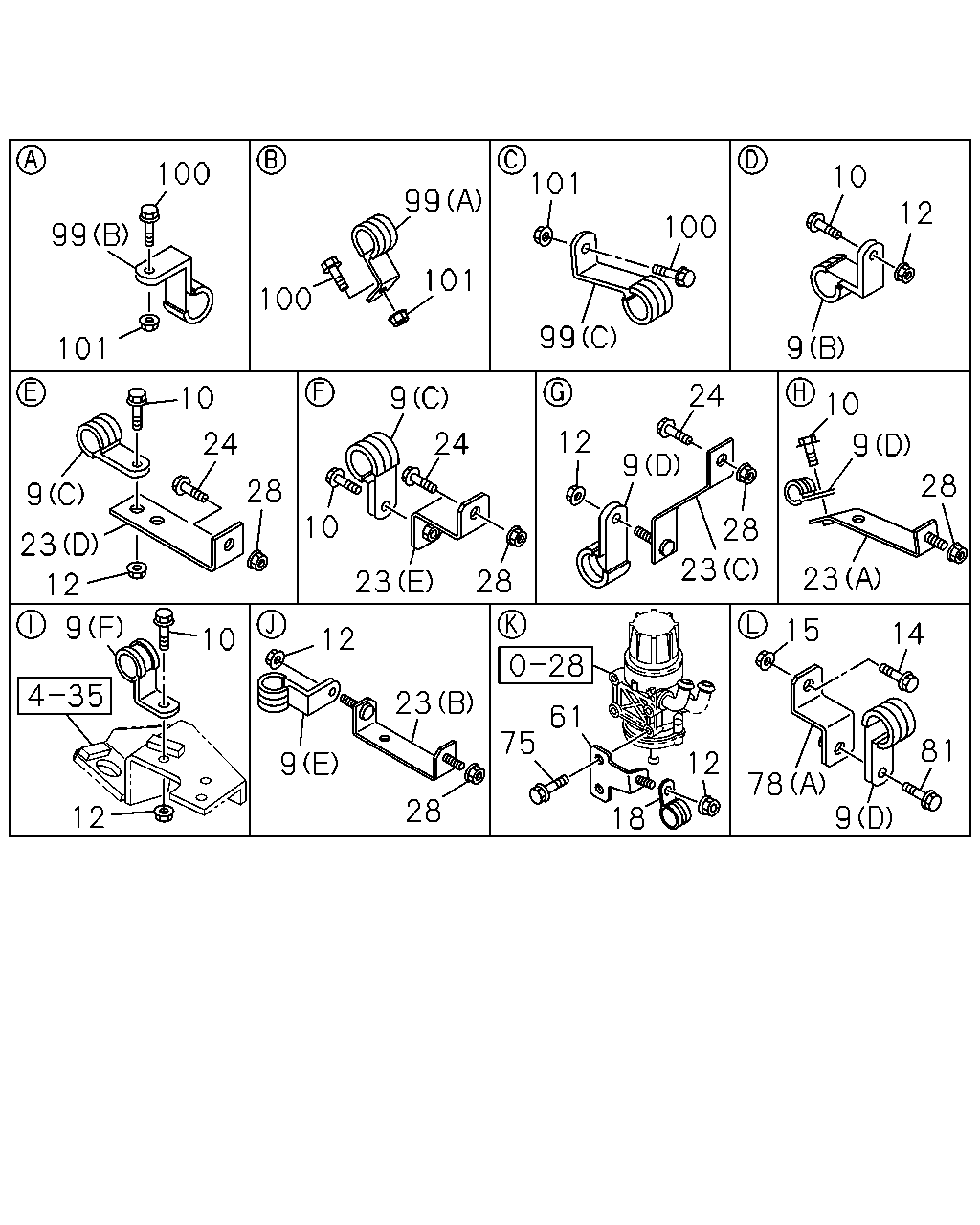

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0806-1008
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	02	1	0806-
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0806-
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0806-
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	03	1	0806-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	01	1	0806-
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	01	1	0806-1008
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	01	1	1009-
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	02	1	0806-
10	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0809-
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0806-0808
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28650-820-0	04	1	0809-
10	BOLT; BATTERY CABLE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0806-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	10	1	0806-
14	BOLT; BRKT CLIP M8X25 FLANGE	0-28650-825-0	01	1	0809-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	02	1	0806-0808
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	02	1	0806-
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	0806-
23	BRACKET; CABLE CLIP TO FRAME (E)	1-47478-113-0	01	1	0806-
23	BRACKET; CABLE CLIP TO FRAME (D) L=95	1-82698-557-0	01	1	0806-
23	BRACKET; CABLE CLIP TO FRAME (A)	1-82698-574-0	01	1	0806-
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82698-589-0	01	1	0806-
23	BRACKET; CABLE CLIP TO FRAME (C)	8-98095-080-1	01	1	0806-
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0806-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0806-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0806-
61	BRACKET; BATTERY CABLE	1-82698-587-0	01	1	0806-
75	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0806-
78	BRACKET; CLIP BATTERY (A)	1-47478-113-0	01	1	0806-
78	BRACKET; CLIP BATTERY (B) L=82 B=20	1-47478-420-0	01	1	0806-1404
78	BRACKET; CLIP BATTERY (B) L=82 B=20	8-98259-390-0	01	1	1405-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	0806-
99	CLIP; BATTERY CABLE (A) ID=21 L=30 H=40	1-09700-991-1	02	1	0806-
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	02	1	0806-
99	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	02	1	0806-
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	06	1	0806-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	06	1	0806-

64 208 208 208 208

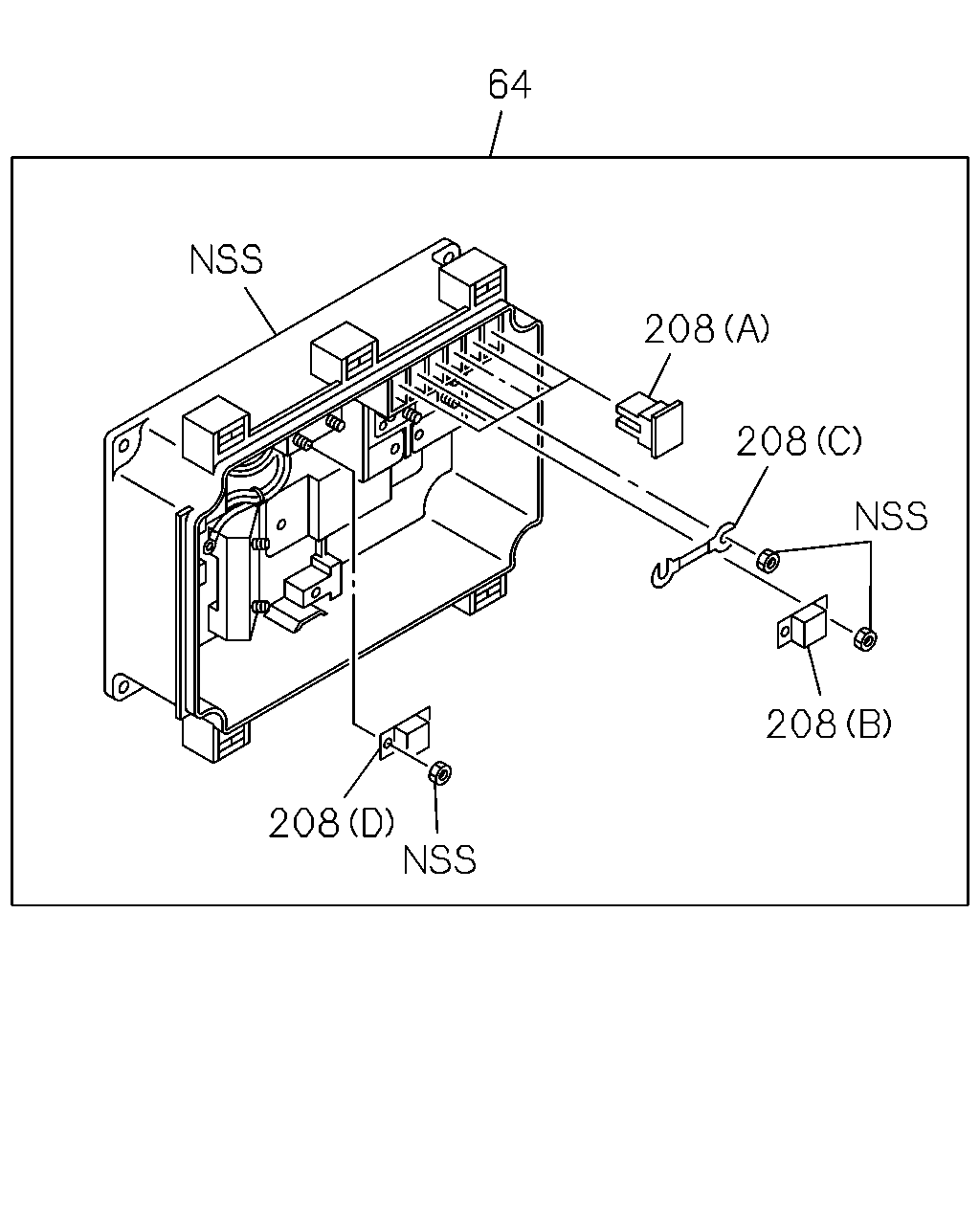

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY GENERATOR NIKKO 24V-90A 2.5KW(SD2)	1-82510-652-0	01	1	0806-
64	BOX; BATTERY RELAY EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2)	1-82510-650-0	01	1	0806-
208	FUSE GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) 125A	9-82941-130-1	01	1	0806-
208	FUSE (D) 80A	1-82516-031-0	01	1	0806-1008
208	FUSE (D) 80A	1-82516-031-0	01	1	1009-
208	FUSE (A) 40A GREEN	8-94468-662-0	06	1	0806-1008
208	FUSE (A) 40A GREEN	8-94468-662-0	06	1	1009-
208	FUSE EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) 100A	1-82516-032-0	01	1	0806-
