◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11117 - EXY AUST/NZ HYDRAULIC RETARDER ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#25157) — 143 parça

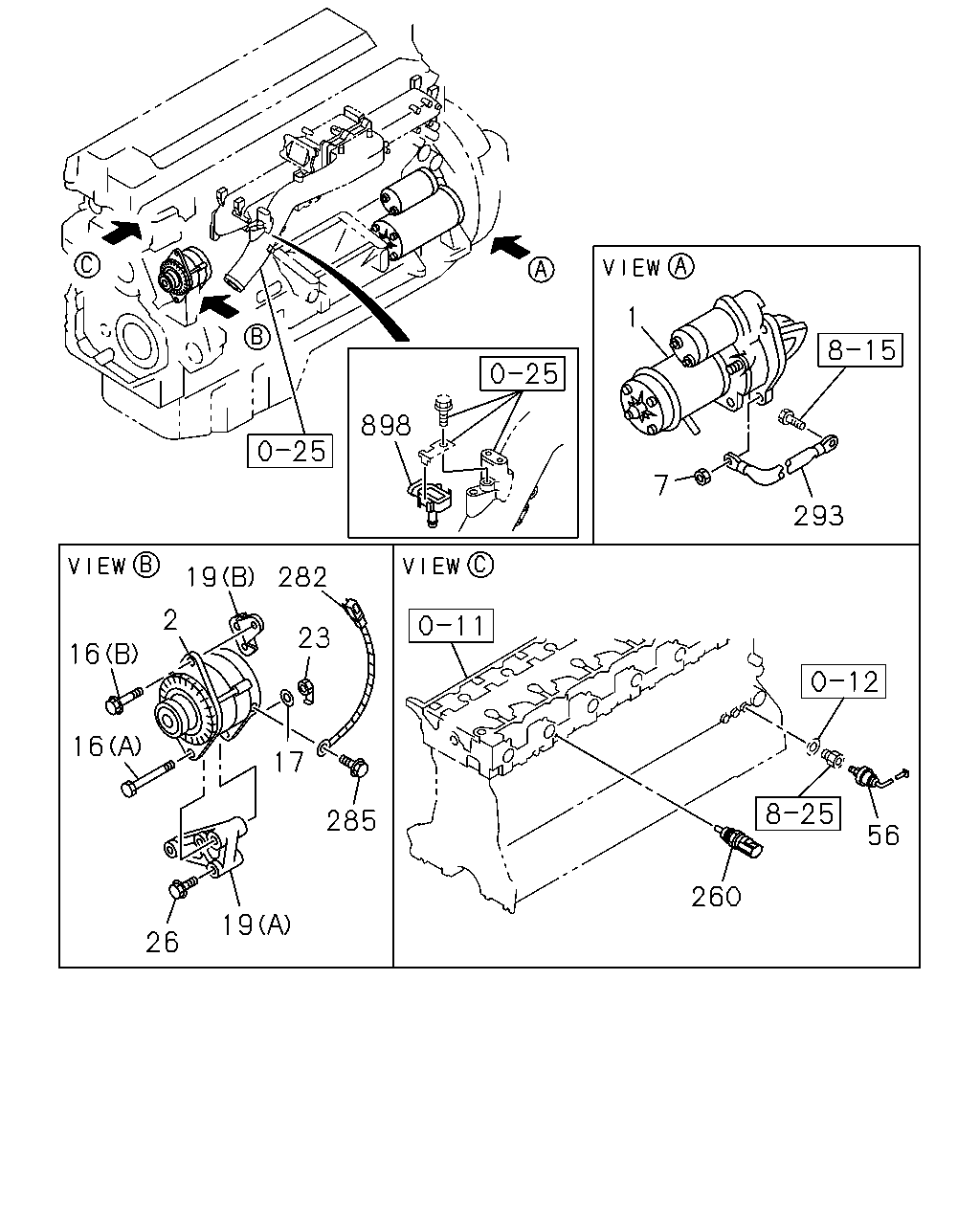

çizim 142438
1 7 293 56 260 23 282 19 2 16 16 17 285 19 26 898
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 0806-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		8-98013-613-4 01 1 0806-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI 		8-98013-614-3 01 1 0806-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0806-
16 BOLT; GEN
GENERATOR 24V-60A 1.5KW(SC8) (A) M14X123 		1-09040-105-0 01 1 0806-
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 0806-
16 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) M14X157 		1-09040-106-0 01 1 0806-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0806-
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 0806-
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 0806-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0806-0910
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0911-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0806-
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 0806-
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0806-1406
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1407-
282 HARNESS; EXT,GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82640-682-2 01 1 0806-
285 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8X12 FLANGE 		0-28050-812-0 01 1 0806-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0806-
898 SENSOR; BOOST 8-98009-418-0 01 1 0806-

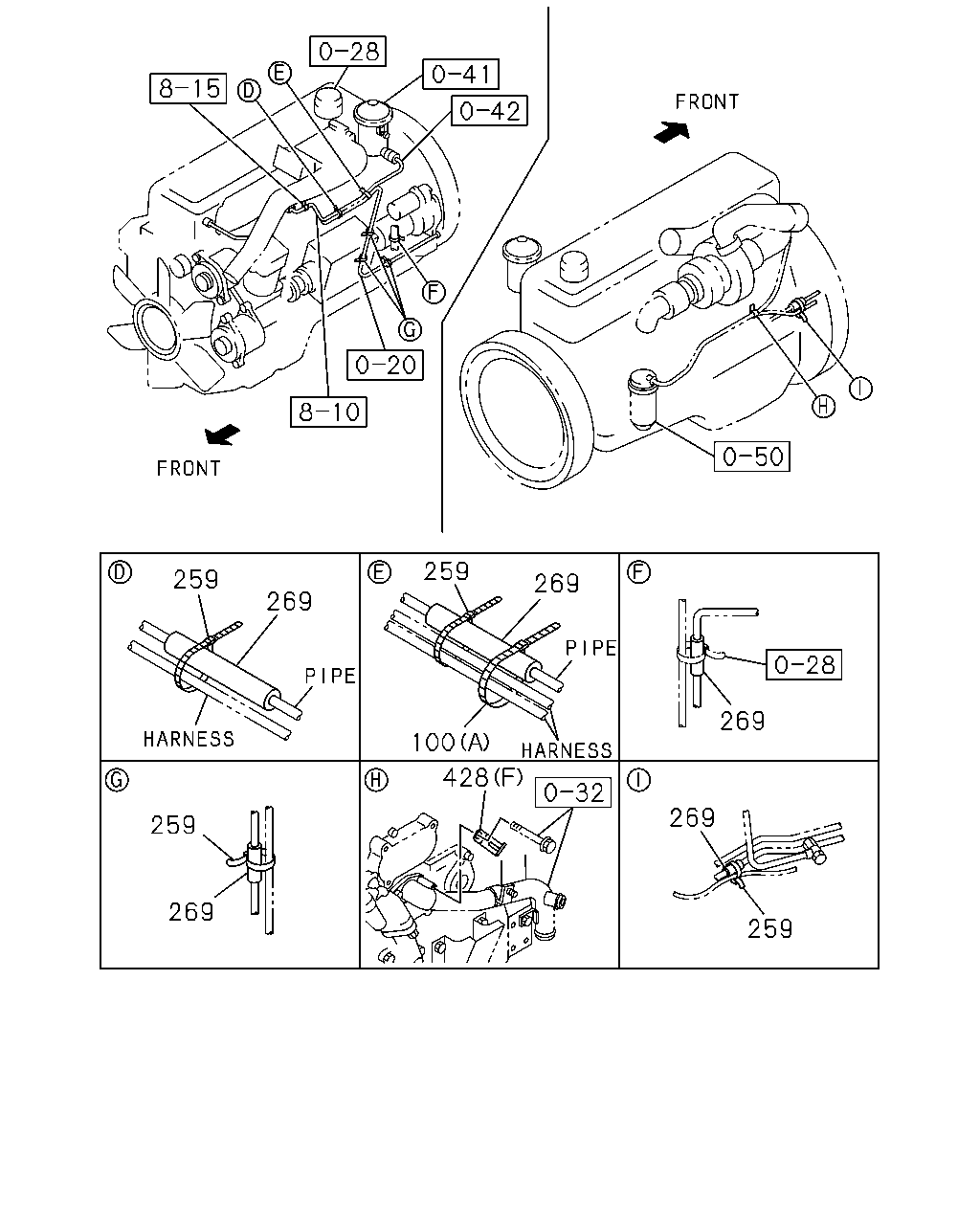

çizim 142439
259 259 269 269 269 100 428 269 259 269 259
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 01 1 0806-
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0806-1205
100 CLIP; HARNESS
(A) L=140 		8-98216-431-0 02 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		5-09707-031-1 06 1 0806-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		8-98216-431-0 06 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 0806-
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0806-
428 CLIP; HARNESS
(F) L=36 		8-94224-891-1 01 1 0806-
428 CLIP; HARNESS
(A) ID=30X2 L=28 		1-09701-266-0 01 1 0806-
428 CLIP; HARNESS
(D) ID=35X2 L=32 		1-09701-314-0 03 1 0806-
428 CLIP; HARNESS
(E) L=350 		1-09707-183-0 01 1 0806-
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 0806-
428 CLIP; HARNESS
(B) 		1-82699-993-1 01 1 0806-
428 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0806-

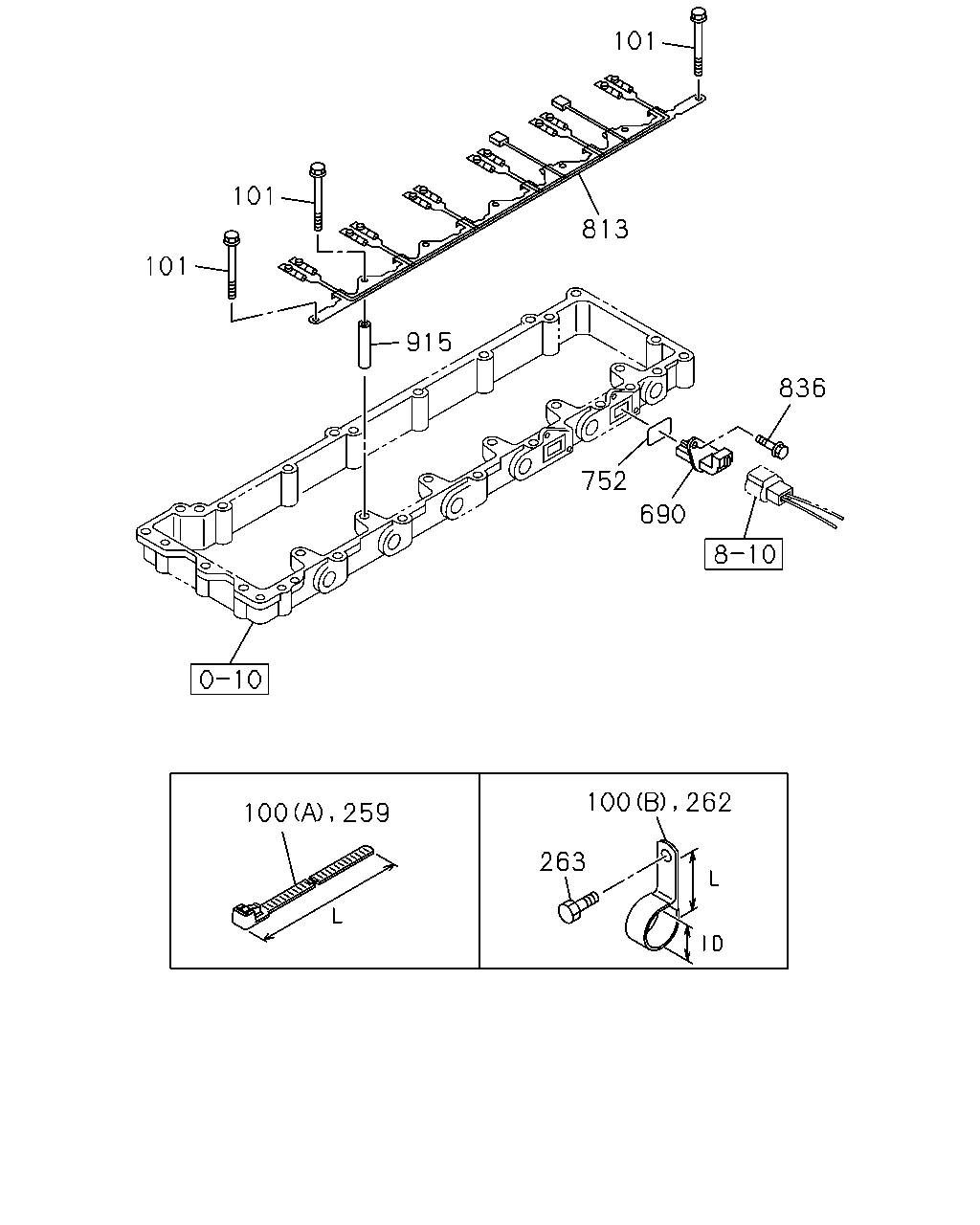

çizim 142440
101 101 813 101 915 836 752 690 100 259 263 100 262
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 01 1 0806-
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0806-1205
100 CLIP; HARNESS
(A) L=140 		8-98216-431-0 02 1 1206-
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 0806-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		5-09707-031-1 06 1 0806-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		8-98216-431-0 06 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 0806-
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 01 1 0806-
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0806-
690 CONNECTOR 8-94390-858-1 02 1 0806-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0806-
813 HARNESS; INJECTOR 1-82641-338-1 01 1 0806-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0806-
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 0806-

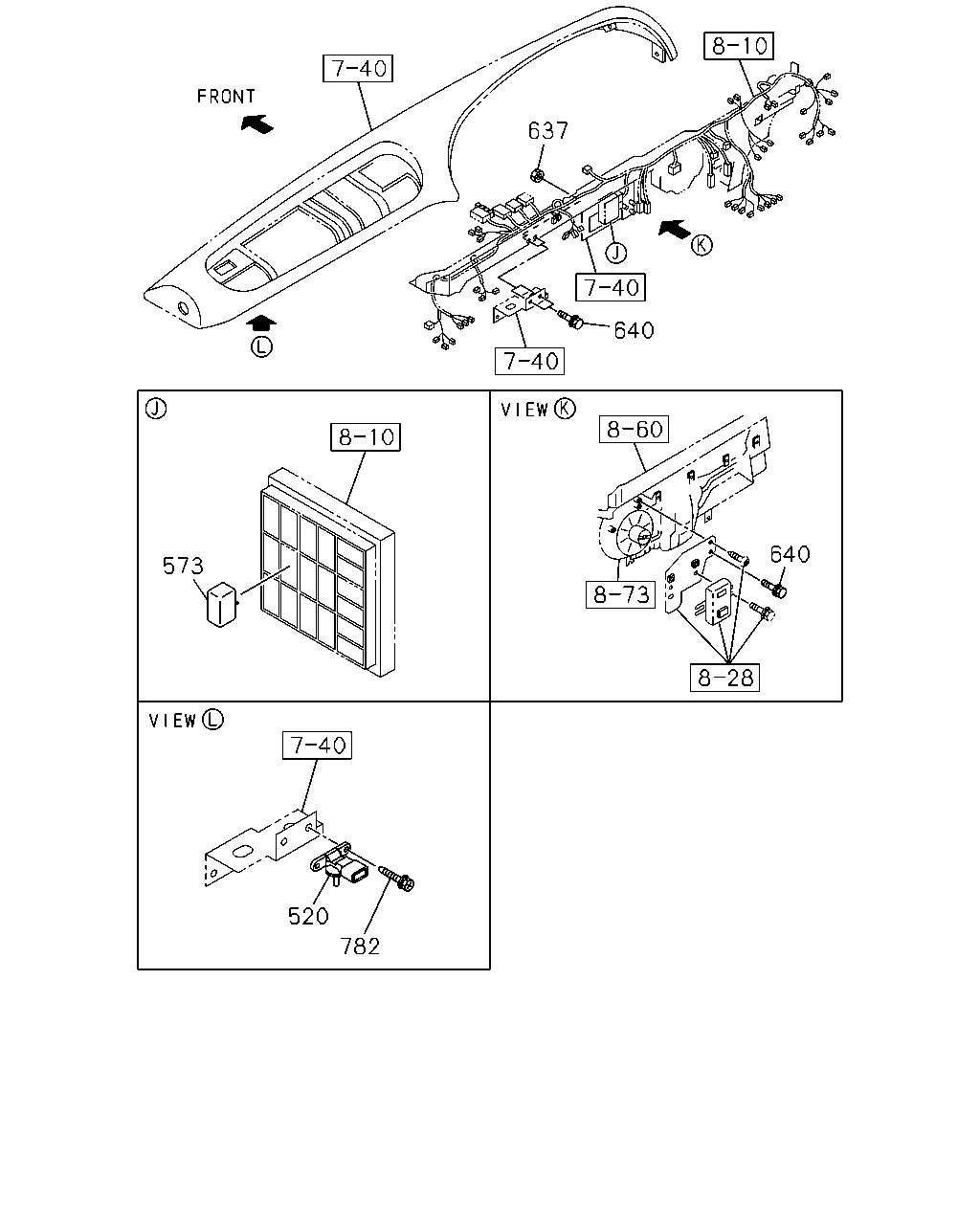

çizim 142441
637 640 640 573 520 782
BalonParca AdiParca NoAdetTipApplied Date
520 SENSOR; PRESSURE 8-98020-514-0 01 1 0806-
573 RELAY; ELEC GOV
24V 10A PANASONIC 		8-97173-035-1 01 1 0806-1008
573 RELAY; ELEC GOV
ENGINE CONTROL-B2(Q4T) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-
637 NUT; FLANGE
M6 FLANGE 		0-91180-106-0 02 1 0806-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0806-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0806-
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0806-
çizim 142442
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER 1-81171-100-1 01 1 0806-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0806-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 0806-
çizim 142443
612 611
BalonParca AdiParca NoAdetTipApplied Date
611 BRACKET; SENSOR 8-97618-867-0 01 1 0806-1008
611 BRACKET; SENSOR
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> 		8-97618-867-0 01 1 1009-
612 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 02 1 0806-1008
612 BOLT; BRKT
JAPAN NEW LONG TERM 2005 EMISSION STANDARD<JBG> M8X25 FLANGE 		0-28050-825-0 02 1 1009-

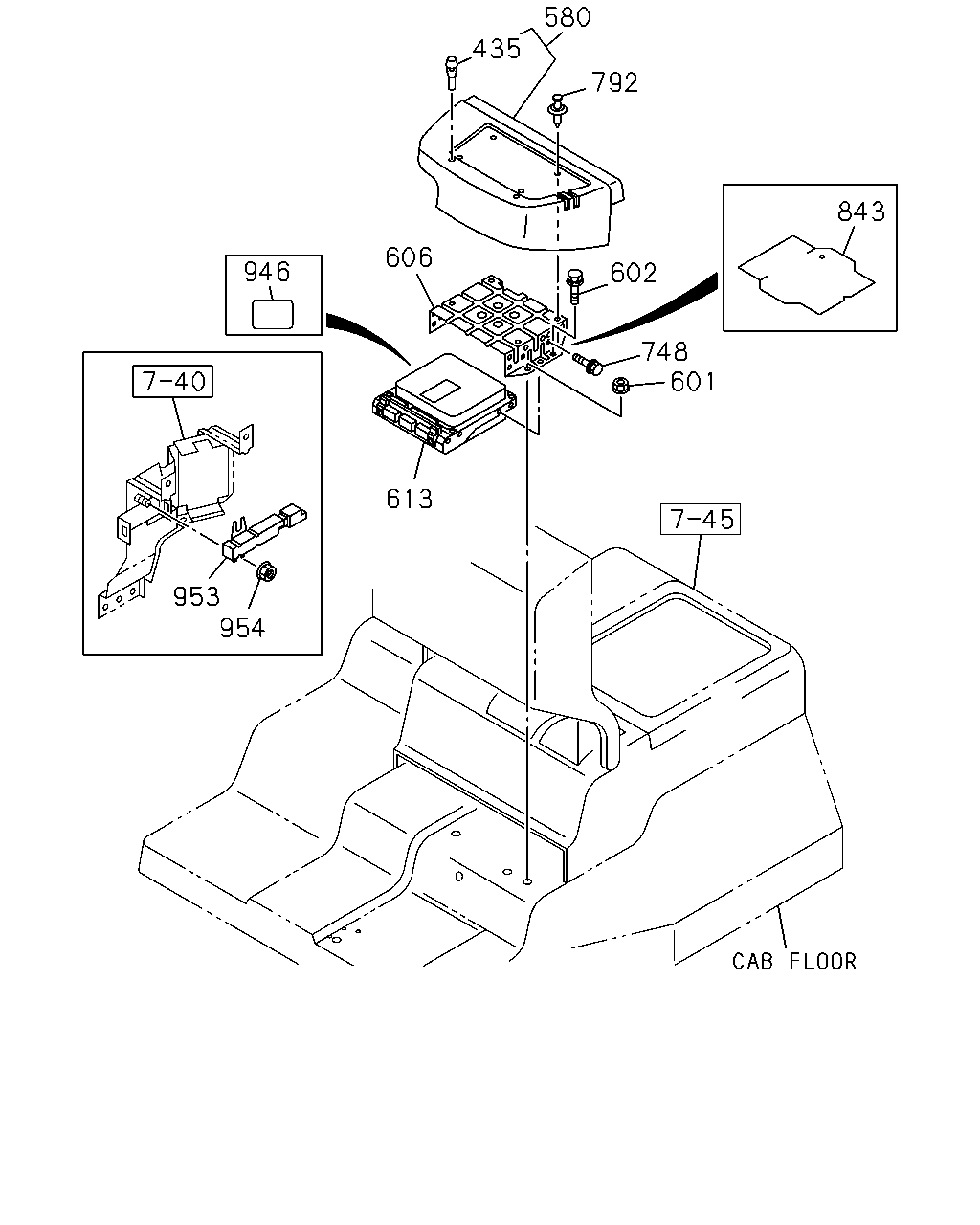

çizim 142444
580 435 792 843 606 946 602 748 601 613 953 954
BalonParca AdiParca NoAdetTipApplied Date
435 RUBBER; CUSHION 1-72537-138-0 02 1 0806-1008
435 RUBBER; CUSHION
CENTER SEAT DELETE(SP9) 		1-72537-138-0 02 1 1009-
580 COVER; CONT UNIT 1-72537-279-2 01 1 0806-1008
580 COVER; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-279-2 01 1 1009-
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 0806-
602 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0806-
602 BOLT; BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0806-
606 BRACKET; CONT UNIT 1-72537-333-0 01 1 0806-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-931-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-441-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-983-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-943-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-465-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-995-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98177-930-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98184-439-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98238-982-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-942-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-463-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-994-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98173-222-0 01 1 1009-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) 		8-98178-031-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) 		8-98184-452-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) 		8-98237-233-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-893-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-476-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-245-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-937-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-453-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-989-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-949-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-477-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITTER 95KM(NNT) NEW ZEALAND EQUIPMENT(PK5) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98239-001-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98177-898-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98184-450-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98237-232-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98177-936-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98184-451-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98238-988-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98177-892-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98184-474-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98237-244-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-948-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-475-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) NEW ZEALAND EQUIPMENT(PK5) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98239-000-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) 		8-98157-593-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) 		8-98184-440-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) 		8-98237-227-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98171-486-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-464-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-239-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98157-592-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98184-438-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98237-226-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98171-485-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98184-462-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) NEW ZEALAND EQUIPMENT(PK5) ENGINE CONTROL-B2(Q4T) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITTER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98237-238-0 01 1 1302-
613 CONTROL UNIT; ENG 8-98115-674-0 01 1 0806-0910
613 CONTROL UNIT; ENG 8-97634-920-0 01 1 0911-1008
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) ENGINE CONTROL-B2(Q4T) AUSTRALIA EQUIPMENT(RR3) 		8-97634-920-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) ENGINE CONTROL-B2(Q4T) AUSTRALIA EQUIPMENT(RR3) 		8-97985-244-1 01 1 1101-
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0806-
792 FASTENER
D8X13.5 		1-09987-270-0 04 1 0806-
843 SEAL; BRKT 1-76770-009-2 01 1 0806-1101
843 SEAL; BRKT 8-98119-974-0 01 1 1102-
946 SEAL; TAPE 1-80199-006-0 01 1 0806-1008
946 SEAL; TAPE
SPEED LIMITER 100KM(NMU) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-80199-006-0 01 1 1009-1212
946 SEAL; TAPE
SPEED LIMITER 100KM(NMU) EXC. NEW ZEALAND EQUIPMENT(PK5) 		8-98166-639-0 01 1 1301-
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 0806-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0806-

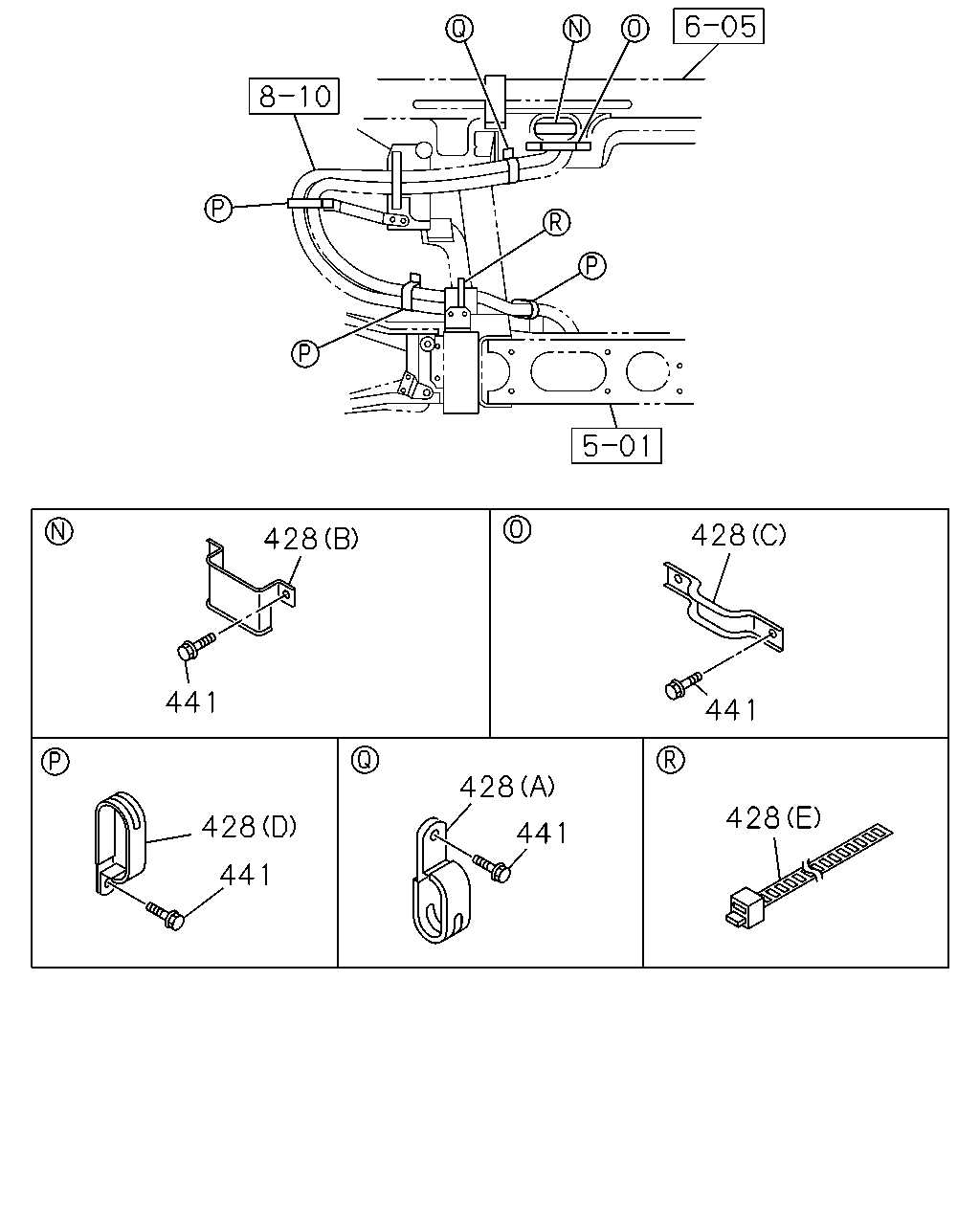

çizim 142446
428 428 441 441 428 428 428 441 441
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
(F) L=36 		8-94224-891-1 01 1 0806-
428 CLIP; HARNESS
(A) ID=30X2 L=28 		1-09701-266-0 01 1 0806-
428 CLIP; HARNESS
(D) ID=35X2 L=32 		1-09701-314-0 03 1 0806-
428 CLIP; HARNESS
(E) L=350 		1-09707-183-0 01 1 0806-
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 0806-
428 CLIP; HARNESS
(B) 		1-82699-993-1 01 1 0806-
428 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0806-
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28650-820-0 02 1 0806-
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 05 1 0806-0809
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0810-0904
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
