Isuzu WW
▶
TRUCKS
▶
FVR
▶
11141 - FVR-LHD(EUROPE)EURO4
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

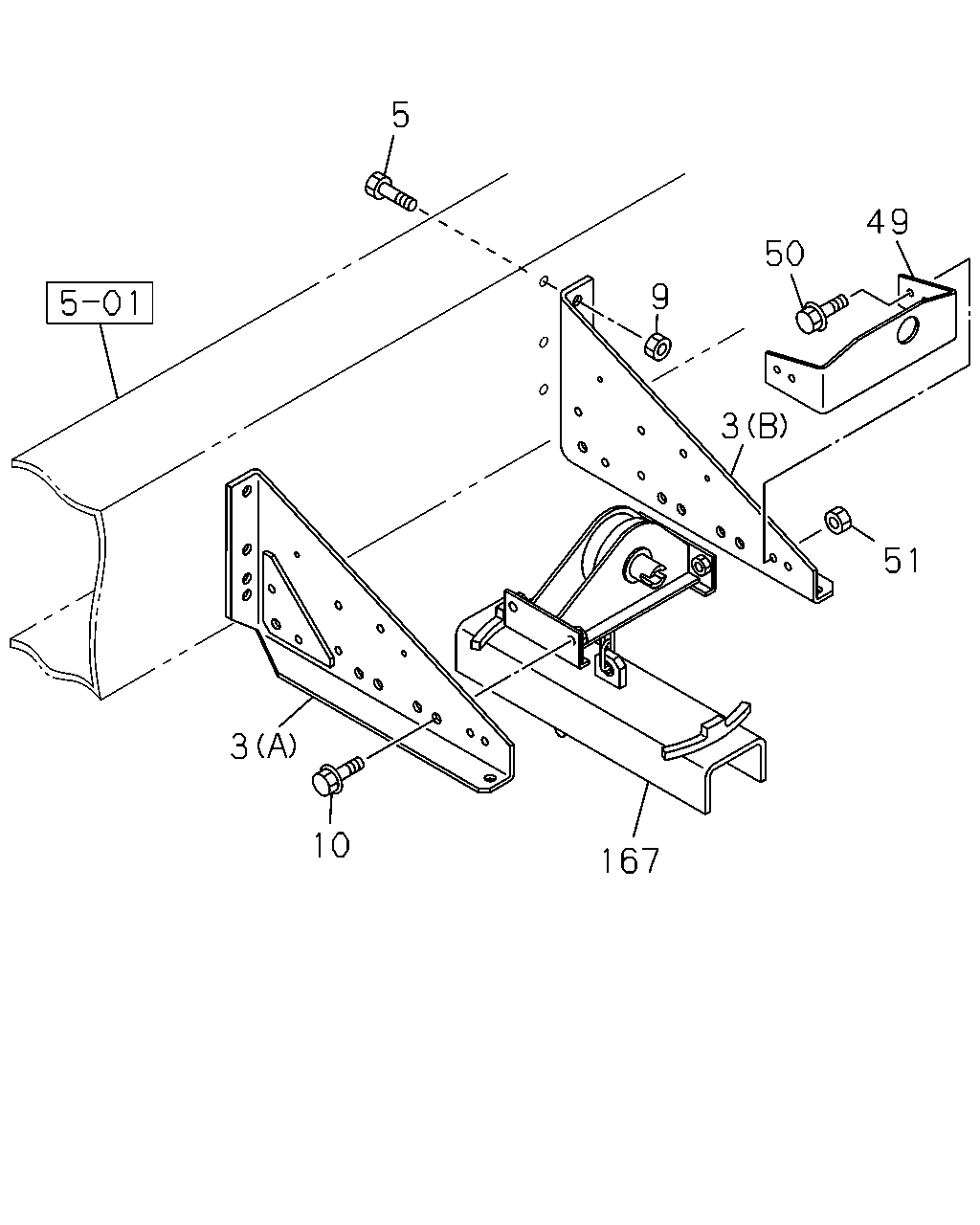

5-30 — SPARE TIRE CARRIER AND COVER
(#25156) — 14 parça
5
49
50
9
3
51
3
10
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
8-98106-690-0
01
1
0809-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
8-98106-691-0
01
1
0809-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE
0-28051-245-0
06
1
0809-
9
NUT; BRKT TO FRAME
WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
03
1
0811-0907
9
NUT; BRKT TO FRAME
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
06
1
0809-
9
NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
03
1
0809-0810
9
NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
01
1
0811-0907
9
NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
01
1
0908-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
0809-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-466-1
01
1
0809-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE
0-28650-830-0
04
1
0809-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8
0-91110-508-0
04
1
0809-1203
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
1204-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-4
01
1
0809-
