Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#2515) — 256 parça

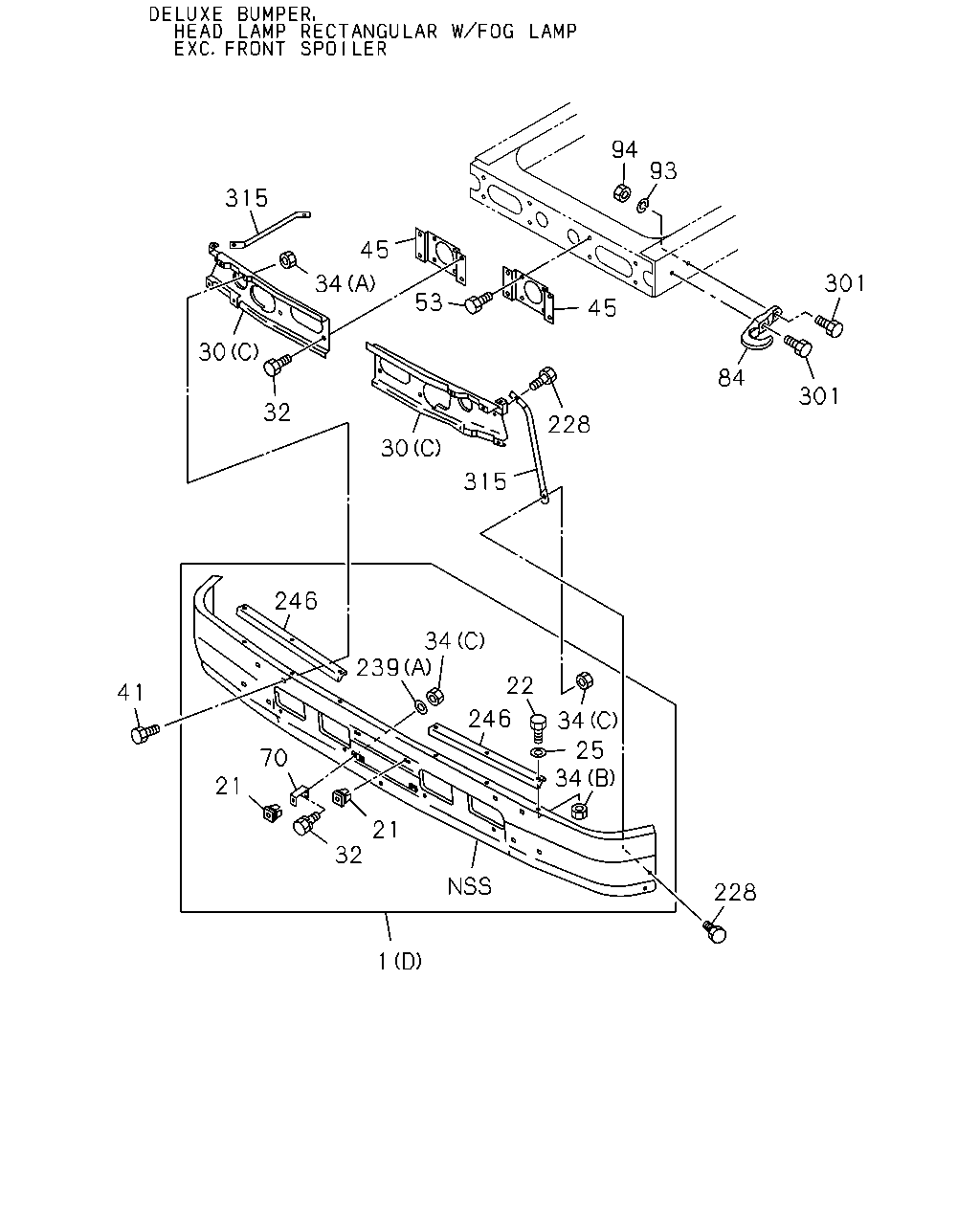

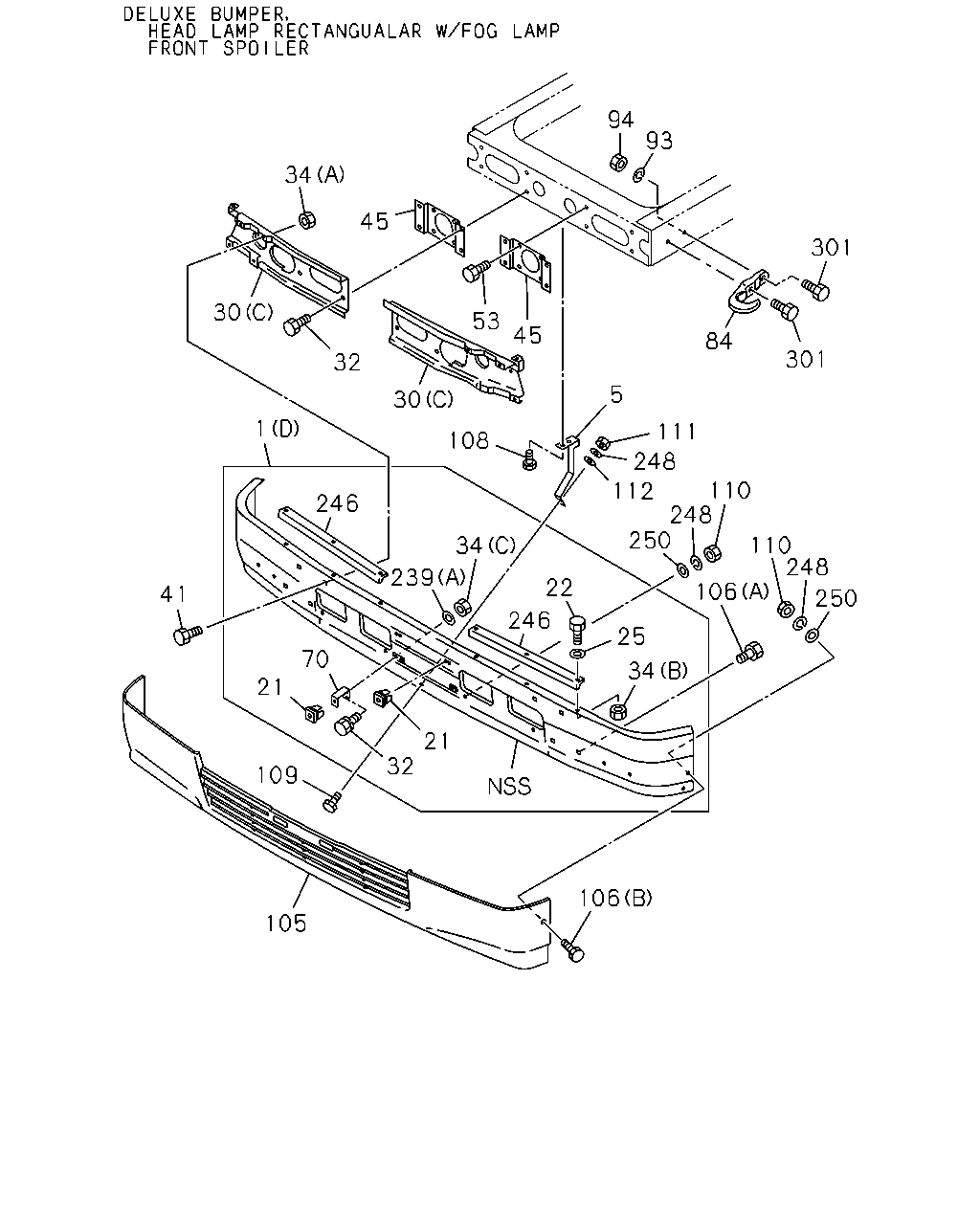

94 93 34 45 301 30 53 45 84 301 32 5 30 1 111 108 248 110 248 250 112 246 110 248 34 239 22 106 41 250 246 25 70 34 21 21 32 109 106 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (D)	1-71210-490-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-
5	BRACKET; AIR DAM DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1>	1-71210-486-1	01	1	9307-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-115-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-168-1	01	1	9004-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-116-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-169-0	01	1	9004-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10 FLANGE	5-09440-006-0	08	1	9002-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D) M10	9-09110-510-0	04	1	9002-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	9-01971-025-0	08	1	9002-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	0-50141-025-0	08	1	9003-
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-538-1	02	1	9307-
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-
70	BRACKET; LICENSE PLATE,FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53485-046-0	02	1	9307-
84	HOOK	1-57181-024-0	01	1	9002-9006
84	HOOK	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-
105	AIR DAM FRONT SPOILER<VP1>	1-71260-072-3	01	1	9307-
106	BOLT; AIR DAM FRONT SPOILER<VP1> (A)	0-50140-814-0	06	1	9307-
106	BOLT; AIR DAM FRONT SPOILER<VP1> (B)	1-09164-023-0	02	1	9307-
108	BOLT; STAY TO C/MBR FRONT SPOILER<VP1> M8X25 FLANGE	0-28080-825-0	02	1	9307-
109	BOLT; STAY TO AIR DAM FRONT SPOILER<VP1> M8X30	1-09164-023-0	01	1	9307-
110	NUT; AIR DAM TO BUMPER FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9307-
111	NUT; STAY FRONT SPOILER<VP1> M8	9-09110-508-0	01	1	9307-
112	WASHER; PL,STAY FRONT SPOILER<VP1> ID=8.4 OD=18	1-09503-173-0	01	1	9307-
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) ID=8.4 OD=22	9-09160-708-0	02	1	9307-
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (B) ID=4.3 OD=10	8-94212-740-0	06	1	9002-
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9307-
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9307-
248	WASHER; LK FRONT SPOILER<VP1> ID=8.2	9-09150-808-0	05	1	9307-
250	WASHER; PL FRONT SPOILER<VP1> ID=8.4 OD=18	1-09503-173-0	04	1	9307-
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	9-91051-670-0	01	1	9002-9005
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9006-9112
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9201-

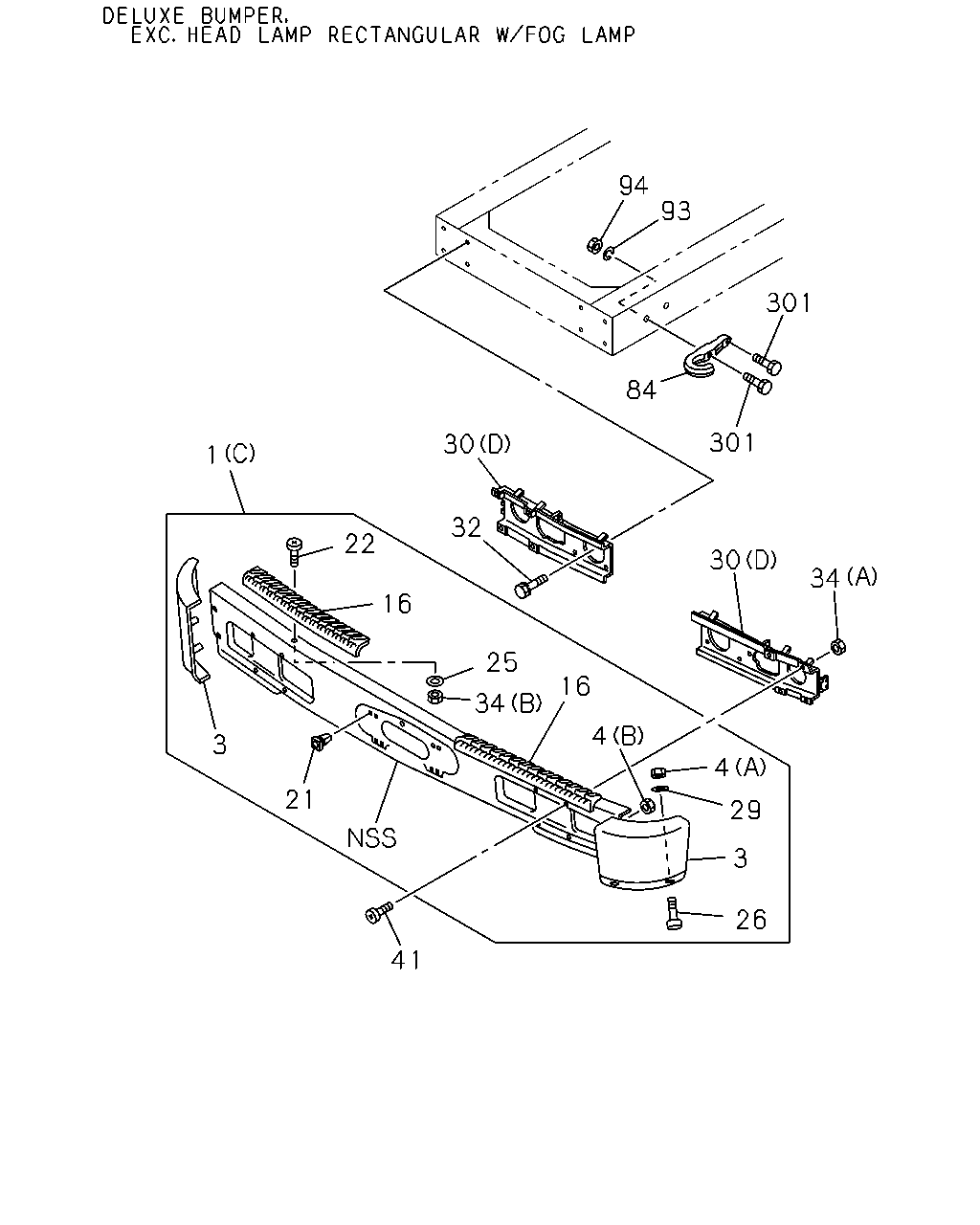

94 93 301 84 301 30 32 22 30 16 25 16 34 4 3 4 21 29 3 26 41 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (D)	1-71210-490-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-431-1	01	1	9002-
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-430-1	01	1	9002-
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	02	1	9002-
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M10 FLANGE	5-09440-006-0	04	1	9002-
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9002-
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9002-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-
26	BOLT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09060-008-0	02	1	9002-
29	WASHER; FRT BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=12.5 OD=32	9-09160-712-0	02	1	9002-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-115-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-168-1	01	1	9004-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-116-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-169-0	01	1	9004-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10 FLANGE	5-09440-006-0	08	1	9002-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D) M10	9-09110-510-0	04	1	9002-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	9-01971-025-0	08	1	9002-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	0-50141-025-0	08	1	9003-
84	HOOK	1-57181-024-0	01	1	9002-9006
84	HOOK	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	9-91051-670-0	01	1	9002-9005
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9006-9112
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9201-

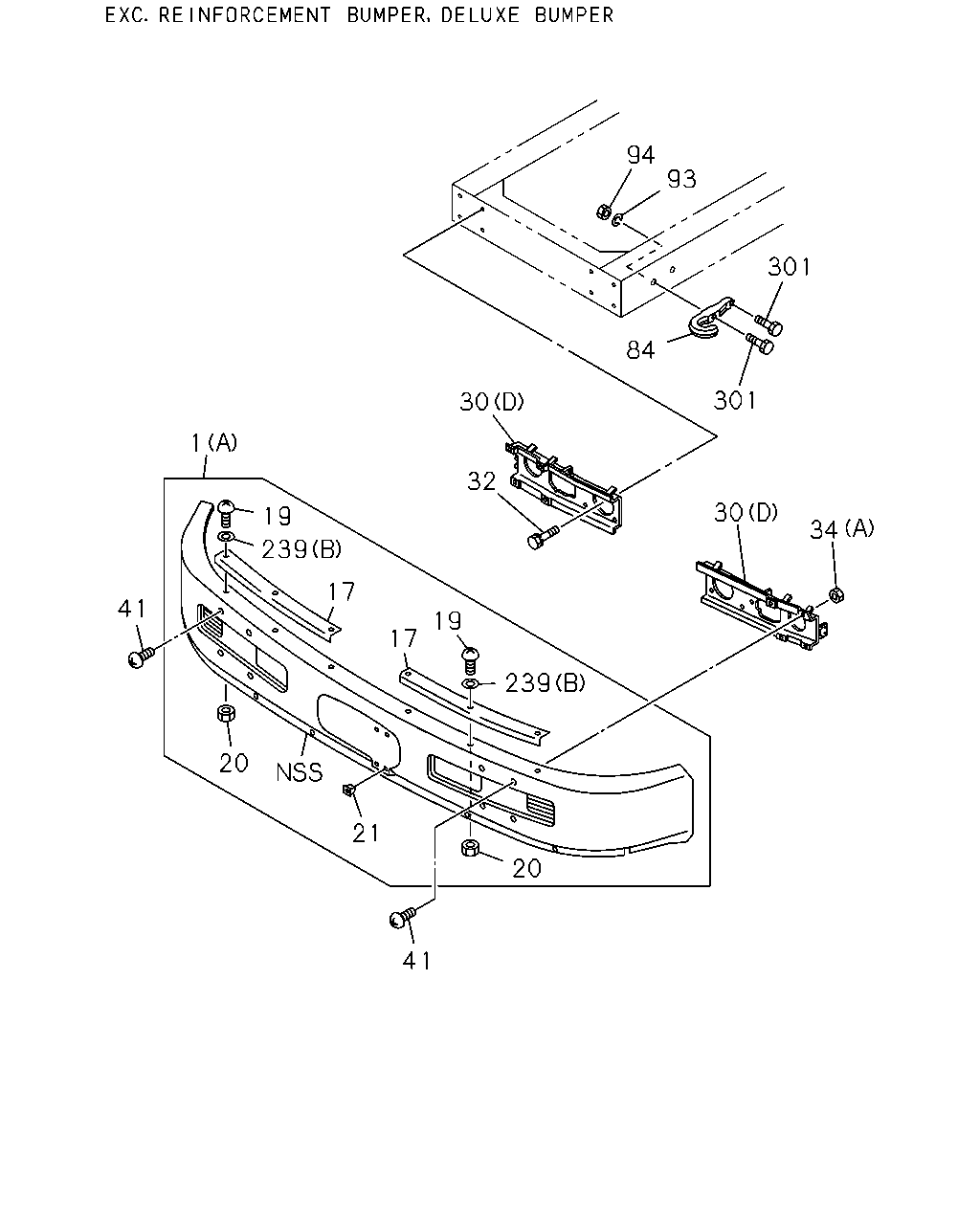

94 93 301 84 301 30 1 32 30 19 239 17 41 19 17 239 20 21 20 41 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (D)	1-71210-490-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-023-0	01	1	9002-
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-022-0	01	1	9002-
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	1-09104-016-0	06	1	9002-9310
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	9-03486-410-0	06	1	9311-
20	NUT; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	9-09112-004-0	06	1	9002-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-115-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-168-1	01	1	9004-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-116-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-169-0	01	1	9004-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10 FLANGE	5-09440-006-0	08	1	9002-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D) M10	9-09110-510-0	04	1	9002-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	9-01971-025-0	08	1	9002-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	0-50141-025-0	08	1	9003-
84	HOOK	1-57181-024-0	01	1	9002-9006
84	HOOK	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) ID=8.4 OD=22	9-09160-708-0	02	1	9307-
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (B) ID=4.3 OD=10	8-94212-740-0	06	1	9002-
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	9-91051-670-0	01	1	9002-9005
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9006-9112
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9201-

94 93 315 45 301 34 53 45 30 84 301 32 228 30 315 246 34 239 22 41 246 34 25 34 70 21 21 32 228 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (D)	1-71210-490-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-115-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-168-1	01	1	9004-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-116-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-169-0	01	1	9004-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10 FLANGE	5-09440-006-0	08	1	9002-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D) M10	9-09110-510-0	04	1	9002-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	9-01971-025-0	08	1	9002-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	0-50141-025-0	08	1	9003-
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-538-1	02	1	9307-
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-
70	BRACKET; LICENSE PLATE,FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53485-046-0	02	1	9307-
84	HOOK	1-57181-024-0	01	1	9002-9006
84	HOOK	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> M8X20 FLANGE	0-28080-820-0	02	1	9307-
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> M8X30	1-09164-023-0	02	1	9307-
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) ID=8.4 OD=22	9-09160-708-0	02	1	9307-
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (B) ID=4.3 OD=10	8-94212-740-0	06	1	9002-
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9307-
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9307-
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	9-91051-670-0	01	1	9002-9005
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9006-9112
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9201-
315	STAY; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1>	1-71230-307-0	02	1	9307-

94 93 301 32 84 301 41 30 41 34 30 34 43 42 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (D)	1-71210-490-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9002-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-115-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-168-1	01	1	9004-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-116-3	01	1	9002-9003
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (D)	1-71230-169-0	01	1	9004-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	9-01911-020-0	08	1	9002-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	02	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (C) M8 FLANGE	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10 FLANGE	5-09440-006-0	08	1	9002-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D) M10	9-09110-510-0	04	1	9002-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	9-01971-025-0	08	1	9002-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7>	0-50141-025-0	08	1	9003-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	04	1	9002-9002
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	04	1	9002-
84	HOOK	1-57181-024-0	01	1	9002-9006
84	HOOK	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-
94	NUT; HOOK M16	9-99110-416-0	02	1	9002-
301	BOLT; HOOK TO FRAME M16X55	9-92051-655-0	01	1	9002-9008
301	BOLT; HOOK TO FRAME M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	9-91051-670-0	01	1	9002-9005
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9006-9112
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9201-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
