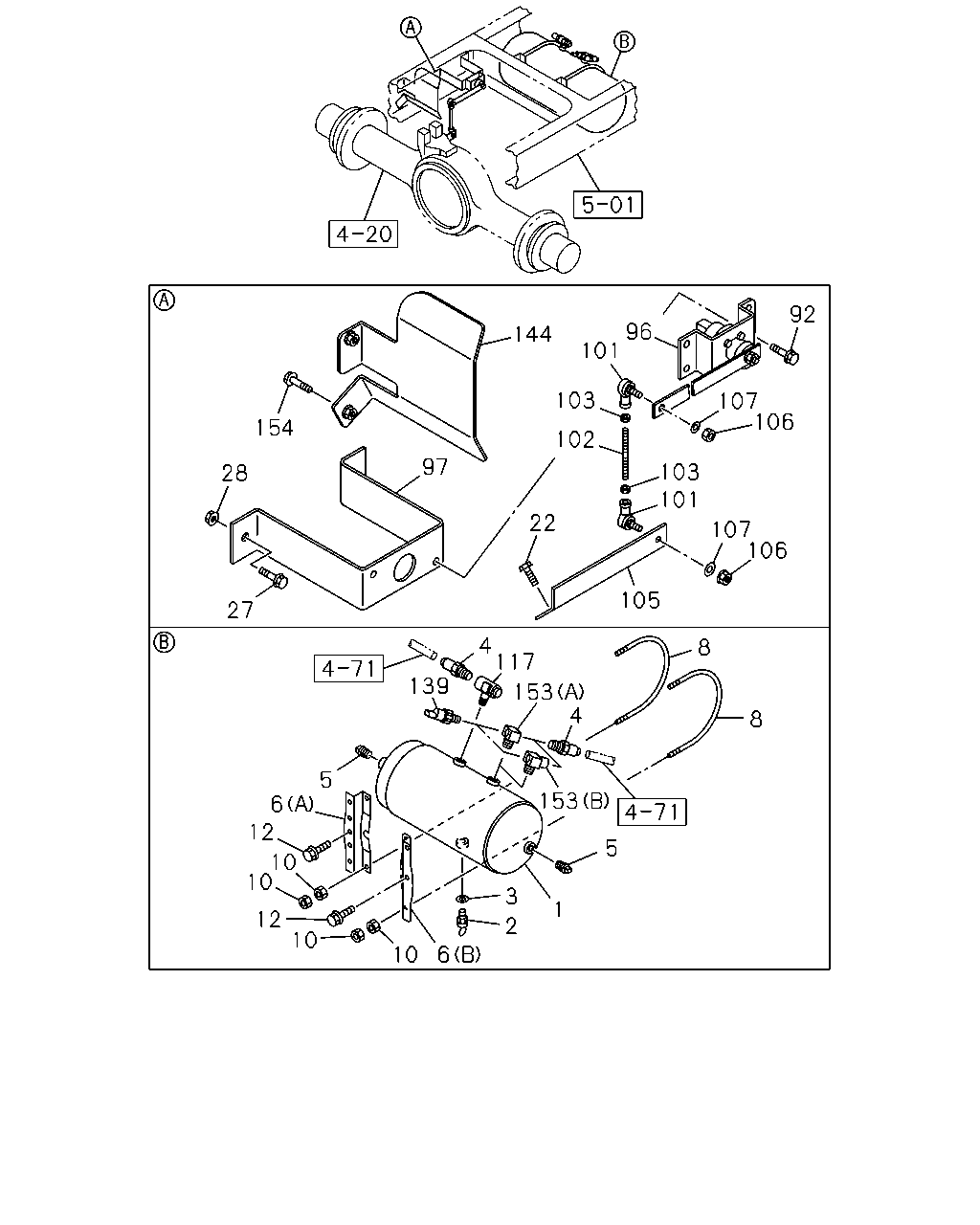

4-70 — AIR SUSPENSION VALVE AND CONTROL
(#25147) — 28 parça
92
96
101
144
103
107
106
154
102
97
103
101
28
22
107
106
105
27
4
117
8
139
153
4
8
5
153
6
12
5
10
10
3
1
12
2
10
10
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
8-98056-186-2
01
1
0809-
2
COCK ASM; DRAIN
1-48312-015-0
01
1
0809-
3
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
0809-
4
CONNECTOR; AIR TANK
DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
0809-
5
PLUG; AIR TANK
PT3/8
9-09204-517-0
02
1
0809-
6
BRACKET; AIR TANK
(A)
1-48317-904-0
01
1
0809-
6
BRACKET; AIR TANK
(B)
8-98114-753-0
01
1
0809-
8
U-BOLT; AIR TANK
L=303
1-48317-087-2
02
1
0809-
10
NUT; U-BOLT
M8
0-91110-508-0
08
1
0809-
12
BOLT; AIR TANK
M10X25 FLANGE
0-28651-025-0
04
1
0809-
22
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0809-
27
BOLT; BRKT
M12X35 FLANGE
0-28651-235-0
02
1
0809-
28
NUT; BRKT
M12 FLANGE
0-91180-212-0
02
1
0809-
92
BOLT; SENSOR
M8X16 FLANGE
0-28050-816-0
02
1
0809-
96
SENSOR; HEIGHT
1-81549-115-0
01
1
0809-
97
BRACKET; HEIGHT SENSOR
8-98070-858-0
01
1
0809-
101
JOINT ASM; BALL
L=45.5
1-09760-118-1
02
1
0809-
102
ROD; LINK
L=222
9-08400-818-0
01
1
0809-
103
NUT; LINK ROD
M8
0-91111-508-0
02
1
0809-
105
BRACKET; AXLE LINK ROD
8-98070-859-0
01
1
0809-
106
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0809-
107
WASHER; BRKT
ID=8.2
8-98019-967-0
02
1
0809-
117
VALVE; CHECK
1-48320-031-1
01
1
0809-
139
SWITCH; LOW PRESSURE
STAMP 6.5
8-97609-252-0
01
1
0809-
144
COVER; HEIGHT SENSOR
8-98076-123-0
01
1
0809-
153
CONNECTOR; 3WAY
(A)
1-09656-708-0
01
1
0809-1101
153
CONNECTOR; 3WAY
(B)
8-98166-127-0
01
1
1102-
154
BOLT; COVER
M8X30 FLANGE
0-28650-830-0
02
1
0809-
