◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#2514) — 6 parça

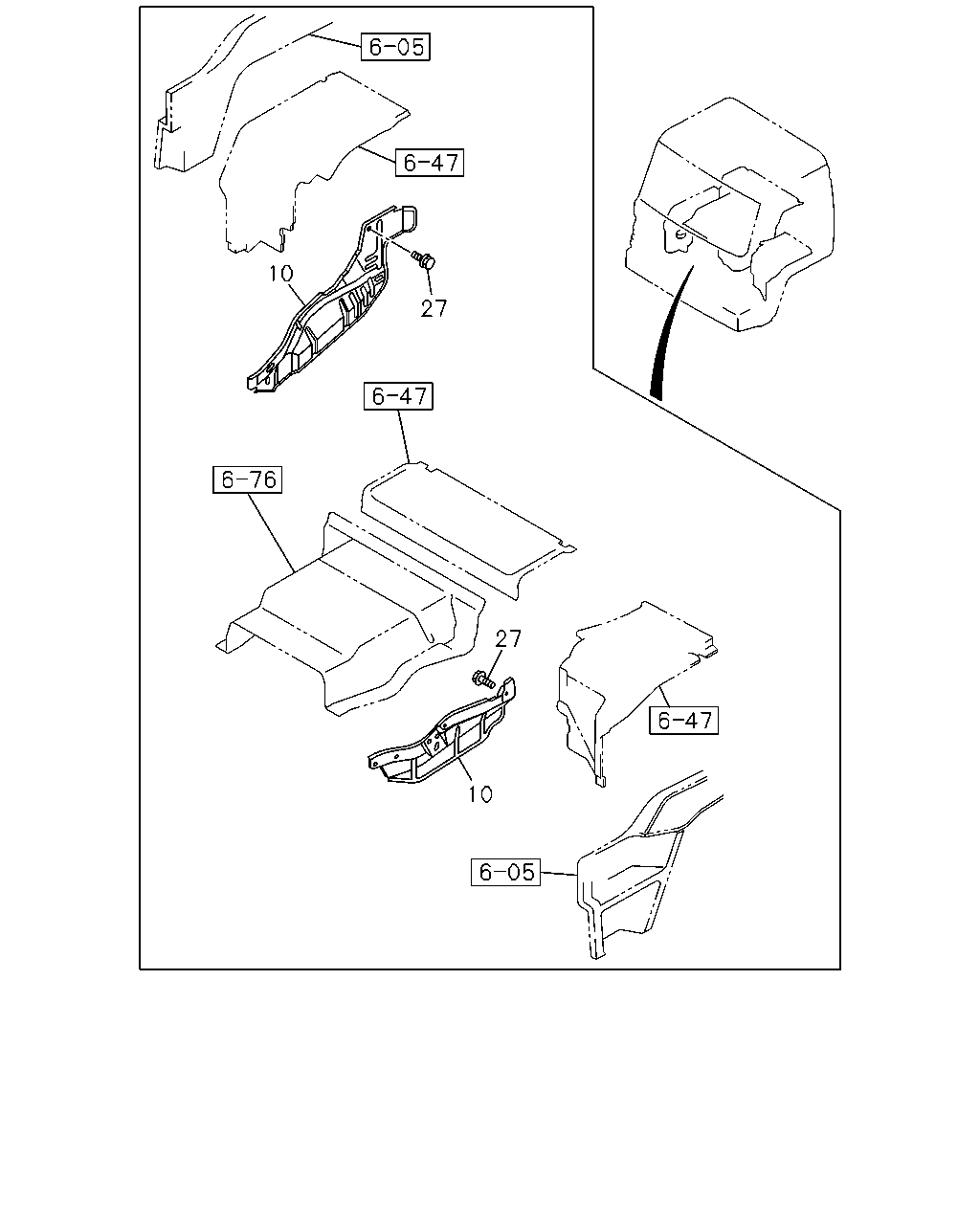

çizim 28137
10 27 27 10
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; NOISE SHUTTER 1-79937-844-0 01 1 9002-9105
10 PANEL ASM; NOISE SHUTTER 1-79937-848-0 01 1 9106-
10 PANEL ASM; NOISE SHUTTER 1-79937-767-9 01 1 9002-
27 BOLT; NOISE SHUTTER PANEL FIX
M6X20 W/LK&PL WASHER 		1-09980-495-0 11 1 9002-9501
27 BOLT; NOISE SHUTTER PANEL FIX
ANTI NOISE EQUIPMENT<SV9> M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 9502-
27 BOLT; NOISE SHUTTER PANEL FIX
EXC. ANTI NOISE EQUIPMENT<SV9> M6X20 W/LK&PL WASHER 		1-09980-495-0 11 1 9502-
