Isuzu WW
▶
TRUCKS
▶
FVR
▶
11141 - FVR-LHD(EUROPE)EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

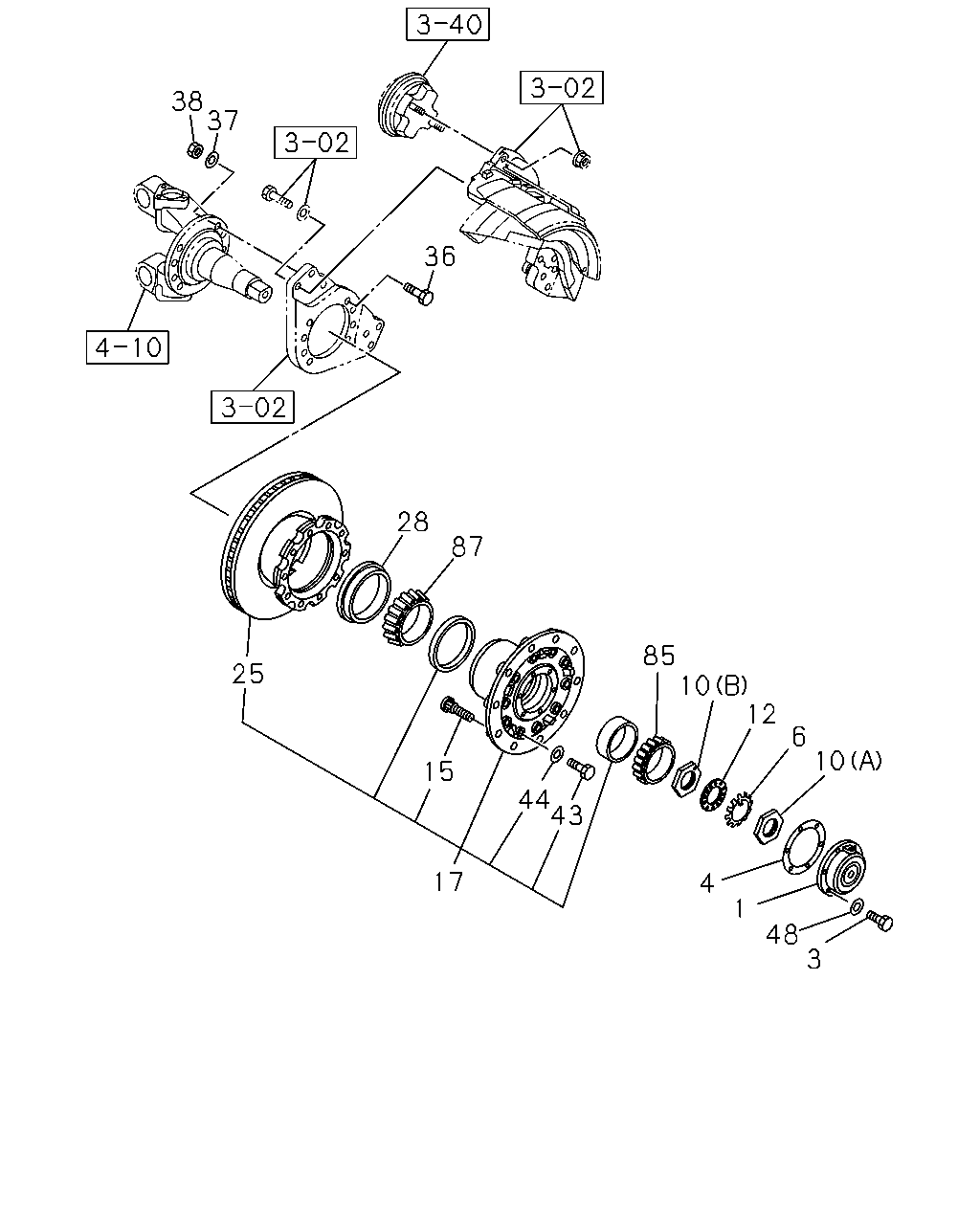

4-11 — FRONT HUB AND DRUM OR ROTOR
(#25132) — 19 parça
38
37
36
28
87
85
10
12
25
6
10
15
44
43
17
4
1
48
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-028-0
02
1
0809-
3
BOLT; HUB CAP,FRT WHEEL
1-42319-189-0
12
1
0809-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-186-0
02
1
0809-
6
WASHER; LK,FRT HUB
1-42329-020-0
02
1
0809-
10
NUT; FRT HUB BRG
(A)
1-42329-019-0
02
1
0809-
10
NUT; FRT HUB BRG
(B)
1-42329-022-0
02
1
0809-
12
WASHER; LK,FRT HUB BRG
1-42329-021-0
02
1
0809-
15
PIN; WHEEL,FRT AXLE
1-42337-091-0
20
1
0809-
17
HUB; FRT AXLE
8-98122-636-0
02
1
0809-
25
ROTOR; DISC BRK,FRT
1-42316-051-0
02
1
0809-
28
SEAL; OIL,FRT HUB
1-09625-652-0
02
1
0809-
36
BOLT; BACK PLATE
1-42319-216-0
14
1
0809-
37
WASHER; LK,BACK PLATE
1-42319-214-0
14
1
0809-
38
NUT; BACK PLATE
1-42319-215-0
14
1
0809-
43
BOLT; DISC BRAKE FIX
8-98105-043-0
20
1
0809-
44
WASHER; LK,DISC BRAKE
1-41229-168-0
20
1
0809-
48
WASHER; LK,HUB CAP,FRT WHEEL
1-42319-190-0
12
1
0809-
85
CONE; BEARING,HUB OUTER
1-09812-252-0
02
1
0809-
87
CONE; BEARING,HUB INNER
1-09812-253-0
02
1
0809-
