1 |

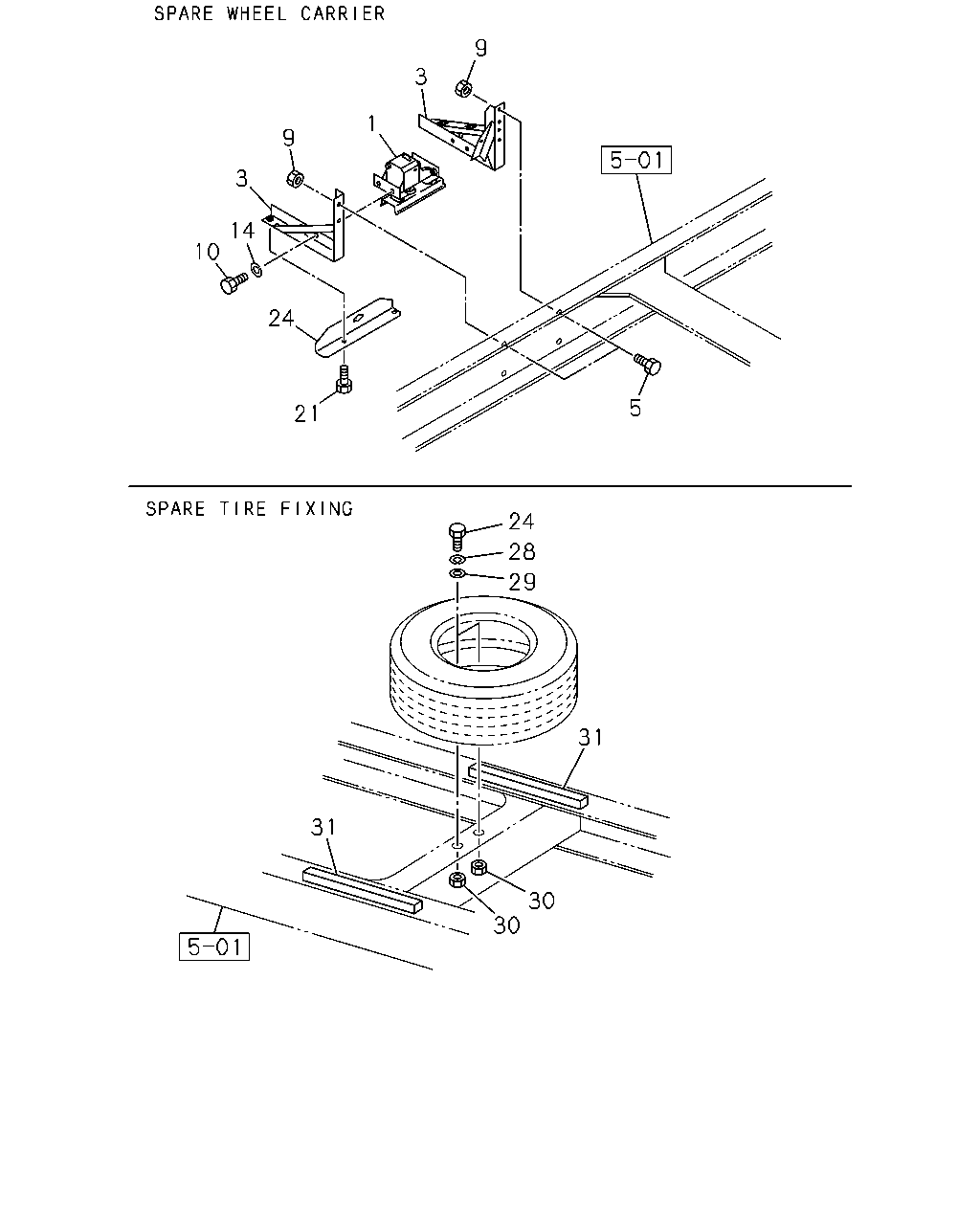

HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>
|
1-53630-162-1 |
02 |
1 |
9002-9402 |
| |
1 |
HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>
|
1-53630-146-1 |
02 |
1 |
9403- |
| |
1 |
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE
CARRIER LIFTING TYPE VAR1<SY8>
|
1-53630-162-1 |
01 |
1 |
9002-9402 |
| |
1 |
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE
CARRIER LIFTING TYPE VAR1<SY8>
|
1-53630-146-1 |
01 |
1 |
9403- |
| |
3 |
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13>
REAR
|
1-53631-176-8 |
01 |
1 |
9002-9306 |
| |
3 |
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13>
REAR
|
1-53631-337-0 |
01 |
1 |
9307- |
| |
3 |
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13>
FRONT
|
1-53631-207-0 |
01 |
1 |
9002- |
| |
5 |
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13>
M12X35
|
9-01911-235-0 |
06 |
1 |
9002-9005 |
| |
5 |
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13>
M12X35 W/LK WASHER
|
0-50041-235-0 |
06 |
1 |
9006-9307 |
| |
5 |
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13>
M12X35 FLANGE
|
0-28081-235-0 |
06 |
1 |
9308- |
| |
9 |
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13>
M12
|
9-99110-512-0 |
06 |
1 |
9002- |
| |
10 |
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>
M16X30
|
9-92051-630-0 |
04 |
1 |
9002-9005 |
| |
10 |
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>
M16X30
|
0-20801-630-0 |
04 |
1 |
9006- |
| |
14 |
WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>
ID=16.2
|
9-09150-516-0 |
04 |
1 |
9002- |
| |
21 |
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>
|
1-53631-128-1 |
01 |
1 |
9002- |
| |
24 |
BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3>
M14X80
|
9-92041-480-0 |
02 |
1 |
9002-9204 |
| |
24 |
BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3>
M14X80
|
0-20801-480-0 |
02 |
1 |
9205- |
| |
24 |
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>
M12X25
|
9-01911-225-0 |
02 |
1 |
9002-9005 |
| |
24 |
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>
M12X25 W/LK WASHER
|
0-50041-225-0 |
02 |
1 |
9006-9307 |
| |
24 |
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>
M12X25 FLANGE
|
0-28081-225-0 |
02 |
1 |
9308- |
| |
28 |
WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3>
ID=14.2
|
9-09150-614-0 |
02 |
1 |
9002- |
| |
29 |
WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3>
ID=15 OD=52
|
9-09164-414-0 |
02 |
1 |
9002- |
| |
30 |
NUT; SPARE TIRE
SPARE TIRE FIXING<RE3>
M14
|
9-99110-414-0 |
02 |
1 |
9002- |
| |
31 |
SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3>
|
1-53637-007-0 |
02 |
1 |
9002- |
