3-78 — FIXING PARTS; AIR PIPING (#25129) — 239 parça

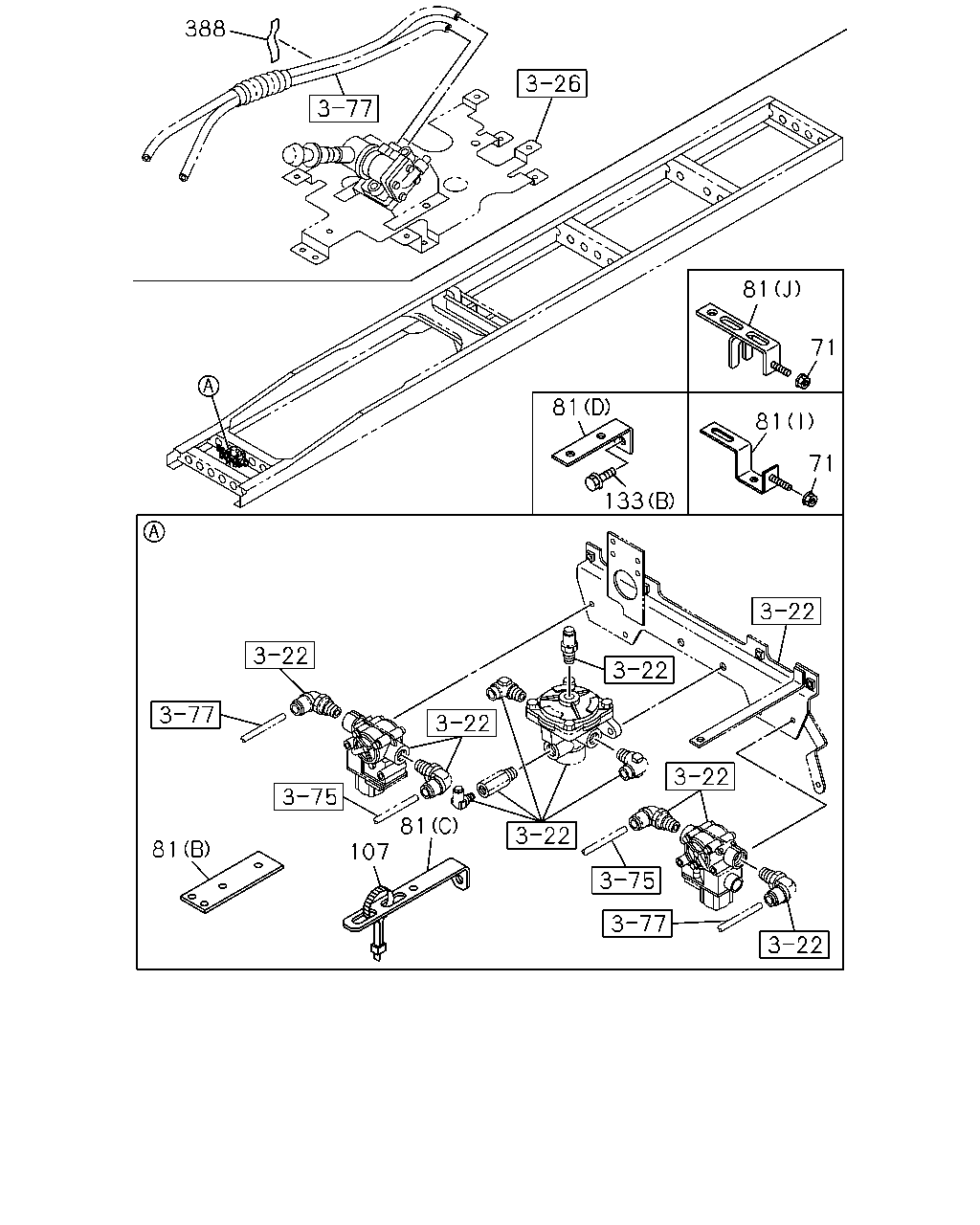

çizim 60648
388 81 71 81 81 71 133 81 81 107
BalonParca AdiParca NoAdetTipApplied Date
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 0812-
71 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 03 1 0809-0811
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-
71 NUT; BRKT
WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0812-0907
81 BRACKET; CLIP
(K) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		1-47479-693-0 02 1 0809-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (F) 		1-47479-693-0 01 1 0809-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E) 		8-98117-686-0 01 1 0809-0907
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W) (A) 		1-47476-699-2 01 1 0809-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0809-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0809-0812
81 BRACKET; CLIP
(I) 		8-98129-212-0 04 1 0901-1012
81 BRACKET; CLIP
(J) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0809-0902
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809-
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 31 1 0908-
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 03 1 0809-0811
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 17 1 0809-0907
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 38 1 0908-
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 38 1 0809-0907
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 33 1 0908-
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 0809-0907
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) L=350 		1-09707-183-0 36 1 0908-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0812-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0812-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0809-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811
388 SEAL
100X40 		1-72498-022-1 03 1 0809-

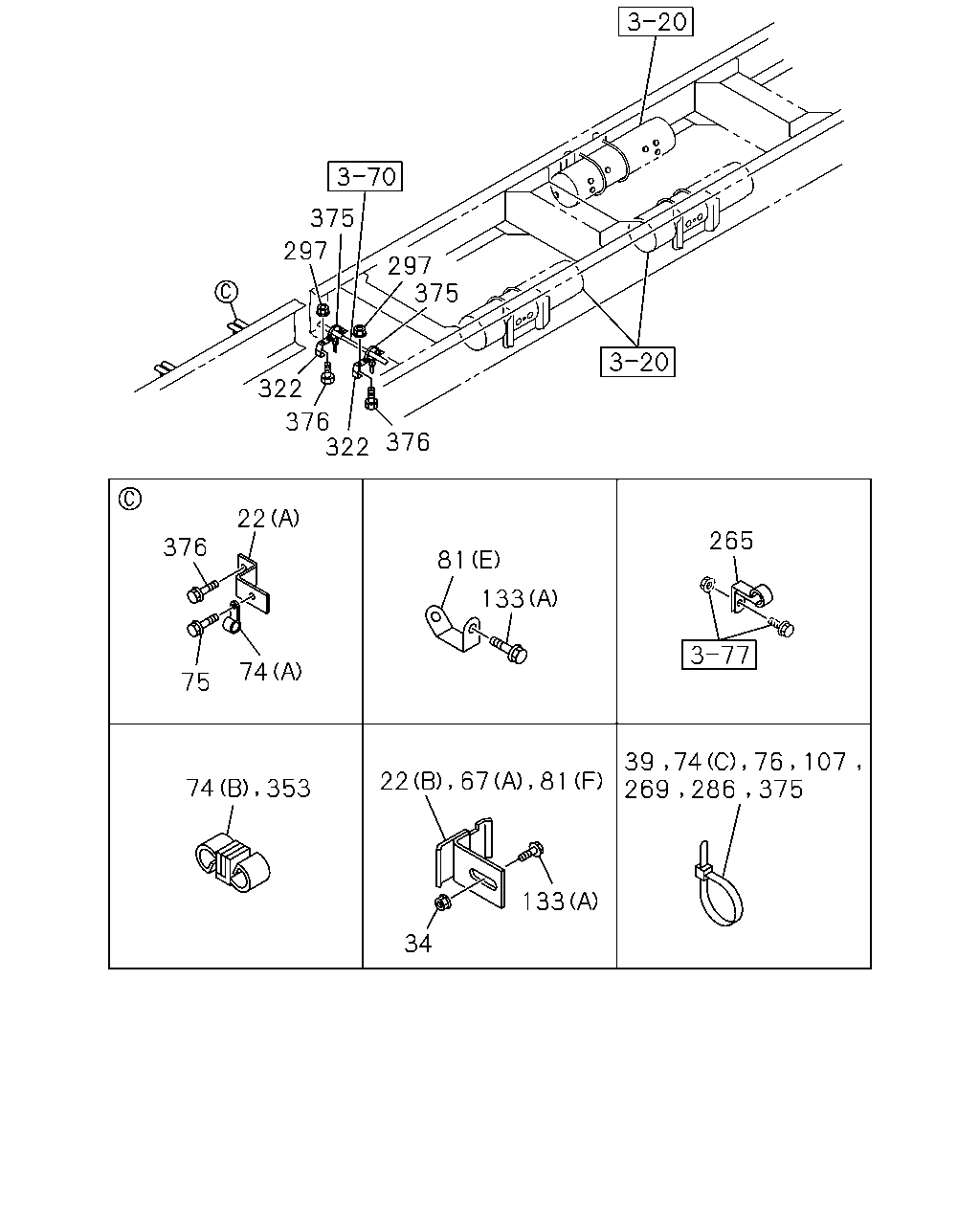

çizim 60800
375 297 297 375 322 376 322 376 22 265 376 81 133 74 75 81 133 34 74 353 22 67 39 74 76 107 269 286 375
BalonParca AdiParca NoAdetTipApplied Date
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		1-47479-693-0 01 1 0809-
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) 		1-47475-881-0 01 1 0809-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0809-0811
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908-
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0908-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907
39 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 04 1 0809-0809
39 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 12 1 0810-
67 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0809-0907
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0809-
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 11 1 0908-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 05 1 0908-
74 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 06 1 0908-
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0908-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=16 L=28 		1-09700-872-0 01 1 0809-
74 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 10 1 0809-0811
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 03 1 0812-0907
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (C) L=350 		1-09707-183-0 09 1 0908-
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0809-0811
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 01 1 0812-
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0809-
75 BOLT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
76 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 05 1 0809-
81 BRACKET; CLIP
(K) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		1-47479-693-0 02 1 0809-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (F) 		1-47479-693-0 01 1 0809-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E) 		8-98117-686-0 01 1 0809-0907
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W) (A) 		1-47476-699-2 01 1 0809-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0809-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0809-0812
81 BRACKET; CLIP
(I) 		8-98129-212-0 04 1 0901-1012
81 BRACKET; CLIP
(J) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0809-0902
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809-
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 31 1 0908-
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 03 1 0809-0811
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 17 1 0809-0907
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 38 1 0908-
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 38 1 0809-0907
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 33 1 0908-
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 0809-0907
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) L=350 		1-09707-183-0 36 1 0908-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0812-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0812-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0809-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0809-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0809-0810
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0811-0907
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0811-0907
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0908-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0908-
286 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0809-
297 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 02 1 0809-
297 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0809-
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) 		1-47479-598-0 02 1 0809-
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-47479-598-0 01 1 0809-
353 CLIP; AIR PIPE
ID=18 & 18 		8-94323-068-0 02 1 0809-
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 02 1 0809-0811
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0812-0906
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0907-
375 CLIP; AIR PIPE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 01 1 0907-
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0809-0811
375 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 03 1 0812-
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 03 1 0812-
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8X30 FLANGE 		0-28650-830-0 02 1 0809-
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X30 FLANGE 		0-28650-830-0 01 1 0809-
376 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811
376 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-

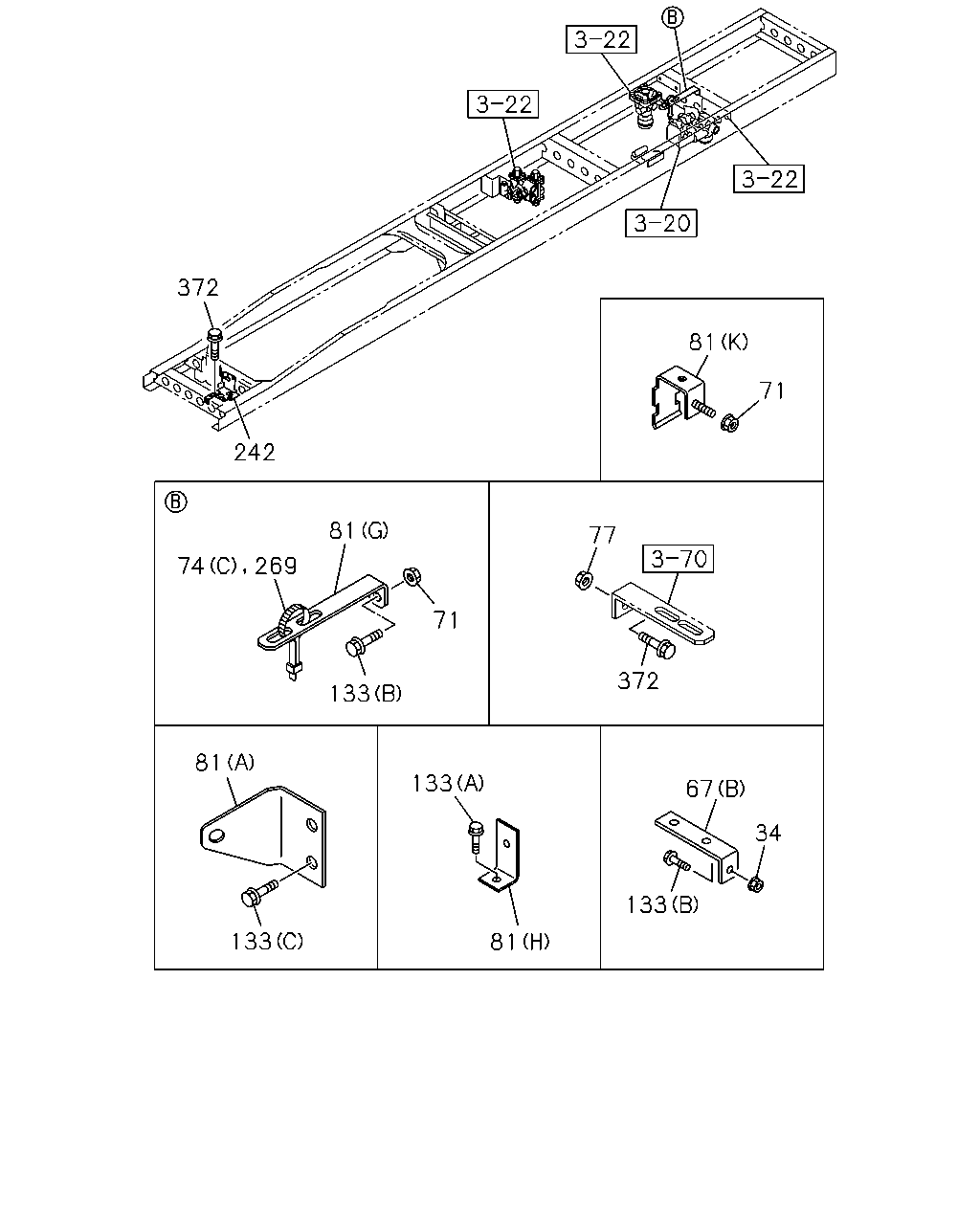

çizim 60935
372 81 71 242 81 77 71 372 133 81 133 67 34 133 133 81 74 269
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0809-0811
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908-
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0908-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907
67 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0809-0907
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0809-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 0809-0811
71 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 0812-
71 NUT; BRKT
WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 03 1 0809-0811
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-
71 NUT; BRKT
WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0809-0811
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0812-0907
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 11 1 0908-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 05 1 0908-
74 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 06 1 0908-
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0908-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=16 L=28 		1-09700-872-0 01 1 0809-
74 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 10 1 0809-0811
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 03 1 0812-0907
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (C) L=350 		1-09707-183-0 09 1 0908-
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0809-0811
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 01 1 0812-
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0809-
77 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0809-
81 BRACKET; CLIP
(K) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		1-47479-693-0 02 1 0809-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (F) 		1-47479-693-0 01 1 0809-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E) 		8-98117-686-0 01 1 0809-0907
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W) (A) 		1-47476-699-2 01 1 0809-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0809-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0809-0812
81 BRACKET; CLIP
(I) 		8-98129-212-0 04 1 0901-1012
81 BRACKET; CLIP
(J) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0809-0902
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0809-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0809-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0809-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0811
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812-
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0811
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0812-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0812-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0809-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0908-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0811
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 0809-0912
242 BRACKET; PIPE CLIP 8-98158-605-0 01 1 1001-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0809-0810
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0811-0907
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0811-0907
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0908-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0908-
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0811
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
