Isuzu WW
▶
TRUCKS
▶
EXR
▶
10658 - EXR RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

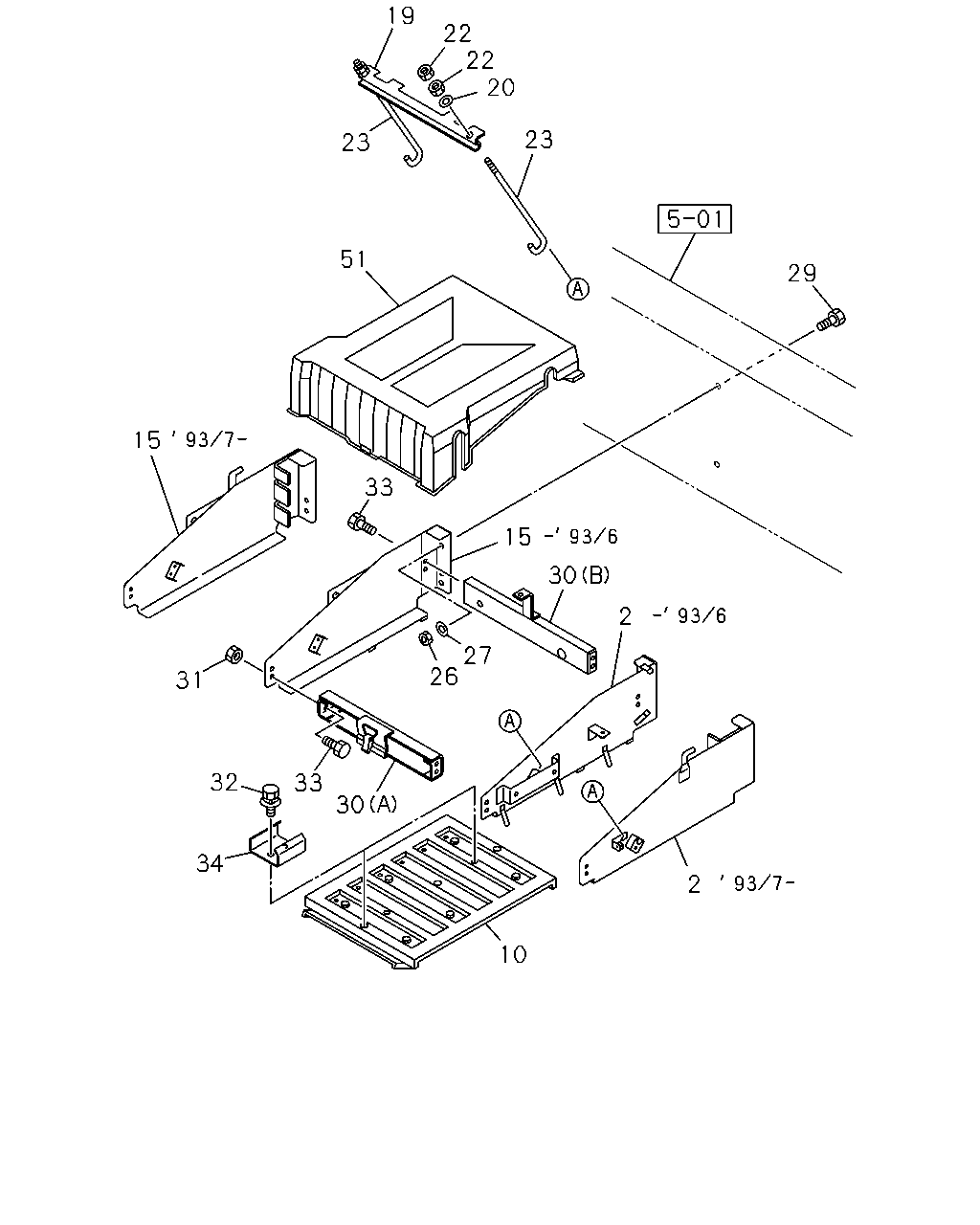

5-20 — BATTERY CARRIER
(#2512) — 32 parça
19
22
22
20
23
23
51
29
15
33
15
30
2
27
26
31
32
33
30
34
2
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BRACKET; BATTERY
1-53613-274-3
01
1
9002-9306
2
BRACKET; BATTERY
1-53613-379-2
01
1
9307-
10
COVER; BATTERY
1-53612-036-0
01
1
9002-9106
10
COVER; BATTERY
1-53612-042-0
01
1
9107-
15
BRACKET; BATTERY
1-53613-268-4
01
1
9002-9306
15
BRACKET; BATTERY
1-53613-347-1
01
1
9307-
19
STAY; BATTERY
1-53618-039-1
01
1
9002-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
9002-
22
NUT; STAY
M8
9-09110-408-0
04
1
9002-
23
BOLT; STAY
L=250 L=260
1-53616-109-0
02
1
9002-9306
23
BOLT; STAY
L=250
1-53616-108-0
02
1
9307-
26
NUT; BRKT
M14
9-99110-414-0
04
1
9002-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
9002-
29
BOLT; BRKT TO FRAME
M14X45
9-92051-445-0
04
1
9002-9005
29
BOLT; BRKT TO FRAME
M14X45
0-20801-445-0
04
1
9006-
30
PLATE; BATTERY
(B)
1-53619-058-0
01
1
9002-9306
30
PLATE; BATTERY
(A)
1-53619-060-0
01
1
9002-9106
30
PLATE; BATTERY
(A)
1-53619-085-0
01
1
9107-
31
NUT; PLATE
M8
9-09110-408-0
04
1
9002-
32
BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 W/LK WASHER
9-01900-816-0
04
1
9002-9204
32
BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 W/LK WASHER
0-50040-816-0
04
1
9205-9302
32
BOLT; PLATE TO SPACER
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2> M8X16 FLANGE
0-28080-816-0
04
1
9303-
33
BOLT; PLATE TO BRKT
M8X20 W/LK WASHER
9-01900-820-0
04
1
9002-9204
33
BOLT; PLATE TO BRKT
M8X20 W/LK WASHER
0-50040-820-0
04
1
9205-9302
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28080-820-0
04
1
9303-
33
BOLT; PLATE TO BRKT
M8X25 W/LK WASHER
9-01900-825-0
04
1
9002-9204
33
BOLT; PLATE TO BRKT
M8X25 W/LK WASHER
0-50040-825-0
04
1
9205-9302
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28080-825-0
04
1
9303-9306
34
SPACER; BATTERY BRKT
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>
1-53619-061-0
02
1
9002-9106
34
SPACER; BATTERY BRKT
BATTERY 145F51 NS150<PN1>,BATTERY 170F51 NX250-12<PN2>
1-53619-084-0
02
1
9107-
51
COVER; BATTERY
1-53612-033-0
01
1
9002-9106
51
COVER; BATTERY
1-53612-040-1
01
1
9107-
