3-20 — AIR TANK (#25117) — 223 parça

32 28 28 43 80 28 64 31 10 10 82 46 46 28 10 1 10 5 10 166 5 7 5 6 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	8-98056-184-2	02	1	0809-
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98056-185-1	01	1	0809-
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98056-185-1	03	1	0809-
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M20 & PT3/4 ELBOW	8-98067-083-1	02	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	1-48312-015-0	04	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48312-015-0	01	1	0809-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=14	1-09630-145-0	04	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	01	1	0809-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-
10	PLUG; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) PT3/8	9-09204-517-0	01	1	0809-
10	PLUG; AIR TANK DIFF LOCK<C3N> (A) PT3/8	9-09204-517-0	01	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT3/8	9-09204-517-0	04	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT3/8	9-09204-517-0	06	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/4	9-09204-526-0	01	1	0809-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	0809-
10	PLUG; AIR TANK EXC. DIFF LOCK<C3N> (A) PT3/8	9-09204-517-0	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D)	8-98048-199-0	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E)	8-98048-200-2	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98104-686-0	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98104-686-0	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C)	8-98107-430-0	02	1	0809-
28	BRACKET; AIR TANK (F)	8-98100-165-3	01	1	0809-
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M10X35 FLANGE	0-28651-035-0	04	1	0809-
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M12X40 FLANGE	0-28651-240-0	04	1	0809-
32	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M10 FLANGE	0-91180-110-0	06	1	0809-
32	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M12 FLANGE	0-91180-112-0	04	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	04	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	02	1	0809-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0809-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28650-820-0	02	1	0809-
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	0-91110-508-0	24	1	0809-
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	0-91110-508-0	08	1	0809-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0809-
64	STAY; AIR TANK,MAIN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48317-907-0	01	1	0809-
80	BOLT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M12X35 FLANGE	0-28651-235-0	04	1	0809-
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	03	1	0809-
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91180-108-0	02	1	0809-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) STAMP 5.5	8-97609-249-0	01	1	0809-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) STAMP 5.5	8-97609-249-0	03	1	0809-

5 8 39 39 10 1 4 46 46 178 28 177 7 6 80 10 178 94 103 100 352 107 102 101 352 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	8-98056-184-2	02	1	0809-
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98056-185-1	01	1	0809-
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98056-185-1	03	1	0809-
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	0809-
4	CONNECTOR; FLARE DIFF LOCK<C3N> DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M20 & PT3/4 ELBOW	8-98067-083-1	02	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	1-48312-015-0	04	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48312-015-0	01	1	0809-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=14	1-09630-145-0	04	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	01	1	0809-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	1-47459-013-1	03	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-47459-013-1	01	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-47459-013-1	02	1	0809-
8	CONNECTOR; AIR TANK (B) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	0809-
10	PLUG; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) PT3/8	9-09204-517-0	01	1	0809-
10	PLUG; AIR TANK DIFF LOCK<C3N> (A) PT3/8	9-09204-517-0	01	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT3/8	9-09204-517-0	04	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT3/8	9-09204-517-0	06	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/4	9-09204-526-0	01	1	0809-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	0809-
10	PLUG; AIR TANK EXC. DIFF LOCK<C3N> (A) PT3/8	9-09204-517-0	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D)	8-98048-199-0	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E)	8-98048-200-2	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98104-686-0	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98104-686-0	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C)	8-98107-430-0	02	1	0809-
28	BRACKET; AIR TANK (F)	8-98100-165-3	01	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	04	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	02	1	0809-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0809-
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	0-91110-508-0	24	1	0809-
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	0-91110-508-0	08	1	0809-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0809-
80	BOLT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M12X35 FLANGE	0-28651-235-0	04	1	0809-
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	03	1	0809-
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0809-
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0809-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0809-
102	BRACKET; MODULATOR	8-98034-539-2	01	1	0809-1410
102	BRACKET; MODULATOR	8-98272-821-0	01	1	1411-
103	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0809-
107	MODULATOR; RR	1-48240-115-0	02	1	0809-1410
107	MODULATOR; RR	8-98215-454-0	02	1	1411-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-
178	CLIP; HOSE ID=21	8-94242-034-0	02	1	0809-
352	CONNECTOR; STRAIGHT DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	0809-

5 10 10 10 39 13 166 16 10 7 28 6 46 5 46 166 32 31 16 16 8 1 16 359 1 10 28 46 46 31 16 5 5 13 16 39 359 5 8 7 6 32 166 10 5 10 16 5 10 39 13 7 6 5 46 46 31 8 16 32 359 1 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	8-98056-184-2	02	1	0809-
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98056-185-1	01	1	0809-
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98056-185-1	03	1	0809-
1	TANK ASM; AIR (C)	8-98081-872-2	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M20 & PT3/4 ELBOW	8-98067-083-1	02	1	0809-
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	1-48312-015-0	04	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48312-015-0	01	1	0809-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=14	1-09630-145-0	04	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	01	1	0809-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	1-47459-013-1	03	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-47459-013-1	01	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-47459-013-1	02	1	0809-
8	CONNECTOR; AIR TANK (B) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	0809-
10	PLUG; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) PT3/8	9-09204-517-0	01	1	0809-
10	PLUG; AIR TANK DIFF LOCK<C3N> (A) PT3/8	9-09204-517-0	01	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT3/8	9-09204-517-0	04	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT3/8	9-09204-517-0	06	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/4	9-09204-526-0	01	1	0809-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	0809-
10	PLUG; AIR TANK EXC. DIFF LOCK<C3N> (A) PT3/8	9-09204-517-0	02	1	0809-
13	ADAPTER; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0809-
13	ADAPTER; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0809-
16	CONNECTOR; SWITCH WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0809-
16	CONNECTOR; SWITCH WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	0809-
16	CONNECTOR; SWITCH WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D)	8-98048-199-0	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E)	8-98048-200-2	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98104-686-0	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98104-686-0	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C)	8-98107-430-0	02	1	0809-
28	BRACKET; AIR TANK (F)	8-98100-165-3	01	1	0809-
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M10X35 FLANGE	0-28651-035-0	04	1	0809-
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M12X40 FLANGE	0-28651-240-0	04	1	0809-
32	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M10 FLANGE	0-91180-110-0	06	1	0809-
32	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M12 FLANGE	0-91180-112-0	04	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	04	1	0809-
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	02	1	0809-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0809-
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	0-91110-508-0	24	1	0809-
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	0-91110-508-0	08	1	0809-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0809-

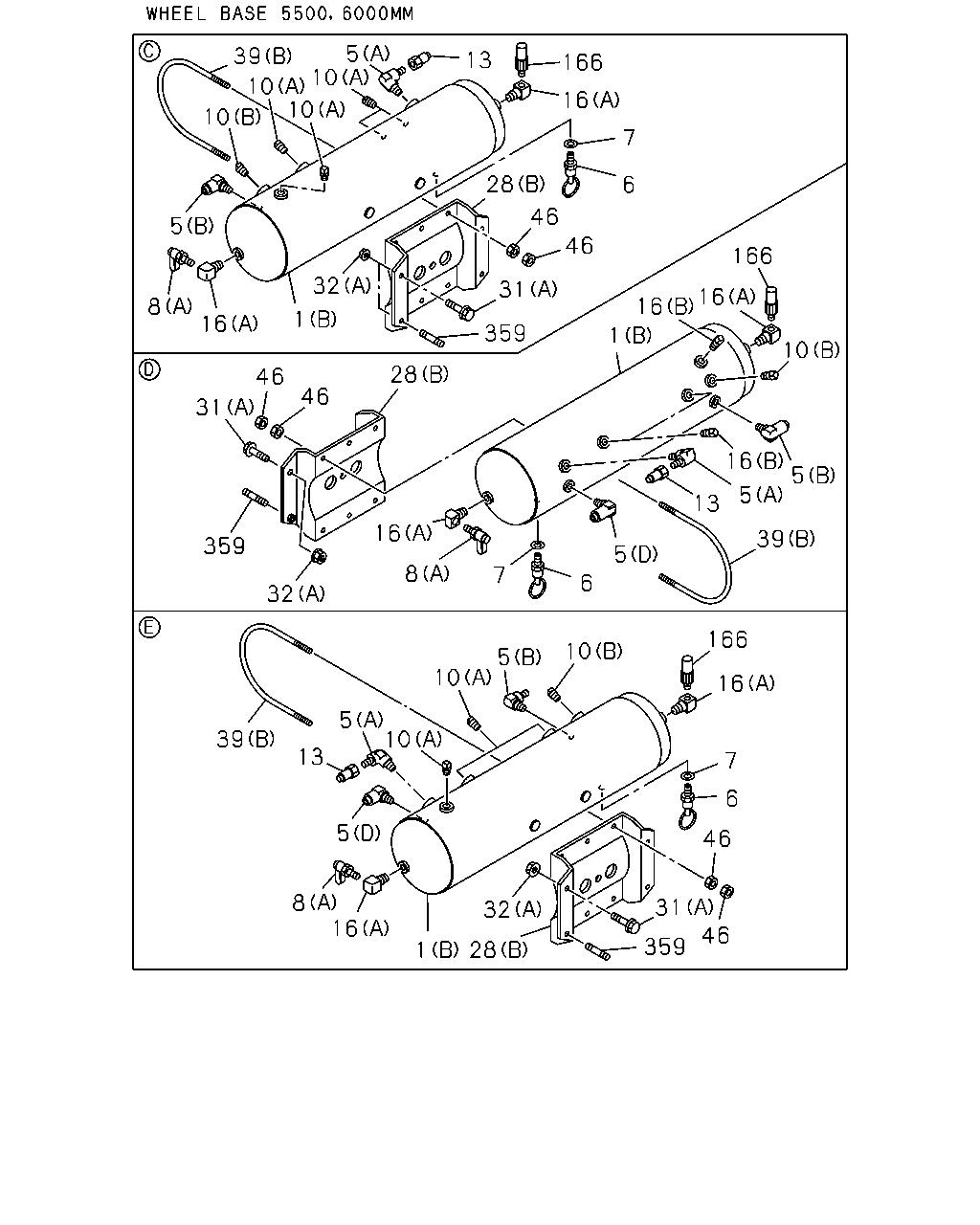

166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) STAMP 5.5	8-97609-249-0	01	1	0809-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) STAMP 5.5	8-97609-249-0	03	1	0809-
359	STUD; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10X28,M10X15 L=50	5-09300-050-0	06	1	0809-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

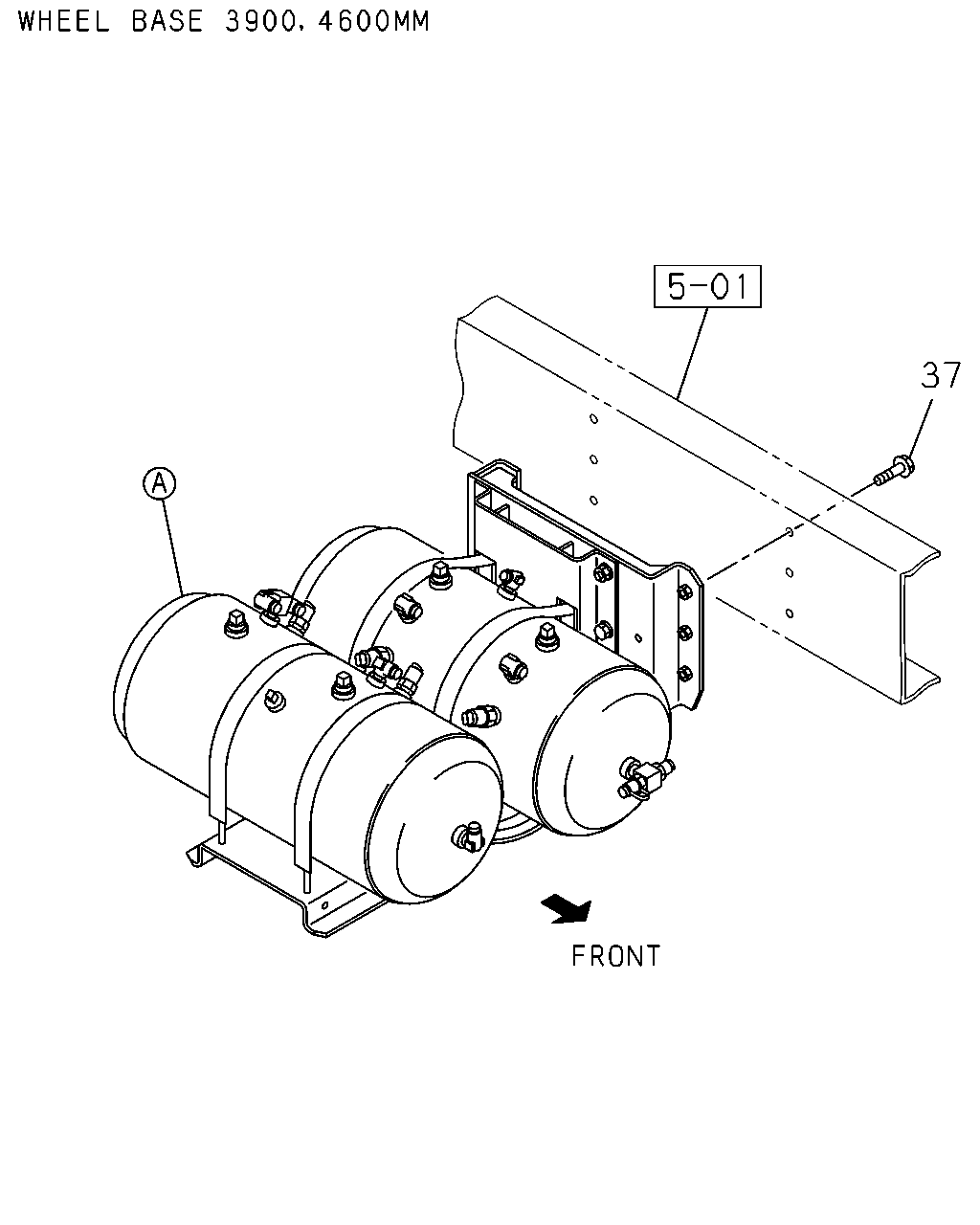

	37	BOLT; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M12X40 FLANGE	0-28651-240-0	06	1	0809-

38 28 366 10 80 366 366 369 8 38 366 9 366 126 41 104 185 104 369 45 45 9 7 126 8 6 42 1 369 366 366 10 80 28 38 9 38 126 366 126 9 366 369 8 10 45 45 1 7 366 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

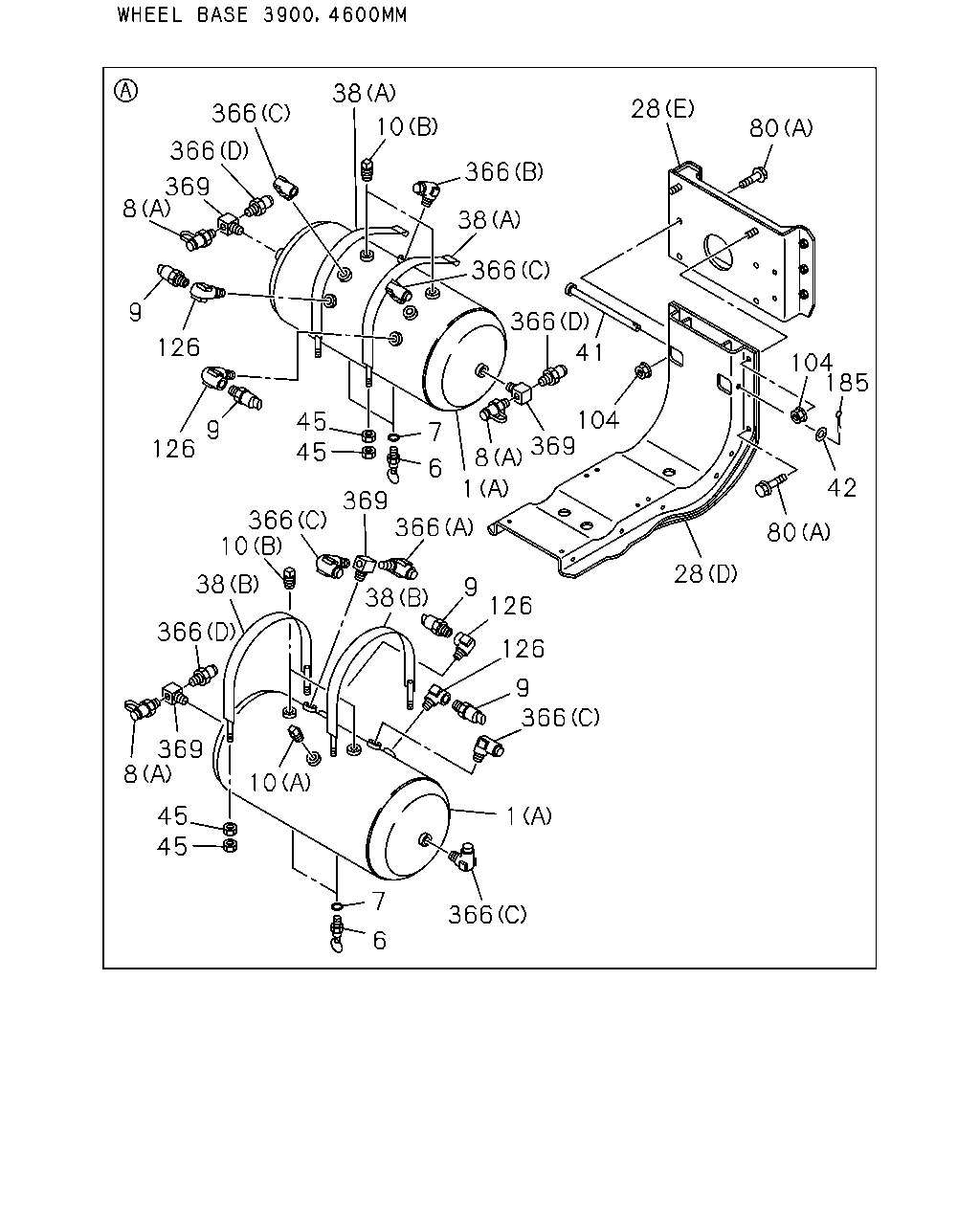

1	TANK ASM; AIR WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	8-98056-184-2	02	1	0809-

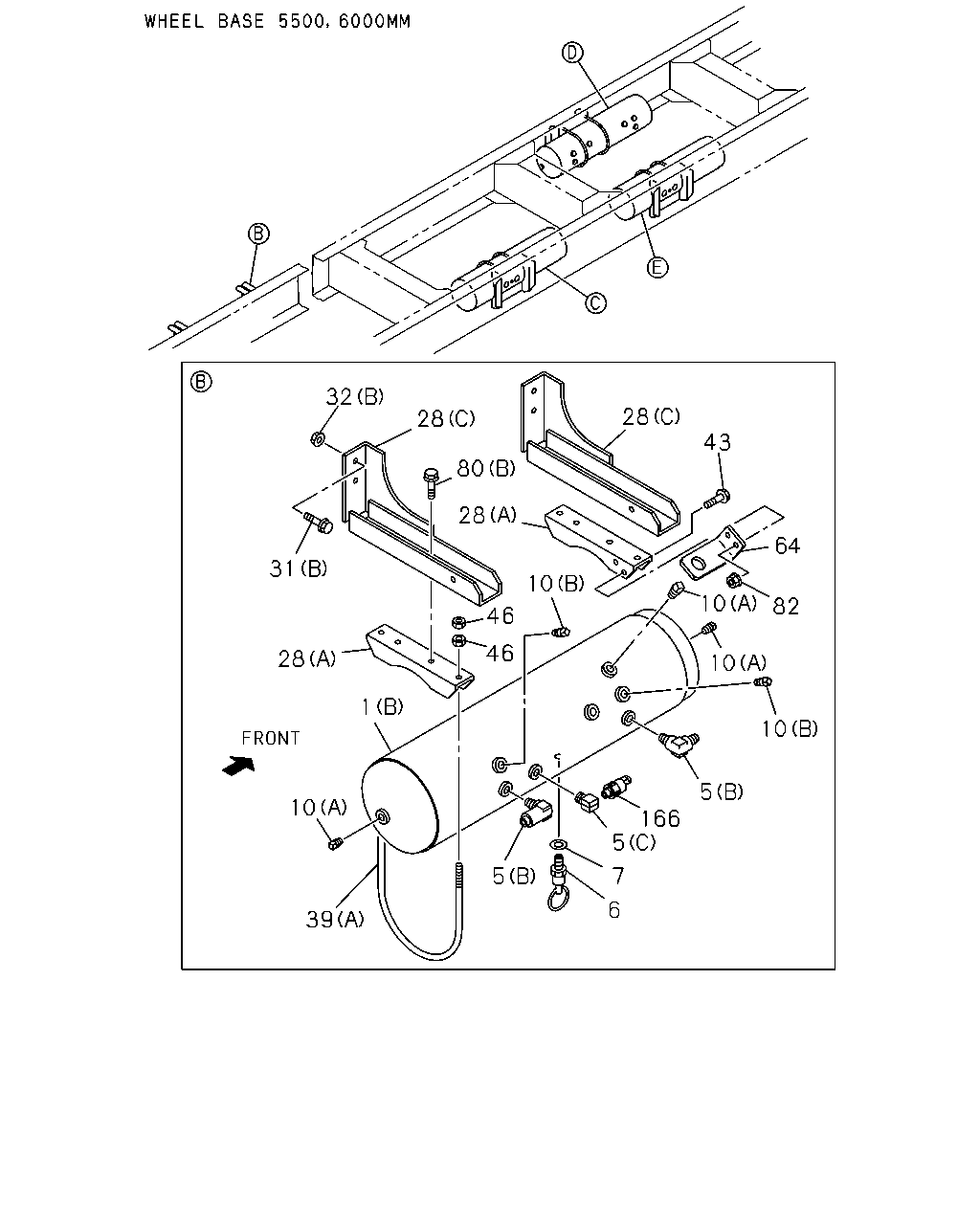

1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98056-185-1	01	1	0809-
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98056-185-1	03	1	0809-

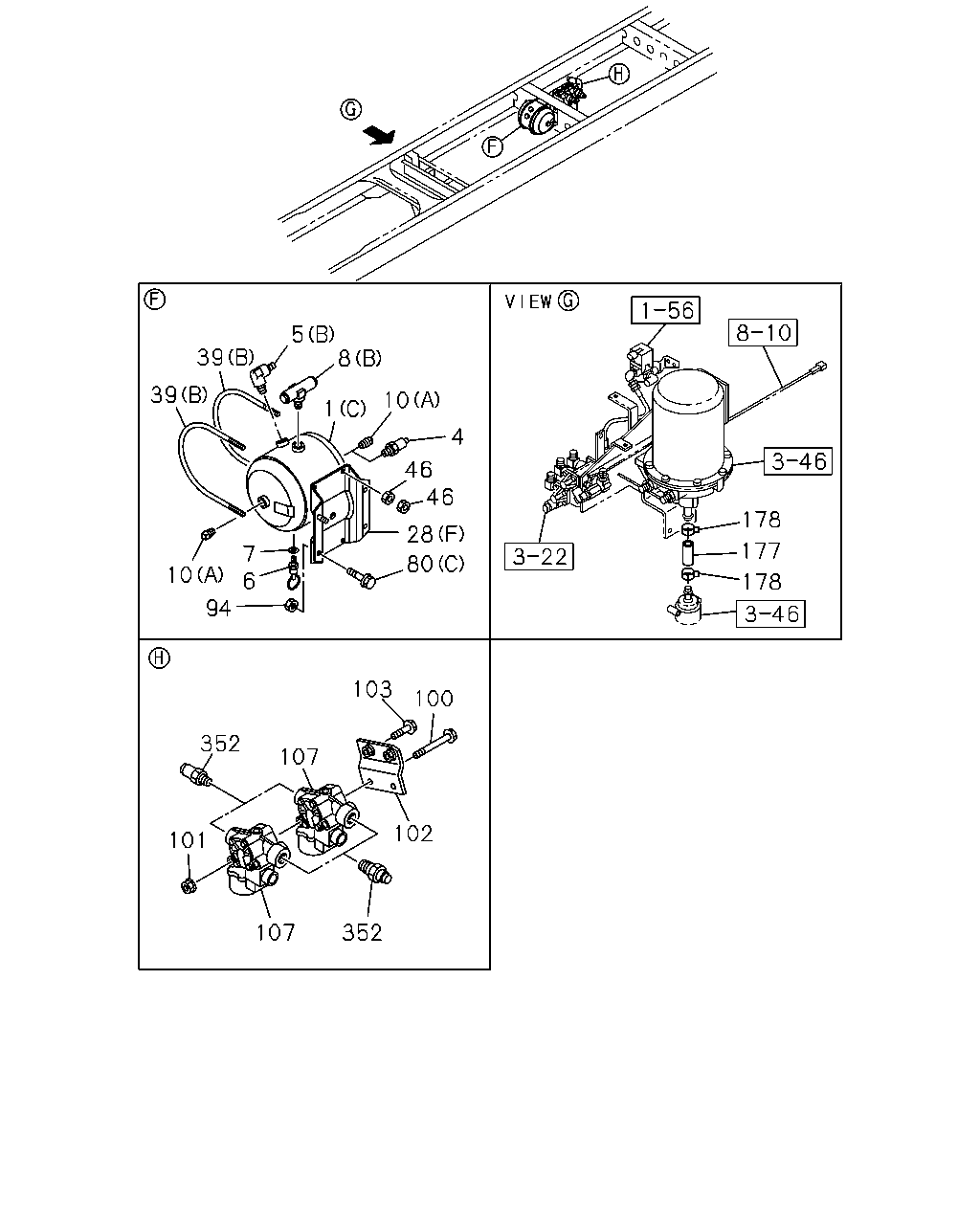

1	TANK ASM; AIR (C)	8-98081-872-2	01	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	1-48312-015-0	04	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48312-015-0	01	1	0809-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=14	1-09630-145-0	04	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	01	1	0809-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	1-47459-013-1	03	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-47459-013-1	01	1	0809-
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-47459-013-1	02	1	0809-
8	CONNECTOR; AIR TANK (B) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	0809-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) STAMP 5.5	8-97609-249-0	04	1	0809-
10	PLUG; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) PT3/8	9-09204-517-0	01	1	0809-
10	PLUG; AIR TANK DIFF LOCK<C3N> (A) PT3/8	9-09204-517-0	01	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT3/8	9-09204-517-0	04	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) PT3/8	9-09204-517-0	06	1	0809-
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/4	9-09204-526-0	01	1	0809-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	0809-
10	PLUG; AIR TANK EXC. DIFF LOCK<C3N> (A) PT3/8	9-09204-517-0	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D)	8-98048-199-0	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E)	8-98048-200-2	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98104-686-0	01	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	8-98104-686-0	02	1	0809-
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C)	8-98107-430-0	02	1	0809-
28	BRACKET; AIR TANK (F)	8-98100-165-3	01	1	0809-
38	BAND; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	1-48317-108-2	02	1	0809-
38	BAND; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B)	1-48317-109-2	02	1	0809-
41	PIN; BAND FIX WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	1-09744-068-0	01	1	0809-
42	WASHER; PL WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=10.5	9-09164-510-0	01	1	0809-1101
42	WASHER; PL WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=10.5	0-91614-510-0	01	1	1102-
45	NUT; AIR TANK,MAIN WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8	0-91110-508-0	12	1	0809-
80	BOLT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M12X35 FLANGE	0-28651-235-0	04	1	0809-
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-
80	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	03	1	0809-
104	NUT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M12 FLANGE	0-91180-212-0	02	1	0809-
126	CONNECTOR; ELBOW WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PT1/4 2WAY	1-09660-693-0	04	1	0809-
185	PIN; SNAP WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=32.6	8-98062-280-0	01	1	0809-
366	CONNECTOR; NYLON TUBE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-
366	CONNECTOR; NYLON TUBE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-
366	CONNECTOR; NYLON TUBE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0809-
366	CONNECTOR; NYLON TUBE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0809-
369	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	1-09656-708-0	04	1	0809-1101
369	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98166-127-0	04	1	1102-

244 241 245 246 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

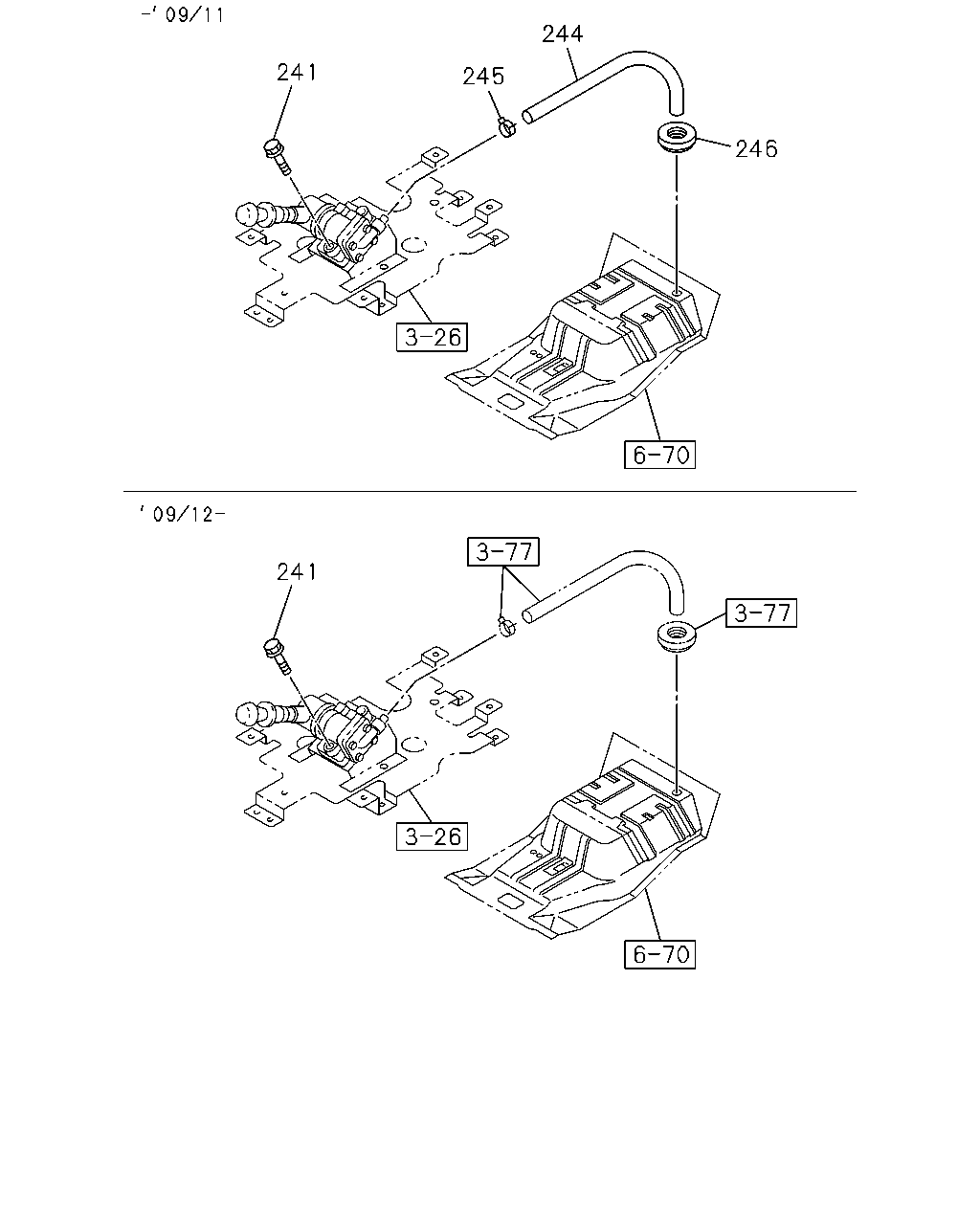

241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0809-
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0809-0911
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0809-0911
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0809-0911

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
