8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#25115) — 19 parça

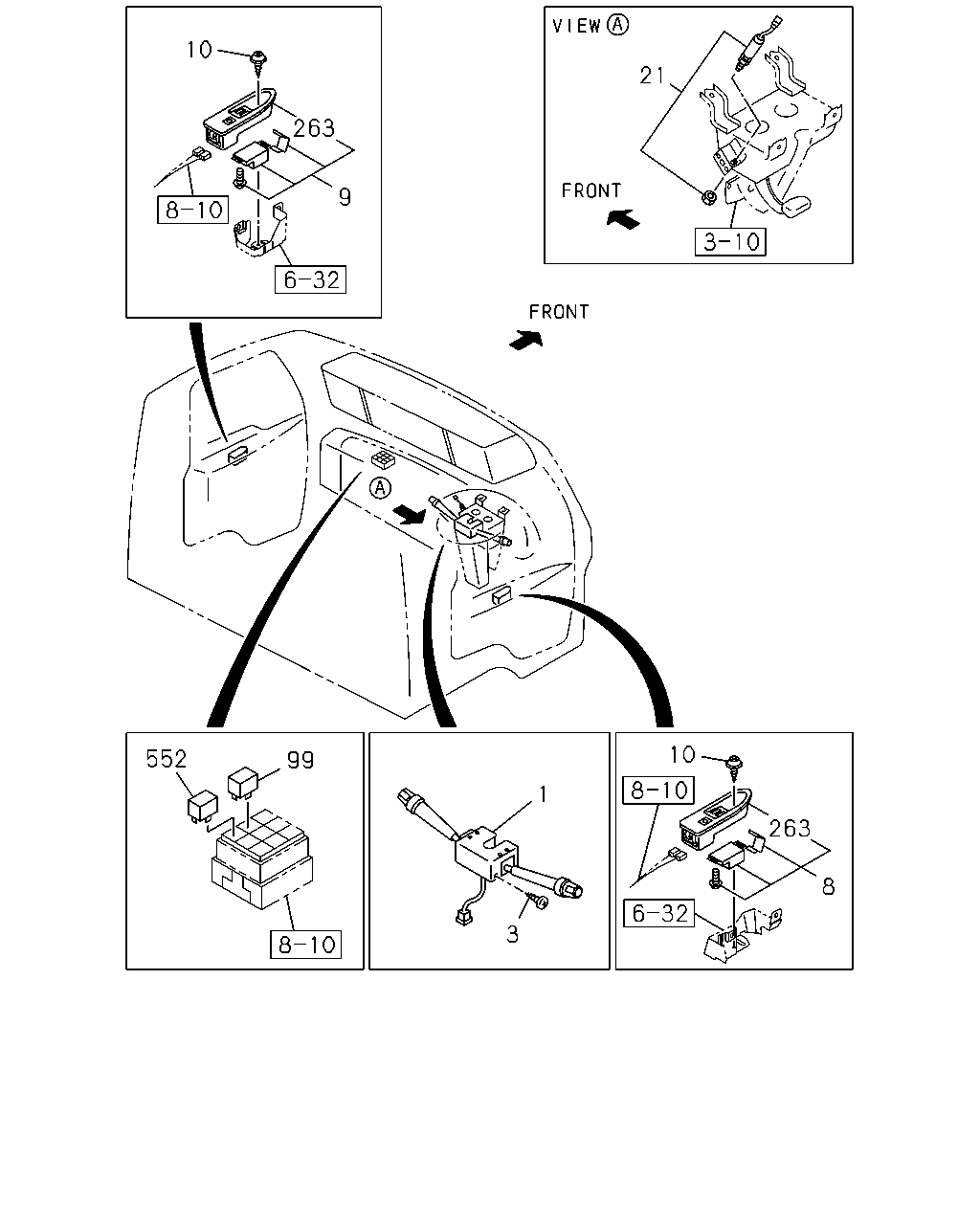

çizim 90147
10 21 263 9 10 552 99 1 263 8 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-715-0 01 1 0609- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0609- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-166-2 01 1 0609- ● ●
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-167-1 01 1 0609- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0609- ● ●
21 SWITCH; CLU 1-82440-126-1 01 1 0609- ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●
263 COVER; SW
DRIVER 		1-82385-005-2 01 1 0609- ● ●
263 COVER; SW
PASSENGER 		1-82385-006-3 01 1 0609- ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●

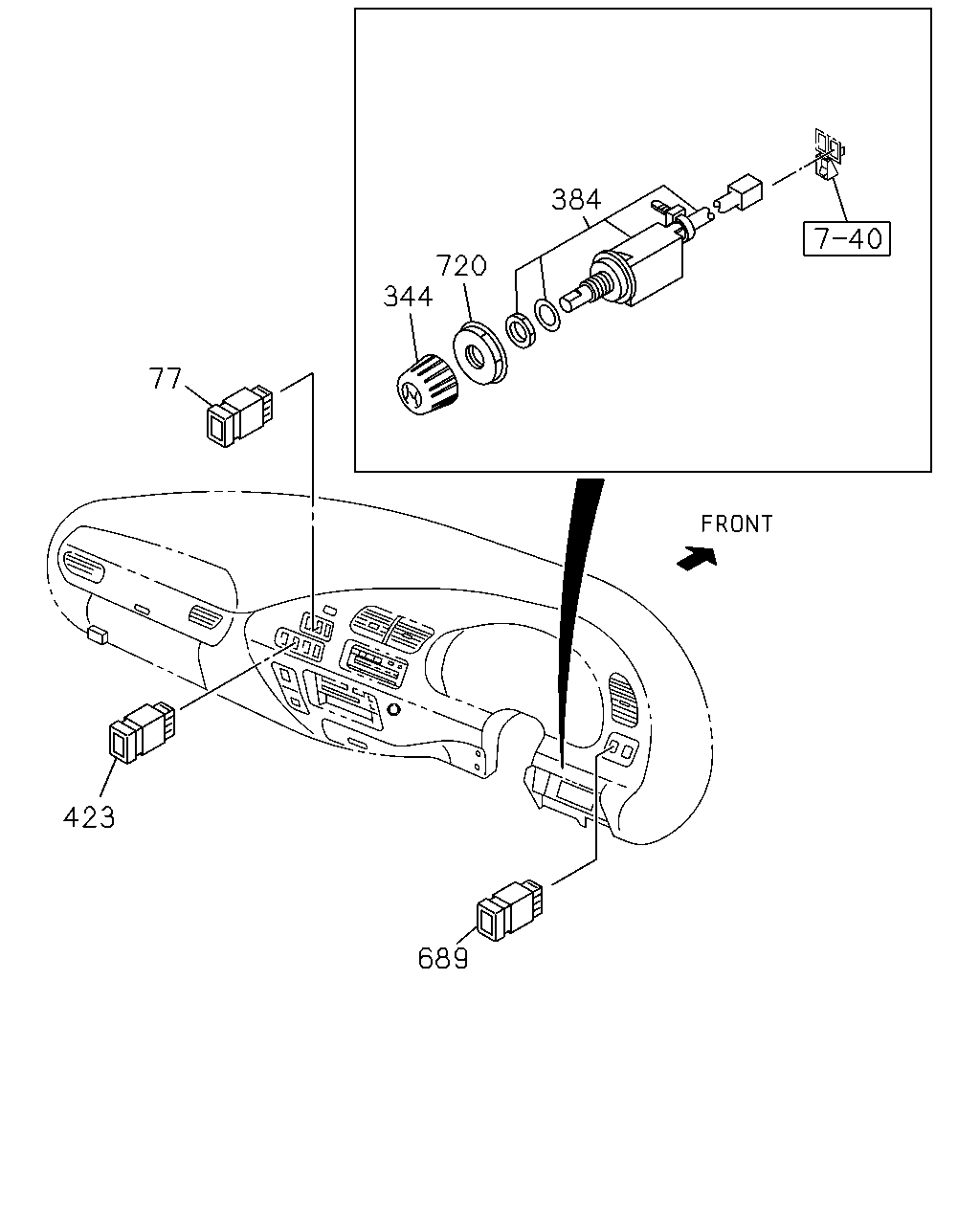

çizim 105496
384 720 344 77 423 689
BalonParca AdiParca NoAdetTipApplied Date A B
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0609- ● ●
344 KNOB; SW,IDLE 8-98013-420-0 01 1 0609- ● ●
384 SWITCH; IDLING CONT,ELEC 8-98013-418-0 01 1 0609- ● ●
423 SWITCH; ENG WARMING 1-82340-697-0 01 1 0609- ● ●
689 SWITCH; DPD 1-82340-693-0 01 1 0609- ● ●
720 HOLDER; SW,IDLE 8-97352-127-0 01 1 0609- ● ●

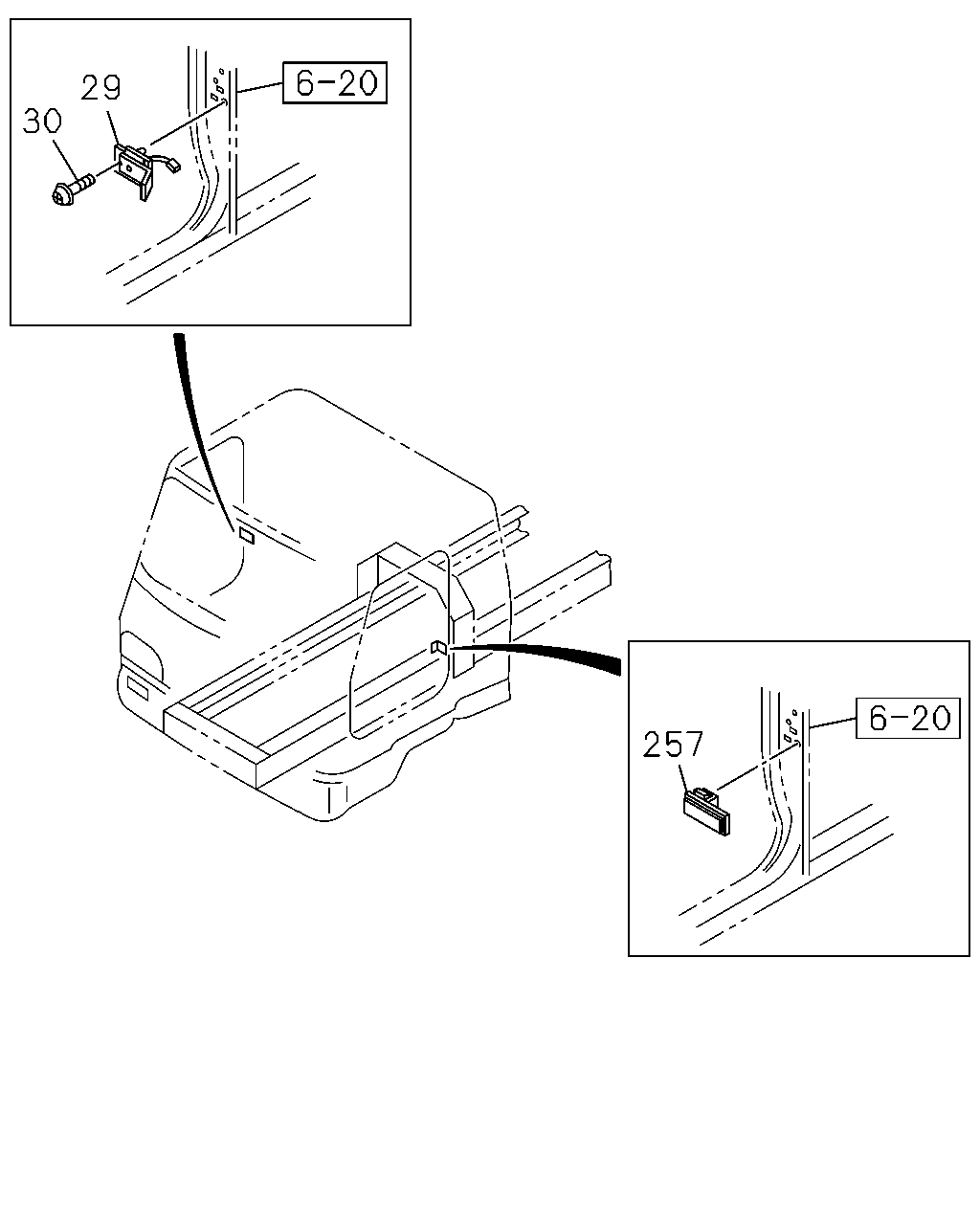

çizim 106556
29 30 257
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 0609- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0609- ● ●
257 COVER; HOLE,SW 8-94229-914-1 01 1 0609- ● ●
