◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#25112) — 280 parça

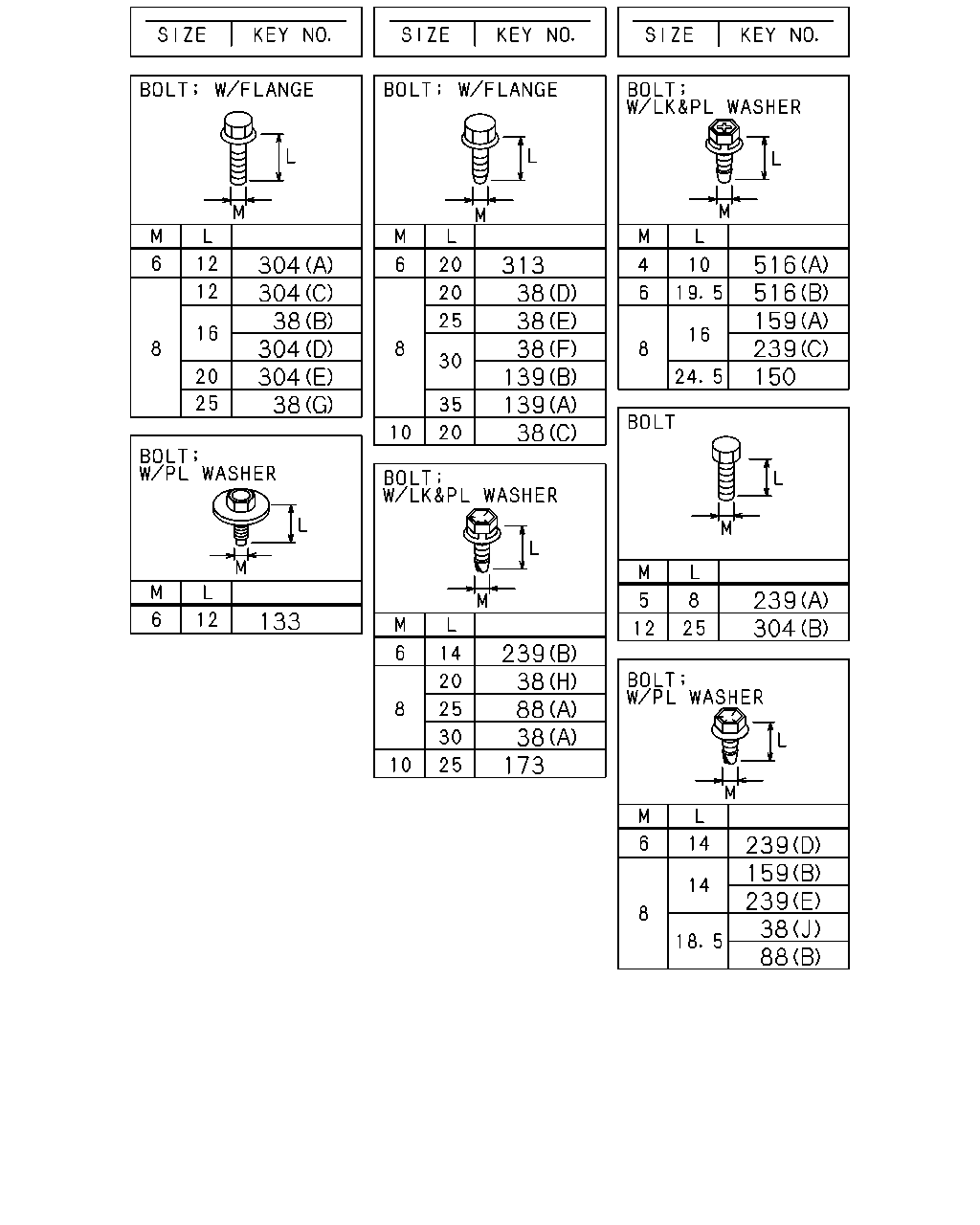

çizim 90136
150 239 159 516 516 313 38 139 139 38 38 38 304 239 88 239 159 239 38 173 239 38 88 38 133 38 304 304 38 304 304
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (D) M8X20 FLANGE 		0-28650-820-0 02 1 0609- ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 06 1 0609- ● ●
38 BOLT; CLIP,HARNESS
(C) M10X20 FLANGE 		0-28751-020-0 01 1 0609- ●
38 BOLT; CLIP,HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (B) M8X16 FLANGE 		0-28050-816-0 04 1 0609- ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0609- ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0609- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X25 FLANGE 		0-28050-825-0 03 1 0609- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0609- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0609- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0609- ● ●
38 BOLT; CLIP,HARNESS
(H) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0609-1201 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0609-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0609- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0609- ● ●
139 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0609- ● ●
150 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0609-0904 ● ●
150 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
159 BOLT; GRAND ENG ELEC
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0609-1201 ● ●
159 BOLT; GRAND ENG ELEC
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0609- ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0609-0701 ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0609-1007 ● ●
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0609-1201 ● ●
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 0609- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X12 FLANGE 		0-28050-812-0 03 1 0609- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X16 FLANGE 		0-28050-816-0 05 1 0609- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M8X20 FLANGE 		0-28050-820-0 01 1 0609- ● ●
304 BOLT; ENG HARNESS CLIP
(B) M12X25 		5-09000-227-0 01 1 0609- ● ●
313 BOLT; BRKT
M6X20 FLANGE 		0-28650-620-0 01 1 0609- ● ●
516 BOLT; HARNESS
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0609- ● ●
516 BOLT; HARNESS
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0609- ● ●

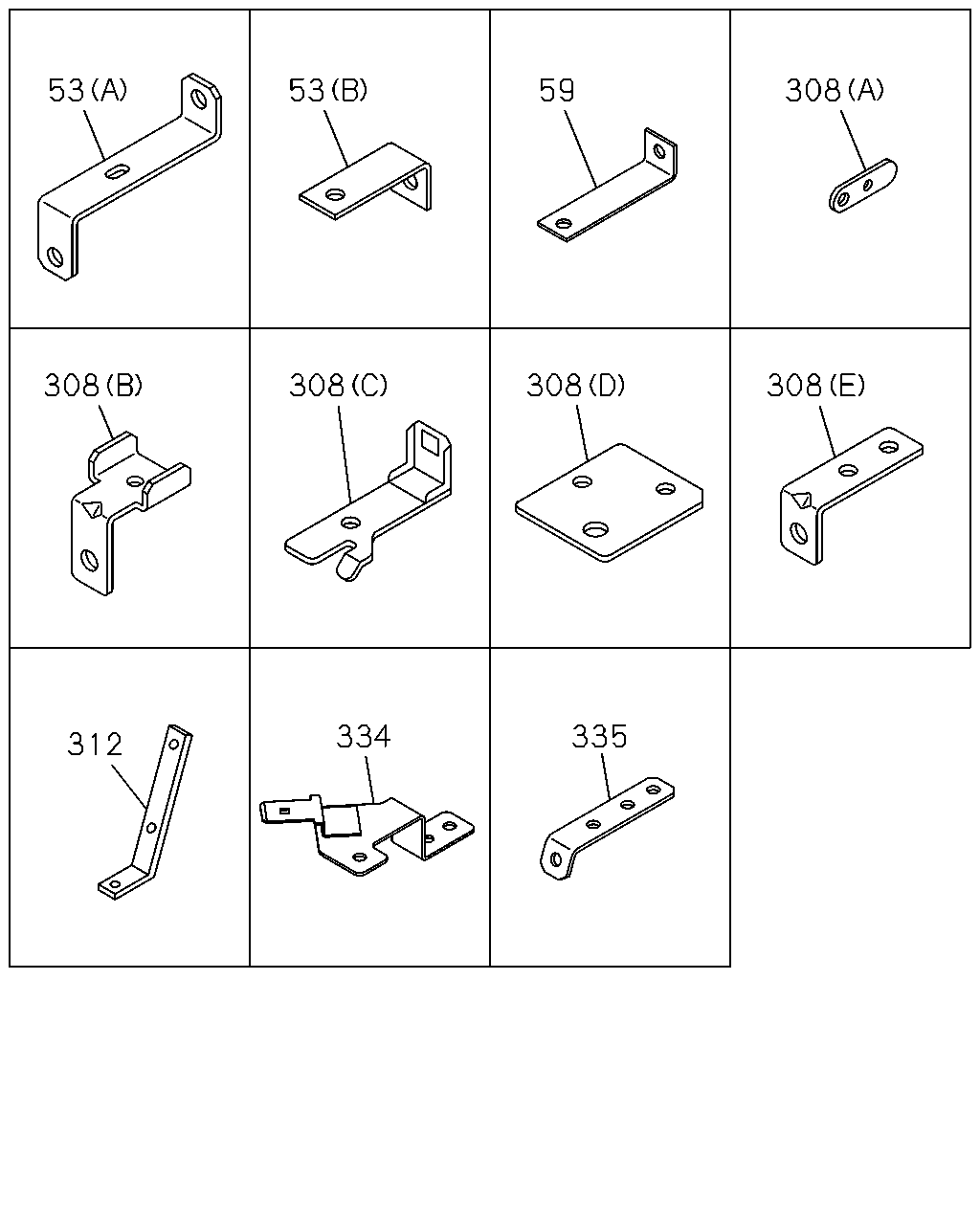

çizim 90161
53 53 59 308 308 308 308 308 335 334 312
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(B) L=55 		1-47475-304-0 01 1 0609- ● ●
53 BRACKET; HARNESS
(A) 		1-82698-656-1 02 1 0609- ● ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0609- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0609- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0609- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0609- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 02 1 0609- ● ●
308 BRACKET; CLIP,ENG HARNESS
(E) 		8-98021-694-1 01 1 0609- ● ●
312 BRACKET; CLIP HARNESS 1-82699-109-0 01 1 0609- ● ●
334 BRACKET 1-82698-494-3 01 1 0609- ● ●
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0609- ● ●
çizim 90190
119 64 294 524 219 294 515 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date A B
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0609- ● ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0609- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0609- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0609-0701 ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0609- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0609- ● ●
219 NUT
NISSAN DIESEL MPS62B M/T(Y2Z) M8 FLANGE 		0-91180-108-0 04 1 0609- ●
219 NUT
MLD6W M/T(Y2C) M8 FLANGE 		0-91180-108-0 04 1 0609- ●
219 NUT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 01 1 0609- ●
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 0609- ● ●
294 NUT
(A) M6 FLANGE 		0-91180-106-0 01 1 0609- ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0609- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0609- ● ●

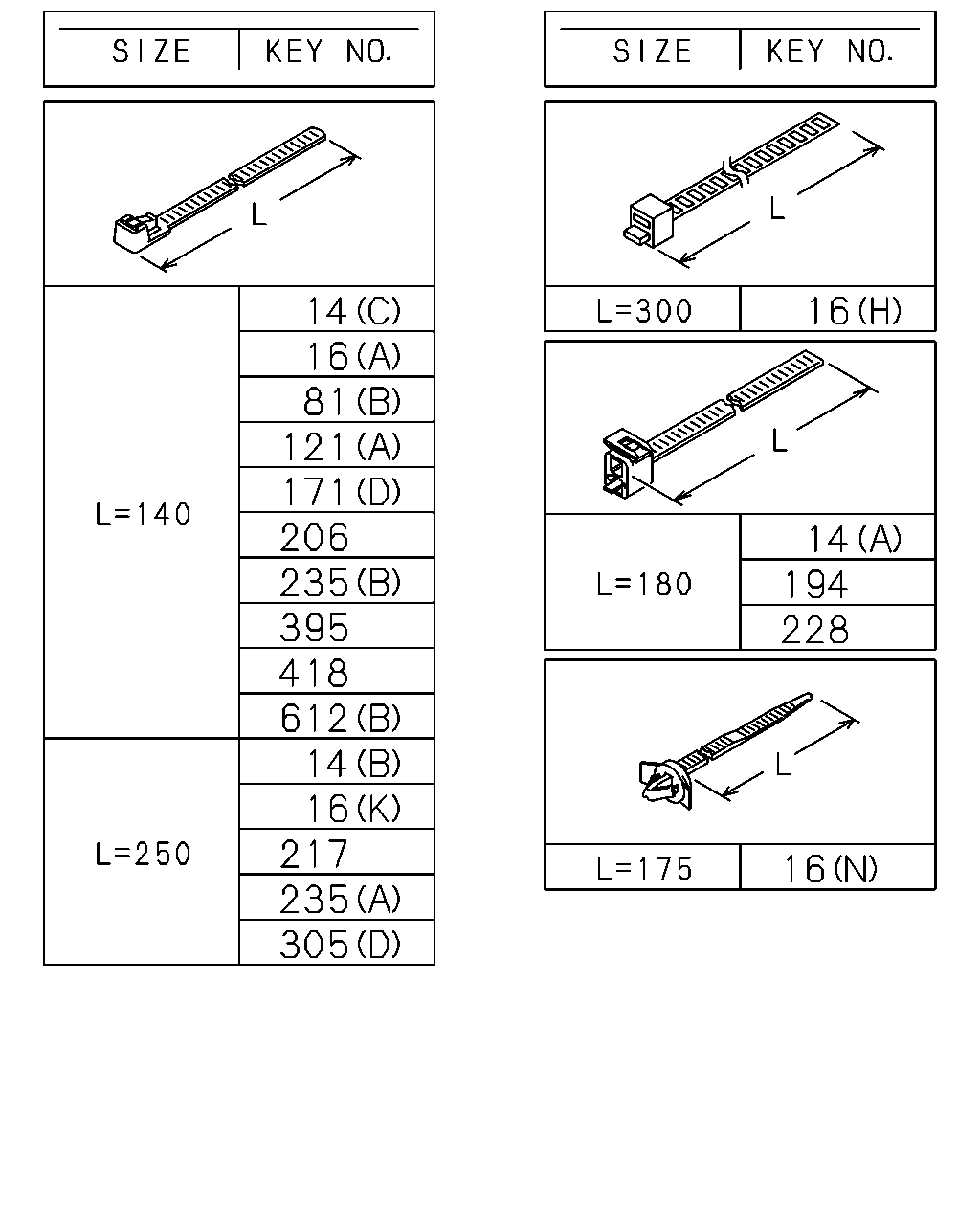

çizim 90193
14 16 81 121 171 206 235 395 418 612 14 16 217 235 305 16 14 194 228 16
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 06 1 0609-1205 ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		8-98216-431-0 06 1 1206- ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 05 1 0609-0611 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 08 1 0612-1205 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1206- ● ●
14 CLIP; BAND,HARNESS
(D) ID=19.5X2 L=24.5 		9-09917-356-0 01 1 0609- ● ●
14 CLIP; BAND,HARNESS
(A) L=180 		1-09707-162-1 01 1 0609- ● ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0609- ● ●
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0609- ● ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0609- ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0609- ● ●
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0609- ● ●
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0609- ● ●
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0609- ● ●
16 CLIP; HARNESS
(G) ID=35 H=45 L=33 		1-09701-047-0 01 1 0609- ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0609- ● ●
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0609- ● ●
16 CLIP; HARNESS
(J) ID=29 L=35 		5-09700-293-1 01 1 0609- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0609- ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0609- ● ●
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0609-0701 ● ●
16 CLIP; HARNESS
(M) L=55 		8-94432-655-0 06 1 0609- ● ●
16 CLIP; HARNESS
(N) L=175 		8-97110-167-0 06 1 0609- ● ●
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 03 1 0609- ● ●
81 CLIP; HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 0609- ● ●
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0609- ● ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0609- ● ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0609- ● ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (B) OD=9 H=6 		1-09709-178-0 03 1 0609-0701 ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (B) OD=9 H=6 		1-09709-178-0 02 1 0702- ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0702- ●
171 CLIP; STARTER HARNESS
ZF9S1110 M/T(Y5E) (E) ID=19 L=60 		0-95235-896-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (D) L=140 		5-09707-031-1 01 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (C) ID=19 L=28 		0-95235-856-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (A) ID=11 L=41 		1-09700-403-0 01 1 0609- ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0609- ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0609-0701 ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0609- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0609- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0609- ● ●
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0609- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
NISSAN DIESEL MPS62B M/T(Y2Z) (A) L=250 		5-09707-030-1 01 1 0609- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF9S1110 M/T(Y5E) (B) L=140 		5-09707-031-1 02 1 0609- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 0609- ●
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0609- ● ●
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0609- ● ●
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0609- ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0609-0611 ● ●
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		9-09525-576-0 02 1 0612-0806 ● ●
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 02 1 0807- ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0609-0611 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810 ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0811- ●
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0609-0702 ● ●
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0609-0701 ● ●
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0609- ●
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703- ●
612 CLIP; HARNESS DPD
(B) L=140 		5-09707-031-1 01 1 0609- ● ●
612 CLIP; HARNESS DPD
(A) ID=14 L=44 		9-09917-427-0 01 1 0609- ● ●

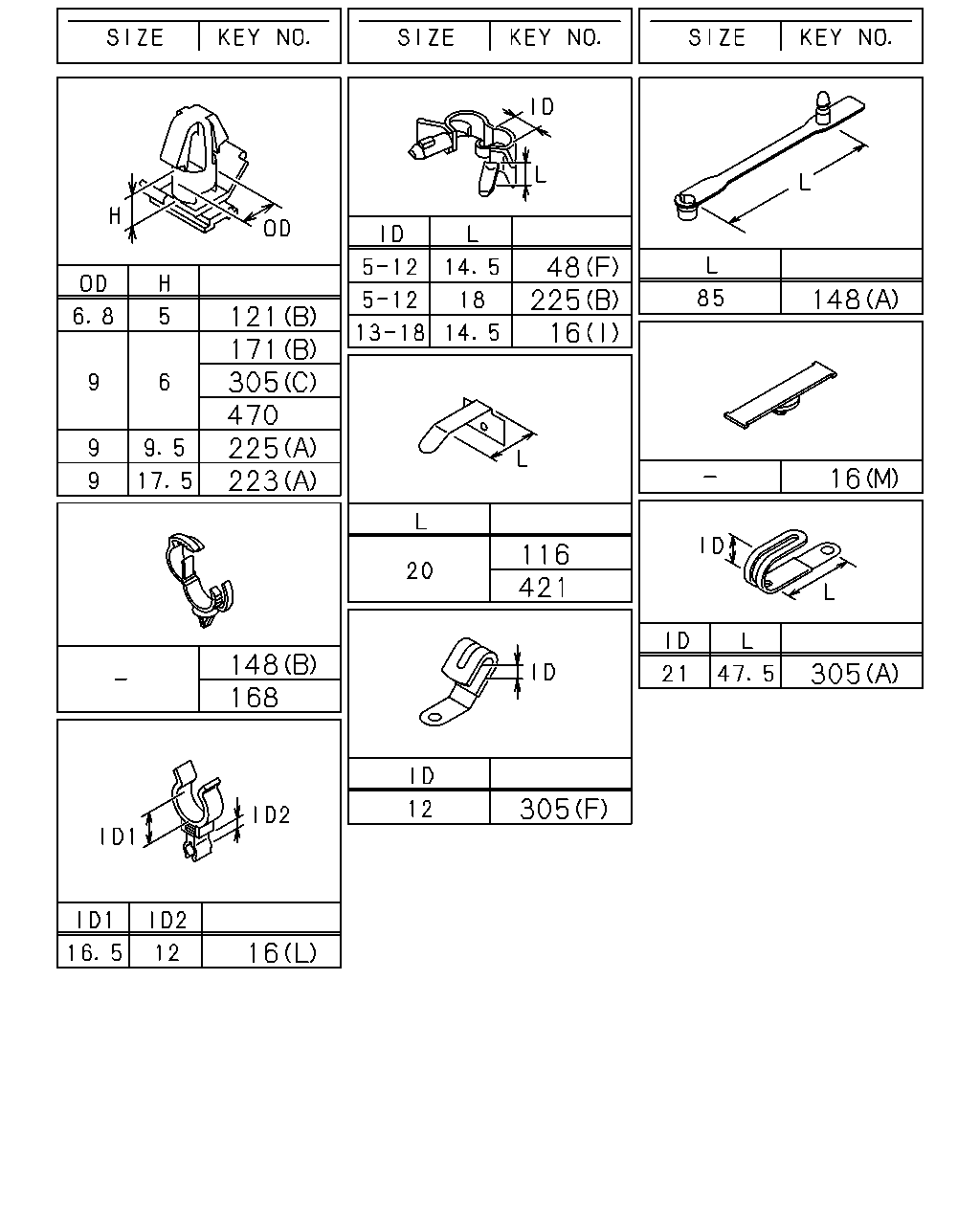

çizim 90293
121 171 305 470 225 223 148 168 16 48 225 16 116 421 305 148 16 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0609- ● ●
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0609- ● ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0609- ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0609- ● ●
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0609- ● ●
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0609- ● ●
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0609- ● ●
16 CLIP; HARNESS
(G) ID=35 H=45 L=33 		1-09701-047-0 01 1 0609- ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0609- ● ●
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0609- ● ●
16 CLIP; HARNESS
(J) ID=29 L=35 		5-09700-293-1 01 1 0609- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0609- ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0609- ● ●
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0609-0701 ● ●
16 CLIP; HARNESS
(M) L=55 		8-94432-655-0 06 1 0609- ● ●
16 CLIP; HARNESS
(N) L=175 		8-97110-167-0 06 1 0609- ● ●
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 03 1 0609- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=61 		1-09700-484-0 07 1 0609- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0609- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (H) ID=20 L=50 		9-09917-430-0 15 1 0609- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 19 1 0609- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 19 1 0609- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (H) ID=20 L=50 		9-09917-430-0 21 1 0609- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0609- ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 04 1 0609- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 10 1 0609- ● ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0609- ● ●
48 CLIP; FRAME HARNESS
(I) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0609- ● ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 0609- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 05 1 0609- ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0609- ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0609- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 0609- ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0609- ● ●
121 CLIP; FACIA HARNESS
(B) OD=6.8 H=5 		8-97082-051-0 02 1 0609- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0609- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0609- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0609- ● ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (B) OD=9 H=6 		1-09709-178-0 03 1 0609-0701 ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (B) OD=9 H=6 		1-09709-178-0 02 1 0702- ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0702- ●
171 CLIP; STARTER HARNESS
ZF9S1110 M/T(Y5E) (E) ID=19 L=60 		0-95235-896-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (D) L=140 		5-09707-031-1 01 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (C) ID=19 L=28 		0-95235-856-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (A) ID=11 L=41 		1-09700-403-0 01 1 0609- ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0609- ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0609-0701 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=17.5 		1-09709-181-0 01 1 0609- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0609- ● ●
225 CLIP; AIR TANK HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0609- ● ●
225 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=18 		1-09709-287-0 02 1 0609- ● ●
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0609- ● ●
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0609- ● ●
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0609- ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0609-0611 ● ●
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		9-09525-576-0 02 1 0612-0806 ● ●
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 02 1 0807- ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0609-0611 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810 ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0811- ●
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0609-0702 ● ●
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0609-0701 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0609- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0609- ● ●
çizim 90295
1 224 1 178 178 514 510 513 530 503 503
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 02 1 0609-0609 ● ●
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 03 1 0610-0611 ● ●
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 04 1 0612- ● ●
1 SLEEVE; RUBBER
(B) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0609- ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0609- ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0609- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0609- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 05 1 0609-0701 ● ●
503 CONNECTOR
ZF9S1110 M/T(Y5E) (A) 		1-82690-974-0 01 1 0609- ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 0609-0609 ● ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 0610- ● ●
503 CONNECTOR
(B) 		1-82690-668-0 01 1 0610- ●
503 CONNECTOR
(B) 		1-82690-668-0 01 1 0609- ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0609- ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0609-0906 ● ●
514 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0907- ●
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) L=50 		8-94270-377-1 01 1 0907- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0609- ● ●

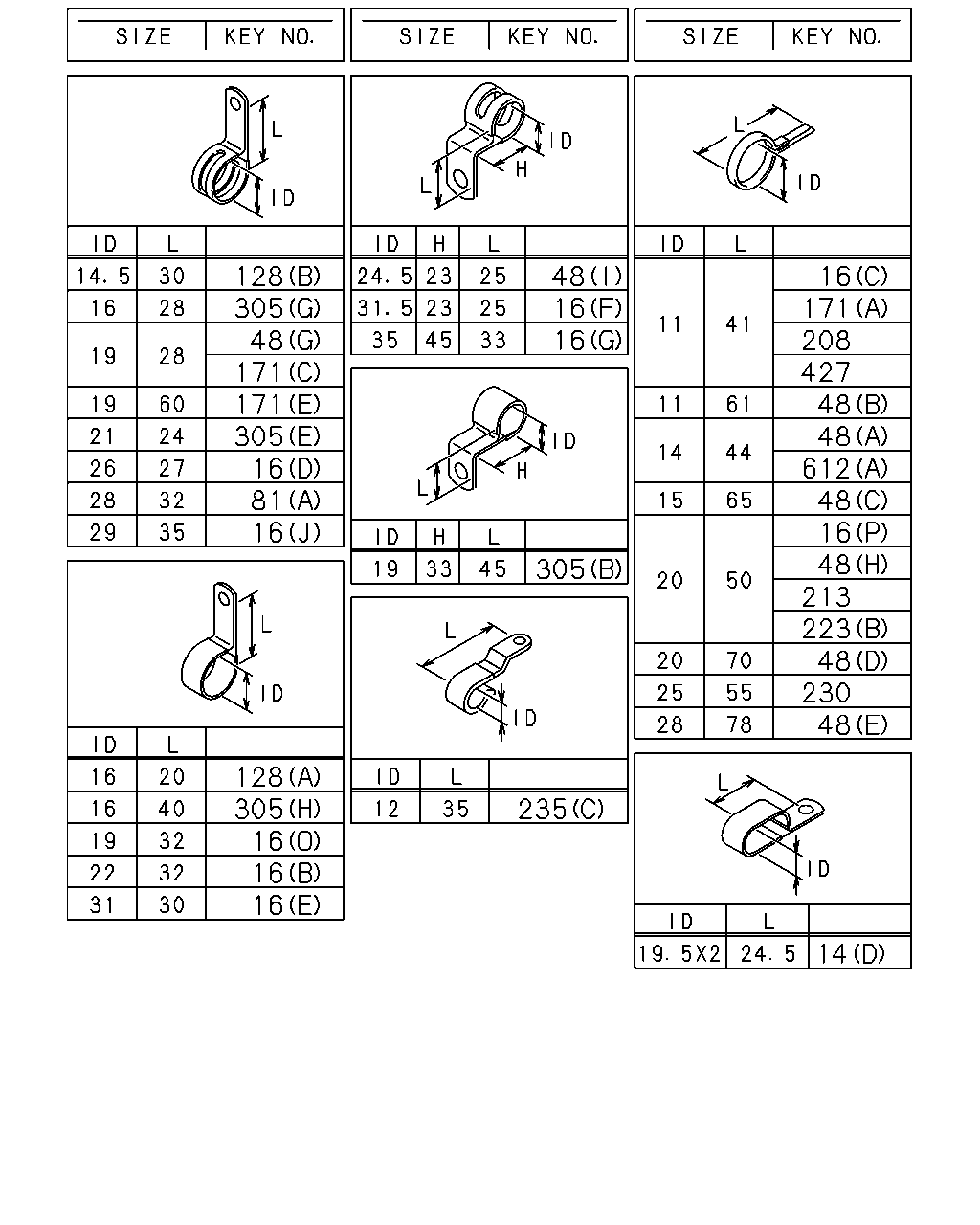

çizim 106485
128 305 48 171 171 305 16 81 16 48 16 16 16 171 208 427 48 48 612 48 16 48 213 223 48 230 48 305 128 305 16 16 16 235 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 06 1 0609-1205 ● ●
14 CLIP; BAND,HARNESS
(C) L=140 		8-98216-431-0 06 1 1206- ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 05 1 0609-0611 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 08 1 0612-1205 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1206- ● ●
14 CLIP; BAND,HARNESS
(D) ID=19.5X2 L=24.5 		9-09917-356-0 01 1 0609- ● ●
14 CLIP; BAND,HARNESS
(A) L=180 		1-09707-162-1 01 1 0609- ● ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0609- ● ●
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0609- ● ●
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0609- ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0609- ● ●
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0609- ● ●
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0609- ● ●
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0609- ● ●
16 CLIP; HARNESS
(G) ID=35 H=45 L=33 		1-09701-047-0 01 1 0609- ● ●
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0609- ● ●
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0609- ● ●
16 CLIP; HARNESS
(J) ID=29 L=35 		5-09700-293-1 01 1 0609- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0609- ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0609- ● ●
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0609-0701 ● ●
16 CLIP; HARNESS
(M) L=55 		8-94432-655-0 06 1 0609- ● ●
16 CLIP; HARNESS
(N) L=175 		8-97110-167-0 06 1 0609- ● ●
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 03 1 0609- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=61 		1-09700-484-0 07 1 0609- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0609- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (H) ID=20 L=50 		9-09917-430-0 15 1 0609- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 19 1 0609- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 19 1 0609- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (H) ID=20 L=50 		9-09917-430-0 21 1 0609- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0609- ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 04 1 0609- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 10 1 0609- ● ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0609- ● ●
48 CLIP; FRAME HARNESS
(I) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0609- ● ●
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 0609- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 05 1 0609- ● ●
81 CLIP; HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 0609- ● ●
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0609- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0609- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0609- ● ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (B) OD=9 H=6 		1-09709-178-0 03 1 0609-0701 ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (B) OD=9 H=6 		1-09709-178-0 02 1 0702- ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0702- ●
171 CLIP; STARTER HARNESS
ZF9S1110 M/T(Y5E) (E) ID=19 L=60 		0-95235-896-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (D) L=140 		5-09707-031-1 01 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (C) ID=19 L=28 		0-95235-856-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0609- ●
171 CLIP; STARTER HARNESS
NISSAN DIESEL MPS62B M/T(Y2Z) (A) ID=11 L=41 		1-09700-403-0 01 1 0609- ●
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0609- ●
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0609-0701 ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL<SV6> ID=11 L=41 		1-09700-403-0 01 1 0609- ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0609- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=17.5 		1-09709-181-0 01 1 0609- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0609- ● ●
230 CLIP; C/MBR HARNESS
ID=25 L=55 		9-09917-573-0 02 1 0609- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
NISSAN DIESEL MPS62B M/T(Y2Z) (A) L=250 		5-09707-030-1 01 1 0609- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF9S1110 M/T(Y5E) (B) L=140 		5-09707-031-1 02 1 0609- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 0609- ●
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0609- ● ●
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0609- ● ●
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0609- ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0609-0611 ● ●
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		9-09525-576-0 02 1 0612-0806 ● ●
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 02 1 0807- ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0609-0611 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810 ● ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0612-0810 ●
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0811- ●
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0609-0702 ● ●
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0609-0701 ● ●
427 CLIP; HARNESS,FULL ELEC
ID=11 L=41 		1-09700-403-0 01 1 0609- ● ●
612 CLIP; HARNESS DPD
(B) L=140 		5-09707-031-1 01 1 0609- ● ●
612 CLIP; HARNESS DPD
(A) ID=14 L=44 		9-09917-427-0 01 1 0609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
