◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#25111) — 88 parça

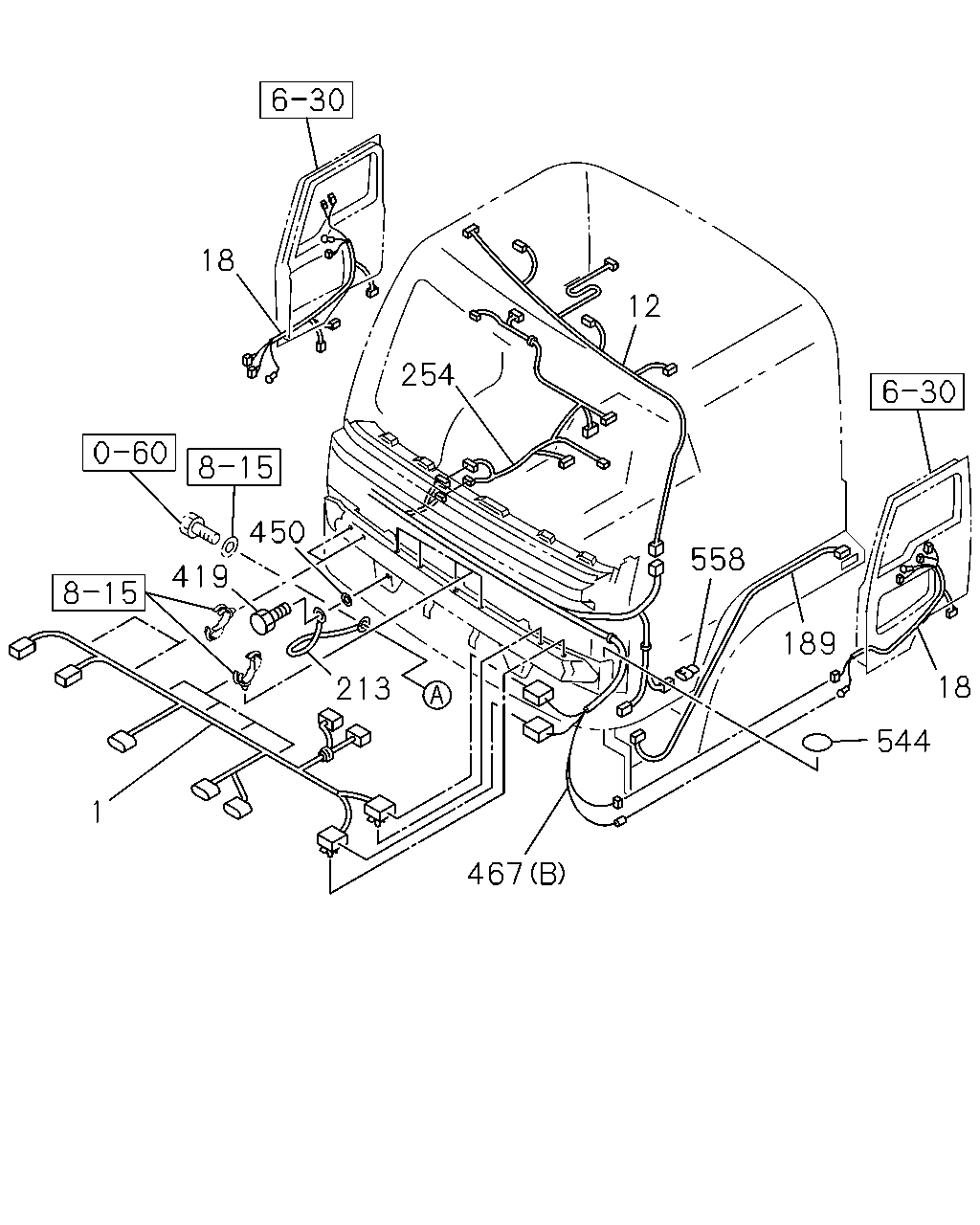

çizim 90119
18 12 254 450 419 558 189 18 213 544 1 467
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82626-365-0 01 1 0609- ● ●
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82625-717-1 01 1 0609- ● ●
12 HARNESS; ROOF 1-82660-024-2 01 1 0609- ●
12 HARNESS; ROOF 1-82625-714-6 01 1 0609- ●
18 HARNESS; DOOR 1-82628-582-0 01 1 0609- ●
18 HARNESS; DOOR 1-82628-584-0 01 1 0609- ●
18 HARNESS; DOOR 1-82628-583-0 01 1 0609- ●
18 HARNESS; DOOR 1-82628-585-0 01 1 0609- ●
189 HARNESS; EXT 1-82625-673-2 02 1 0609- ●
213 CABLE; EARTH,CAB TO FRAME 1-82657-055-1 01 1 0609- ● ●
254 HARNESS; CAB FLOOR 1-82629-307-3 01 1 0609- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0609-1201 ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0609- ● ●
467 HARNESS; FACIA
NISSAN DIESEL MPS62B M/T(Y2Z) (B) 		1-82662-813-6 01 1 0609- ●
467 HARNESS; FACIA
ZF9S1110 M/T(Y5E) (B) 		1-82662-814-6 01 1 0609- ●
467 HARNESS; FACIA
(A) 		1-82662-866-0 01 1 0609- ● ●
467 HARNESS; FACIA
(B) 		1-82662-761-6 01 1 0609- ●
544 SEAL; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0609- ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0609- ●

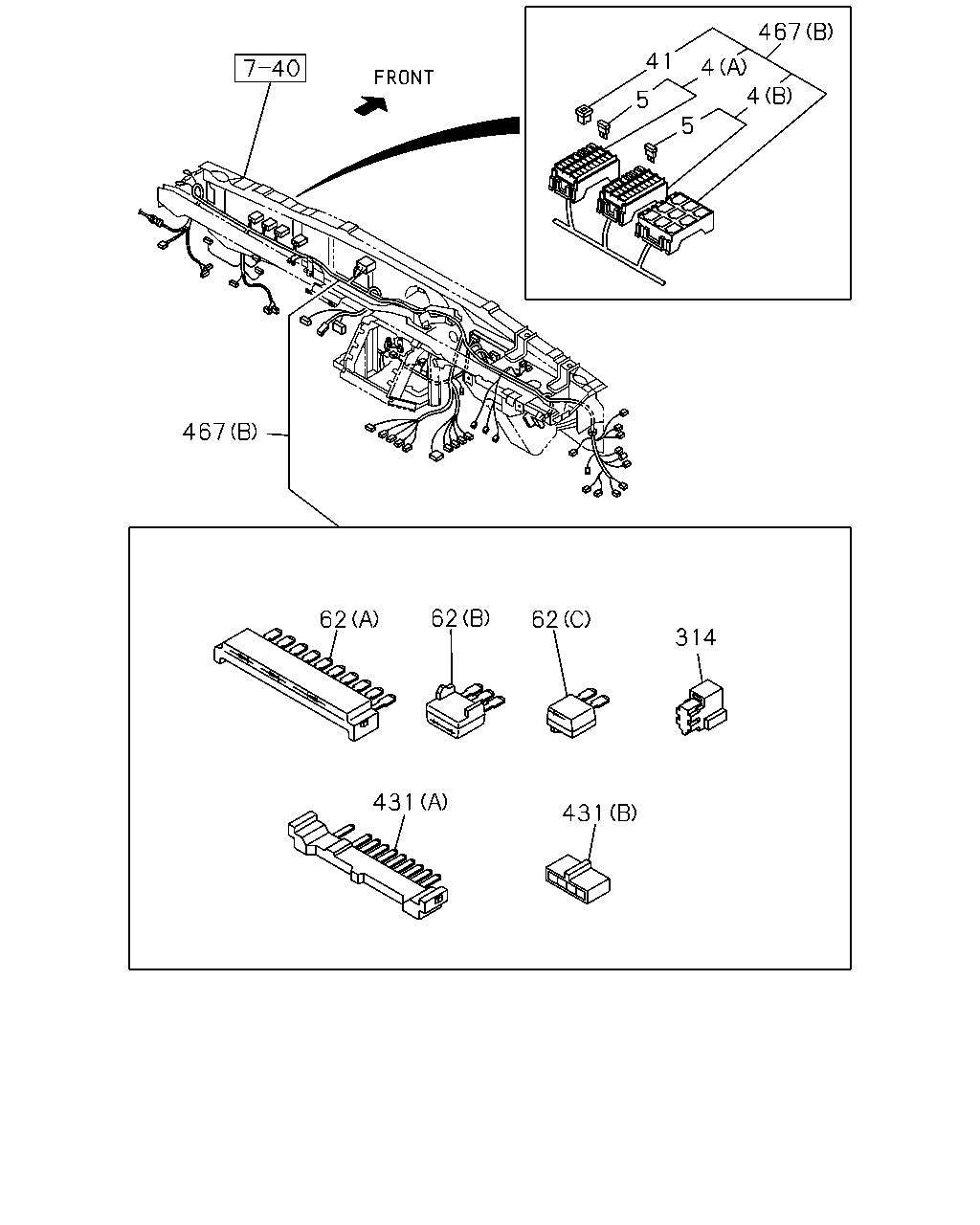

çizim 90192
467 41 4 4 5 5 467 62 62 62 314 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX15 		1-82510-391-0 01 1 0609- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX16 		1-82510-397-0 01 1 0609- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 16 1 0609- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 15 1 0609- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0609- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0609- ● ●
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94416-438-1 02 1 0609- ● ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 02 1 0609- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0609- ● ●
431 CONNECTOR; JOINT
(B) 3P & 3P 		1-82698-170-0 01 1 0609- ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 07 1 0609- ● ●
467 HARNESS; FACIA
NISSAN DIESEL MPS62B M/T(Y2Z) (B) 		1-82662-813-6 01 1 0609- ●
467 HARNESS; FACIA
ZF9S1110 M/T(Y5E) (B) 		1-82662-814-6 01 1 0609- ●
467 HARNESS; FACIA
(A) 		1-82662-866-0 01 1 0609- ● ●
467 HARNESS; FACIA
(B) 		1-82662-761-6 01 1 0609- ●

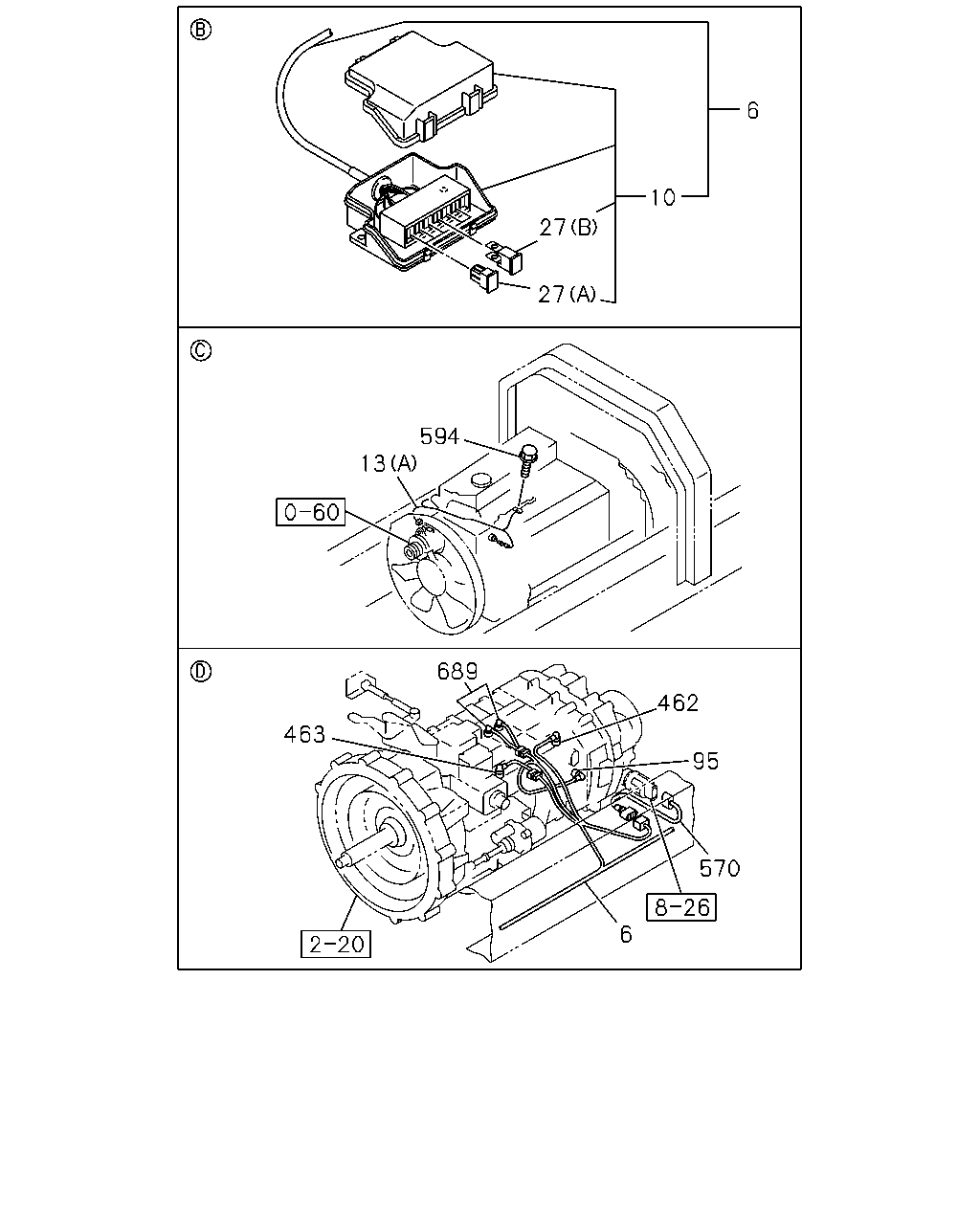

çizim 90289
6 10 27 27 594 13 689 462 463 95 570 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-82678-196-5 01 1 0609- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		1-82678-197-5 01 1 0609- ●
6 HARNESS; FRAME 1-82678-195-5 01 1 0609- ●
10 BOX; FUSE,HARNESS 1-82510-409-0 01 1 0609- ● ●
13 HARNESS; ENG
(A) 		8-97605-001-6 01 1 0609- ● ●
13 HARNESS; ENG
(B) 		1-82662-815-3 01 1 0609- ●
13 HARNESS; ENG
(B) 		1-82662-763-5 01 1 0609- ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 03 1 0609- ● ●
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 0609- ● ●
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T(Y5E) 		1-82659-226-0 01 1 0609-0905 ●
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T(Y5E) RED 		8-98145-854-0 01 1 0906- ●
462 HARNESS; SW,RANGE
ZF9S1110 M/T(Y5E) BLUE 		1-82659-228-0 01 1 0609-0905 ●
462 HARNESS; SW,RANGE
ZF9S1110 M/T(Y5E) BLUE 		8-98145-857-0 01 1 0906- ●
463 HARNESS; SW,BACK UP
ZF9S1110 M/T(Y5E) 		1-82659-227-0 01 1 0609-0905 ●
463 HARNESS; SW,BACK UP
ZF9S1110 M/T(Y5E) BLACK 		8-98145-856-0 01 1 0906- ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-82659-230-0 01 1 0609-1004 ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98148-602-0 01 1 1005- ●
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0609-0701 ● ●
689 HARNESS; PRESSURE & ECU SWITCH
ZF9S1110 M/T(Y5E) 		1-82659-229-1 01 1 0609-1101 ●
689 HARNESS; PRESSURE & ECU SWITCH
ZF9S1110 M/T(Y5E) 		8-98148-603-0 01 1 1102- ●

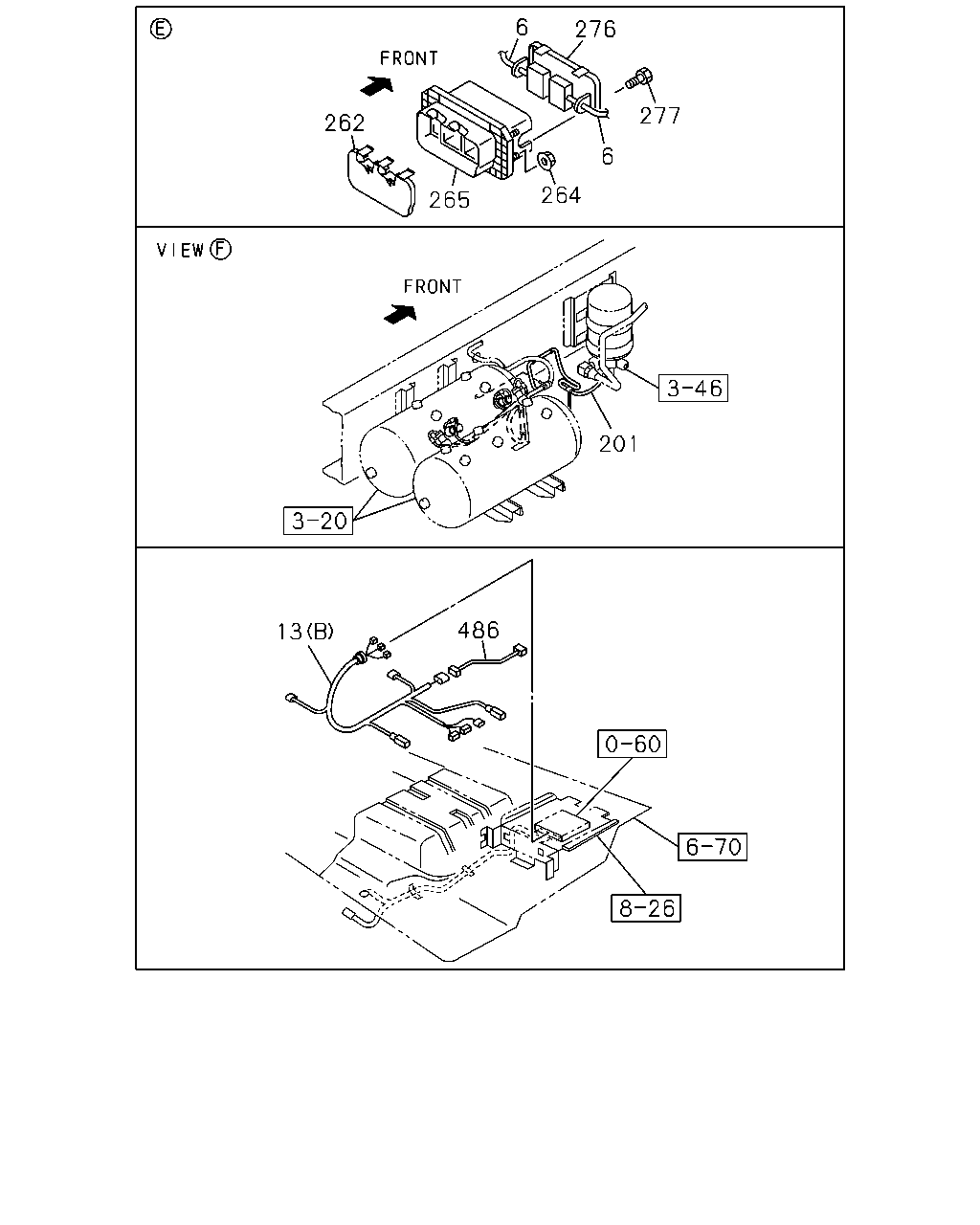

çizim 90306
6 276 277 262 6 264 265 201 486 13
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-82678-196-5 01 1 0609- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		1-82678-197-5 01 1 0609- ●
6 HARNESS; FRAME 1-82678-195-5 01 1 0609- ●
13 HARNESS; ENG
(A) 		8-97605-001-6 01 1 0609- ● ●
13 HARNESS; ENG
(B) 		1-82662-815-3 01 1 0609- ●
13 HARNESS; ENG
(B) 		1-82662-763-5 01 1 0609- ●
201 HARNESS; AIR TANK 1-82678-119-1 01 1 0609- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0609- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0609- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0609- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0609- ● ●
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0609- ● ●
486 HARNESS; ALL SPEED ACCEL
PTO CONTROL<SV6> 		1-82675-898-0 01 1 0609- ● ●

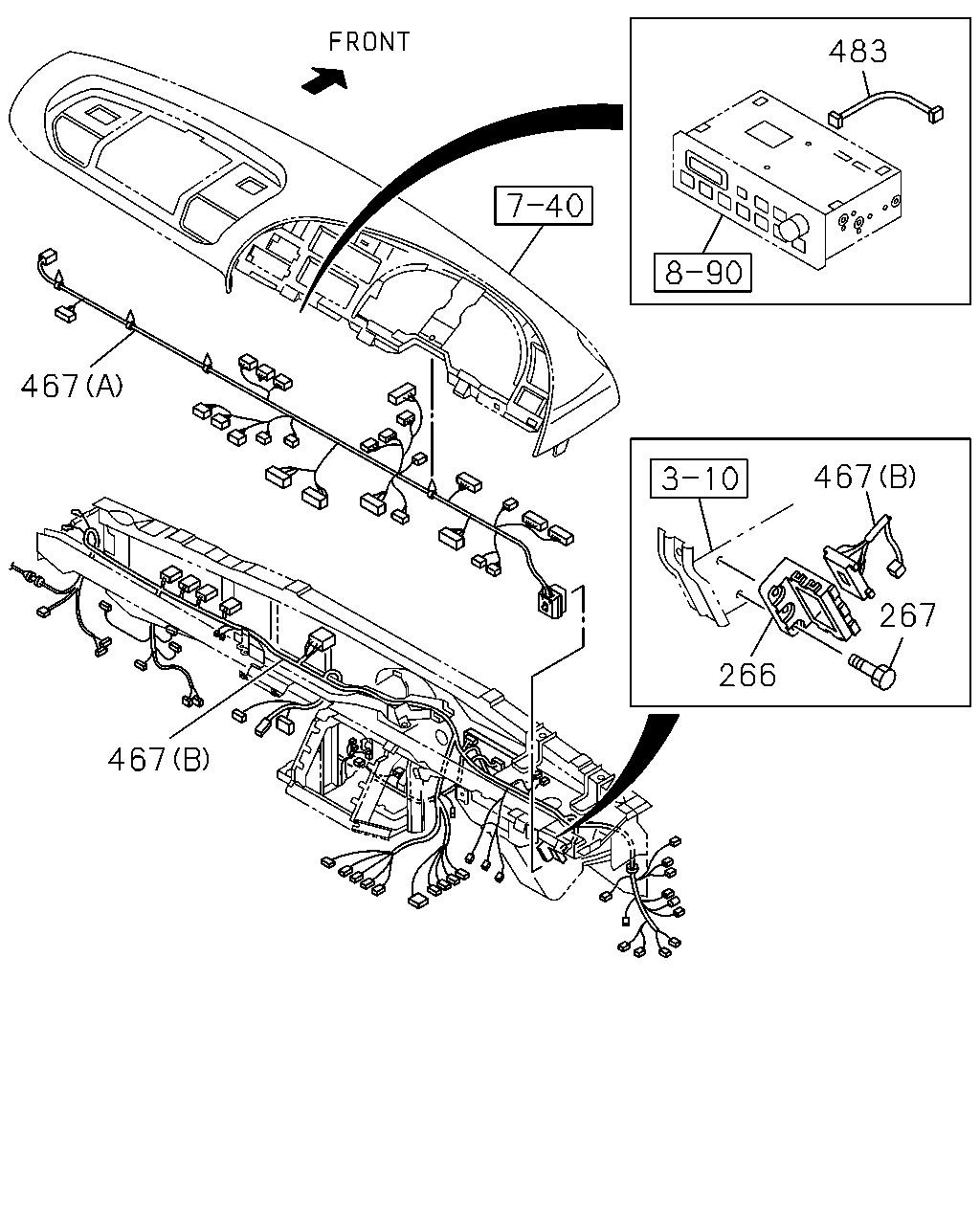

çizim 105497
483 467 467 267 266 467
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0609- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0609- ● ●
467 HARNESS; FACIA
NISSAN DIESEL MPS62B M/T(Y2Z) (B) 		1-82662-813-6 01 1 0609- ●
467 HARNESS; FACIA
ZF9S1110 M/T(Y5E) (B) 		1-82662-814-6 01 1 0609- ●
467 HARNESS; FACIA
(A) 		1-82662-866-0 01 1 0609- ● ●
467 HARNESS; FACIA
(B) 		1-82662-761-6 01 1 0609- ●
483 HARNESS; EXT,RADIO
RADIO CLARION(SK2) 		8-98075-645-0 01 1 0703- ●

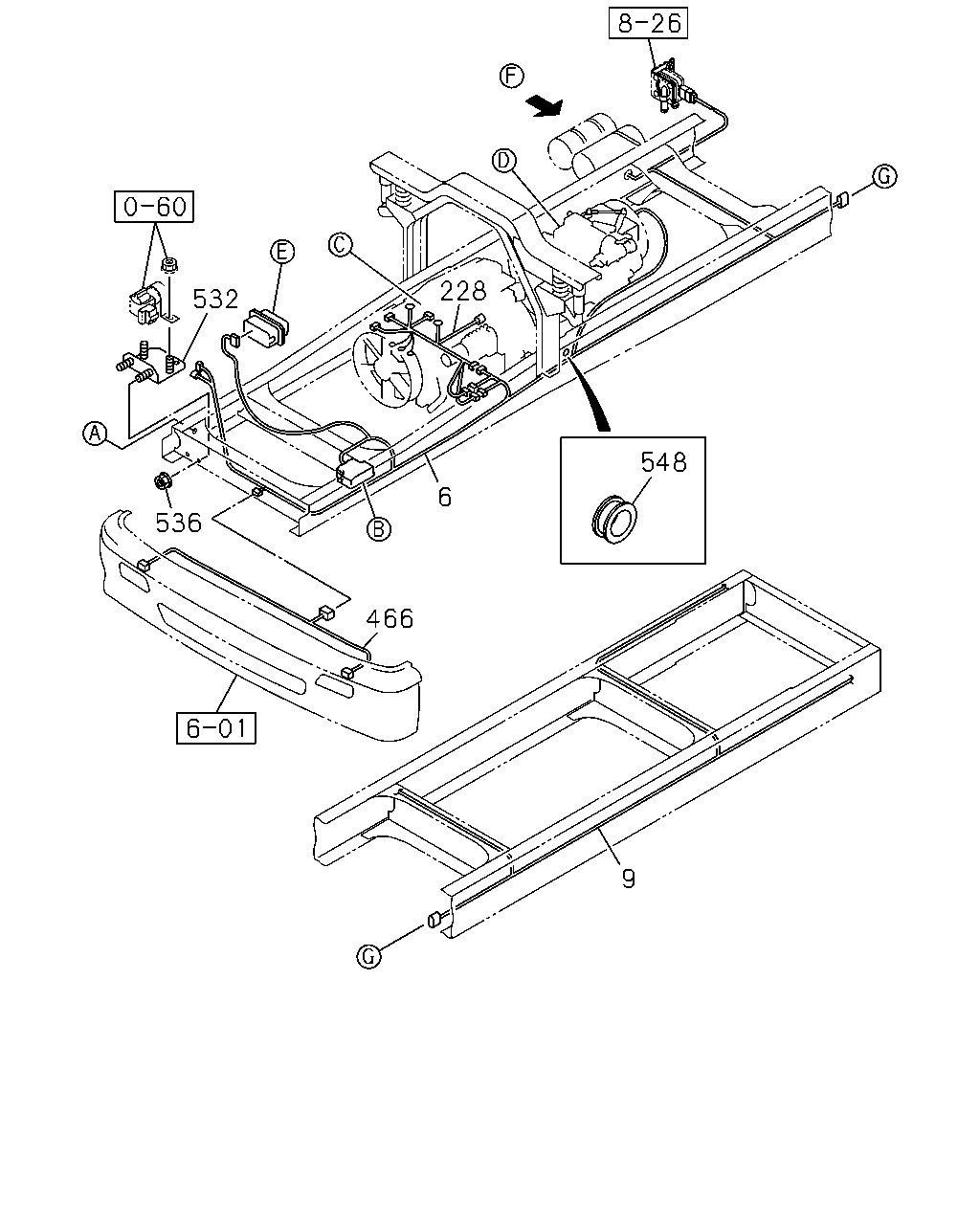

çizim 106559
228 532 548 6 536 466 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-82678-196-5 01 1 0609- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		1-82678-197-5 01 1 0609- ●
6 HARNESS; FRAME 1-82678-195-5 01 1 0609- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		1-82678-224-1 01 1 0609- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		1-82678-225-0 01 1 0609- ●
9 HARNESS; FRAME,RR 1-82678-225-0 01 1 0609- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		1-82678-226-0 01 1 0609- ●
228 HARNESS; GEN 8-98019-892-5 01 1 0609- ● ●
466 HARNESS; BUMPER 8-97604-578-2 01 1 0609- ●
466 HARNESS; BUMPER 1-82678-326-0 01 1 0609- ●
532 BRACKET; RELAY 8-98049-149-0 01 1 0609- ● ●
536 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
548 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0609- ● ●
